Modern power distribution networks face a familiar set of challenges: limited space, rising load density, stricter safety requirements, and growing pressure to reduce maintenance costs. For utilities, EPC contractors, data center operators, and industrial facility managers, the cable branch box is no longer just a connection point. It is a critical part of a reliable, compact, and future-ready distribution system.

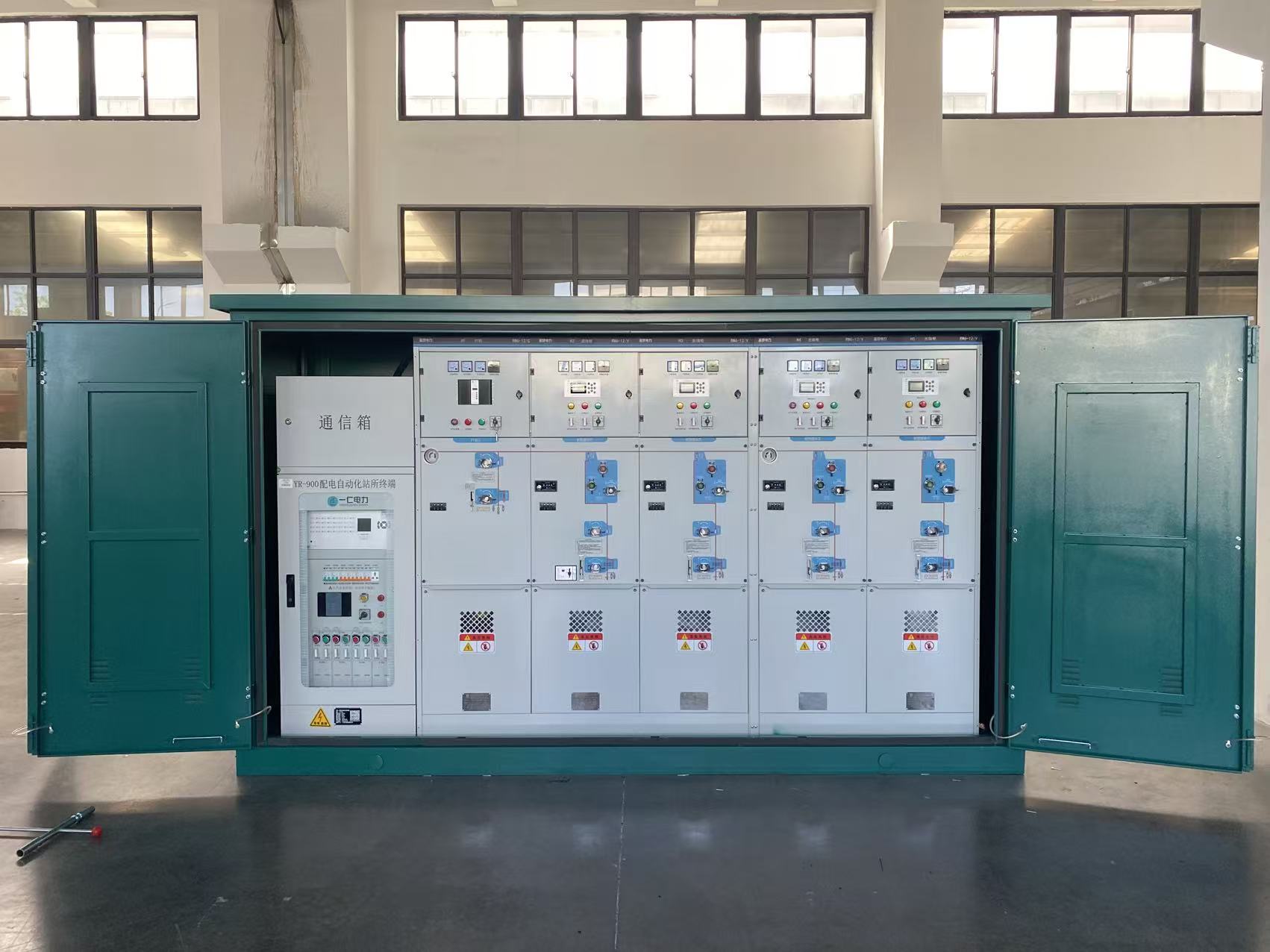

That is why more projects are choosing a cable branch box with gas-insulated switchgear (GIS) . By combining cable branching, switching, and protection in one sealed unit, this solution delivers high reliability in a much smaller footprint.
The global medium voltage switchgear market was valued at approximately $46.5 billion in 2025 and is projected to reach $48.6 billion in 2026, growing at a CAGR of 4.5%, according to Research and Markets. This growth is driven by grid expansion, renewable energy integration, and the increasing electrification of urban infrastructure. Within this market, GIS-based solutions are gaining share rapidly because they solve the core constraints of modern distribution projects: space, reliability, and environmental compliance.
A cable branch box is used to connect, branch, and protect medium-voltage cables in a distribution network. It allows multiple incoming and outgoing cables to be combined safely and efficiently.
When integrated with gas-insulated switchgear, the live parts are enclosed in a sealed gas tank. The insulating gas—or an SF6-free gas mixture—provides dielectric strength and prevents contact with moisture, dust, salt spray, and other contaminants.
The result is a compact, sealed, and low-maintenance unit that can be installed in space-constrained or harsh environments.
Several industry trends are pushing GIS cable branch boxes from a niche choice to a mainstream solution.
Cities are electrifying faster than they are expanding their grid infrastructure. Underground distribution vaults, commercial basements, and dense urban corridors have almost no room for conventional air-insulated equipment. GIS technology reduces footprint by 70–90% compared to equivalent AIS substations, making it the only viable option in many high-density locations. For secondary distribution systems up to 38 kV, GIS can achieve over 75% space savings compared to traditional air-insulated switchgear.
Each gigawatt of new wind or solar capacity requires approximately 400–600 medium voltage switchgear panels or RMUs for collector substations, inverter stations, and point-of-common-coupling installations. Renewable developers increasingly specify compact GIS to minimize land use and accelerate permitting. This creates a premium segment that rewards suppliers with proven renewable energy application experience and fast delivery capability.
Data centers have unique performance requirements that differ from utilities and less critical industrial applications. They need zero-downtime power, high fault isolation capability, and equipment that can operate reliably in conditioned but dense electrical rooms. GIS technology is becoming the preferred choice for data center substations because downtime can cost millions of dollars per day. GIS offers a 10-year inspection interval compared to the more frequent maintenance cycles required by AIS. Major projects are increasingly specifying GIS with capacities of 300 MW and above for hyperscale data center campuses.
Europe's revised F-Gas Regulation (EU) 2024/573 sets firm deadlines for phasing out SF6 from electrical switchgear, starting with medium-voltage equipment in 2026 and reaching high-voltage systems above 145 kV by 2032. SF6 has a global warming potential 23,500 times that of CO₂ and an atmospheric lifetime of approximately 3,200 years. Replacing it is one of the most concrete, measurable steps the power sector can take toward its 2030 climate commitments. This regulatory pressure is driving rapid adoption of SF6-free GIS alternatives, including natural-origin gases such as nitrogen, CO₂, and synthetic air, as well as fluorinated mixtures based on C4F7N or C5F10O.
GIS technology significantly reduces the space required for insulation and arc-quenching. A GIS cable branch box can fit into underground vaults, compact substations, commercial buildings, and dense urban areas where traditional air-insulated equipment may not be practical. Siemens white paper data confirms average space savings of over 50% for systems up to 15 kV and over 75% for systems up to 38 kV compared to air-insulated switchgear.
Because the live parts are sealed inside a gas tank, the equipment is protected from external pollution, humidity, and flooding risks. This is especially important in coastal areas, chemical plants, tunnels, and underground distribution rooms. A hermetically sealed gas compartment eliminates the potential for foreign body penetration and reduces the fault rate significantly.
Air-insulated switchgear requires regular cleaning, inspection, and moisture control. A sealed GIS unit reduces routine maintenance and minimizes the risk of human error during operation. Siemens reports that GIS offers a 10-year inspection interval, compared to the more frequent service requirements of air-insulated equipment. Over the 40–60 year service life of a typical installation, the cumulative maintenance savings can partially offset the higher initial capital cost.
The enclosed design prevents accidental contact with live parts. Interlocks, grounding switches, and clear operating indicators further improve safety for operators and maintenance teams. Arc-resistant GIS is tested to ANSI/IEEE C37.20-7 standards, providing verified protection against internal arc faults.
Environmental regulations are driving the industry toward SF6-free solutions. Many modern GIS cable branch boxes can use dry air, nitrogen, or eco-friendly gas mixtures, helping projects meet sustainability targets without sacrificing performance. Schneider Electric's RM AirSeT platform, for example, uses pressurized pure air insulation and vacuum interruption technology instead of SF6, and has been extended from 24 kV to 38 kV for data center applications.
A cable branch box with GIS is suitable for:
Urban underground distribution networks. Space is at a premium, and excavation costs are high. GIS reduces vault size and installation complexity.
Data centers and AI computing facilities. Zero-downtime power is mandatory. GIS provides the reliability and fault isolation needed for critical loads.
Industrial parks and manufacturing plants. Dust, humidity, and chemical exposure degrade air-insulated equipment. Sealed GIS eliminates these environmental risks.
Renewable energy projects. Solar and wind farms require compact collector substations. GIS minimizes land use and simplifies installation.
Commercial complexes, hospitals, and airports. Basement electrical rooms have limited ceiling height and ventilation. GIS operates safely in confined spaces.
Rail, tunnel, and infrastructure projects. Vibration, humidity, and limited access make maintenance difficult. GIS reduces the need for intervention.
In these applications, space, reliability, and service continuity are critical. A sealed GIS solution helps reduce outage risk and simplifies long-term operation.
When selecting a GIS cable branch box, review these parameters:
Rated voltage: typically 12 kV, 24 kV, 36 kV, or 40.5 kV
Rated current and short-time withstand current
Busbar configuration and cable connection types
IP rating and corrosion protection (IP54 or higher for outdoor/underground)
Gas tank design and gas monitoring options
SF6 or SF6-free insulation
Operating mechanism: manual, motorized, or remote
Remote monitoring and smart grid compatibility
Compliance with IEC 62271 and relevant local standards
Arc-resistant classification if required by project specifications
The IEC 62271 series covers the key testing requirements for medium voltage switchgear, including temperature rise tests, short-time and peak withstand current tests, and dielectric tests. Type-tested equipment compliant with IEC 62271-200 provides verified performance data that is essential for EPC project approval.
Feature | Gas-Insulated Switchgear (GIS) | Air-Insulated Switchgear (AIS) |
|---|---|---|
Footprint | 10–25% of equivalent AIS | Large outdoor installation |
Protection from environment | Excellent (sealed) | Limited |
Maintenance interval | 10 years | 5 years or more frequent |
Installation in harsh conditions | Easy | More difficult |
Initial cost per bay | 2–3x higher | Lower |
Service life | 40–60 years | Shorter |
Long-term reliability | High (IEEE Gold Book data) | Depends on environment |
Arc-resistant design | Standard | Optional |
SF6-free availability | Yes (multiple OEMs) | N/A |
For projects with limited space, high humidity, or strict reliability requirements, GIS is often the better choice. While the capital expenditure for GIS is typically higher, the total cost of ownership can be competitive in dense or high-value sites because GIS reduces land, infrastructure, and outage-related costs. At the 230 kV class, the GIS premium can range from $4M to $12M per bay, but land cost above $2M per acre typically justifies the investment.
A common question from project engineers is whether to specify a cable branch box or a ring main unit (RMU). Both are used in cable-based distribution networks, but their functions and application scenarios differ significantly.
Cable branch box: Primarily a connection and branching point. It allows one incoming feeder to be split into multiple outgoing feeders without complex switching equipment. It offers simple structure, compact size, lower cost, and optional switch configuration.
Ring main unit (RMU): A fully functional medium voltage switchgear unit designed for ring network distribution systems. It integrates load break switches, circuit breakers, and protection and control devices. Compared with a cable branch box, an RMU provides higher reliability, fault isolation capability, and automation compatibility.
The key differences can be summarized as:
Feature | Cable Branch Box | Ring Main Unit (RMU) |
|---|---|---|
Function | Power distribution only | Switching, protection, and control |
Cost | Lower | Higher |
Reliability | Basic | High (supports fault isolation) |
Maintenance | Minimal | Requires professional operation |
Automation | Limited | Supports smart grid integration |
In many real-world projects, both devices are used together to achieve a balance between cost and performance. The selection depends on whether you need simple, cost-effective distribution or require full switching, protection, and network automation.
Not all GIS cable branch boxes are the same. A reliable supplier should provide:
Type-tested products and relevant certifications (IEC, IEEE, or KEMA)
Customized designs for voltage, current, and layout
Factory acceptance testing and detailed test reports
Experience with export projects and international standards
Responsive technical support and after-sales service
For EPC projects, early technical communication is essential. The supplier should be able to review single-line diagrams, site conditions, and cable schedules to recommend the right configuration.
Supply chain constraints are a critical factor in GIS procurement planning. Lead times for primary components—gas compartments, high-voltage bushings, and control cabinets—have extended to 40–60 weeks, forcing buyers to place orders 18–24 months ahead of project requirements. Medium-voltage GIS equipment can face wait times of 90 to 130 weeks from major suppliers during peak demand periods.
For projects on tighter schedules, working with suppliers who maintain pre-staged inventory or have shorter production cycles can make a significant difference. Some manufacturers offer 15–35 day lead times for standard medium-voltage switchgear configurations. Early engagement with suppliers during the design phase is recommended to avoid schedule delays.
What is the difference between a cable branch box and a ring main unit? A cable branch box focuses on cable branching and connection. A ring main unit is typically used for switching and protection in ring networks. A GIS cable branch box can combine both functions in one compact unit, but the selection depends on whether fault isolation and automation are required.
Can GIS cable branch boxes be installed outdoors? Yes. With the correct IP rating and enclosure protection (IP54 or higher), they can be installed outdoors, underground, or in semi-buried vaults.
Is SF6-free GIS available? Yes. SF6-free gas-insulated switchgear is increasingly available and is becoming a preferred option for projects with strict environmental requirements. Multiple OEMs now offer commercially available SF6-free GIS lines using natural-origin gases or fluorinated mixtures with significantly lower global warming potential.
What voltage range is typical? Medium-voltage cable branch boxes with GIS are commonly used from 12 kV to 40.5 kV. Higher voltage classes are available for transmission-level applications.
How long do GIS cable branch boxes last? Typical service life is 40–60 years, depending on operating conditions and maintenance practices. The sealed design reduces environmental degradation and extends equipment life.
What certifications should I look for? IEC 62271 compliance is essential. For export projects, KEMA or IEEE certification may also be required depending on the destination market.
Modern GIS cable branch boxes can be equipped with intelligent monitoring capabilities that align with smart grid and digital substation requirements. Sensors for temperature, partial discharge, current, humidity, and vibration can be integrated to provide real-time condition data. This enables fault prediction, remote diagnosis, and condition-based maintenance, reducing unplanned downtime.
Environmental sensors can also monitor SF6 or alternative gas concentration levels to detect leakage and ensure safety. For projects designed with digital substation architecture, GIS cable branch boxes can be integrated with communication protocols and SCADA systems for centralized monitoring and control.
