Cable Distribution Boxes Explained: 7 Things Every Utility Buyer Should Know Before Ordering

Modern electrical distribution systems demand equipment that is safe, reliable, and easy to maintain. Among the most important components is the Cable Distribution Box (Cable Branch Box).

Although it may look like a simple outdoor cabinet, a high-quality cable distribution box directly influences power reliability, maintenance costs, and future network expansion.

If you're planning a utility, industrial, renewable energy, or infrastructure project, here are seven important factors to consider before placing your order.

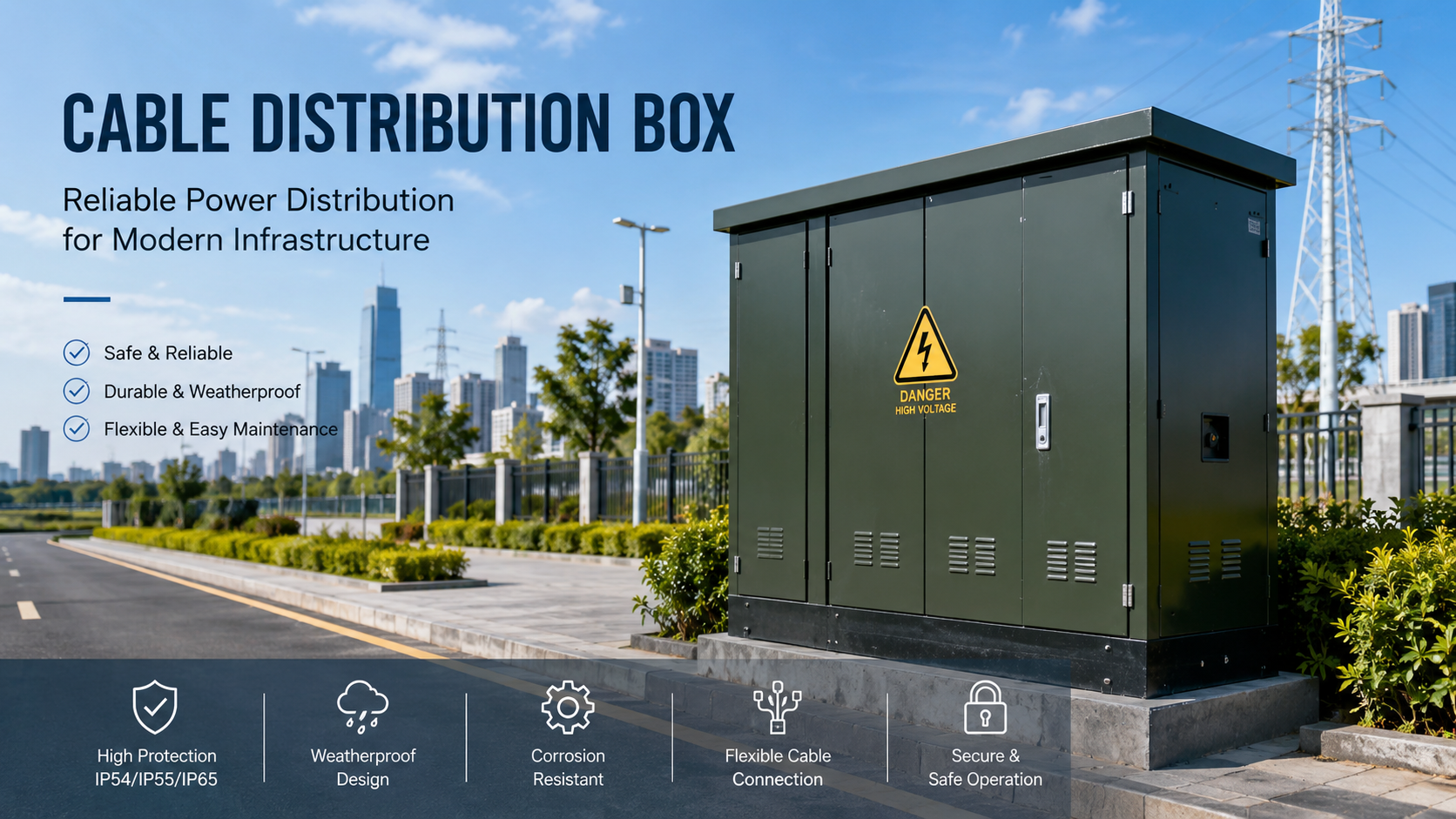

1. What Is a Cable Distribution Box?

A suggested location for Image 1

Image Recommendation: A high-quality product photo of an outdoor cable distribution box installed beside a road or in a utility project.

A cable distribution box is an electrical enclosure designed to connect, branch, distribute, and protect medium- or low-voltage power cables.

Unlike traditional overhead distribution systems, cable distribution boxes support underground cable networks, providing:

• Safe cable connections

• Flexible branching

• Improved system reliability

• Reduced maintenance

• Better protection against weather and accidental damage

Typical voltage levels include:

• 10kV

• 11kV

• 15kV

• 20kV

• 24kV

• 33kV

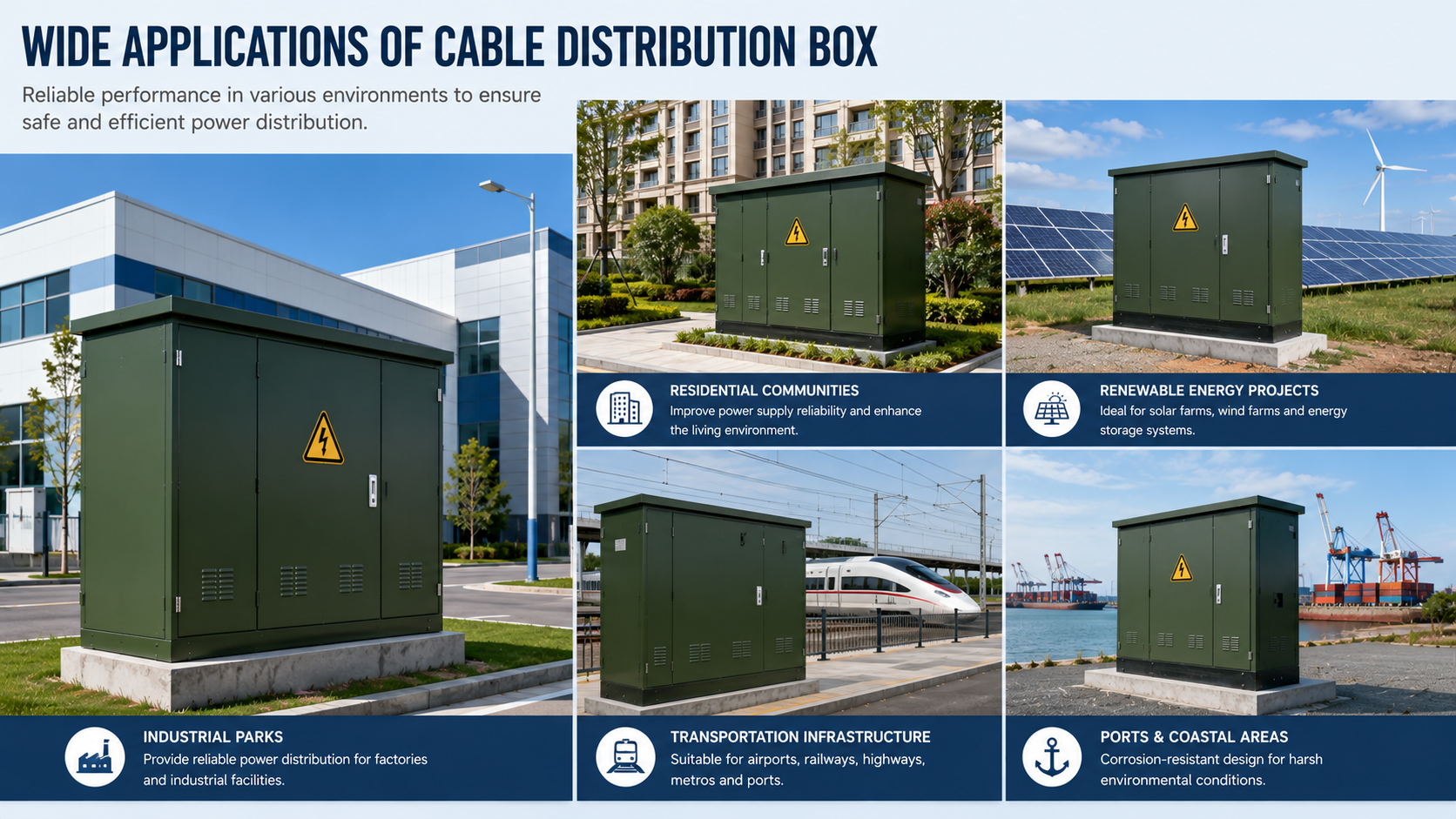

2. Where Are Cable Distribution Boxes Used?

Cable distribution boxes are widely installed in numerous power distribution projects.

Urban Power Distribution

Cities increasingly replace overhead lines with underground cable systems. Distribution boxes simplify cable branching while improving city appearance.

Industrial Facilities

Factories require reliable power distribution with convenient maintenance access.

Renewable Energy Projects

Solar farms and wind farms use cable distribution boxes to collect and distribute generated electricity.

Residential Communities

Modern residential developments rely on underground cable systems for improved safety and aesthetics.

Transportation Infrastructure

Applications include:

• Airports

• Railways

• Highways

• Ports

• Metro systems

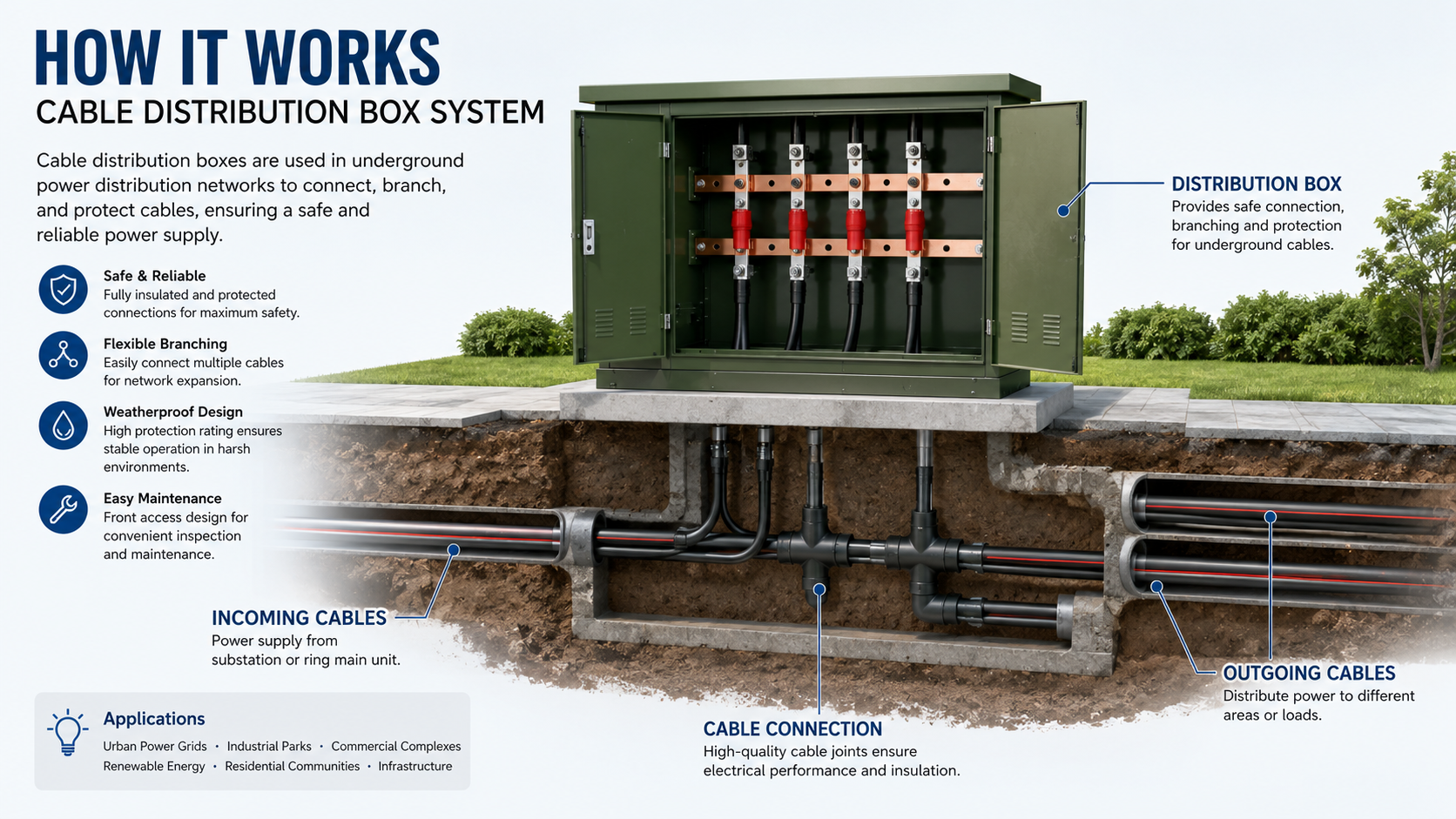

3. Why Underground Cable Networks Need Distribution Boxes

A suggested location for Image 2

Image Recommendation: A simple infographic showing underground power cables connected through a cable distribution box.

Underground cable systems cannot simply be connected together like overhead conductors.

Instead, engineers require dedicated equipment that provides:

• Waterproof cable joints

• Mechanical cable protection

• Safe electrical insulation

• Flexible circuit expansion

• Easy maintenance access

Without proper cable distribution boxes, maintenance becomes significantly more difficult and expensive.

4. Key Features to Look For

Not all cable distribution boxes offer the same level of performance.

When comparing suppliers, pay attention to the following features.

High Protection Rating

Look for:

• IP54

• IP55

• IP65 (recommended for harsh environments)

A higher protection level prevents dust, rain, and moisture from entering the enclosure.

Corrosion Resistance

Outdoor equipment should withstand decades of exposure.

Preferred materials include:

• Stainless Steel

• Galvanized Steel

• Powder-coated Steel

• Aluminum Alloy

Flexible Cable Entry

Large projects often require multiple incoming and outgoing cables.

Choose cabinets that support:

• Bottom cable entry

• Side cable entry

• Multiple cable sizes

• Expansion capability

Internal Busbar Design

A well-designed copper busbar system reduces:

• Contact resistance

• Heat generation

• Power loss

High-quality busbars also improve long-term reliability.

Safety Protection

Essential safety features include:

• Grounding system

• Cable fixing brackets

• Insulated barriers

• Mechanical interlocks

• Lockable doors

5. Common Mistakes Buyers Make

A suggested location for Image 3

Image Recommendation: Split comparison image showing a low-quality distribution box versus a premium industrial-grade cabinet.

Many procurement teams focus only on price.

However, the lowest-cost option often leads to higher lifecycle costs.

Common mistakes include:

Choosing Thin Steel

Thin cabinet walls deform more easily during transportation and installation.

Ignoring Environmental Conditions

A coastal project requires better corrosion protection than an inland installation.

Forgetting Future Expansion

Projects often grow over time.

Ordering a cabinet with additional cable capacity can avoid expensive future replacements.

Ignoring Certification

Always verify whether the supplier can provide:

• IEC standards

• Factory testing reports

• Type test reports

• Quality certificates

6. How Cable Distribution Boxes Improve Grid Reliability

A suggested location for Image 4

Image Recommendation: An engineer performing maintenance on a cable distribution box in a modern utility substation.

Modern power utilities aim to reduce outage duration.

Cable distribution boxes help by:

• Simplifying cable fault isolation

• Improving maintenance efficiency

• Supporting network expansion

• Reducing cable damage

• Increasing operational safety

For utilities managing thousands of distribution points, these advantages translate into substantial long-term savings.

7. Choosing the Right Manufacturer

The supplier is just as important as the product itself.

Consider manufacturers that offer:

Custom Design

Every project is different.

A reliable manufacturer should provide:

• OEM service

• Customized dimensions

• Custom cable layouts

• Customized colors

• Logo branding

Strong Manufacturing Capability

Look for suppliers with:

• CNC sheet metal processing

• Automatic welding

• Powder coating lines

• Professional assembly workshops

• Strict quality inspection

Export Experience

Experienced exporters understand:

• International standards

• Packaging requirements

• Shipping documentation

• Project schedules

• Technical communication

Technical Support

Professional suppliers should provide:

• Technical drawings

• Single-line diagrams

• Installation guidance

• Wiring support

• Fast quotation service

Why Choose Zhejiang Shengxian Electric Power Technology Co., Ltd.?

A suggested location for Image 5

Image Recommendation: Factory production line or a professional team inspecting cable distribution boxes before shipment.

At Zhejiang Shengxian Electric Power Technology Co., Ltd., we manufacture reliable electrical distribution equipment for utility, industrial, renewable energy, and infrastructure projects worldwide.

Our advantages include:

• Professional OEM & ODM services

• High-quality galvanized or stainless-steel enclosures

• Flexible customization

• Strict factory quality control

• Fast technical support

• Export experience across multiple international markets

• Competitive pricing

• Reliable delivery schedules

Whether you require a standard cable distribution box or a fully customized solution, our engineering team is ready to support your project.

Conclusion

A cable distribution box is much more than a protective cabinet—it is a vital part of a reliable electrical distribution network. By selecting the right enclosure material, protection rating, internal design, and manufacturing partner, you can reduce maintenance costs, improve operational safety, and ensure long-term system performance.

If you are planning a power distribution project, choosing an experienced manufacturer will help you achieve greater reliability, easier installation, and better lifecycle value.

FAQ

Q1. What is the difference between a cable distribution box and a ring main unit (RMU)?

A cable distribution box is primarily used for cable branching and connection, while an RMU includes switching and protection functions for medium-voltage distribution networks.

Q2. Can cable distribution boxes be customized?

Yes. Most manufacturers offer customized dimensions, enclosure materials, cable entry configurations, colors, and branding to meet project requirements.

Q3. Which enclosure material is best for outdoor installations?

Galvanized steel with powder coating is suitable for most environments, while stainless steel is recommended for coastal or highly corrosive locations.

Q4. What IP rating should I choose?

For general outdoor use, IP54 or IP55 is common. In dusty, humid, or harsh environments, IP65 provides better protection.

Q5. What information should I provide when requesting a quotation?

To receive an accurate quotation, prepare the following:

• Voltage level (e.g., 10kV, 15kV, 24kV)

• Number of incoming and outgoing cables

• Cable sizes and types

• Enclosure material preference

• Installation environment (indoor or outdoor)

• Required IP protection rating

• Quantity

• Any customization requirements (dimensions, color, logo, etc.)
