Unexpected downtime is one of the biggest concerns in modern electrical power systems. Whether in manufacturing plants, commercial buildings, renewable energy projects, mining operations, or utility substations, even a few minutes of power interruption can result in significant financial losses.
As electrical networks become more complex, reliability, safety, and maintenance efficiency are more important than ever. This is where KYN28 medium voltage switchgear stands out.
Designed for three-phase AC systems ranging from 3.6kV to 12kV (and higher voltage variants in some applications), KYN28 switchgear combines advanced protection technology, a metal-clad enclosure, and a withdrawable vacuum circuit breaker to provide safe, continuous, and efficient power distribution.
In this article, we'll explore how KYN28 switchgear minimizes downtime and why engineers around the world continue to select it for demanding power distribution projects.

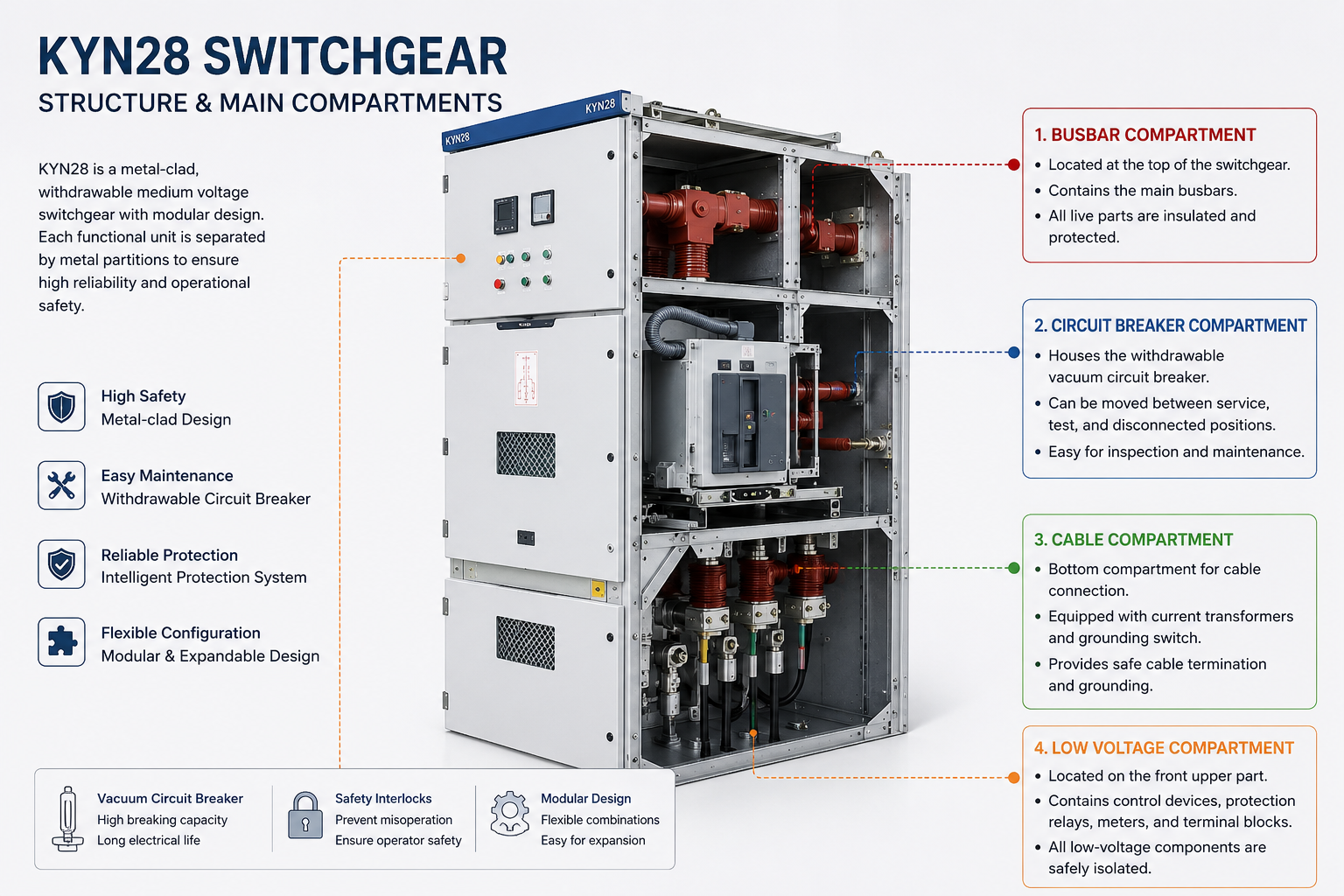

KYN28 is a metal-clad, air-insulated medium voltage switchgear widely used in industrial and utility power distribution systems.
Its modular design allows every functional compartment—including the circuit breaker compartment, cable compartment, busbar compartment, and low-voltage control compartment—to remain physically separated. This greatly improves operational safety and simplifies maintenance.
The switchgear is commonly equipped with a vacuum circuit breaker, offering fast interruption of fault currents while requiring minimal maintenance.
Typical applications include:
Electrical substations
Industrial factories
Commercial buildings
Renewable energy plants
Mining facilities
Oil and gas projects
Data centers
Infrastructure projects
Power generation stations
Electrical downtime affects much more than production schedules.
A power interruption can lead to:
Production losses
Equipment damage
Data loss
Delayed project delivery
Increased maintenance costs
Safety risks for operators
Customer dissatisfaction
Reducing downtime has become one of the primary goals for engineers designing modern power systems.
One of the most important components inside KYN28 switchgear is the vacuum circuit breaker.
Compared with traditional oil or air circuit breakers, vacuum circuit breakers provide:
Extremely fast fault interruption
Long mechanical life
Low maintenance requirements
High dielectric strength
Stable switching performance
Because there is no insulating oil involved, maintenance becomes cleaner, safer, and more environmentally friendly.
Each functional section inside KYN28 switchgear is completely isolated.
These independent compartments include:
Busbar compartment
Circuit breaker compartment
Cable compartment
Instrument compartment
If a fault occurs in one compartment, it is less likely to spread throughout the entire system.
This compartmentalized design reduces outage time and improves system reliability.

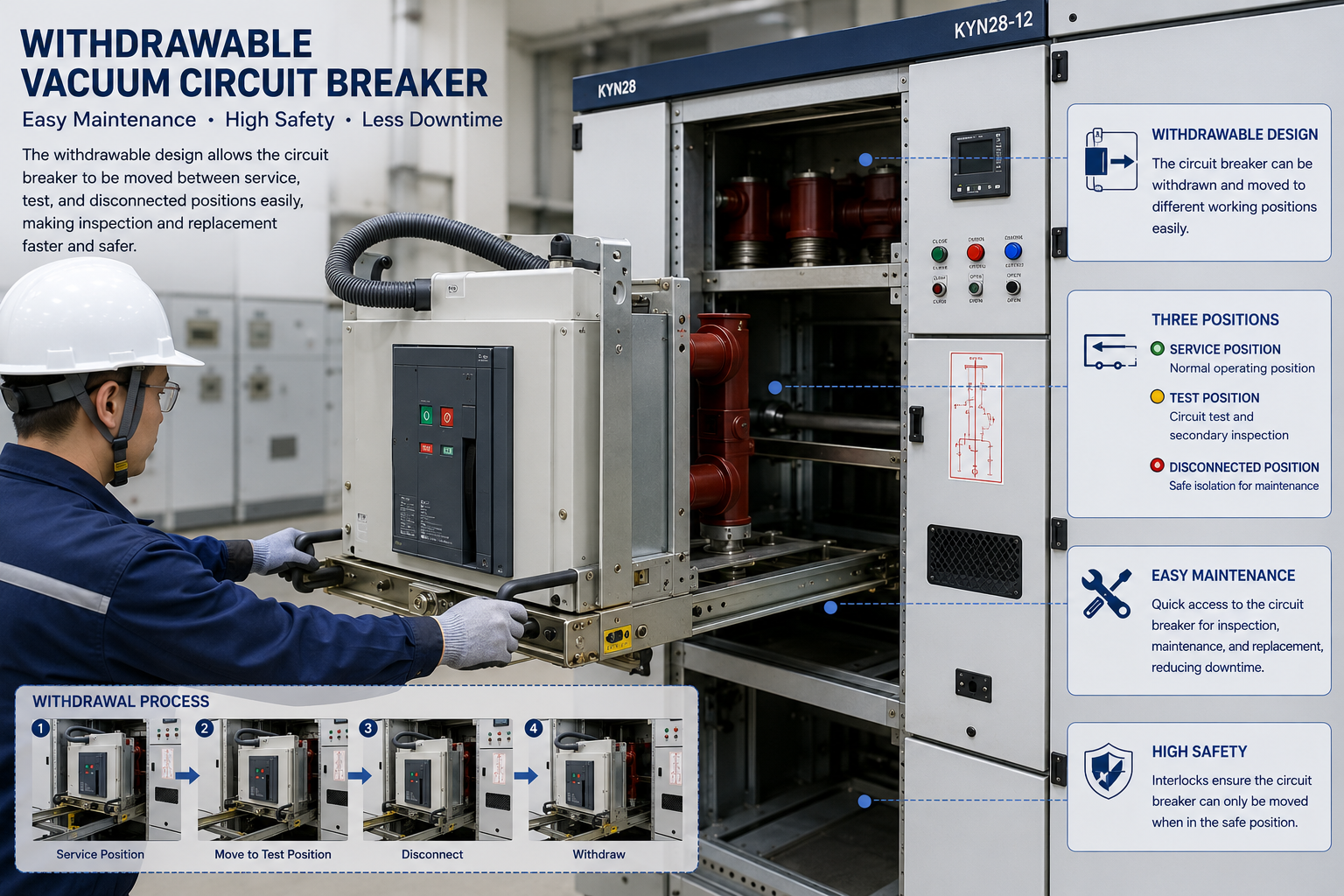

Traditional fixed switchgear often requires shutting down large portions of the electrical system for maintenance.
KYN28 features a withdrawable circuit breaker that can be moved between service, test, and disconnected positions.
Benefits include:
Faster inspection
Easier replacement
Reduced maintenance time
Lower labor costs
Improved operator safety
Routine maintenance can often be completed with minimal impact on the rest of the electrical network.
Modern KYN28 switchgear supports intelligent protection relays capable of detecting:
Overcurrent
Earth faults
Short circuits
Undervoltage
Overvoltage
Phase imbalance
Frequency abnormalities
Once a fault is detected, the circuit breaker isolates the affected section almost instantly.
Instead of shutting down the entire facility, only the faulty feeder is disconnected.
This significantly reduces production interruptions.
Safety interlocks are another reason engineers trust KYN28 switchgear.
These interlocks help prevent incorrect operating procedures such as:
Closing the breaker while grounded
Opening compartment doors under load
Moving the breaker during operation
Operating the grounding switch incorrectly
These protective mechanisms reduce the possibility of operator error and improve overall system availability.
Power distribution equipment often operates continuously for decades.
KYN28 switchgear is designed with durability in mind.
Key reliability features include:
Corrosion-resistant metal enclosure
High-quality insulation materials
Precision manufacturing
Stable electrical connections
Excellent heat dissipation
Long mechanical service life
When installed and maintained properly, KYN28 switchgear can provide reliable operation for many years.
One reason KYN28 switchgear has become so popular is its flexibility.
It is widely used in:
Ensures continuous production while protecting expensive machinery.
Provides reliable switching for solar and wind power substations.
Supports stable power transmission and distribution.
Protects office buildings, hospitals, shopping malls, and airports.
Operates reliably in demanding industrial environments.
Helps maintain uninterrupted power supply for critical IT infrastructure.
Compared with many conventional medium voltage switchgear designs, KYN28 offers several advantages.
Feature | Conventional Switchgear | KYN28 Switchgear |
|---|---|---|
Safety | Standard | Excellent metal-clad protection |
Maintenance | More complex | Easy withdrawable maintenance |
Reliability | Good | Very high |
Downtime | Higher | Lower |
Protection | Basic | Intelligent protection options |
Expandability | Limited | Modular design |
Service Life | Good | Long-term reliability |
These advantages make KYN28 a preferred solution for modern electrical distribution projects.
High-quality KYN28 switchgear is typically manufactured in accordance with international standards such as:
IEC 62271 Series
ISO 9001 Quality Management
CE requirements (where applicable)
Many manufacturers also perform:
Routine testing
Type testing
High-voltage testing
Mechanical operation testing
Partial discharge testing
Protection function verification
These quality control procedures help ensure reliable field performance.
When selecting a KYN28 switchgear solution, buyers should evaluate:
Rated voltage
Rated current
Short-circuit breaking capacity
Protection relay configuration
Incoming and outgoing feeder quantity
Installation environment
Expansion requirements
Compliance with local standards
Working with an experienced manufacturer can help ensure the system is properly configured for long-term reliability.
Reducing electrical downtime requires more than simply installing high-quality equipment—it requires a complete solution designed for safety, reliability, and efficient maintenance.
KYN28 medium voltage switchgear delivers exactly that.
Its metal-clad construction, withdrawable vacuum circuit breaker, intelligent protection system, and comprehensive safety interlocks work together to minimize outages, simplify maintenance, and improve operational continuity.
Whether for industrial plants, substations, renewable energy projects, or commercial infrastructure, KYN28 switchgear has proven to be a dependable choice for engineers worldwide.
For organizations seeking long-term operational reliability and lower lifecycle costs, KYN28 remains one of the most trusted medium voltage switchgear solutions available.
Q1: What voltage levels does KYN28 switchgear support?
KYN28 switchgear is commonly designed for medium-voltage systems from 3.6kV to 12kV, with higher-voltage configurations available depending on project requirements.
Q2: Why is a vacuum circuit breaker used in KYN28 switchgear?
Vacuum circuit breakers provide fast fault interruption, long service life, minimal maintenance, and excellent operational reliability.
Q3: Is KYN28 switchgear suitable for renewable energy projects?
Yes. KYN28 switchgear is widely used in solar, wind, and energy storage projects due to its reliability, safety, and flexible configuration.
Q4: How does KYN28 switchgear reduce maintenance time?
Its withdrawable circuit breaker design allows inspection and servicing with less disruption to the electrical system, reducing maintenance downtime.
Q5: What industries commonly use KYN28 switchgear?
It is widely applied in utilities, manufacturing, mining, commercial buildings, hospitals, airports, data centers, oil and gas facilities, and renewable energy installations.
