Complete Guide to Electrical Complete Sets of Equipment: Types, Applications, and Market Trends

Introduction

In modern power systems, electrical complete sets of equipment (also known as switchgear or complete power distribution devices) form the backbone of safe and reliable electricity distribution. Whether you are managing an industrial facility, a commercial building, or a utility-scale power grid, understanding these essential assemblies is critical for ensuring operational efficiency, safety, and regulatory compliance.

This comprehensive guide explores what electrical complete sets of equipment are, their major types and applications, current market trends, and key considerations for selecting the right solution for your project.

What Are Electrical Complete Sets of Equipment?

An electrical complete set of equipment refers to a factory-assembled unit that integrates multiple electrical devices into a coordinated system. Rather than piecing together individual components on-site, manufacturers pre-assemble high and low voltage electrical apparatus—including control appliances, protection devices, measuring instruments, circuit breakers, isolating switches, transformers, busbars, conductors, and insulators—within enclosed or semi-enclosed metal cabinets according to specific wiring requirements.

This unit circuit sub-cabinet becomes what is known as a complete set of power distribution equipment. During installation, these units are combined according to the main wiring scheme to form the entire power distribution system.

Primary vs. Secondary Equipment

Primary equipment refers to the main power-carrying components, including:

• Busbars

• Disconnectors (high voltage) and knife switches (low voltage)

• Circuit breakers (air switches)

• Voltage and current transformers

• Power transformers

• AC contactors

• Protection relays (thermal relays)

• Lightning arresters

Secondary equipment supports monitoring and control of the primary system, including:

• Measuring instruments (ammeters, voltmeters, power factor meters, power meters, frequency meters)

• Control signal components (signal lights, buttons, universal transfer switches)

• Relay protection devices

Classification by Voltage Level

Electrical complete sets of equipment are primarily classified by voltage rating:

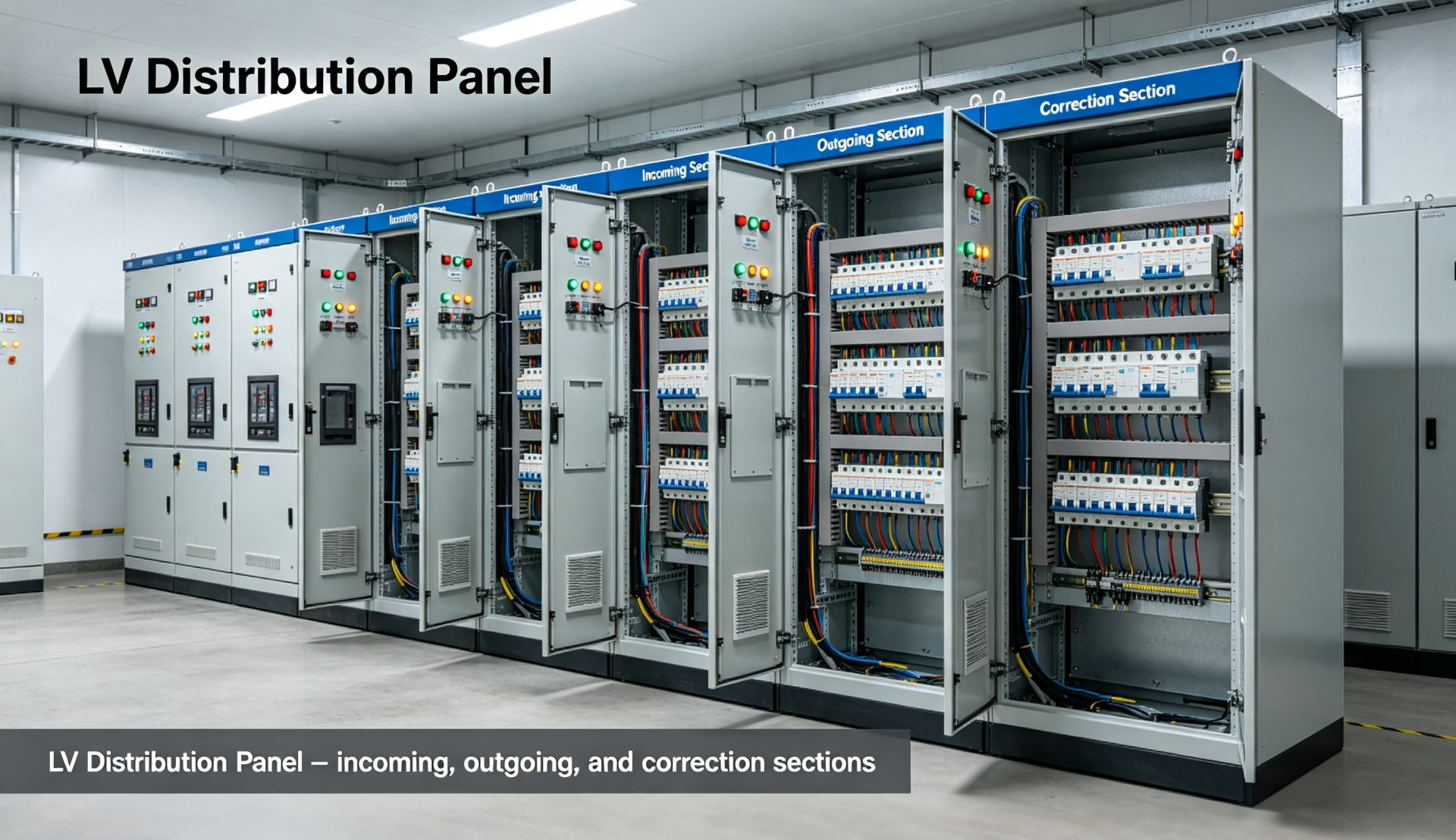

Low Voltage Switchgear (≤1.2kV)

• 0.4kV, 0.69kV, 1.2kV systems

• Commonly used in industrial distribution, commercial buildings, and residential applications

• Typical models include GGD, GCK, GCS, and MNS series

Medium Voltage Switchgear (3.6kV – 24kV)

• 3.6kV, 7.2kV, 12kV, 24kV systems

• This segment represents the current development trend, driven by urbanization and grid expansion

• The global medium voltage switchgear market was valued at approximately $57 billion in 2025 and is projected to reach $108 billion by 2035, growing at a CAGR of 6.5%

High Voltage Switchgear (≥40.5kV)

• 40.5kV and above

• Used for power generation, transmission, distribution, and power conversion

• Includes control, measurement, protection devices, electrical connections (busbars), enclosures, and support components

Other categories include power boxes (cabinets), lighting boxes, control boxes (cabinets, desks), protection screens, and DC screens.

Key Features and Advantages

Complete sets of equipment offer several distinct advantages over field-assembled solutions:

1. Enhanced Protection
The metal enclosure (cabinet) protects electrical equipment and current-carrying conductors from dust accumulation, making maintenance easier—particularly valuable in dirty or harsh environments.

2. Standardization and Reliability
Factory production enables serialization and standardization, ensuring consistent assembly quality, faster installation speeds, and high operational reliability.

3. Compact Design
Standardized design and production result in compact structures with rational layouts, reducing both volume and footprint while lowering costs.

4. Reduced Construction Time
Electrical installation, cable laying, and distribution room construction can proceed separately, shortening overall infrastructure completion time.

Applications Across Industries

Electrical complete sets of equipment serve critical functions across virtually every sector:

Industrial Facilities
Factories, refineries, chemical plants, and textile mills rely on switchgear for power distribution, motor control, and equipment protection.

Utilities and Power Generation
Power plants and substations use high and medium voltage switchgear for transmission, distribution, and grid interconnection.

Commercial Buildings
Office towers, shopping centers, and hospitals depend on low voltage distribution systems for reliable building power.

Data Centers
The rapid growth of data centers is driving significant demand for advanced MV/LV switchgear and protection systems.

Renewable Energy
Solar farms, wind parks, and energy storage systems require intelligent switchgear configurations for grid integration and microgrid management.

Global Market Outlook

The switchgear market is experiencing strong growth driven by global infrastructure investment, grid modernization, and the energy transition:

• The global switchgear market was valued at $91.19 billion in 2025** and is expected to reach **$96.82 billion in 2026, rising further to $139.35 billion by 2034 at a CAGR of 6.0%

• The medium voltage switchgear segment alone is projected to grow from $57 billion in 2025 to $108 billion by 2035 at a CAGR of 6.5%

• The Asia-Pacific region leads the global market, driven by rapid urbanization, major infrastructure development, and strong electricity demand growth in China and India

• North America is focusing on modernizing aging grids with smart, digital, and cyber-secure switchgear systems

• Europe is advancing rapidly due to decarbonization policies and renewable energy integration

Key Market Drivers

Renewable Energy Integration
The expansion of renewable energy generation, microgrids, and distributed energy resources has intensified demand for more intelligent and flexible switchgear configurations.

Digitalization
Modern switchgear increasingly incorporates embedded sensors, real-time condition monitoring, predictive diagnostics, and cloud-based analytics, enabling data-driven maintenance strategies that reduce unplanned outages.

Infrastructure Investment
Rising global investment in power infrastructure, grid expansion, and electrification across industrial and commercial sectors continues to drive market growth.

Environmental Regulations
Stricter environmental regulations are accelerating innovation toward safer, more efficient, and SF6-free solutions.

Safety Features: The "Five Protections"

High voltage switchgear incorporates critical safety interlocks known as the "five protections":

1. Prevent accidental opening and closing of circuit breakers

2. Prevent live opening and closing of isolation switches

3. Prevent live closing of grounding switches

4. Prevent grounding on/off circuit breakers

5. Prevent accidental entry into live intervals

These safety mechanisms are essential for protecting personnel and equipment during operation and maintenance.

How to Choose the Right Electrical Complete Set

When selecting electrical complete sets of equipment for your project, consider the following factors:

Voltage Rating
Determine whether your application requires low voltage (≤1.2kV), medium voltage (3.6kV–24kV), or high voltage (≥40.5kV) equipment.

Certification and Compliance
Buyers increasingly require CE, IEC, or UL certifications. Products without proper certification are often eliminated from consideration. Ensure your supplier can provide documented compliance credentials.

Application Environment
Consider whether the equipment will be installed indoors or outdoors, and evaluate environmental factors such as temperature, humidity, and dust exposure.

Protection Level
Verify the IP (Ingress Protection) rating provided by the enclosure to ensure adequate protection against human contact with live parts and foreign object ingress.

Supplier Capabilities
Evaluate potential suppliers based on factory audit reports, quality certifications, technical documentation completeness, delivery stability, and customer references.

Conclusion

Electrical complete sets of equipment are fundamental to modern power systems, providing essential switching, control, protection, and measurement functions across industrial, commercial, and utility applications. As the global switchgear market continues its strong growth trajectory—driven by renewable energy integration, grid modernization, and digitalization—selecting the right equipment and supplier has never been more critical.

Whether you are specifying equipment for a new facility, upgrading existing infrastructure, or expanding your power distribution network, understanding the types, features, and market trends covered in this guide will help you make informed decisions that ensure safety, reliability, and long-term value.
