Medium-voltage power distribution systems are expected to operate continuously and reliably. Yet many ring main units (RMUs) still depend heavily on periodic inspection and scheduled maintenance.
The problem is simple:
A technician may inspect an RMU today, while an abnormal condition begins tomorrow.
By the time the next inspection takes place, a small temperature rise, abnormal load condition, insulation deterioration or connection problem may have already developed into a much more serious fault.
This is where smart RMU monitoring changes the traditional maintenance model.
Instead of asking:
“Did we find a problem during the last inspection?”
operators can ask:
“Is the RMU showing any signs of deterioration right now?”
With continuous monitoring, abnormal operating conditions can be detected much earlier. Depending on the monitored parameter, equipment condition and fault-development mechanism, the warning period can potentially increase from days or weeks to months.
This is the fundamental idea behind the next generation of intelligent RMU systems.
Conventional RMU maintenance usually combines scheduled inspection, visual checks, electrical testing and periodic preventive maintenance.
This approach remains important, but it has one unavoidable limitation:
Inspection is periodic, while equipment deterioration is continuous.
Consider a simplified example.
An RMU is inspected in January and appears to be operating normally. In February, the resistance of a cable connection begins to increase. This creates additional heat at the connection point.
The temperature rise may initially be too small to trigger an obvious alarm.
By March, the abnormal heating becomes more significant.
By April, insulation stress or component damage may become increasingly serious.
If the next manual inspection occurs in May, the maintenance team may discover the problem only after several months of deterioration.
The equipment did not suddenly fail in May.
The failure process may have started months earlier.
Smart monitoring attempts to identify that early stage.
Smart RMU monitoring refers to the integration of sensors, intelligent control systems, communication technologies and data analysis into an RMU or medium-voltage distribution system.
Instead of relying only on periodic manual inspection, the system continuously collects operating information.
Depending on the RMU configuration, monitoring functions may include:
Temperature monitoring
Load current monitoring
Voltage monitoring
Humidity monitoring
Partial discharge monitoring
Cable connection condition monitoring
Switch position monitoring
Mechanical operation monitoring
Fault indication
Local alarm
Remote alarm
Historical data recording
Communication with SCADA or energy management systems
The exact monitoring functions depend on the RMU design and project requirements.
The objective is not simply to collect more data.
The objective is to turn operating data into actionable maintenance information.
Traditional maintenance can generally be divided into three stages.
The equipment fails first, and maintenance is performed afterward.
This can lead to:
Unexpected power outages
Emergency repair costs
Production interruptions
Equipment replacement
Safety risks
Maintenance is performed according to a predefined schedule.
For example:
Monthly inspection
Quarterly inspection
Annual testing
Scheduled component replacement
This is much better than waiting for a failure, but it still does not necessarily reflect the actual condition of the equipment.
Predictive maintenance uses real-time or historical operating data to identify abnormal trends.
For example:
Normal temperature → gradual increase → abnormal trend → warning → inspection → maintenance
This creates an opportunity to intervene before the condition develops into a serious fault.
That is why smart RMU monitoring is becoming increasingly relevant to modern distribution networks.
The phrase “extend the warning window by 300%” should not be interpreted as a universal guaranteed performance figure.
Instead, it represents the potential improvement that condition monitoring can provide when compared with detecting a problem only during periodic inspection or immediately before failure.
The actual warning period depends on:
Fault type
Equipment design
Environmental conditions
Sensor accuracy
Monitoring frequency
Alarm thresholds
Data analysis methods
Equipment aging
Load profile
Maintenance response time
For some slowly developing abnormalities, early detection may provide weeks or even months of additional decision-making time.
For rapidly developing faults, the warning period may be much shorter.
The key advantage is therefore not a specific number.
It is earlier visibility into equipment condition.
Temperature is one of the most useful parameters for monitoring electrical equipment.
Loose connections, overloaded circuits, contact resistance and poor electrical connections can generate abnormal heat.
A traditional inspection may only identify the problem during a scheduled thermal inspection.
Continuous temperature monitoring can provide a different picture.
For example:
Normal:
Temperature remains within the expected operating range.
Early abnormality:
Temperature begins to rise gradually.
Developing problem:
Temperature consistently exceeds the historical operating pattern.
Critical condition:
Temperature reaches a predefined alarm threshold.
Instead of simply seeing a high temperature once, engineers can analyze the trend.
A gradual increase may be more important than a single high reading.
This makes temperature monitoring particularly useful for preventive and predictive maintenance strategies.
Partial discharge (PD) is another important condition indicator for medium-voltage equipment.
Insulation deterioration can develop gradually before a major insulation failure occurs.
If partial discharge activity can be detected and monitored, maintenance teams may have an opportunity to investigate abnormal insulation conditions at an earlier stage.
A smart monitoring system may track:
PD activity
PD intensity
Discharge patterns
Changes over time
Alarm thresholds
Abnormal operating trends
The important point is that monitoring should not simply produce a “normal” or “fault” result.
Trend analysis can provide additional information about how the condition is changing.
This is particularly valuable for critical substations, industrial facilities, renewable energy installations and other applications where unexpected outages are costly.
Electrical equipment does not operate under constant conditions.
Loads change throughout the day, across seasons and according to production schedules.
An RMU may therefore experience:
Peak loads
Low-load periods
Load fluctuations
Temporary overloads
Unbalanced operating conditions
Continuous current and load monitoring can help operators understand how the RMU is actually being used.
This information can help identify:
Repeated overload conditions
Unusual load patterns
Equipment operating near its limits
Changes in demand
Potential capacity issues
More importantly, load information can be combined with temperature and other parameters.
For example:
Increasing load + increasing temperature + abnormal trend
may deserve a higher priority for inspection than any individual parameter alone.
Collecting data is only the first step.
A useful smart RMU needs to convert data into understandable information.

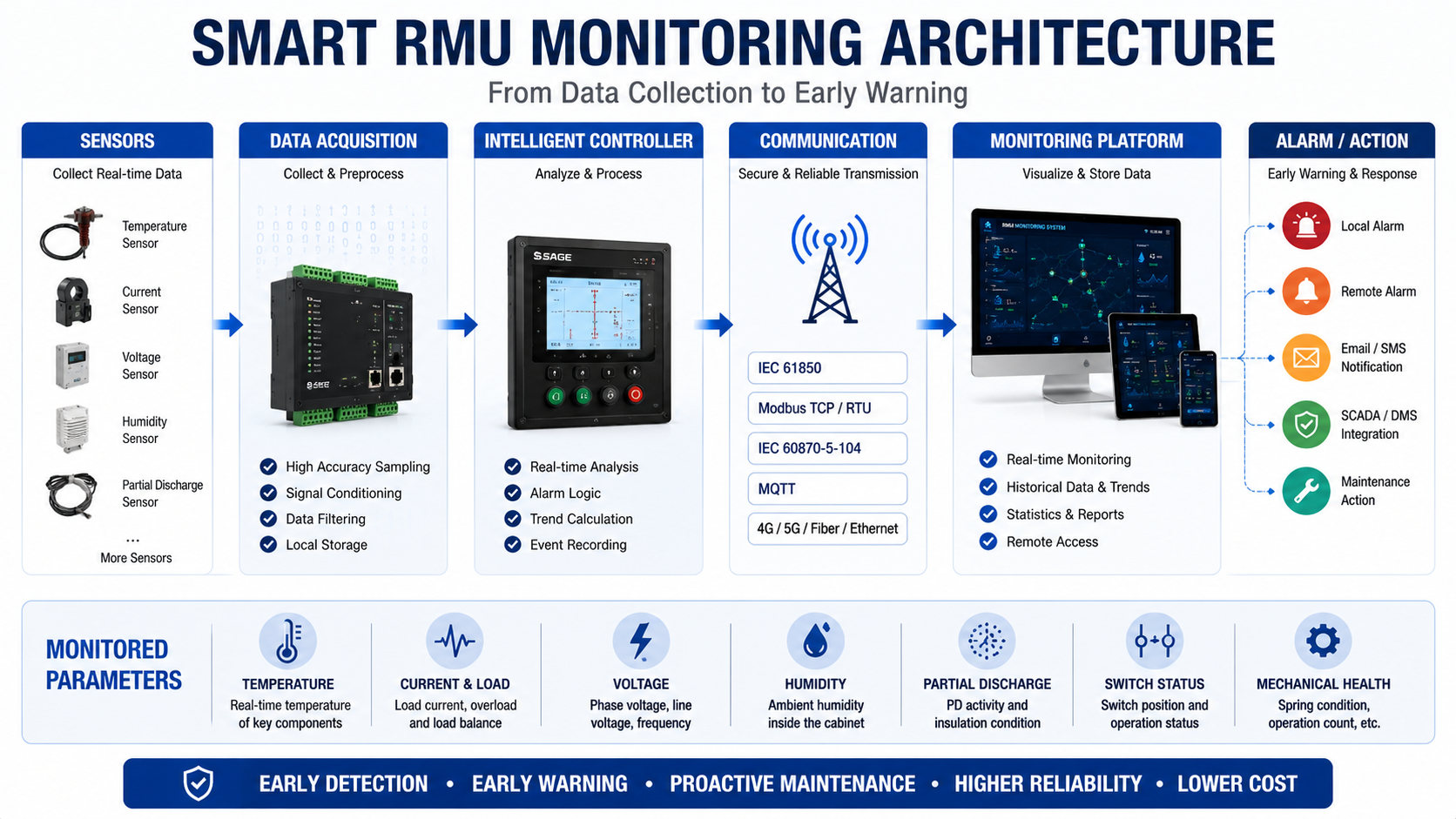

A typical monitoring architecture may include:
Sensors → Data Acquisition → Intelligent Controller → Communication → Monitoring Platform → Alarm / Analysis
The system can establish normal operating ranges and generate alarms when abnormal conditions occur.
Depending on the system, users may receive:
Local alarms
Remote alarms
Mobile notifications
Control-room notifications
SCADA alarms
Historical trend reports
This means maintenance teams do not necessarily need to physically inspect every RMU to know whether its operating condition has changed.
Imagine two RMUs.
RMU A records a temperature of 65°C.
RMU B also records 65°C.
At first glance, they appear identical.
But historical data tells a different story.
RMU A has remained around 64–66°C for the past six months.
RMU B has increased gradually:
48°C → 52°C → 56°C → 60°C → 65°C
The second RMU deserves much more attention.
The absolute value is similar.
The trend is completely different.
This is one of the most important advantages of intelligent monitoring.
Smart systems can establish historical operating patterns and identify deviations that may otherwise be difficult to notice during periodic inspections.
An early warning only creates value when operators can respond to it.
A practical smart RMU maintenance process can follow five steps:
Sensors identify an abnormal operating parameter.
The system compares the value with predefined thresholds and historical trends.
The system generates an alarm when the condition reaches a specified level.
Maintenance personnel inspect the relevant RMU, connection, cable or component.
The problem is repaired before it develops into a major failure whenever practical.
This process changes maintenance from:
“Repair after failure”
to:
“Detect → Analyze → Inspect → Maintain before failure.”
Smart RMU monitoring can be particularly valuable in applications where power reliability is critical.
Unexpected outages can interrupt production and create significant financial losses.
Continuous monitoring can help maintenance teams identify abnormal conditions before they become major problems.
Data centers require highly reliable power distribution.
Monitoring RMU operating conditions can provide additional visibility into medium-voltage equipment.
Solar and wind projects may include multiple substations and distributed electrical equipment.
Remote monitoring can reduce the need for unnecessary site visits while improving visibility.
Large commercial facilities often require reliable distribution while minimizing maintenance disruption.
Remote condition monitoring can support more efficient maintenance planning.
For utility applications, intelligent RMUs can support centralized monitoring and improve the visibility of distribution assets.

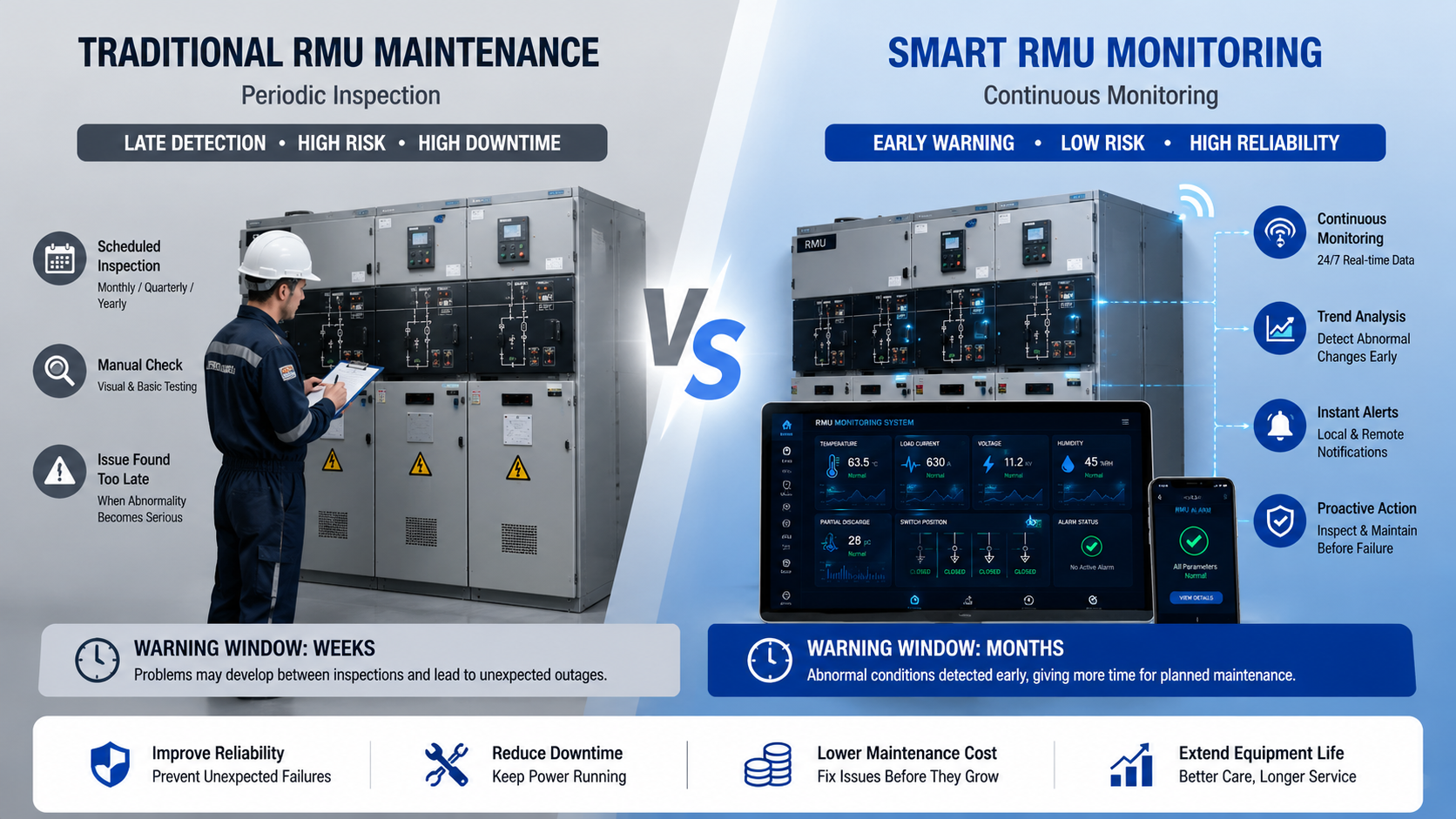

The fundamental switching and protection functions of an RMU remain important.
The major difference is the amount of condition information available to operators.
Feature | Conventional RMU | Smart RMU |
|---|---|---|
Local operation | ✓ | ✓ |
Electrical protection | ✓ | ✓ |
Manual inspection | Important | Still required |
Temperature monitoring | Optional / limited | Continuous or configurable |
Remote monitoring | Limited | Available |
Historical data | Limited | Available |
Trend analysis | Manual | Digital |
Early warning | Limited | Enhanced |
Predictive maintenance | Difficult | More practical |
Smart monitoring does not eliminate the need for engineers.
Instead, it gives engineers better information for making maintenance decisions.
Not every product marketed as a “smart RMU” provides the same level of monitoring.
Before purchasing, buyers should evaluate several important factors.
Determine which parameters are actually required.
Do you need:
Temperature?
Current?
Voltage?
Humidity?
Partial discharge?
Switch position?
Mechanical condition?
Avoid paying for unnecessary functions while overlooking critical parameters.
Sensors are the foundation of the monitoring system.
The accuracy, stability and installation method should match the application.
The RMU should be compatible with the customer's existing automation architecture where required.
Typical communication requirements may include integration with:
SCADA
PLC
Energy management systems
Remote monitoring platforms
Different projects have different operating conditions.
Alarm thresholds should therefore be configurable according to equipment characteristics and project requirements.
Historical data is essential for trend analysis.
A system that only shows real-time values but does not retain useful historical information may provide limited predictive-maintenance value.
The RMU may operate in environments with:
High humidity
Dust
Temperature variations
Outdoor exposure
High-altitude conditions
The monitoring system should be designed for the actual installation environment.
One common misunderstanding is that intelligent monitoring can replace traditional electrical protection.
It cannot.
Protection systems are designed to detect and clear electrical faults rapidly.
Monitoring systems primarily provide condition information and early warnings.
They serve different purposes.
A complete medium-voltage distribution system may therefore combine:
Protection + Monitoring + Communication + Maintenance
rather than replacing protection with monitoring.
This distinction is particularly important when designing safety-critical electrical systems.
The traditional RMU has evolved from a switching device into an increasingly connected component of the distribution network.
Future intelligent RMUs are likely to place greater emphasis on:
Continuous condition monitoring
Remote diagnostics
Digital communication
Historical data analysis
Predictive maintenance
Asset management
Intelligent alarm management
Integration with digital substations
The ultimate goal is simple:
Know the condition of the equipment before the equipment tells you through a failure.
The biggest advantage of smart RMU monitoring is not simply the number of sensors installed.
It is the additional decision-making time created by early detection.
Instead of discovering a developing problem during the next scheduled inspection—or after an unexpected failure—operators can receive information while the condition is still developing.
In suitable applications, this can potentially transform a short warning period into weeks or months of additional planning time.
That extra time can mean:
Planned maintenance instead of emergency repair
Reduced unexpected downtime
Better spare-parts planning
Fewer unnecessary site inspections
Improved asset management
Greater power distribution reliability
So, can smart RMU monitoring extend the fault-warning window by 300%?
Potentially, for certain slowly developing fault conditions and with an appropriately designed monitoring system—but the actual improvement depends on the equipment, sensors, algorithms and operating environment.
What is more important is the principle behind the number:
Earlier detection gives maintenance teams more time to act.
And in modern medium-voltage power distribution, more warning time can translate directly into better reliability, lower maintenance risk and smarter asset management.
If you are planning a medium-voltage distribution project and need an RMU with monitoring, protection and communication functions, the right solution should be selected according to the project's voltage level, current rating, protection requirements, communication architecture and environmental conditions.
A properly configured smart RMU can provide not only reliable switching and protection, but also the operating data needed for more proactive maintenance.
Contact our technical team to discuss your RMU requirements and monitoring configuration.
