Whether supplying electricity to an industrial plant, commercial building, renewable energy station, mining project, or residential community, every power distribution network shares one common objective: delivering electricity safely, efficiently, and continuously.
Achieving this goal requires more than selecting a high-quality transformer. A reliable electrical distribution system depends on the proper coordination of transformers, switchgear, ring main units, compact substations, and cable distribution boxes.
Each component performs a unique role, and together they ensure that electricity reaches end users with minimal losses, maximum safety, and excellent operational reliability.
In this article, we'll explain how these essential pieces of electrical equipment work together and what factors should be considered when designing a modern power distribution system.
Power generation is only the first step.
Before electricity reaches factories, hospitals, shopping centers, data centers, or homes, it must pass through multiple stages of transmission and distribution.
Without properly designed electrical equipment, the system may experience:
Frequent power outages
Equipment damage
High maintenance costs
Energy losses
Safety hazards
Difficult future expansion
Choosing reliable power distribution equipment significantly reduces these risks while improving system efficiency and long-term operating costs.

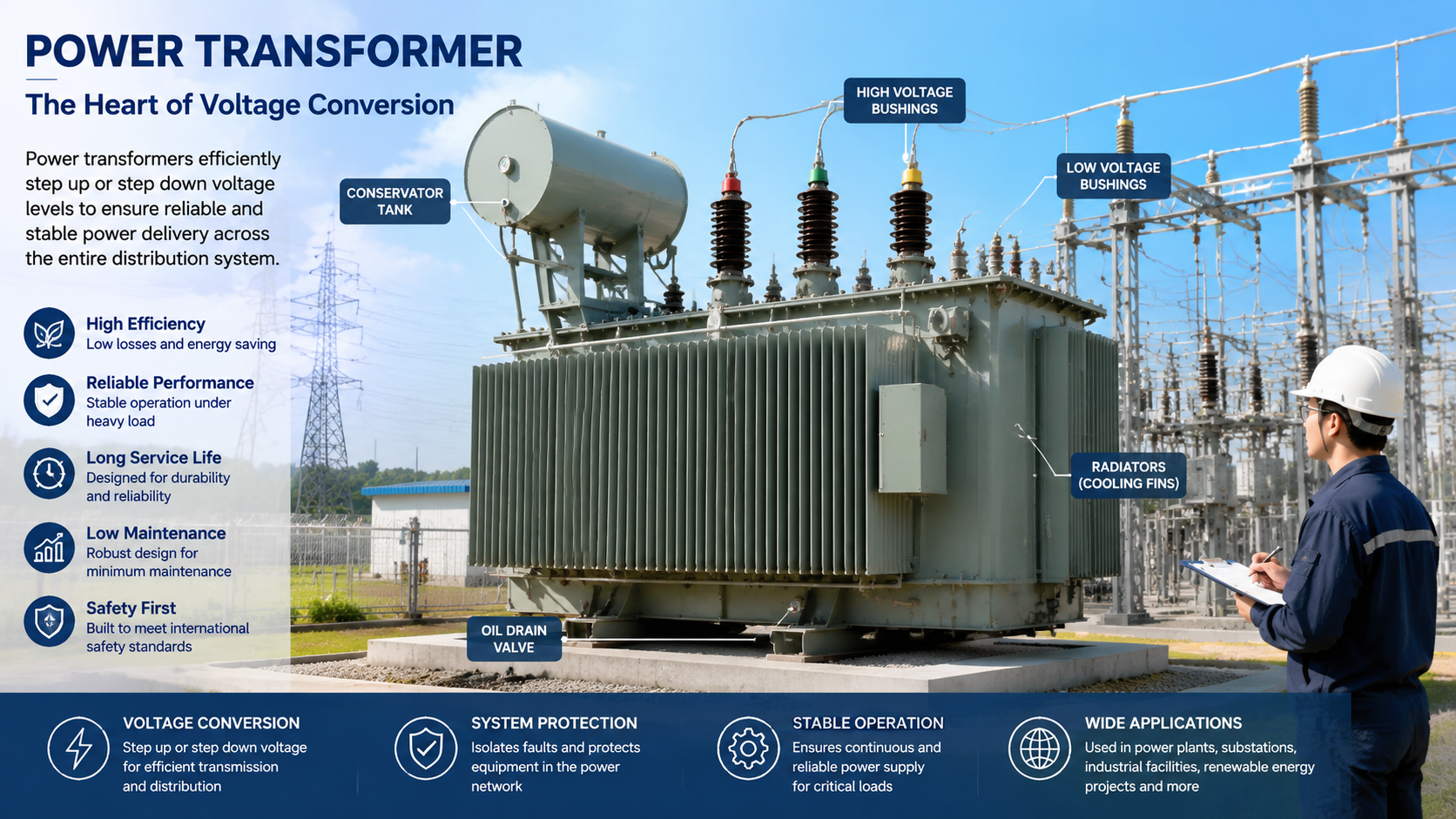

A power transformer changes voltage levels so electricity can be transmitted and distributed efficiently.
Typical applications include:
Utility substations
Solar power plants
Wind farms
Industrial facilities
Commercial buildings
Mining operations
Main advantages include:
High efficiency
Low energy losses
Long service life
Stable voltage output
Excellent overload capability
Common transformer types include:
Oil-immersed transformers
Dry-type transformers
Distribution transformers
Power transformers
Selecting the correct transformer capacity and voltage ratio is the foundation of every successful electrical project.

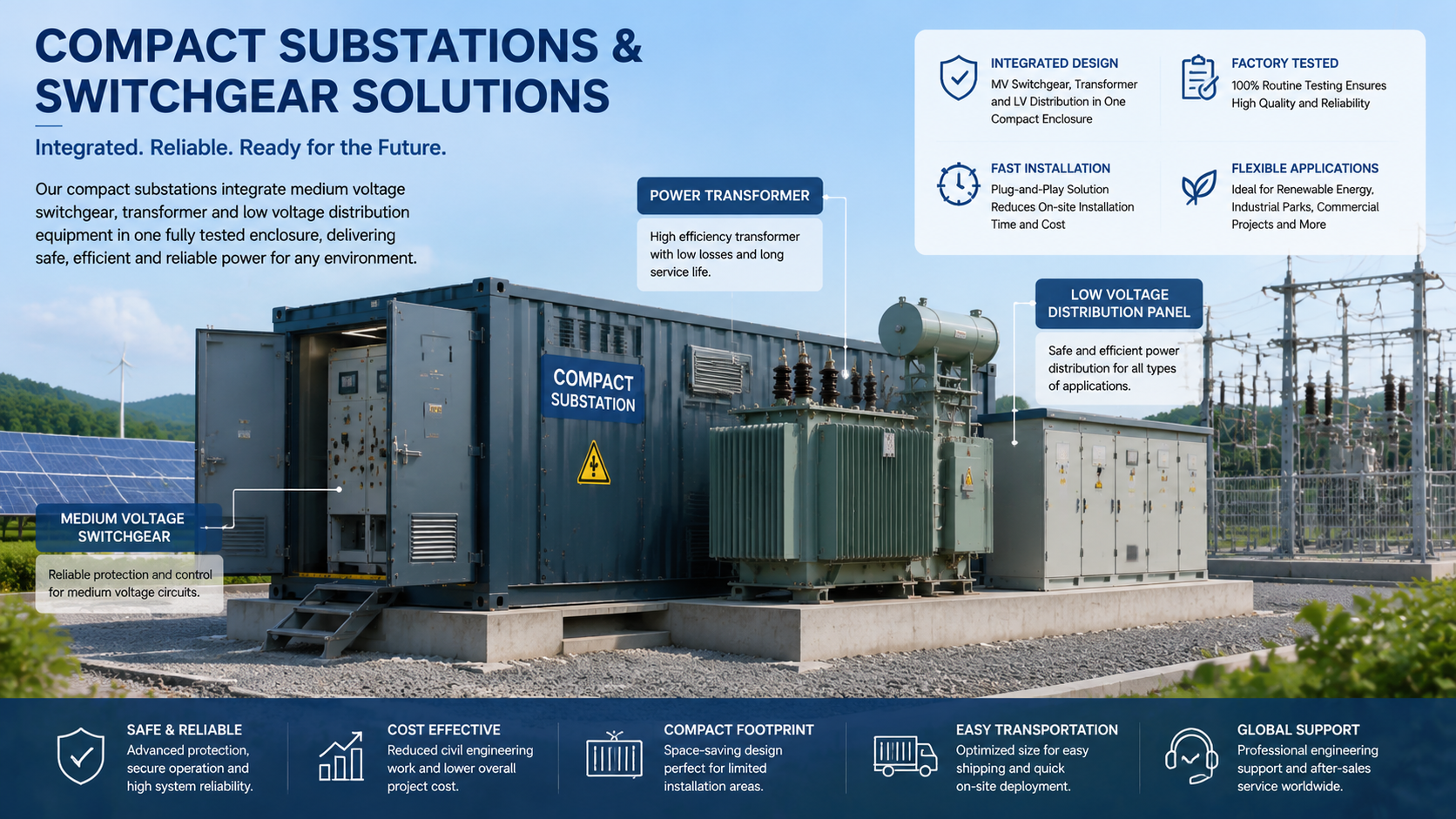

A compact substation combines several critical components into one factory-assembled enclosure.
Typically it includes:
Medium-voltage switchgear
Transformer
Low-voltage distribution cabinet
This integrated design offers numerous advantages:
Fast installation
Smaller footprint
Lower civil engineering costs
Factory-tested reliability
Easy transportation
Reduced maintenance
Compact substations are widely used in:
Solar farms
Industrial parks
Urban infrastructure
Airports
Shopping malls
Residential developments
Because everything is pre-assembled and tested before shipment, installation time on site can be reduced dramatically.
Medium-voltage switchgear serves as the control and protection center of the electrical network.
Its responsibilities include:
Switching circuits
Isolating faults
Protecting transformers
Protecting cables
Monitoring system status
Ensuring personnel safety
Modern switchgear typically features:
Vacuum circuit breakers
Intelligent protection relays
Digital monitoring
Arc-resistant construction
Remote operation capability
Reliable switchgear minimizes downtime and helps maintain continuous power supply.

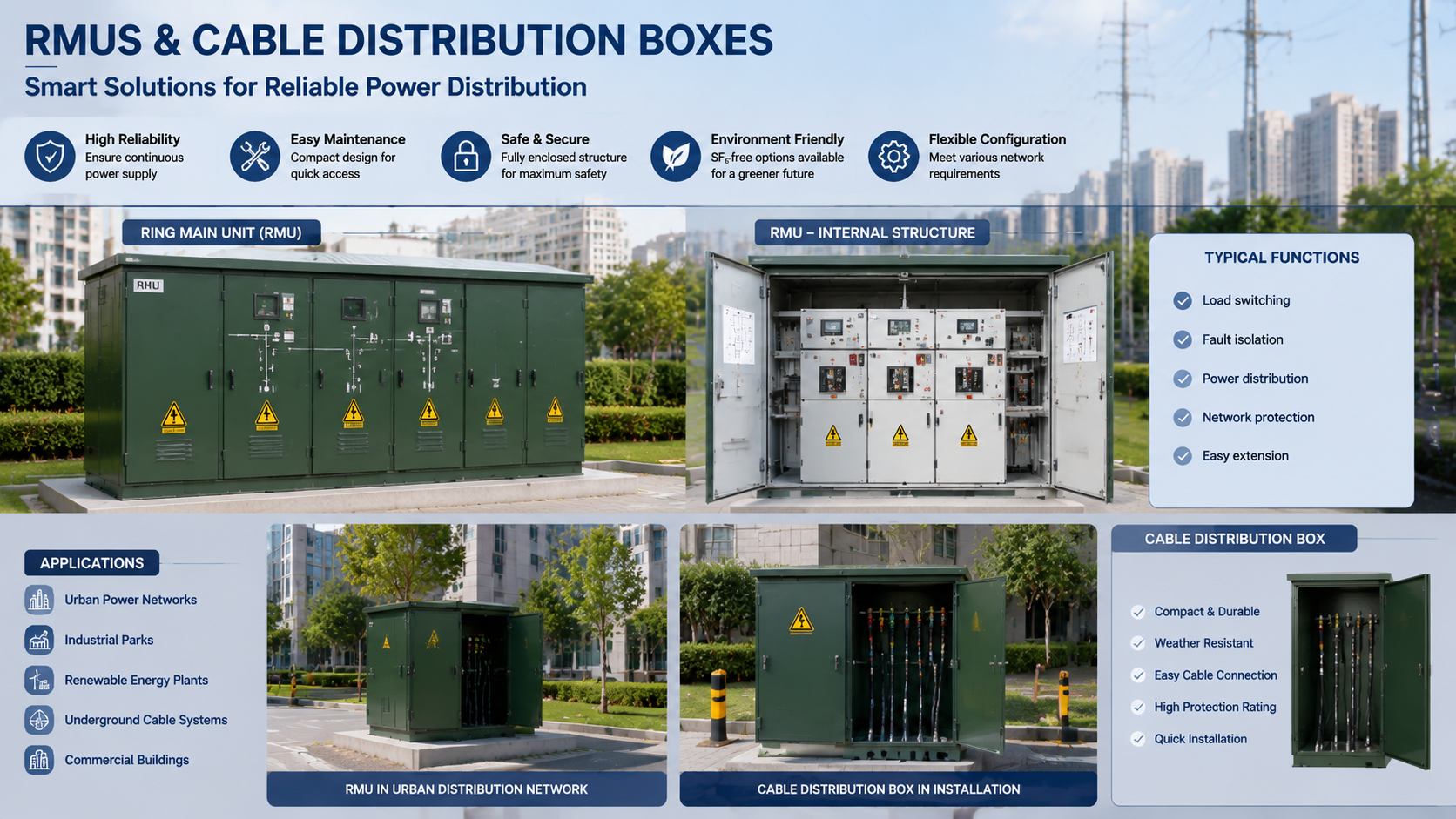

Ring Main Units (RMUs) are essential for medium-voltage distribution networks.
Unlike radial systems, ring networks provide alternative power paths when faults occur.
Benefits include:
Higher power supply reliability
Faster fault isolation
Reduced outage duration
Easier maintenance
Compact design
Low maintenance requirements
RMUs are commonly installed in:
Urban power grids
Commercial buildings
Wind farms
Solar power stations
Industrial zones
Underground cable networks
SF₆-insulated and environmentally friendly gas-insulated RMUs are both popular choices depending on project requirements.
After voltage is reduced by the transformer, electricity enters the low-voltage switchgear.
This equipment distributes electrical power safely throughout the facility.
Functions include:
Circuit protection
Motor control
Load distribution
Energy monitoring
Emergency isolation
Common cabinet types include:
GGD
GCK
MNS
GCS
The right cabinet configuration depends on the project's load characteristics and expansion requirements.
Cable distribution boxes simplify cable branching and connection in distribution systems.
Advantages include:
Quick installation
Safe cable connection
Easy maintenance
Compact structure
High protection rating
Excellent weather resistance
They are frequently used in:
Residential communities
Industrial parks
Highway lighting
Municipal infrastructure
Commercial developments
A properly designed cable distribution box improves cable management while reducing installation complexity.

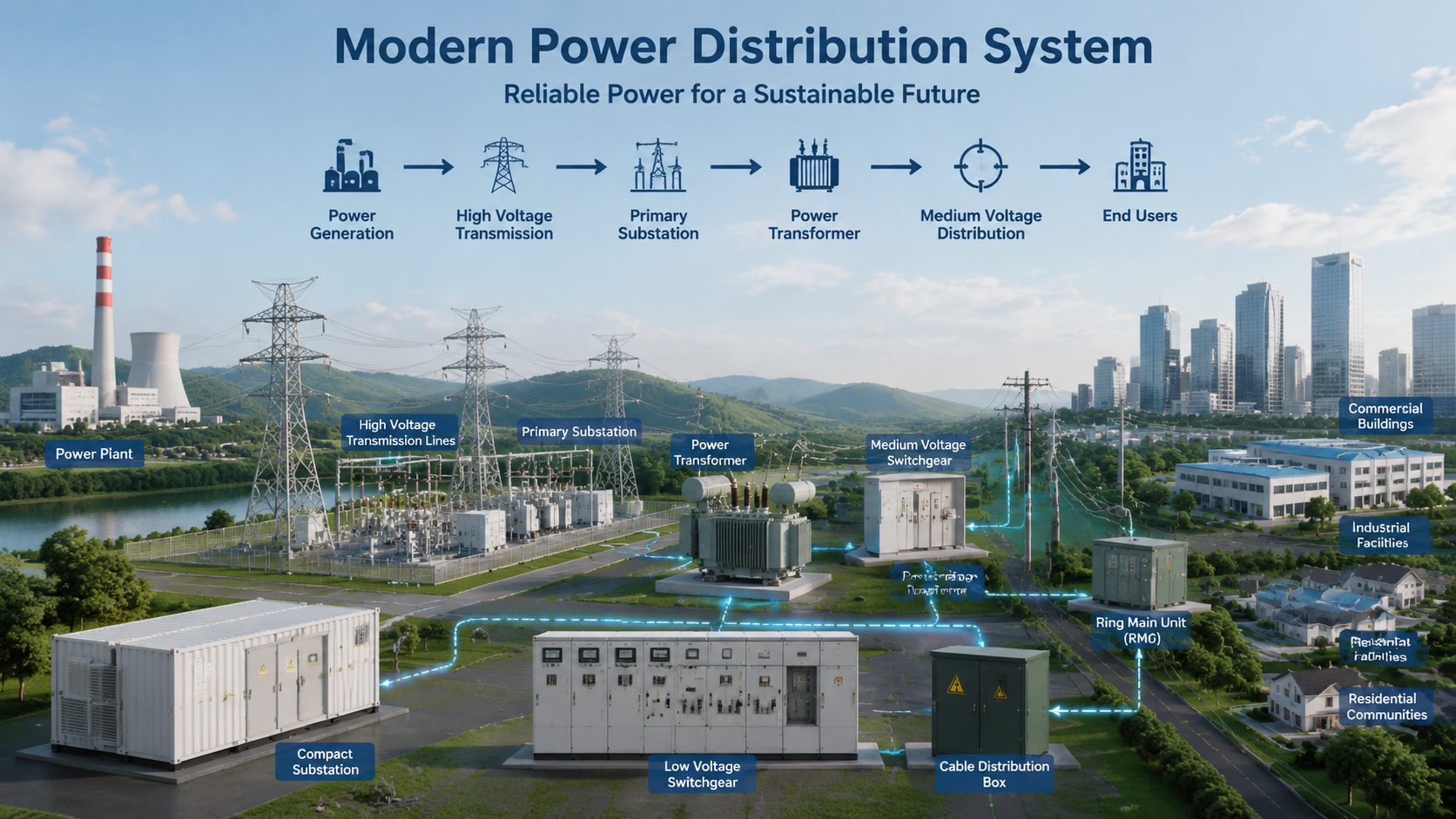

A complete electrical distribution system typically follows this sequence:
Power Plant
↓
Transmission Network
↓
Primary Substation
↓
Power Transformer
↓
Medium Voltage Switchgear
↓
Ring Main Unit (RMU)
↓
Compact Substation
↓
Low Voltage Switchgear
↓
Cable Distribution Box
↓
End Users
Each component complements the others, forming a reliable and efficient power distribution chain.
Before purchasing equipment, engineers should evaluate:
Ensure compatibility with the local electrical grid.
Equipment should safely handle expected operating loads.
Consider:
Temperature
Humidity
Altitude
Dust
Corrosion
Seismic requirements
Choose products compliant with IEC, ANSI, or relevant local standards.
Selecting equipment with spare capacity reduces future upgrade costs.
An experienced manufacturer provides:
Engineering support
Customized solutions
Factory testing
Reliable delivery
After-sales service
Purchasing transformers, switchgear, RMUs, compact substations, and cable distribution boxes from one supplier offers several advantages:
Better system compatibility
Simplified project management
Faster production
Consistent quality standards
Easier communication
Lower logistics costs
One-stop technical support
This approach minimizes project risks while improving overall efficiency.
Reliable power distribution is achieved through the coordinated performance of multiple electrical devices—not just one.
Transformers convert voltage, switchgear protects the network, RMUs enhance reliability, compact substations integrate key components, low-voltage switchgear distributes power, and cable distribution boxes provide flexible cable management.
Choosing high-quality equipment from an experienced manufacturer ensures safer operation, lower maintenance costs, and a longer service life.
Whether you're planning an industrial facility, renewable energy project, commercial development, or utility upgrade, investing in the right power distribution equipment is the key to building a dependable electrical infrastructure.
