A reliable power distribution system is essential for industrial production, commercial facilities, infrastructure development, and renewable energy projects. However, selecting the right electrical equipment can be challenging for project contractors, electrical engineers, distributors, and procurement professionals.
Different projects require different combinations of equipment, including prefabricated substations, medium voltage switchgear, low voltage distribution cabinets, circuit breakers, and disconnect switches. Each component plays a specific role in distributing electricity, controlling circuits, isolating equipment, and protecting electrical systems.
So, how can you choose the right electrical power distribution equipment for your project?
In this guide, we explain the main equipment types, their applications, and the key factors to consider when selecting a reliable power distribution solution.

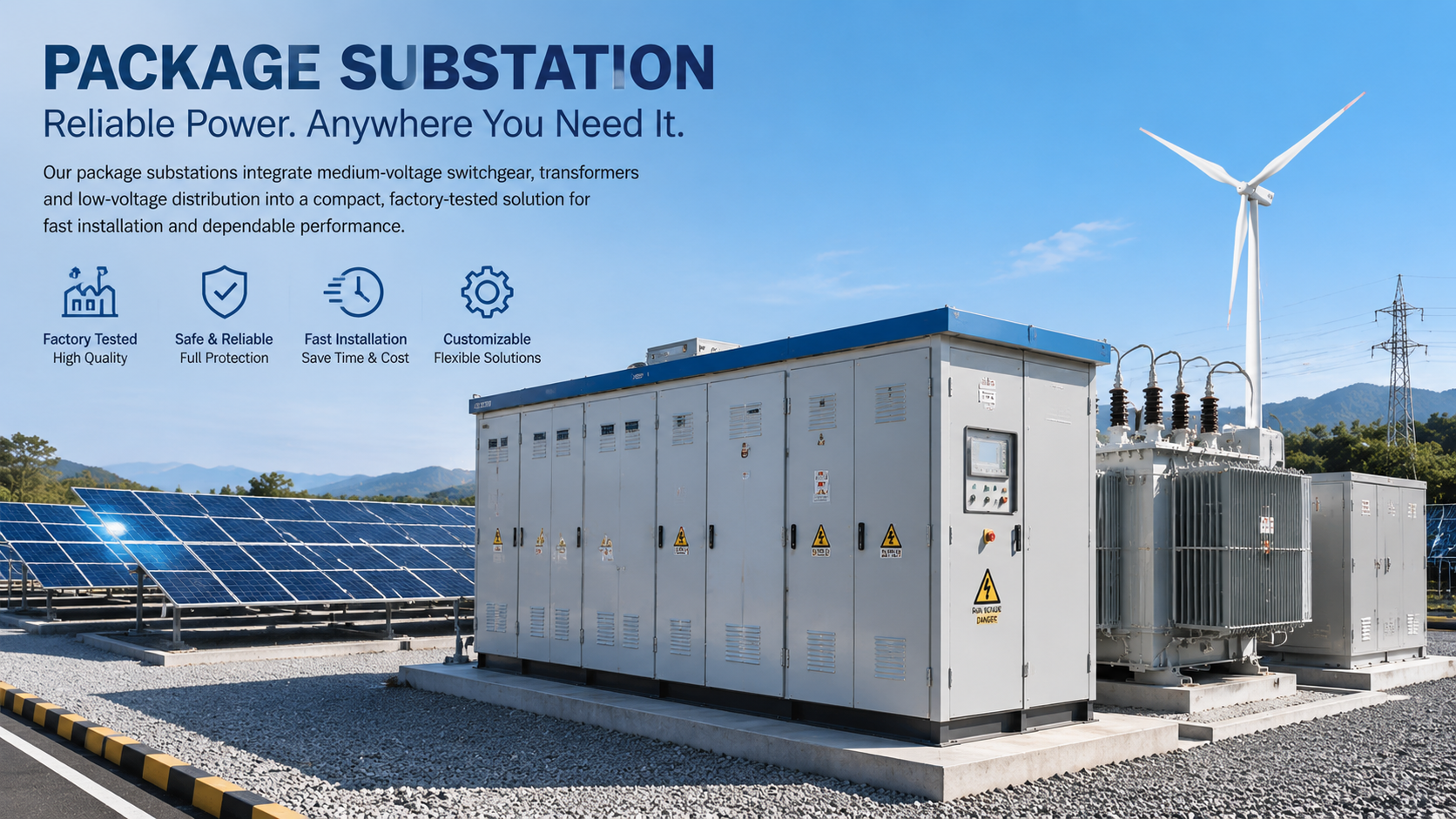

A prefabricated substation, also known as a box-type substation or compact substation, integrates essential electrical components into a compact enclosure. Depending on the design, it can combine medium voltage switchgear, a power transformer, and low voltage distribution equipment.
Compared with conventional site-built substations, prefabricated substations can offer several advantages:
Compact design: Suitable for projects with limited installation space.
Integrated configuration: Combines multiple electrical components into a coordinated solution.
Faster installation: Factory assembly can reduce on-site installation work.
Flexible applications: Can be configured for industrial facilities, commercial developments, residential areas, and renewable energy projects.
When selecting a prefabricated substation, buyers should evaluate rated voltage, transformer capacity, protection requirements, enclosure design, cooling conditions, and local electrical standards.
For outdoor installations, environmental conditions are particularly important. Temperature, humidity, dust, corrosion, and altitude may influence equipment selection and enclosure design.
Medium voltage switchgear is widely used in power distribution networks, industrial plants, substations, and infrastructure projects. It provides functions such as circuit switching, protection, isolation, and monitoring, depending on its configuration.
Common types include metal-clad switchgear, ring main units (RMUs), and other medium voltage switching assemblies.

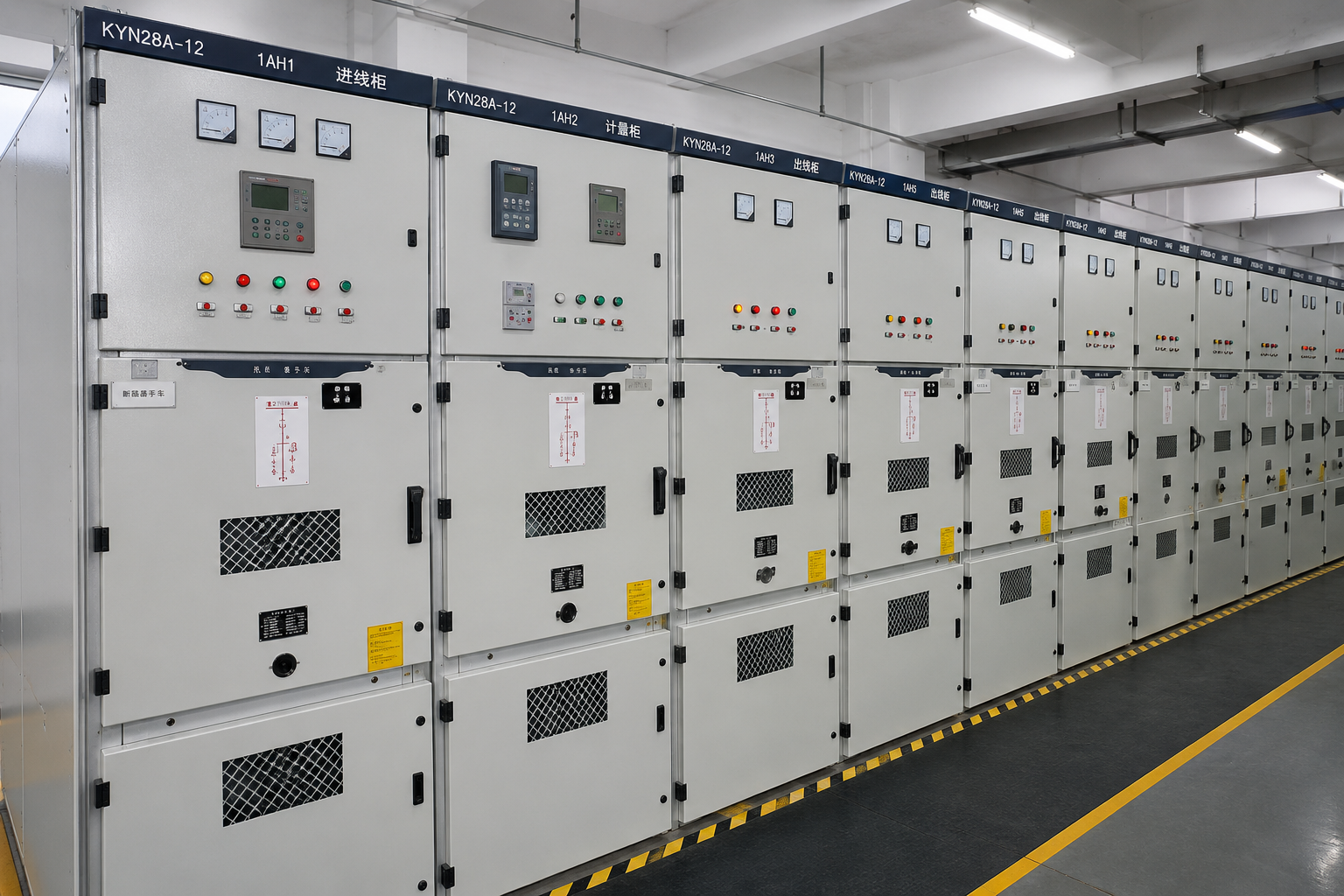

For example, KYN28-type switchgear is commonly used in indoor medium voltage power distribution systems. RMUs are frequently applied in ring distribution networks where a compact switching solution is required.
When choosing medium voltage switchgear, consider the following parameters:
Rated voltage and rated current
Rated short-time withstand current
Short-circuit breaking capacity of the switching devices
Insulation level and operating environment
Protection relay and control requirements
Internal arc classification, where required
Installation dimensions and cable connection arrangements
It is also important to confirm that the switchgear is compatible with the project's protection philosophy, upstream power supply, downstream loads, and maintenance requirements.
Selecting equipment based only on rated voltage or price may result in an unsuitable configuration. A complete technical review helps reduce compatibility issues during installation and commissioning.
Circuit breakers are essential components in electrical distribution systems. They can open and close circuits under specified operating conditions and interrupt fault currents within their rated capabilities.
The appropriate circuit breaker depends on the system voltage, installation environment, switching requirements, and protection scheme.
Indoor vacuum circuit breakers are widely used in medium voltage switchgear for industrial and commercial power distribution.
Models such as ZN85 and other indoor vacuum circuit breaker series may be selected according to the switchgear design and project requirements.
Typical considerations include:
Rated voltage and rated current
Rated short-circuit breaking current
Mechanical and electrical endurance
Operating mechanism and control voltage
Compatibility with the switchgear compartment
Outdoor vacuum circuit breakers, including commonly used ZW32 and ZW7/ZW8 series, are applied in outdoor distribution networks and substations, subject to the specific model's ratings and design.
These devices can be used for feeder switching, fault interruption, and other distribution applications.
When selecting an outdoor circuit breaker, buyers should pay attention to enclosure protection, insulation performance, operating temperature, mechanical reliability, and the suitability of the equipment for local weather conditions.
Important: Indoor and outdoor circuit breakers are not interchangeable simply because their rated voltages are similar. The complete technical specifications and installation conditions must be checked before ordering.
Disconnect switches, also called isolators, are used to establish an isolation gap in electrical circuits when operated under their specified conditions. They are commonly installed in substations, overhead line systems, and high voltage distribution installations.
Common outdoor disconnect switch types include GW4, GW5, and GW9, depending on the voltage level, installation arrangement, and intended application.
Unlike circuit breakers designed to interrupt specified fault currents, conventional disconnect switches are generally intended for isolation and are not designed to interrupt short-circuit currents.
Key selection factors include:
Rated voltage and rated current
Rated short-time withstand current and peak withstand current
Installation type: indoor or outdoor
Horizontal or vertical mounting arrangement, as applicable
Operating mechanism and interlocking requirements
Insulation distance and environmental conditions
For outdoor applications, buyers should also consider pollution severity, corrosion resistance, wind loading where applicable, and the required insulation performance.
Correct coordination between disconnect switches, circuit breakers, and earthing switches is essential for safe operation and maintenance.
Low voltage switchgear distributes electrical power to machinery, lighting, motors, and other loads after voltage transformation.
Common cabinet types include GGD, GCK, and MNS, with the appropriate selection depending on the distribution architecture and project specifications.
Typical applications include factories, commercial buildings, data centers, infrastructure facilities, and industrial production lines.
When evaluating low voltage distribution cabinets, consider:
Rated operational voltage and current
Main busbar current and short-circuit withstand capability
Incoming and outgoing feeder configurations
Circuit breaker types and protection functions
Motor control and automation requirements
Degree of protection and cooling requirements
Maintenance accessibility and future expansion
For projects with numerous motors, for example, the cabinet may need motor control functions in addition to conventional power distribution.
The final design should be based on the load list, single-line diagram, protection coordination study, and applicable electrical standards.
The performance of a power distribution system depends not only on individual products but also on how they work together.
A typical distribution arrangement may include the following stages:
Utility or incoming power supply → Medium voltage switchgear → Power transformer → Low voltage switchgear → Electrical loads
Disconnect switches and circuit breakers may be incorporated at appropriate locations according to the system design and protection requirements.
For a renewable energy project, the configuration may differ depending on whether the system connects photovoltaic inverters, energy storage equipment, or other power sources to the grid.
Before confirming an equipment package, project teams should review:
System design: Voltage levels, load demand, single-line diagrams, and network configuration.
Protection coordination: Short-circuit levels, relay settings, and the coordination of protective devices.
Environmental conditions: Ambient temperature, humidity, altitude, pollution, and corrosion risks.
Applicable standards: Required IEC or other local standards, certification, and testing documentation.
Installation and maintenance: Cable entry, access space, commissioning procedures, and spare parts.
Future expansion: Whether additional feeders, loads, or distribution capacity may be required later.
Working with a supplier capable of coordinating multiple equipment categories can simplify technical communication and help reduce inconsistencies between separately purchased products.
For international projects, choosing the right manufacturer is as important as selecting the equipment itself.
A competitive supplier should provide more than a product catalog. Buyers should evaluate its technical capabilities, manufacturing quality, documentation, and ability to respond to project-specific requirements.
Here are several important factors to consider.
Technical support
Can the manufacturer review technical specifications, electrical drawings, and equipment configurations before production?
Product range
Can the supplier provide coordinated equipment such as prefabricated substations, transformers, medium voltage switchgear, low voltage cabinets, circuit breakers, and disconnect switches?
Quality control
Ask about manufacturing inspections, routine testing, type-test evidence where applicable, and the quality management process.
Customization capabilities
Different countries and projects may require different voltage levels, control circuits, enclosure designs, cable arrangements, and protection configurations.
Export experience
International buyers should also confirm the availability of English technical documents, packing information, shipping coordination, and after-sales technical support.
Clear technical communication
A responsive supplier should clarify missing specifications, identify technical discrepancies, and confirm the agreed configuration before manufacturing begins.
These factors can help procurement teams assess the suitability of a supplier and reduce avoidable project risks.
Purchasing different products from multiple suppliers may increase coordination work, especially when equipment must be integrated into a single power distribution system.
A supplier offering multiple categories of electrical equipment may help simplify procurement, technical communication, and project coordination.
At Zhejiang Shengxian Electric Power Technology Co., Ltd., our product range includes prefabricated substations, power transformers, medium and low voltage switchgear, ring main units, indoor and outdoor vacuum circuit breakers, and disconnect switches.
We support electrical power distribution projects with equipment options for industrial facilities, utility distribution networks, infrastructure developments, and other applications, subject to project requirements.
Whether you are an electrical contractor, project integrator, equipment distributor, or procurement professional, confirming the technical requirements at an early stage can help identify a suitable configuration for your application.
Choosing the right electrical power distribution equipment requires a comprehensive understanding of system design, protection requirements, environmental conditions, and project standards.
Prefabricated substations provide integrated distribution solutions, switchgear supports circuit control and protection, circuit breakers interrupt specified fault currents, and disconnect switches provide electrical isolation under defined operating conditions.
By evaluating each component as part of the overall system, buyers can make more informed procurement decisions and improve the reliability and maintainability of their electrical installations.
