Ensuring the continuous and safe operation of electrical distribution networks is a critical responsibility for facility managers, electrical engineers, and maintenance personnel. At the heart of these power systems lies the switchgear, a crucial assembly that controls, protects, and isolates electrical equipment. Proper high voltage switchgear maintenance is not just a matter of operational efficiency; it is a fundamental requirement for protecting human life, preventing catastrophic equipment failures, and avoiding costly unplanned downtime. When dealing with medium to high voltage applications, the stakes are incredibly high. The energy levels present in these systems can cause severe arc flashes, electrical shocks, and extensive fires if the equipment is not maintained according to strict safety protocols and manufacturer guidelines.
The complexity of modern electrical infrastructure demands a rigorous approach to system upkeep. Maintenance routines must encompass a wide range of activities, from simple visual inspections to complex diagnostic testing and mechanical adjustments. Facilities must establish comprehensive maintenance programs that address the specific environmental conditions, load profiles, and operational demands placed on their switchgear. By understanding the foundational principles of electrical safety, the mechanical intricacies of the equipment, and the latest advancements in switchgear design, organizations can create a culture of safety and reliability that permeates every level of their operations.
The primary objective of any high voltage switchgear maintenance program is to ensure that the equipment operates exactly as designed under both normal and fault conditions. This requires a deep understanding of the switchgear's components, including circuit breakers, busbars, protective relays, and the physical enclosure itself. Maintenance personnel must be trained to recognize the early warning signs of degradation, such as unusual noises, localized heating, corona discharge, or mechanical sluggishness. A proactive approach to maintenance allows teams to address these issues before they escalate into major failures that could compromise the entire power distribution network.
Effective maintenance strategies typically blend time-based (preventative) and condition-based (predictive) methodologies. Time-based maintenance involves performing specific tasks at regular intervals, regardless of the equipment's apparent condition. This might include annual cleaning, lubrication of moving parts, and routine functional testing. Condition-based maintenance, on the other hand, relies on continuous or periodic monitoring of key parameters to determine when maintenance is actually needed. This approach often utilizes advanced diagnostic tools to assess the health of the insulation, the integrity of the contacts, and the mechanical performance of the operating mechanisms.
The safety implications of neglecting switchgear maintenance cannot be overstated. High voltage systems contain immense amounts of potential energy. If a fault occurs and the switchgear fails to clear it promptly and safely, the resulting arc flash can release explosive energy, extreme heat, and toxic gases. Regular high voltage switchgear maintenance ensures that the protective devices, such as vacuum circuit breakers and digital relays, are calibrated and mechanically sound, ready to interrupt fault currents within milliseconds. Furthermore, proper maintenance verifies the integrity of the physical enclosure and the grounding systems, which are essential for containing internal arcs and directing fault currents safely to the earth.
Beyond the immediate risk of catastrophic failure, poor maintenance can lead to gradual deterioration that compromises the safety of operators during routine interactions. For example, if mechanical interlocks become jammed due to lack of lubrication or accumulation of dirt, an operator might inadvertently perform an unsafe sequence of operations. Maintaining the mechanical integrity of the switchgear is just as important as maintaining its electrical properties. A well-maintained system provides operators with the confidence that the equipment will respond predictably and safely to their commands.
Safety must be the overriding priority during any interaction with high voltage equipment. Before any maintenance work begins, strict lockout/tagout (LOTO) procedures must be implemented to ensure that the equipment is completely de-energized and cannot be accidentally re-energized while personnel are working on it. This involves opening the appropriate disconnect switches, racking out the circuit breakers, and applying physical locks and warning tags. However, simply opening a switch is not enough; the absence of voltage must be verified using properly rated testing equipment before any physical contact is made with the conductors.
Personal protective equipment (PPE) is another critical layer of defense. Maintenance personnel must wear appropriate arc-rated clothing, insulated gloves, safety glasses, and face shields, as determined by a comprehensive arc flash hazard analysis. The specific PPE requirements will vary depending on the voltage level, the available fault current, and the specific tasks being performed. It is essential that all PPE is regularly inspected for damage and tested to ensure it provides the required level of protection.
Once the equipment has been de-energized and verified dead, it must be properly grounded before any work commences. Grounding serves two vital purposes: it drains any residual capacitive charge stored in the system, and it provides a safe path to earth in the unlikely event that the equipment is accidentally re-energized. Temporary grounding cables must be appropriately sized to handle the maximum available fault current and must be securely connected to the established facility ground grid before being attached to the phase conductors.
The sequence of applying and removing grounds is critical. Grounds must always be connected to the earth first, and then to the phase conductors. When removing grounds, the sequence is reversed: disconnect from the phase conductors first, and then from the earth. This ensures that the operator is never part of the circuit if a potential difference exists. Modern switchgear designs often incorporate integral grounding switches, which simplify this process and enhance safety by allowing operators to apply grounds without having to manually handle temporary cables near potentially live components.
To fully appreciate the nuances of modern maintenance and safety, it is helpful to examine a specific, highly engineered product. The 12kV Withdrawable Switchgear KYN28 Series, manufactured by SHENGXIAN, represents a robust solution for medium-voltage power distribution. Designed to operate within a rated voltage range of 3.6–12kV and a system frequency of 50/60Hz, the KYN28 model is engineered to handle demanding electrical loads, featuring a busbar current rating of up to 4000A. This equipment is utilized across various critical sectors, providing power distribution and control in utility substations, ring main units, and heavy industrial applications such as steel mills, cement plants, and chemical facilities. It also serves as reliable infrastructure power supply for data centers, airports, railway traction, and medium-voltage collection systems for renewable energy sites like solar and wind farms.
The KYN28 Series is constructed with 2mm cold-rolled steel panels, creating a rigid, metal-clad enclosure that provides a high level of physical protection. The system boasts a Protection Class of IP4X, which guards against the ingress of solid objects, though it is noted that underground mining applications require an IP protection upgrade. The switchgear complies with stringent international and national standards, including IEC 62271-200 and GB3906-2006, and meets the IAC AFLR Internal Arc Classification, ensuring that in the event of an internal fault, the arc energy is safely contained and directed away from operators.

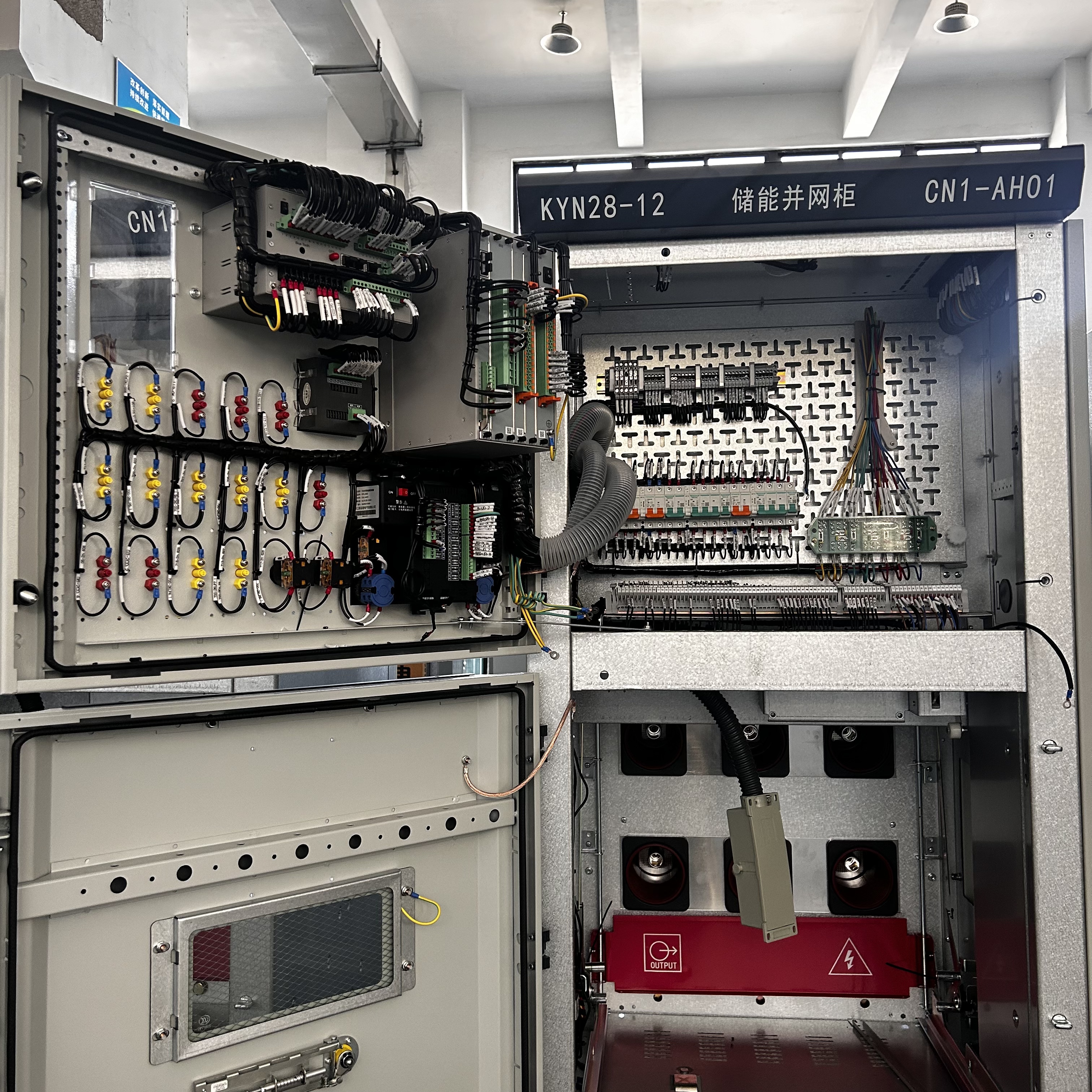

One of the most significant advancements in modern switchgear design is the compartmentalized structure. The KYN28 Series features four independent compartments: the breaker compartment, busbar compartment, cable compartment, and low-voltage compartment. These sections are separated by grounded metal partitions. This design is paramount for operational safety, as it isolates faults to a single compartment, preventing them from spreading and causing extensive damage. It also allows maintenance personnel to safely access the low-voltage control compartment while the high-voltage sections remain energized.
Furthermore, the system utilizes a withdrawable circuit breaker design. This allows for the physical extraction of the circuit breaker from the active bus for maintenance and replacement without requiring complete system shutdowns. This feature significantly enhances withdrawable switchgear maintenance safety by ensuring that the breaker is completely physically isolated from the power source before any work is performed on it. To prevent human error during this process, the equipment is equipped with a five-prevention interlock system. This sophisticated mechanical and electrical interlocking mechanism stops unsafe operations, such as attempting to close the breaker under load while it is in the intermediate racking position. Mechanical interlocks specifically prevent racking the breaker while the main circuit is closed, requiring an override key to bypass under strictly controlled conditions.
A comprehensive maintenance program involves a systematic approach to inspecting, cleaning, and testing the switchgear. The environment in which the switchgear operates plays a significant role in determining the frequency and intensity of these tasks. Dust, moisture, corrosive gases, and extreme temperatures can all accelerate the degradation of insulation and mechanical components. Therefore, the first step in any maintenance routine is a thorough cleaning of the equipment. All dust and debris must be carefully removed using industrial vacuums and lint-free cloths. Solvents should only be used if explicitly approved by the manufacturer, as some chemicals can damage insulating materials.
Following cleaning, all mechanical linkages, pivot points, and operating mechanisms must be inspected for wear and properly lubricated. The lubricants used must be compatible with the materials and the operating temperatures of the switchgear. Over-lubrication can be just as detrimental as under-lubrication, as excess grease can attract dust and dirt, leading to mechanical binding. The alignment of the primary disconnect contacts on withdrawable breakers must also be checked to ensure proper engagement and minimal contact resistance.
Visual inspections are the first line of defense in identifying potential issues. Inspectors should look for signs of overheating, such as discolored metal, blistered paint, or melted insulation. They should also check for evidence of corona discharge, which often leaves a white, powdery residue or a distinct odor of ozone. The structural integrity of the enclosure, the condition of the grounding connections, and the operation of all mechanical interlocks must be carefully evaluated. Every observation, measurement, and action taken during the maintenance process must be meticulously documented.
Generating a detailed switchgear inspection report is a critical administrative task that provides a historical record of the equipment's health. This report should include the date of the inspection, the names of the personnel involved, the specific tasks performed, and any anomalies discovered. It should also detail the results of any electrical testing, including insulation resistance values, contact resistance measurements, and timing tests. By analyzing these reports over time, facility managers can identify trends, predict potential failures, and optimize their maintenance schedules, ensuring that resources are allocated effectively and safety is never compromised.
Electrical testing is essential for verifying the unseen health of the switchgear. Routine factory tests for systems like the KYN28 include insulation resistance, contact resistance, and mechanical operation checks, and these should be mirrored in field maintenance. Insulation resistance testing (often using a Megger) measures the integrity of the solid busbar insulation and other insulating materials. Contact resistance testing (using a micro-ohmmeter) ensures that the main current-carrying path through the breaker and the busbar joints has minimal resistance, preventing excessive localized heating.
The core of the system relies on robust high voltage components for switchgear systems, particularly the vacuum circuit breakers. The KYN28 Series is compatible with VD4, VS1, VB2, or equivalent vacuum circuit breakers. These vacuum interrupters are highly reliable but require specific testing. While they boast a mechanical life of over 30,000 operations, their electrical life is load-dependent, generally rated for 20,000+ operations. Testing the vacuum integrity is crucial, usually performed with a high-potential (hipot) tester to ensure the vacuum bottle can still withstand the rated voltage without breaking down. Additionally, advanced diagnostics like measuring Partial Discharge (which in the KYN28 is rated at <10pC at 1.2Ur) can detect microscopic insulation flaws before they lead to a complete dielectric failure.
As technology advances, so do the methods for maintaining electrical infrastructure. Modern switchgear systems increasingly incorporate digital technologies that facilitate continuous monitoring and advanced protection. The KYN28 Series, for instance, supports integration with advanced digital protection relays such as the Schneider Sepam, ABB REF615, Siemens 7SJ85, and RPC-3000. These relays not only provide precise fault protection but also capture valuable data regarding load currents, voltage fluctuations, and fault event records.
Furthermore, the ability to integrate with industrial communication protocols like Modbus, Profibus, and IEC 61850 allows the switchgear to become an active node in a facility's Supervisory Control and Data Acquisition (SCADA) system. This connectivity enables remote monitoring of breaker status, relay alarms, and environmental conditions within the switchgear room. By leveraging this real-time data, maintenance teams can transition from purely reactive or rigidly scheduled maintenance to a highly efficient, condition-based maintenance paradigm.
Despite the capabilities of in-house maintenance teams, the complexity of modern medium-voltage systems often necessitates specialized expertise. Partnering with the manufacturer or certified service providers ensures that the equipment is maintained to the highest standards. Professional high voltage switchgear maintenance support provides access to specialized diagnostic equipment, factory-trained technicians, and the latest technical updates. For the KYN28 Series, this is supported by local after-sales services that include remote or on-site commissioning, comprehensive operator training, and the provision of authentic spare parts.
When a facility procures the KYN28, it includes a documentation package with General Arrangement (GA) drawings, a bill of materials, wiring diagrams, and type test reports. Utilizing this documentation in conjunction with expert support ensures that any modifications, troubleshooting, or major overhauls are performed correctly. Whether configuring the cable entry for front or rear access based on site needs, or replacing a critical component, relying on professional support mitigates risk and ensures the long-term reliability of the distribution network.
The operating environment significantly impacts the lifespan and maintenance requirements of switchgear. Moisture is a primary enemy of electrical insulation. To combat this, the KYN28 Series includes automatic space heaters equipped with a hygrostat. These heaters activate automatically to maintain the internal temperature above the dew point, effectively preventing condensation and moisture damage that could lead to tracking and flashovers. Ensuring these heaters and their control circuits are functioning correctly is a vital part of the routine maintenance schedule.
Additionally, the KYN28 Series uses an air-insulated medium combined with solid busbar insulation. This design choice is significant because it avoids the use of SF6 gas. SF6 is a potent greenhouse gas, and its elimination from the switchgear design not only reduces the environmental footprint of the facility but also simplifies maintenance. Facilities do not need to manage gas handling procedures, monitor gas pressure levels, or deal with the strict regulatory reporting associated with SF6, thereby streamlining the overall maintenance burden while maintaining high safety and performance standards.
The versatility of a switchgear system dictates its suitability across various industries. The KYN28 Series is engineered to meet the rigorous demands of diverse applications. In utility substations and ring main units, it provides the backbone for reliable power distribution to communities and commercial centers. In heavy industrial environments like steel mills, cement plants, and chemical facilities, the robust 2mm steel construction and high mechanical endurance of the vacuum interrupters ensure continuous operation despite harsh conditions and frequent switching cycles.
Furthermore, the rise of digital infrastructure and renewable energy has created new demands for medium-voltage switchgear. Data centers, which require absolute power reliability, benefit from the KYN28's compatibility with advanced digital relays and communication modules, allowing for seamless integration into automated power management systems. Similarly, in renewable energy applications such as solar and wind farms, the switchgear serves as a critical component in the medium-voltage collection systems, efficiently gathering and routing generated power while providing essential fault protection. The HS Code 8537209000 categorizes this equipment globally, reflecting its standard role in international power infrastructure.
The 12kV Withdrawable Switchgear KYN28 Series by SHENGXIAN delivers a highly secure, adaptable, and robust solution for medium-voltage power distribution across utility, industrial, and renewable energy sectors. By integrating a four-compartment safety design, a reliable five-prevention interlock system, and an environmentally conscious air-insulated structure without SF6 gas, it provides exceptional operational safety and simplifies long-term upkeep. Its broad compatibility with industry-standard vacuum circuit breakers and advanced digital protection relays, combined with a durable 2mm steel enclosure and comprehensive local support, makes it an ideal investment for facility managers and electrical engineers seeking to ensure uninterrupted, safe, and efficient power management in critical infrastructure.
