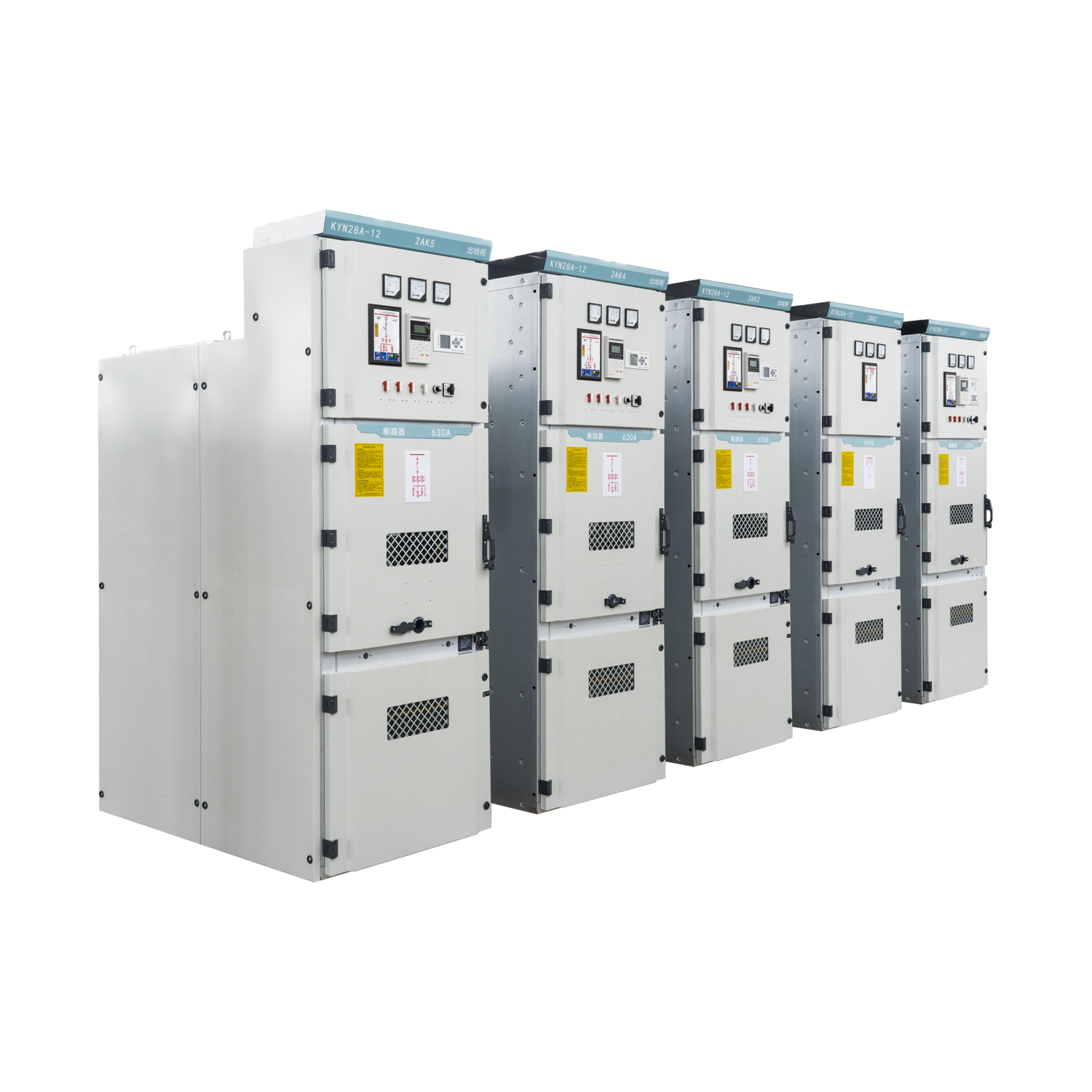

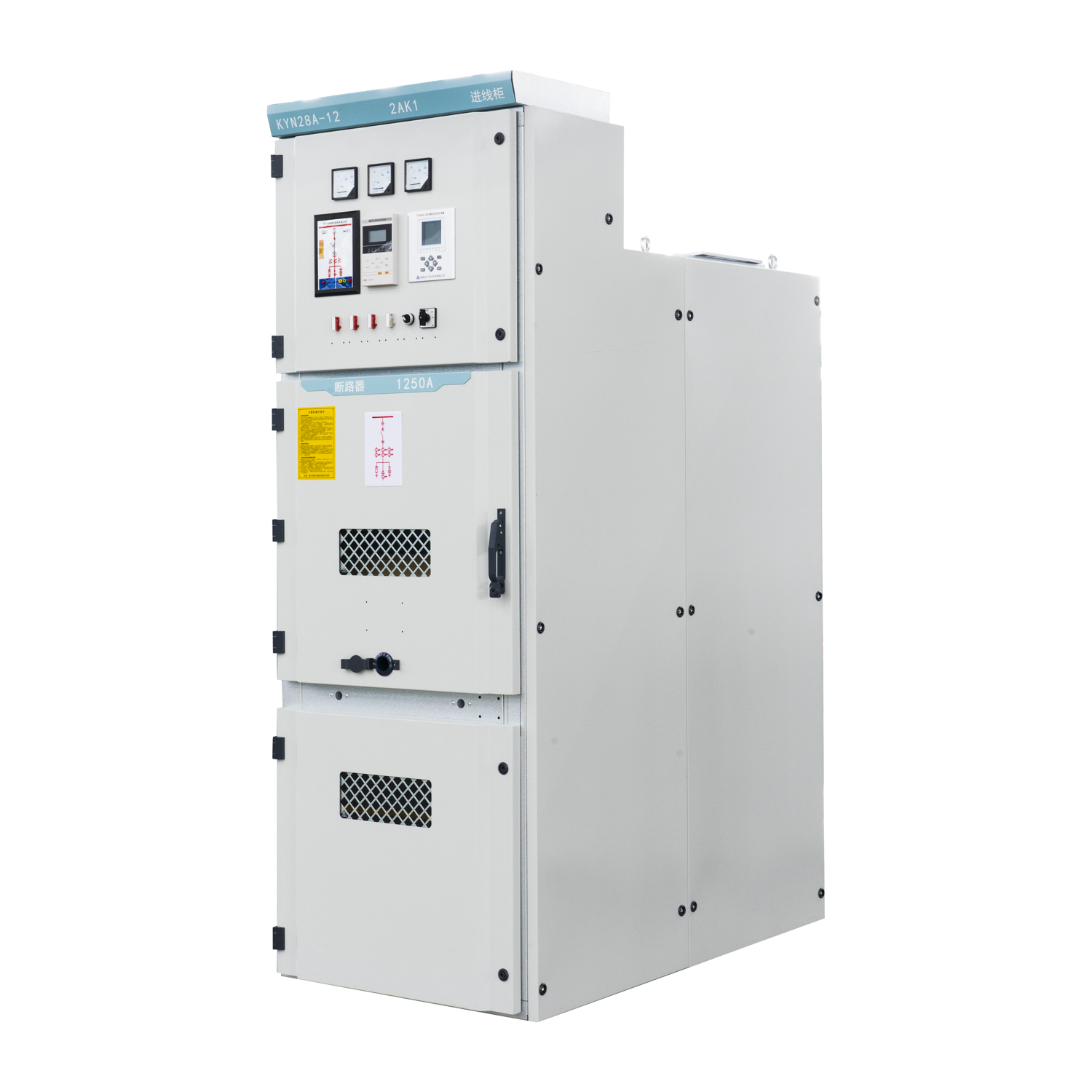

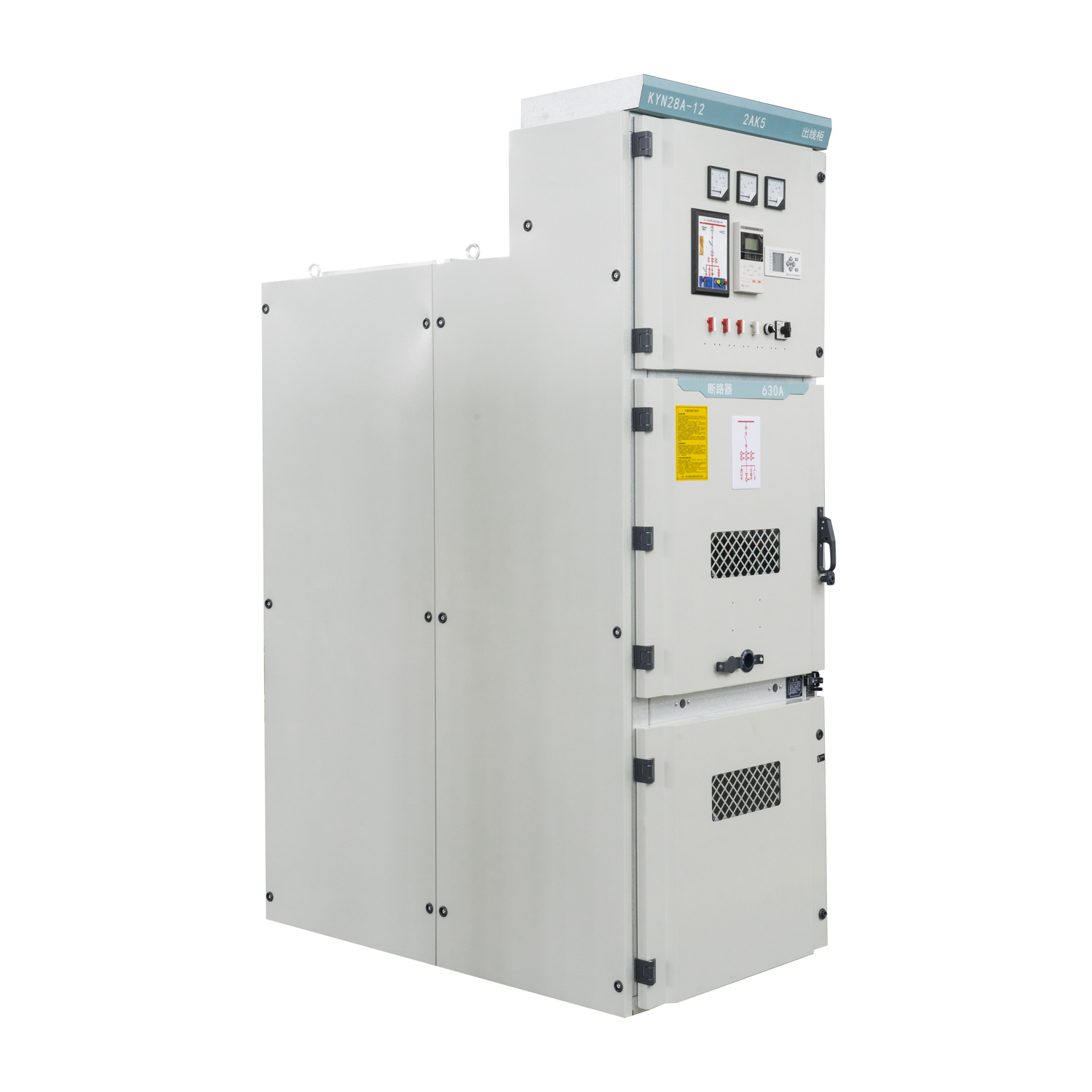

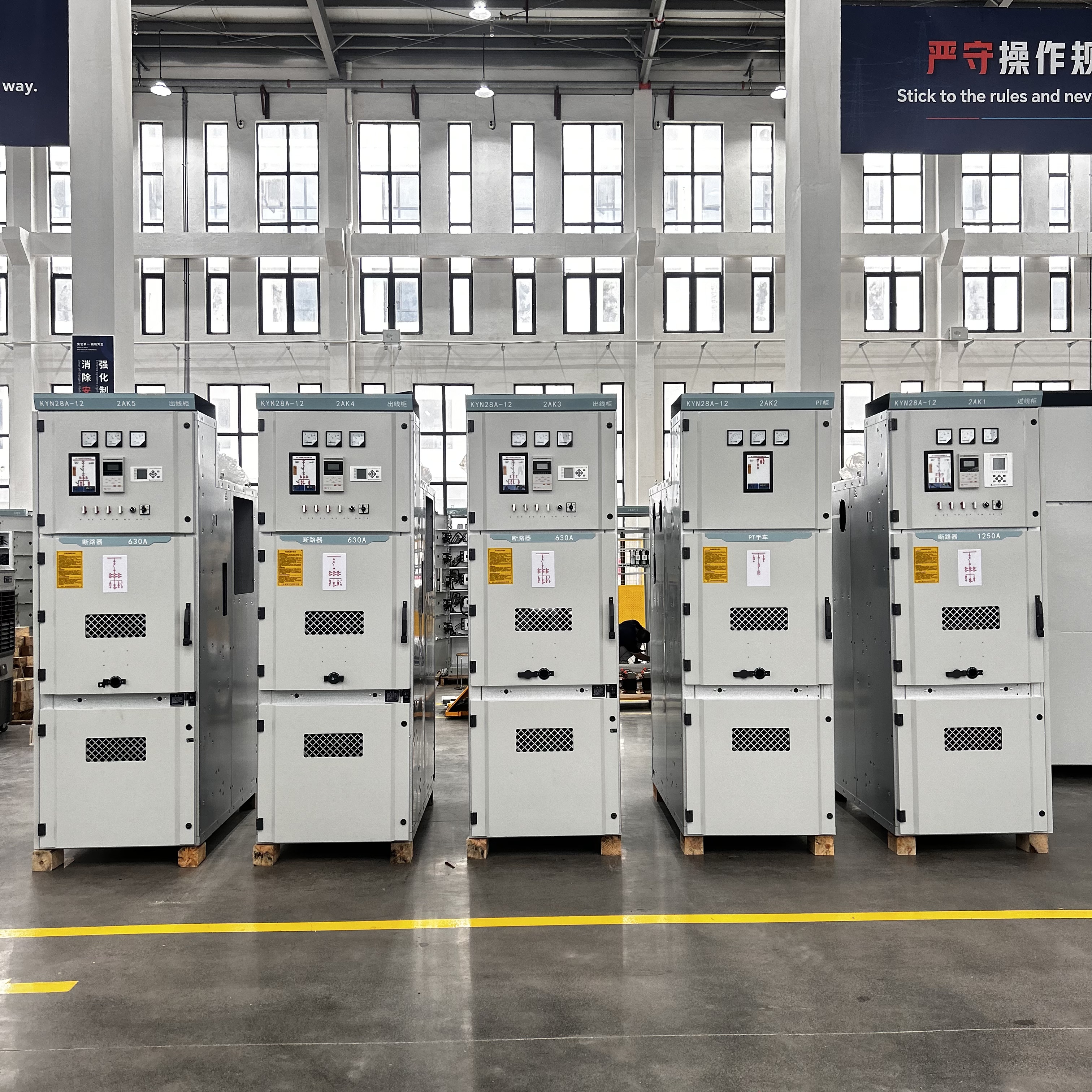

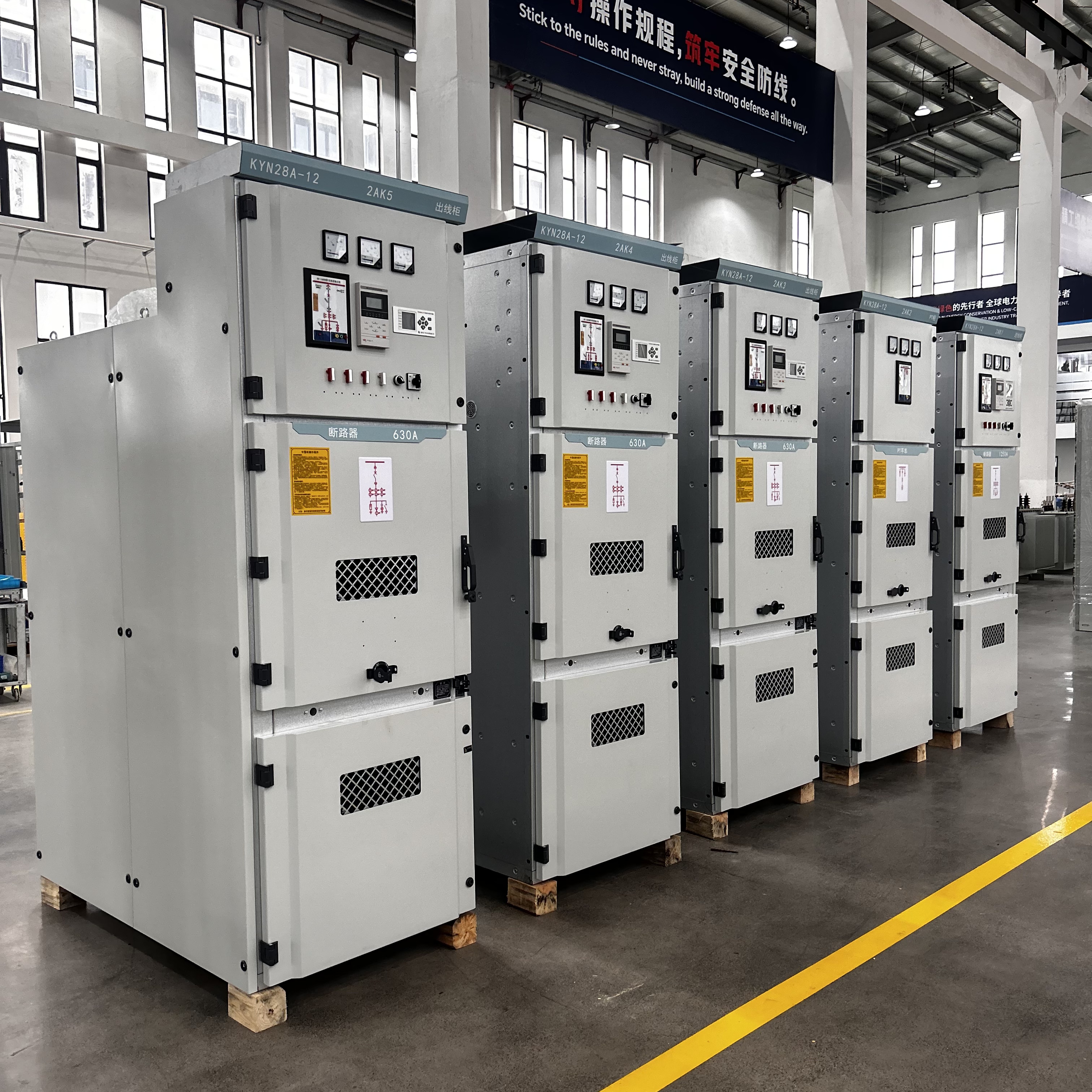

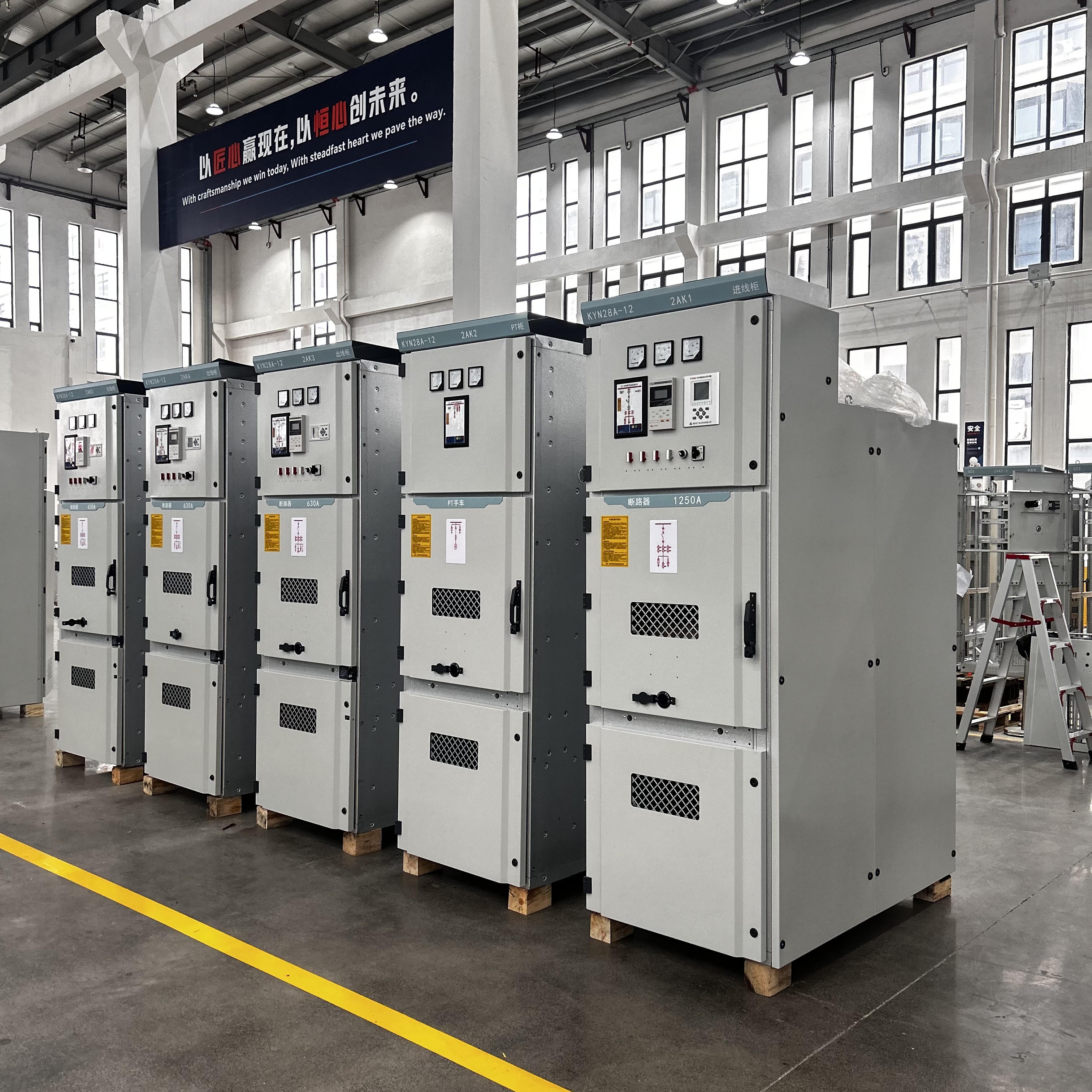

KYN28-12 is an indoor armored removable AC metal enclosed switchgear designed for three-phase AC 50Hz power systems. It is used for receiving and distributing electrical energy while providing control, protection and monitoring of electrical circuits.
The switchgear adopts a metal enclosed and removable structure, providing a practical solution for medium voltage power distribution systems where reliable operation, equipment protection and convenient maintenance are required.
KYN28-12 can be configured according to different power distribution requirements, including rated current and short-circuit withstand levels. It is suitable for industrial power distribution, electrical substations, commercial facilities and other medium voltage applications.
The product conforms to GB3906, GB/T11022 and IEC60298.
The switchgear uses a metal enclosed structure to separate the main electrical components and improve operational safety.
The removable switchgear configuration allows the circuit breaker unit to be withdrawn for inspection, maintenance and replacement.
Available rated current options include 630A, 1250A, 1600A, 2000A, 2500A and 3150A.
The switchgear supports short-time withstand current ratings from 20kA to 40kA according to the selected configuration.
Designed for indoor installation in medium voltage power receiving and distribution systems.
The configuration can be prepared according to the customer's single-line diagram, electrical requirements and project specifications.
Indoor metal enclosed switchgear design
Armored construction
Removable type configuration
Three-phase AC 50Hz operation
Rated voltage options of 3.6kV, 7.2kV and 12kV
Rated current up to 3150A
Short-time withstand current up to 40kA
Peak withstand current up to 100kA
IP4X enclosure protection
IP2X protection between compartments when the relevant doors are open
Suitable for power receiving, distribution, control, protection and monitoring
Item | Unit | Parameter |
|---|---|---|
Rated Voltage | kV | 3.6, 7.2, 12 |
Rated Frequency | Hz | 50 |
Circuit Breaker Rated Current | A | 630, 1250, 1600, 2000, 2500, 3150 |
Switchgear Rated Current | A | 630, 1250, 1600, 2000, 2500, 3150 |
Rated Short-Time Withstand Current 4s | kA | 20, 25, 31.5, 40 |
Rated Peak Withstand Current | kA | 50, 63, 80, 100 |
Rated Short-Circuit Breaking Current | kA | 20, 25, 31.5, 40 |
Rated Short-Circuit Closing Current Peak | kA | 50, 63, 80, 100 |
Power Frequency Withstand Voltage | kV | 24, 32, 42 |
Lightning Impulse Withstand Voltage | kV | 40, 60, 75 |
Enclosure Protection | — | IP4X |
Protection Between Compartments | — | IP2X |
Note: The exact electrical configuration, dimensions and selected ratings should be confirmed according to the project requirements and technical specification.
KYN28-12 is designed for normal operating conditions including:
Ambient temperature: -15°C to +40°C
Daily average relative humidity: ≤95%
Monthly average relative humidity: ≤90%
Altitude: ≤1000m
Earthquake intensity: not more than magnitude 8
No significant pollution from corrosive or combustible gases or water vapor
Installation in locations without severe vibration
For applications outside the normal conditions specified by GB3906, the technical requirements should be confirmed with the manufacturer before ordering.
Used for medium voltage power receiving and distribution in factories, production facilities and industrial plants.
Suitable for indoor medium voltage distribution sections in substations and power distribution systems.
Can be applied to medium voltage power distribution systems serving commercial and large electrical facilities.
Suitable for infrastructure projects requiring indoor metal enclosed medium voltage switchgear.
Used for receiving, distributing, controlling, protecting and monitoring electrical circuits in three-phase AC power systems.
Before ordering KYN28 switchgear, buyers should confirm the following information:
Confirm whether the required system voltage is 3.6kV, 7.2kV or 12kV.
Select the appropriate current rating according to the load and distribution system, from 630A up to 3150A.
The required short-time withstand and short-circuit ratings should be confirmed according to the power system fault level.
The incoming, outgoing, bus section and other functional configurations should be confirmed according to the project single-line diagram.
Confirm the indoor installation environment, available space, cable arrangement and site conditions before production.
Specify the required technical standards and project documentation before quotation and production.
Before installation, the foundation, cable routes, installation space and grounding arrangements should be prepared according to the approved technical drawings.
The switchgear should be transported and lifted using suitable equipment and the designated lifting points. During installation, the cabinets should be correctly positioned and securely fixed.
After installation, electrical connections, grounding, mechanical operation and relevant protection functions should be inspected before energization.
Installation, commissioning and electrical testing should be carried out by qualified personnel according to the project requirements and applicable regulations.
KYN28-12 is an indoor armored removable AC metal enclosed switchgear used for receiving and distributing electrical energy and for circuit control, protection and monitoring.
Yes. KYN28-12 is designed as an indoor medium voltage switchgear.
The supplied technical data includes rated voltage options of 3.6kV, 7.2kV and 12kV.
The rated current options include 630A, 1250A, 1600A, 2000A, 2500A and 3150A.
The enclosure protection rating is IP4X. The protection between compartments and the circuit breaker room is IP2X when the relevant doors are open.
Yes. The switchgear configuration can be prepared according to the customer's electrical requirements, single-line diagram and project specifications.
The provided product specification states compliance with GB3906, GB/T11022 and IEC60298.
Zhejiang Shengxian Electric Power Technology Co., Ltd. manufactures medium and low voltage power distribution equipment for industrial, commercial and infrastructure projects.
We provide factory-direct supply and project-based customization for switchgear and other power distribution equipment. KYN28 switchgear can be configured according to the customer's electrical drawings, technical specifications and application requirements.
Before production, our team can review the required electrical parameters and configuration. Factory inspection and testing can be arranged according to the agreed technical requirements.
We also provide export packing, shipment coordination and after-sales technical support for overseas projects.
For KYN28-12 switchgear quotation, technical specifications or project configuration, please send us your single-line diagram, rated voltage, current rating and short-circuit requirement.
