Medium voltage switchgear serves as the heart of modern electrical distribution systems. Among the many available options, KYN28 medium voltage switchgear has become one of the most widely adopted solutions for industrial plants, utilities, commercial buildings, renewable energy projects, mining operations, and substations due to its outstanding safety, reliability, and maintenance convenience. It is an indoor metal-clad, withdrawable switchgear commonly used in 12 kV systems and designed with compartmentalized construction to improve operational safety and maintainability.
As electrical infrastructures continue to demand higher reliability and lower downtime, selecting the right switchgear becomes increasingly important. This guide provides a comprehensive overview of KYN28 switchgear, including its design, benefits, applications, technical specifications, selection criteria, and maintenance recommendations.
KYN28 switchgear is an indoor metal-clad withdrawable AC switchgear designed for medium-voltage power distribution systems, typically rated up to 12 kV.
The cabinet is divided into independent compartments to isolate electrical equipment, significantly improving operator safety and reducing the risk of fault propagation.

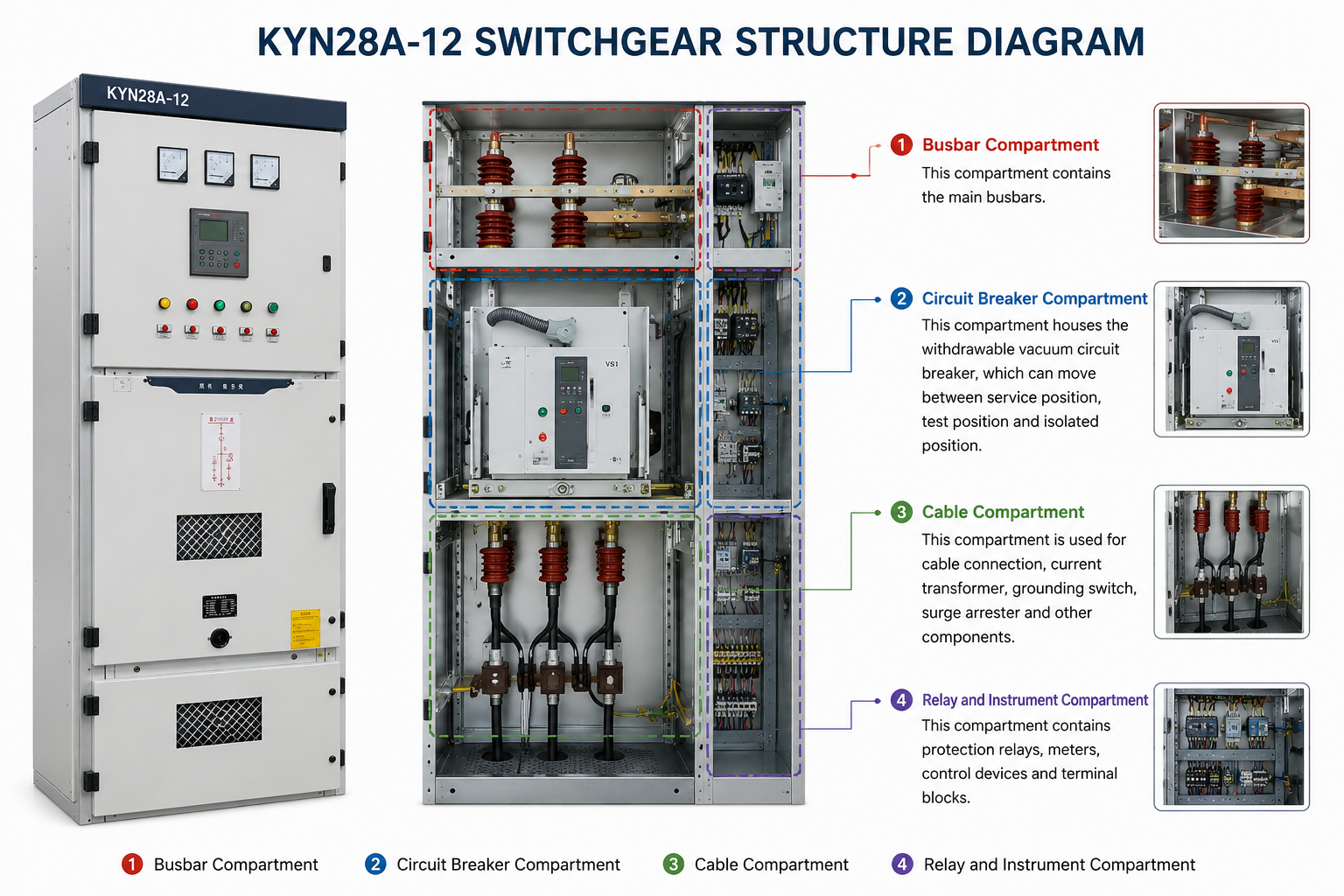

A typical KYN28 panel consists of:
Busbar compartment
Circuit breaker compartment
Cable compartment
Low-voltage control compartment
This modular architecture simplifies maintenance while enhancing operational safety.
The incoming electrical power enters the switchgear through the incoming feeder.
The vacuum circuit breaker controls switching operations and protects downstream equipment from overloads and short circuits.
Protection relays continuously monitor electrical parameters such as:
Current
Voltage
Frequency
Earth fault
When abnormal conditions occur, the relay immediately trips the vacuum circuit breaker to isolate the faulty circuit.
This rapid response minimizes equipment damage and improves system reliability.
The vacuum circuit breaker is the core switching device.
Advantages include:
Long mechanical life
Maintenance-free interruption
Excellent arc extinguishing capability
High switching reliability
Copper or aluminum busbars distribute power throughout the switchgear.
Proper insulation and compartment separation reduce electrical stress.
Modern digital protection relays provide:
Overcurrent protection
Earth fault protection
Differential protection
Communication with SCADA systems
Measures current for:
Metering
Protection
Monitoring
Provides voltage signals for:
Protection relays
Measuring instruments
Power quality monitoring
Ensures maintenance personnel can safely ground isolated circuits before servicing equipment.
Safety remains the most important advantage.
The metal-clad construction isolates live components, reducing operator exposure.
Multiple mechanical and electrical interlocks prevent incorrect operating sequences.
KYN28 switchgear is designed for continuous operation under demanding industrial conditions.
Its robust construction minimizes failure rates and extends service life.
The withdrawable breaker truck allows maintenance without dismantling the entire cabinet.
This greatly reduces downtime.
Users can customize:
Incoming feeders
Outgoing feeders
Bus couplers
Metering panels
Capacitor feeder panels
KYN28 can accommodate circuit breakers from various manufacturers depending on project requirements.
Common specifications include:
Item | Typical Value |
|---|---|
Rated Voltage | 12kV |
Rated Frequency | 50Hz / 60Hz |
Rated Current | 630A–4000A |
Short Circuit Breaking Current | Up to 50kA |
Protection Degree | IP4X |
Installation | Indoor |
Standard | IEC 62271 |
Actual specifications depend on project requirements.
KYN28 switchgear is widely used in:
Manufacturing facilities require reliable distribution for production equipment.
Power utilities use KYN28 for feeder protection and distribution.
Suitable for:
Solar farms
Wind farms
Battery Energy Storage Systems
Large office complexes and shopping malls rely on stable medium-voltage distribution.
Harsh environments require durable and dependable switchgear.
Critical loads demand uninterrupted electrical supply with fast protection response.
Engineers often select KYN28 because it offers:
Proven safety record
Mature technology
Easy spare parts availability
High operational reliability
Flexible engineering design
Convenient maintenance
These characteristics reduce the total cost of ownership over the equipment lifecycle.
Choosing the right switchgear involves more than comparing prices.
Evaluate:
Ensure compatibility with your power system.
Consider future expansion.
The interrupting capacity must exceed the maximum fault current.
Select suitable protection relays for your application.
Check compliance with IEC or other applicable standards.
An experienced manufacturer can provide:
Engineering support
Factory testing
Documentation
After-sales service
Regular maintenance extends equipment life.
Recommended inspections include:
Vacuum breaker operation
Mechanical interlocks
Busbar connections
Cable terminals
Protection relay testing
Insulation resistance measurement
Predictive maintenance using thermal imaging can also identify loose connections before failures occur.
At Zhejiang Shengxian Electric, we specialize in complete medium-voltage power distribution solutions.
Our KYN28 switchgear offers:
IEC-compliant design
Strict factory testing
Custom engineering solutions
OEM & ODM support
Fast delivery
Technical support
Export experience across global markets
Whether your project is a power utility, industrial facility, renewable energy installation, or commercial building, our engineering team can provide reliable and customized solutions tailored to your requirements.
Yes. It is widely used in solar and wind power plants due to its high reliability and flexible configuration.
KYN28 can be equipped with various compatible vacuum circuit breakers depending on customer requirements.
With proper maintenance, KYN28 switchgear can operate reliably for more than 25 years.
Yes. Modern digital protection relays support SCADA and other intelligent monitoring systems.
KYN28 medium voltage switchgear remains one of the most trusted solutions for modern power distribution. Its metal-clad structure, withdrawable vacuum circuit breaker, comprehensive protection features, and flexible configuration make it an excellent choice for industrial facilities, utilities, renewable energy projects, and commercial infrastructure. Selecting a qualified manufacturer with proven engineering expertise ensures not only dependable equipment but also long-term operational reliability and lower lifecycle costs. Its widespread adoption in 12 kV distribution systems reflects a balance of safety, maintainability, and performance that continues to meet evolving industry requirements.
