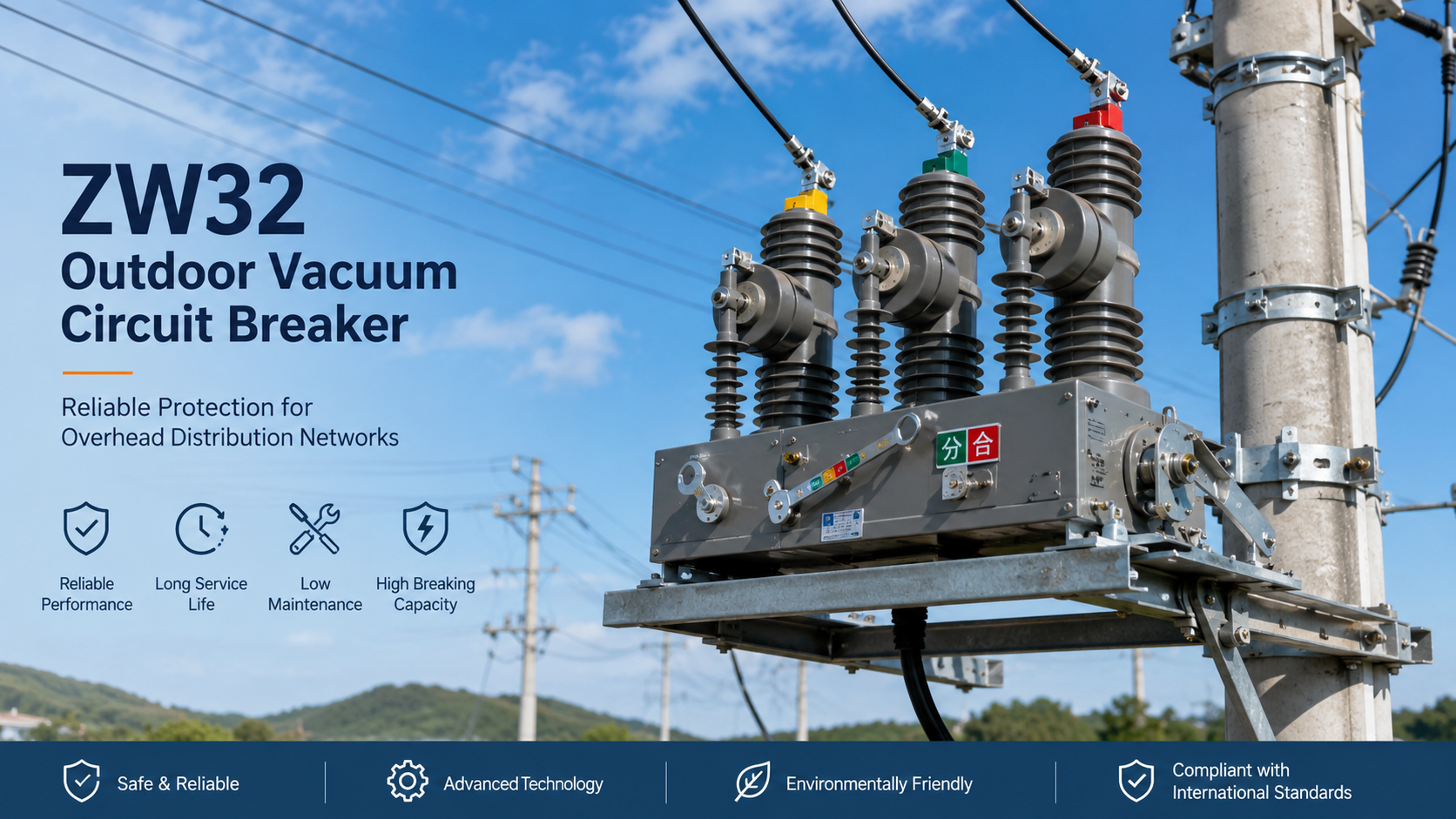

Power distribution systems depend on reliable protection devices to ensure safe and uninterrupted operation. Among them, the ZW32 Outdoor Vacuum Circuit Breaker has become one of the most widely used solutions for 12kV overhead distribution networks due to its excellent interrupting performance, long service life, and low maintenance requirements.
However, selecting the right ZW32 model is not always straightforward. Many buyers focus only on price or basic specifications, overlooking factors that directly affect long-term reliability and project performance.
In this article, we'll discuss the seven most common purchasing mistakes and explain how to avoid them.
One of the biggest purchasing mistakes is selecting the lowest-priced supplier without evaluating product quality.
A lower purchase price may come with hidden costs such as:
Lower mechanical life
Poor insulation performance
Inferior vacuum interrupters
Reduced reliability
Higher maintenance expenses
Shorter service life
Instead of comparing prices alone, buyers should evaluate the total lifecycle cost of the equipment.
Type test certificates
Manufacturing standards
Quality control process
Factory experience
Warranty period
Customer references
Remember that a reliable circuit breaker can operate safely for more than 20 years, making quality far more valuable than a small upfront saving.
Many projects simply choose a standard 630A breaker without calculating the actual load.
However, rated current should match the distribution network requirements.

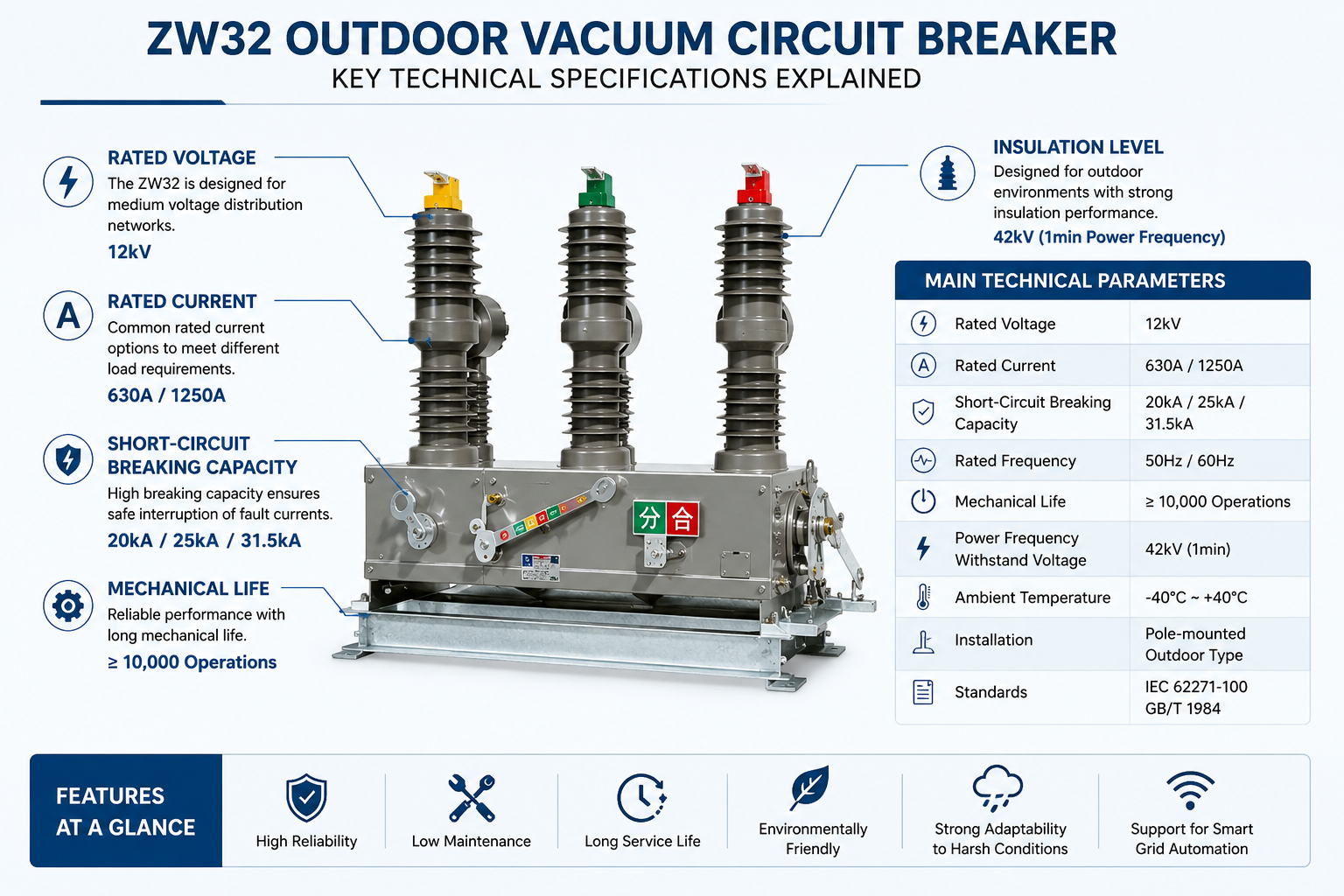

Common ZW32 rated current options include:
630A
1250A
Selecting an undersized breaker may cause overheating and shorten equipment life, while oversizing unnecessarily increases project costs.
Always calculate:
Maximum load current
Future expansion requirements
Transformer capacity
Line characteristics
Choosing the correct current rating ensures efficient and reliable operation.
The interrupting capacity is one of the most critical specifications.
Typical breaking capacities include:
20kA
25kA
31.5kA
If the available fault current exceeds the breaker's capability, equipment damage and safety hazards may occur.
Before purchasing, engineers should obtain the fault current calculation from the system designer or utility company.
Always ensure the breaker's rated short-circuit breaking capacity exceeds the maximum prospective fault current.
Outdoor circuit breakers operate in harsh environments.
Ignoring installation conditions may significantly reduce service life.
Important environmental factors include:
High humidity
Coastal salt spray
Heavy industrial pollution
High altitude
Desert dust
Extreme temperatures
Frequent thunderstorms
For challenging environments, additional protection such as corrosion-resistant coatings, stainless steel hardware, or enhanced insulation may be required.
The operating environment should always be discussed with the manufacturer before production.

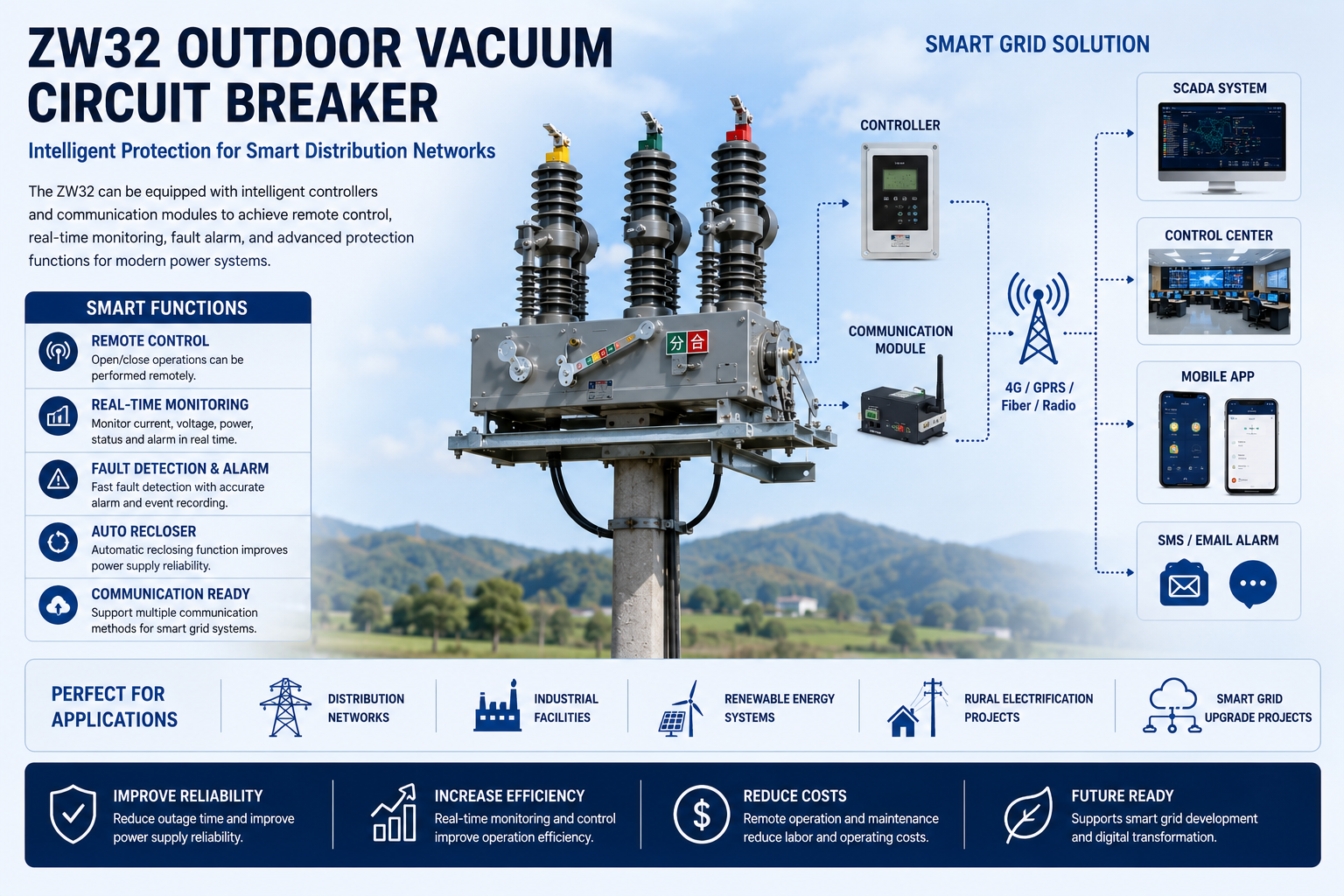

Modern distribution systems increasingly require intelligent control functions.
Many buyers purchase a standard manual breaker only to realize later that remote operation is needed.
Today's ZW32 breakers can be equipped with:
Motor operating mechanism
Automatic reclosing controller
SCADA communication
Remote monitoring
Fault indication
Load monitoring
GSM, GPRS, 4G, or fiber communication modules
Intelligent distribution automation controllers
Planning for future automation during procurement can save significant upgrade costs later.
Not every ZW32 breaker has the same configuration.
Different projects may require:
With isolating switch
Without isolating switch
Pole-mounted installation
Substation installation
Outdoor switching stations
Renewable energy applications
Incorrect configuration can increase installation complexity or require costly modifications.
Before placing an order, confirm:
Mounting method
Pole dimensions
Phase spacing
Cable connection direction
Control cable routing
Providing installation drawings to the manufacturer is always recommended.
A circuit breaker supplier should offer more than just equipment.
Professional manufacturers provide:
Product selection assistance
Single-line diagram recommendations
Technical documentation
Factory testing reports
Installation guidance
Commissioning support
After-sales service
Spare parts supply
Strong technical support helps reduce engineering risks and ensures smooth project execution.
Choosing a supplier with experienced engineers often saves much more than negotiating the lowest price.
Before making your final purchasing decision, consider the following checklist:
✔ Rated voltage matches your network
✔ Correct rated current
✔ Adequate short-circuit breaking capacity
✔ Suitable operating mechanism
✔ Appropriate environmental protection
✔ Automation requirements confirmed
✔ Installation dimensions verified
✔ Certified manufacturing quality
✔ Comprehensive technical support
✔ Reliable after-sales service
Using this checklist can significantly reduce procurement risks and improve system reliability.

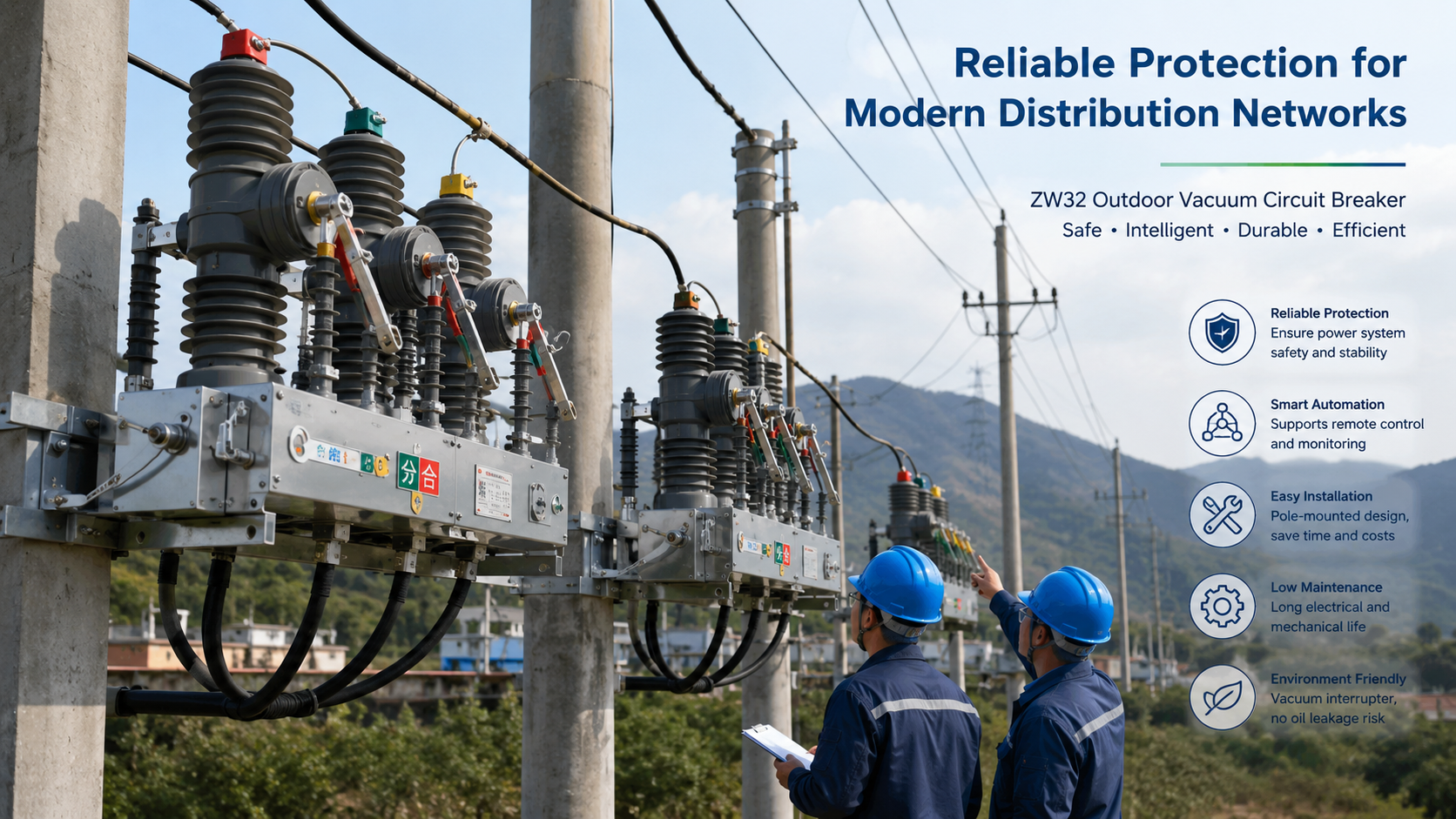

The ZW32 is a 12kV outdoor medium-voltage vacuum circuit breaker designed to protect overhead distribution lines, substations, industrial facilities, renewable energy systems, and rural power networks from overloads and short circuits.
A high-quality ZW32 circuit breaker typically offers a mechanical life of up to 10,000 operations or more, depending on the operating conditions and maintenance practices.
Yes. Many models can be equipped with motor-operated mechanisms, automatic reclosing controllers, SCADA interfaces, and remote communication modules for smart grid applications.
If visible isolation is required for maintenance or utility safety procedures, a ZW32 model with an integrated isolating switch is often the preferred choice.
Selecting the right ZW32 Outdoor Vacuum Circuit Breaker is an investment in the safety and reliability of your electrical distribution system. By avoiding common purchasing mistakes—such as focusing only on price, overlooking fault current ratings, or neglecting automation needs—you can reduce maintenance costs, improve operational efficiency, and ensure long-term performance.
Whether your project involves utility networks, industrial facilities, renewable energy plants, or commercial power distribution, careful planning and technical evaluation will help you choose the most suitable solution.
