In a high-voltage power system, safe isolation is just as important as reliable power transmission.
When equipment such as transformers, busbars, circuit breakers, or transmission lines needs to be inspected or maintained, operators need a reliable way to create a visible electrical isolation point.
This is where an outdoor high-voltage disconnect switch, also known as an isolator switch or disconnecting switch, plays an important role.
Unlike a circuit breaker, a disconnect switch is primarily designed to provide electrical isolation rather than interrupt high fault currents. Its visible isolation position makes it easier for operators and maintenance personnel to confirm that a section of the electrical system has been separated from the energized network.
For outdoor substations and distribution systems, GW-series disconnect switches such as GW4, GW5, and GW9 are commonly considered for different installation and system requirements.
An outdoor high-voltage disconnect switch is a mechanical switching device installed in high-voltage electrical systems to isolate a circuit, busbar, transformer, or other electrical equipment from the power supply.
Its basic functions include:
Providing visible electrical isolation
Supporting safe maintenance and inspection
Connecting or disconnecting sections of a high-voltage circuit under applicable operating conditions
Providing grounding arrangements when equipped with a grounding switch
Supporting flexible substation and distribution system configurations
The disconnect switch is normally used together with other primary electrical equipment, especially high-voltage circuit breakers, transformers, busbars, current transformers, and protection systems.
A typical operating sequence is coordinated with the circuit breaker. The circuit breaker handles load and fault current interruption, while the disconnect switch provides the physical isolation required after the circuit has been de-energized.
This division of functions is important when designing a safe and reliable high-voltage system.
High-voltage equipment is frequently exposed to outdoor environmental conditions such as rain, dust, temperature changes, wind, and solar radiation.
Therefore, outdoor disconnect switches need to combine mechanical reliability with suitable electrical insulation and environmental resistance.
One of the main advantages of a disconnect switch is its clearly identifiable open position.
This provides operators with a direct indication that a particular section of the system has been isolated.
Before maintenance work is carried out on high-voltage equipment, appropriate isolation procedures must be completed.
A properly selected disconnect switch can provide an effective isolation point between the equipment under maintenance and the energized part of the electrical system.
Disconnect switches can be installed at different positions within a substation, including:
Transformer incoming and outgoing circuits
Busbar sections
Feeder circuits
Transmission line connections
Capacitor or other auxiliary circuits
Equipment maintenance isolation points
This allows engineers to create flexible operating and maintenance configurations.
Outdoor disconnect switches are designed for installation in open-air environments.
Depending on the design and project requirements, important considerations include insulation distance, creepage distance, mechanical strength, corrosion resistance, temperature range, and environmental protection.
GW4, GW5, and GW9 are different types of outdoor high-voltage disconnect switches.
The exact configuration can vary according to voltage level, rated current, installation method, operating mechanism, grounding arrangement, and manufacturer design.
Therefore, buyers should always confirm the detailed technical specification rather than selecting a model based only on the model number.

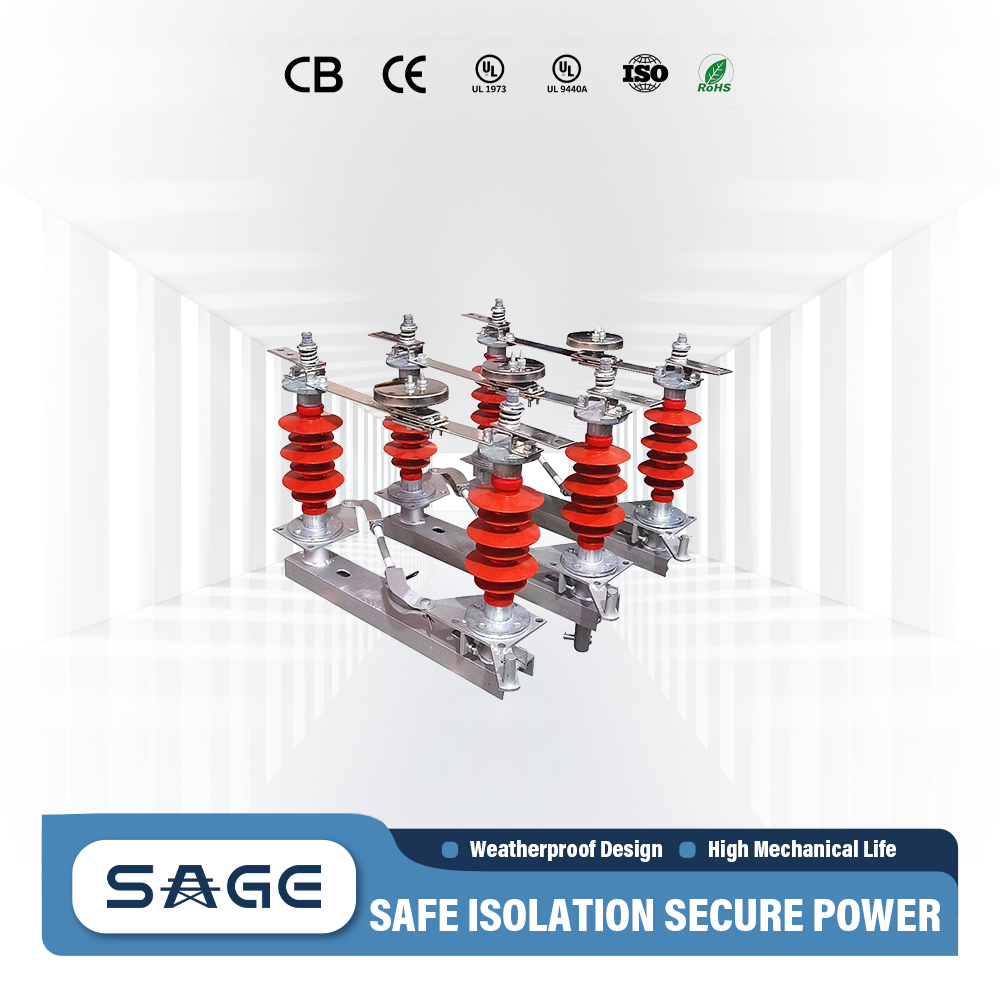

The GW4 series is commonly used as an outdoor high-voltage disconnect switch in substations and power distribution systems.
Its typical applications include:
Transformer isolation
Busbar isolation
Feeder isolation
Substation equipment maintenance
Outdoor high-voltage distribution systems
The GW4 structure can be configured with different operating mechanisms and grounding arrangements according to project requirements.
For engineering projects, buyers should confirm the required rated voltage, rated current, short-time withstand current, peak withstand current, insulation level, and operating configuration.

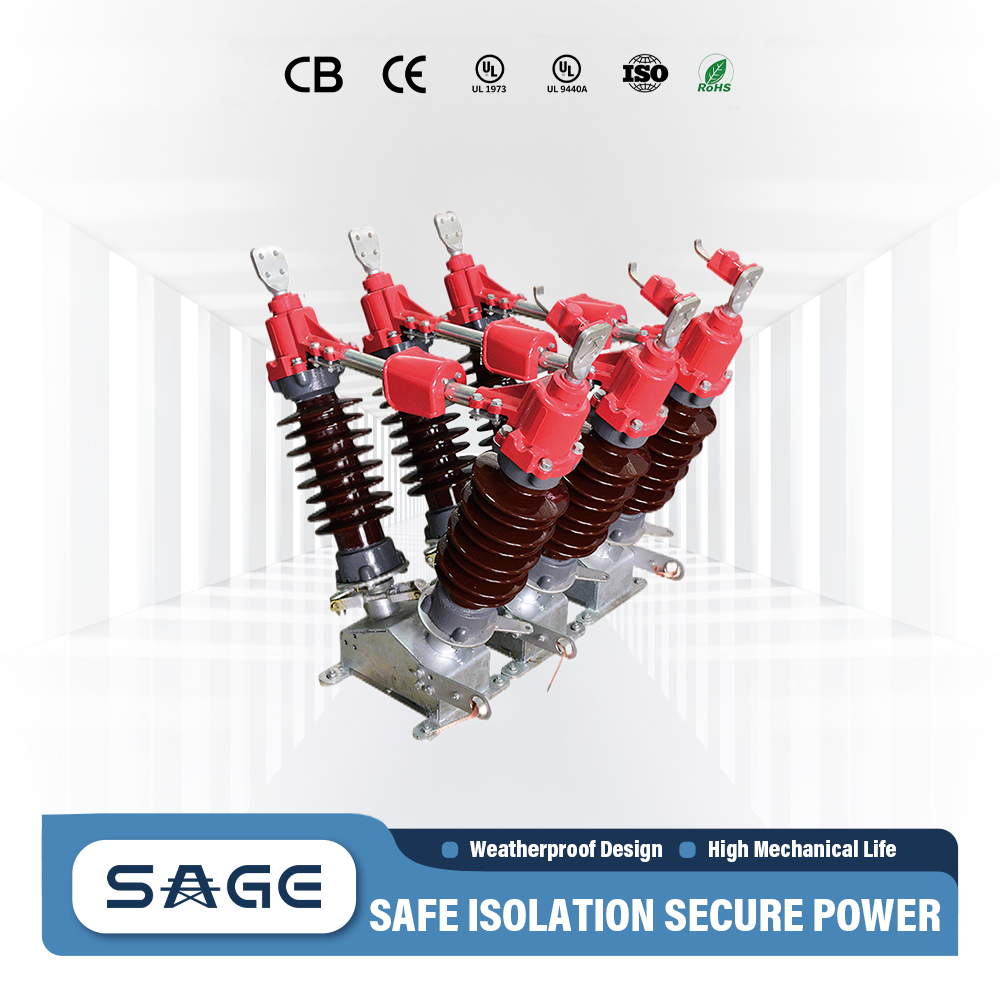

The GW5 series is another type of outdoor high-voltage disconnect switch designed for high-voltage power systems.
Depending on the configuration, it can be used for:
Substation incoming and outgoing lines
Busbar isolation
Transformer circuits
High-voltage feeder systems
Outdoor switching and isolation applications
The mechanical structure and contact arrangement of the GW5 can be selected according to the installation requirements of the project.
For larger substations, factors such as phase spacing, installation height, operating mechanism, and grounding switch configuration should be carefully considered.

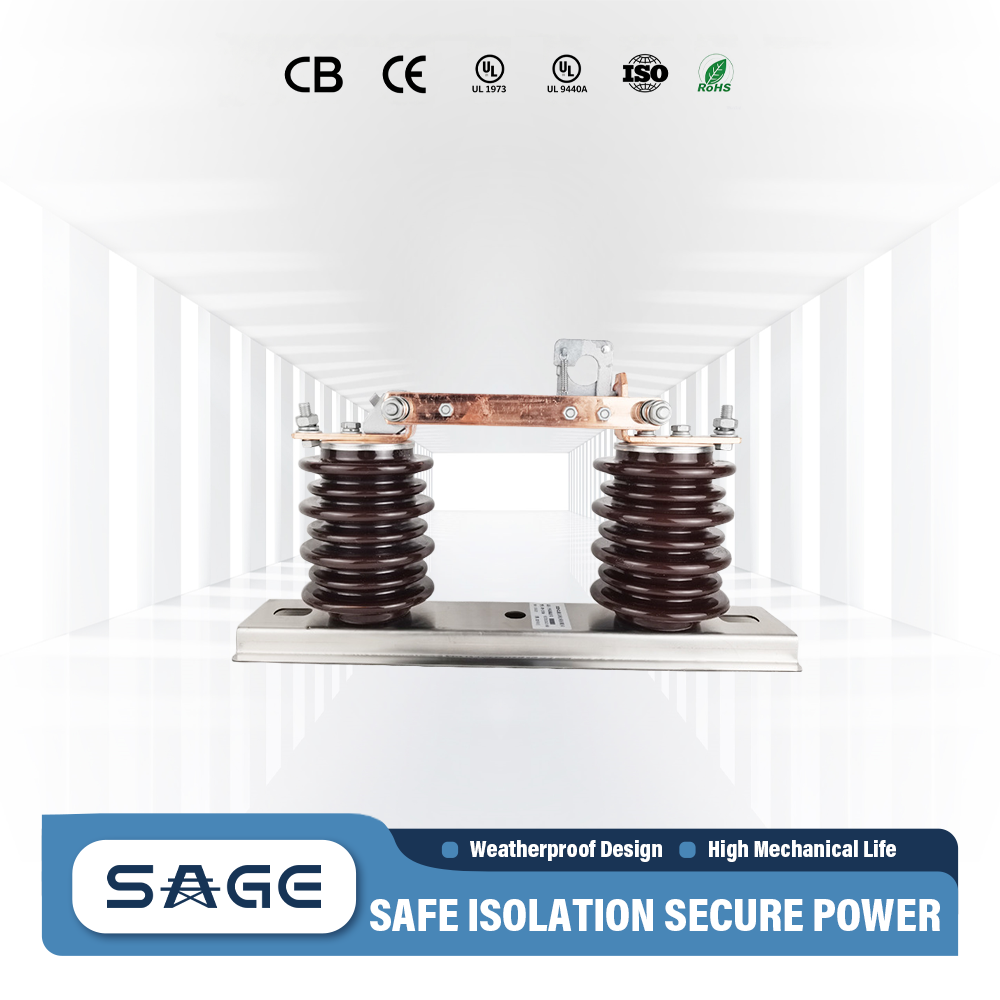

The GW9 series is generally used for outdoor high-voltage isolation applications where a compact and practical switching structure is required.
Typical applications may include:
Distribution substations
Transformer connections
Outdoor feeder systems
High-voltage distribution networks
Equipment isolation
The actual application range depends on the rated voltage, current, insulation level, installation conditions, and applicable technical standards.
A typical outdoor disconnect switch consists of several important components:
The conductive parts carry the electrical current during normal operation.
The contact system establishes or separates the electrical connection.
Good contact pressure and reliable contact materials are important for reducing contact resistance and maintaining stable operation.
Insulators provide electrical insulation between energized conductors and the grounded supporting structure.
For outdoor applications, the insulation system must be suitable for the required voltage level and environmental conditions.
The operating mechanism transfers mechanical movement to the switching contacts.
Depending on the design, the switch may use manual, motorized, or other operating mechanisms.
Some configurations can be equipped with grounding switches.
A grounding switch provides an additional grounding function when the relevant circuit has been safely isolated and the operating procedure permits grounding.
This is one of the most important points for buyers who are selecting high-voltage equipment.
Item | Disconnect Switch | Circuit Breaker |
|---|---|---|
Main function | Electrical isolation | Switching and fault interruption |
Visible isolation | Yes | Generally no |
Fault current interruption | Not its primary function | Yes |
Maintenance isolation | Yes | Used as part of isolation procedure |
Typical installation | Substations and outdoor HV systems | Substations, feeders and distribution systems |
Relationship | Often used together | Often controls the circuit |
A disconnect switch should not simply be treated as a replacement for a circuit breaker.
In a properly designed high-voltage system, the two devices often work together.
For example, during maintenance, the circuit breaker may first interrupt the circuit. After confirming the appropriate operating conditions, the disconnect switch can then be operated to create a visible isolation point.
The exact operating sequence must follow the electrical system design, interlocking arrangement, applicable standards, and site operating procedures.
Choosing the correct disconnect switch requires more than simply selecting GW4, GW5, or GW9.
Several technical parameters should be checked.
The disconnect switch must be suitable for the system voltage.
Common project requirements may include medium- and high-voltage levels such as 12 kV, 24 kV, 36 kV, 72.5 kV, 126 kV, or higher, depending on the system.
The exact rated voltage should always be confirmed against the project specification.
The rated current determines the continuous current that the switch can carry under specified conditions.
Typical values vary according to the application and product design.
The insulation system must meet the required power-frequency withstand voltage and lightning impulse withstand voltage.
This is particularly important for outdoor substations exposed to lightning and environmental conditions.
Although a disconnect switch is not normally used to interrupt fault current, its conductive structure must withstand the thermal and mechanical effects of short-circuit current for the specified duration.
Therefore, short-time withstand current and peak withstand current are important selection parameters.
Depending on the application, customers may require:
Manual operation
Motorized operation
Local operation
Remote operation
Manual and motorized combined operation
For automated substations, motorized operation may be integrated into the control system.
Some projects require a grounding switch.
The required grounding arrangement should be confirmed during the initial technical specification stage.
For outdoor installation, buyers should provide information about:
Ambient temperature
Altitude
Humidity
Wind conditions
Pollution level
Salt spray exposure
Seismic conditions
Installation environment
This information helps manufacturers select suitable insulation, materials, surface treatment, and mechanical configurations.
Outdoor high-voltage disconnect switches can be found in many power system applications.
Disconnect switches are commonly installed around transformers, busbars, feeders, and incoming or outgoing lines.
They can be used to isolate sections of outdoor distribution systems and facilitate maintenance operations.
A disconnect switch can provide an isolation point for transformer-related circuits when coordinated with other switching equipment.
For higher-voltage systems, suitable disconnect switches can be integrated into transmission substations and line connection arrangements.
Large industrial facilities may also require outdoor high-voltage isolation equipment as part of their private power distribution networks.
There is no single model that fits every project.
Instead, the selection should start with the actual electrical and installation requirements.
A practical selection process is:
Step 1 — Confirm the system voltage
Determine the nominal system voltage and required rated voltage.
Step 2 — Confirm the rated current
Calculate or confirm the maximum continuous operating current.
Step 3 — Check insulation requirements
Confirm the required insulation level according to the system voltage and installation environment.
Step 4 — Determine the installation configuration
Consider whether the switch will be installed for transformer isolation, busbar isolation, feeder isolation, or another application.
Step 5 — Confirm grounding requirements
Determine whether a grounding switch is required and how it should be mechanically or electrically interlocked.
Step 6 — Select the operating mechanism
Choose manual, motorized, or another operating configuration according to the control system.
Step 7 — Consider environmental conditions
For coastal, high-altitude, heavily polluted, or other demanding environments, the environmental conditions should be clearly specified before production.
Step 8 — Confirm applicable standards
The manufacturer and buyer should agree on the applicable IEC, GB, or other project-specific standards before technical confirmation and production.
An outdoor disconnect switch is not an isolated product in a substation.
It needs to work correctly with the surrounding electrical equipment and control system.
An experienced manufacturer can help customers coordinate the disconnect switch with:
High-voltage circuit breakers
Transformers
RMUs
Medium-voltage switchgear
Busbars
Current transformers
Voltage transformers
Protection and control systems
For overseas projects, technical communication is particularly important.
Before quotation, customers should provide the basic electrical parameters, single-line diagram, installation conditions, required standards, and any special environmental requirements.
This allows the manufacturer to recommend a suitable configuration rather than simply providing a standard product quotation.
Outdoor high-voltage disconnect switches play an important role in electrical isolation, maintenance, and substation operation.
GW4, GW5, and GW9 represent different outdoor disconnect switch configurations that can be applied to various high-voltage power systems.
When selecting a product, buyers should look beyond the model number and carefully evaluate rated voltage, rated current, insulation level, withstand current, operating mechanism, grounding configuration, environmental conditions, and applicable standards.
For a new substation, distribution network, transformer installation, or industrial power project, providing the complete technical requirements at the quotation stage can significantly improve product selection and project compatibility.
If you are looking for an outdoor high-voltage disconnect switch such as GW4, GW5, or GW9, send us your system voltage, rated current, installation requirements, and technical specification. Our engineering team can help confirm a suitable configuration for your project.
