In modern power distribution, renewable energy generation, and industrial electrical systems, outdoor electrical equipment faces far more complex challenges than indoor devices. Wind, rain, snow, ultraviolet radiation, temperature fluctuations, dust, and corrosive air can easily cause ordinary switches to age, fail, leak electricity, or even trigger power accidents. For outdoor power infrastructure, safety, stability, and durability are always the top priorities of system design.

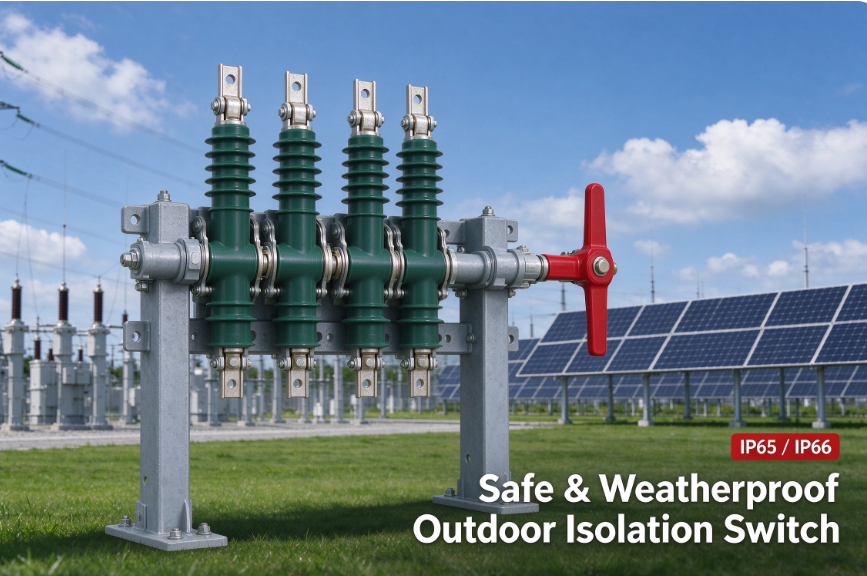

An outdoor isolation switch, also widely known as an outdoor disconnect switch, is a mandatory safety isolation device for outdoor power circuits. Different from circuit breakers that focus on breaking fault current, the core function of an outdoor isolator is to create a visible, reliable physical isolation gap after power-off, completely isolating the upper and lower circuits. This provides essential safety conditions for equipment inspection, circuit maintenance, fault repair, and system upgrading. It is an irreplaceable core component to ensure the personal safety of electricians and the stable operation of power systems.
Our series of outdoor isolation switches are professionally developed and manufactured for global harsh outdoor working conditions. Covering low-voltage and high-voltage full specifications, adopting high-purity insulating materials, reinforced anti-corrosion metal structures, and precision mechanical transmission systems, our products solve the common pain points of traditional outdoor switches such as poor weather resistance, easy aging, inflexible operation, and unclear isolation gaps. Widely used in power substations, overhead transmission lines, large-scale solar PV farms, wind power bases, industrial parks, port terminals, and municipal power facilities, our outdoor isolation switches provide long-term stable and safe power isolation protection for various outdoor electrical scenarios.
Many power operation failures and safety accidents in outdoor environments stem from the neglect of professional isolation equipment. Many project owners choose ordinary indoor switches for outdoor use to save costs, which leads to a large number of hidden dangers in long-term operation.
First, ordinary switches lack effective weatherproof and UV protection structures. Under long-term outdoor sunlight exposure and rain erosion, the shell is easy to crack and deform, and the internal conductive parts are prone to rust and oxidation, resulting in poor contact, increased circuit resistance, heat generation, and even flashover discharge.
Second, most ordinary switches do not have visible isolation gaps. Electric workers cannot intuitively judge the on-off state of the circuit during maintenance, which easily leads to misjudgment and electric shock accidents.
Third, ordinary switches have poor mechanical stability and cannot resist outdoor strong wind vibration and environmental impact. Long-term operation will cause loose parts, jamming, and failure to close or open in place, seriously affecting the safety and stability of the entire power system.
Professional outdoor isolation switches completely avoid the above problems. They are designed according to outdoor environmental standards, with standardized physical isolation functions, super environmental adaptability, and strict safety performance, becoming the standard configuration of formal outdoor power engineering projects worldwide.

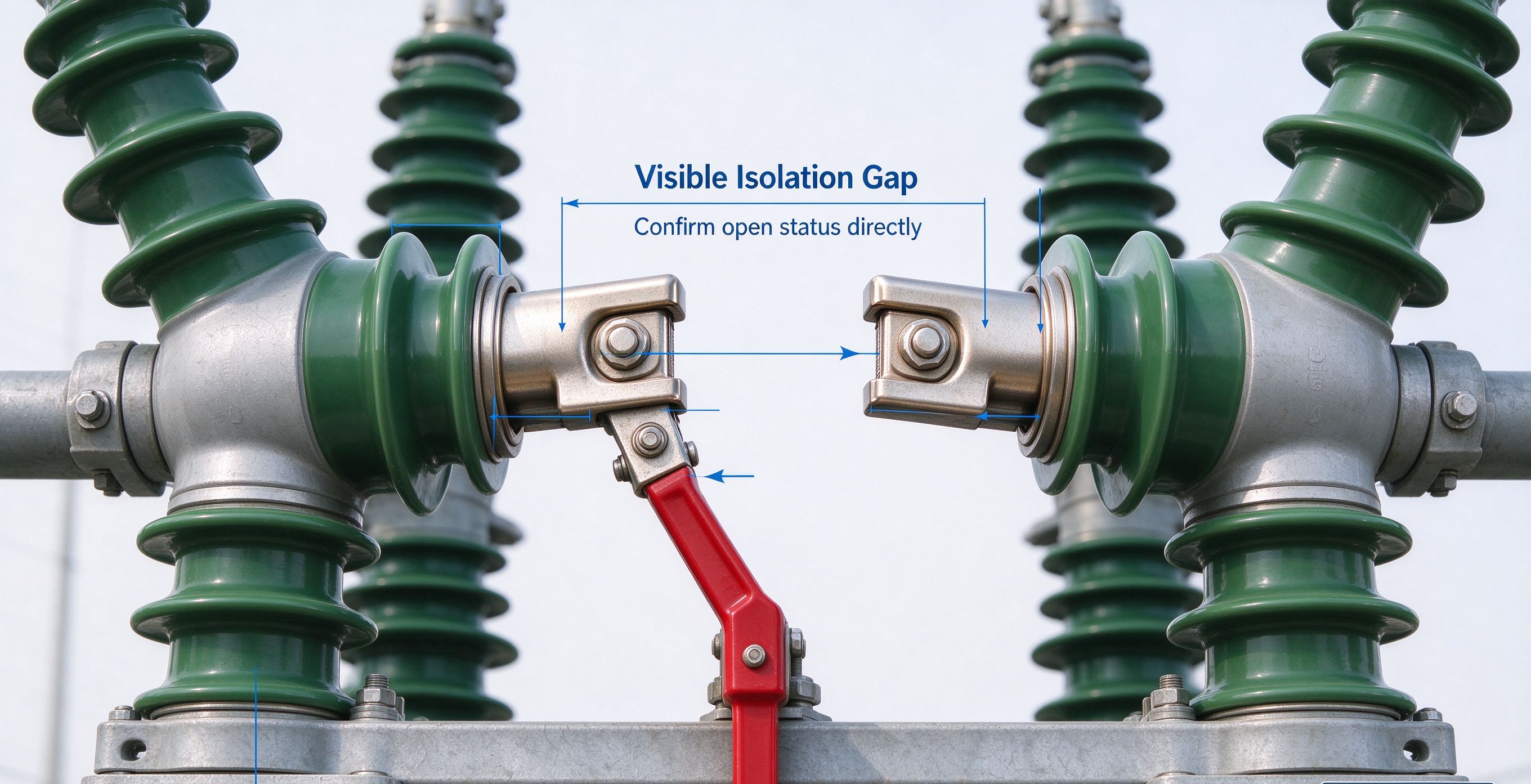

Safety is the core design concept of our outdoor isolation switch. The product adopts an open and visible structural design. When the switch is in the open state, the internal contact separation gap is completely exposed, and the staff can directly observe the circuit disconnection status with the naked eye without relying on instruments. This physical isolation mode completely eliminates the uncertainty of electronic signal judgment and is in line with international electrical operation safety specifications.
At the same time, we adopt a precise limit structure to ensure that each opening and closing operation is in place. The isolation gap reaches the standard safe distance, which can effectively resist overvoltage and prevent accidental breakdown. Whether it is daily maintenance, seasonal inspection, or emergency fault handling, it can provide the most reliable safety guarantee for on-site operators.
Aiming at the harsh characteristics of outdoor environments, our outdoor disconnect switch adopts an integral fully sealed protection structure. The shell is made of high-strength engineering plastic and composite ceramic insulation materials, with multi-layer waterproof and dustproof sealing strips, reaching IP65/IP66 high protection level. It can completely block rainwater, snow, fog, sand and dust, and avoid internal circuit pollution and short-circuit faults caused by environmental intrusion.
In addition, the surface of the product is treated with special anti-UV and anti-aging coating. Even in high-temperature and strong sunlight areas for a long time, it will not fade, crack or age and become brittle. The whole machine can work stably in the extreme temperature range of -40°C to 60°C, adapting to high-temperature desert areas, cold northern regions, humid coastal areas and various complex climatic environments.
Outdoor environments such as coastal salt fog, industrial corrosive gas, and urban acid rain will cause serious corrosion to electrical equipment. Our outdoor isolation switch conducts overall anti-corrosion treatment on all metal parts: the conductive copper bar is plated with thick silver to prevent oxidation and ensure stable conductivity; the mechanical bracket and fasteners are made of hot-dip galvanized stainless steel, which has excellent salt spray resistance and corrosion resistance.
Compared with ordinary low-cost switches that are easy to rust and deform, our products can maintain complete structural integrity and stable electrical performance after years of outdoor operation, greatly reducing equipment replacement frequency and project later maintenance costs.
The insulating part of the outdoor isolation switch is made of high-purity alumina ceramic and high-insulation polymer composite materials, which have ultra-high dielectric strength, strong arc suppression ability, and can effectively resist operating overvoltage and lightning overvoltage. Even in humid and dirty outdoor environments, it is not easy to produce surface creepage and flashover phenomena.
The internal contact adopts a multi-point contact structure, with large contact area and low contact resistance, which can avoid local overheating during long-term load operation. The product has passed strict power frequency voltage resistance and impulse voltage resistance tests, with stable performance and strong overload capacity, meeting the long-term continuous operation requirements of industrial and power-grade systems.
We optimize the internal mechanical transmission structure, adopt precision casting and stamping process, so that the switch opening and closing process is smooth and labor-saving, without jamming and shaking. The mechanical service life can reach tens of thousands of times of stable operation, which is far higher than the industry average level.
The product supports two operation modes: manual operation and motorized automatic operation. The manual type is simple and reliable, suitable for conventional conventional projects; the motorized type can realize remote electric opening and closing, which is convenient for intelligent management of modern power stations and unattended substations. At the same time, optional mechanical interlocking and electrical interlocking devices are equipped to prevent misoperation of closing and opening, and further improve the safety level of the system.
The overall structure of the outdoor isolation switch is compact and reasonable, supporting vertical installation, horizontal installation and wall-mounted installation, which can adapt to different equipment layouts and site space conditions. It is compatible with new power distribution projects and old equipment renovation and upgrading projects, with strong installation adaptability.
Thanks to the high-strength anti-aging design and fully sealed structure, the product basically does not need frequent maintenance in the later stage. It does not need regular dust cleaning and anti-rust treatment like ordinary switches, which greatly saves labor and time costs for enterprise operation and maintenance.
Our outdoor isolation switch series covers full-range specifications to meet different industry and voltage level needs:
Low voltage series: 16A, 32A, 63A, 100A, 250A, 400A, 630A, suitable for outdoor low-voltage power distribution, photovoltaic combiner boxes, industrial outdoor lines
High voltage series: 12kV, 24kV, 35kV, 40.5kV, suitable for power substations, overhead transmission lines, large new energy power stations
Operation mode: manual type, motorized electric type, with optional grounding switch device
Protection grade: IP65 / IP66 optional, customized for special corrosive environments
With all-weather adaptability, high safety and stable performance, our outdoor isolation switches are widely recognized and applied in multiple industries worldwide:
In urban and rural power grid transformation, outdoor high-voltage substations, and overhead transmission line systems, outdoor isolation switches are used for busbar isolation, transformer inlet and outlet line isolation, and line segment isolation. They provide clear power-off boundaries for grid maintenance and fault isolation, ensure sectional power supply of the power grid, and improve the stability and reliability of power grid operation.
Large-scale ground photovoltaic power stations, distributed outdoor photovoltaic projects, and wind power generation bases are all located in open outdoor environments, facing strong sunlight, wind and rain erosion all year round. Our weatherproof outdoor isolators are specially adapted to new energy power generation scenarios, used for DC and AC circuit isolation of photovoltaic inverters and wind power unit lines, solving the problem of difficult safety isolation of new energy outdoor circuits, and ensuring safe maintenance and fault cutting of power generation equipment.
Factories, mines, chemical plants, port terminals and other industrial sites have harsh environmental conditions, including industrial dust, corrosive gas and mechanical vibration. Our anti-corrosion and vibration-resistant outdoor isolation switches can adapt to industrial harsh environments, used for outdoor power distribution cabinets, workshop external power lines, and equipment power isolation, providing stable electrical safety protection for industrial production.
Urban street lamp power distribution, highway power supply facilities, railway outdoor power systems, park and community outdoor power equipment all need long-term stable outdoor isolation protection. Our outdoor disconnect switches have beautiful appearance, stable performance and low failure rate, which are very suitable for municipal public infrastructure projects and support long-term unattended stable operation.
Circuit breakers are mainly used to cut off load current and short-circuit fault current, with protection and tripping functions, but there is no visible isolation gap. The outdoor isolation switch has no over-current protection function, but can form an intuitive physical isolation gap, which is the necessary safety guarantee for manual maintenance. In formal outdoor power systems, the two are usually used together to achieve both protection and safety isolation.
Yes. Our products reach IP65/IP66 high waterproof grade, with fully sealed waterproof structure. They can work normally in rainy days, snowy days and foggy weather, and will not cause short circuit and leakage due to water ingress. At the same time, it has good anti-icing performance, suitable for winter low-temperature snow environment.
We support full customized services, including special anti-salt fog treatment for coastal areas, anti-corrosion enhancement for chemical industrial zones, low-temperature resistance customization for alpine regions, high-temperature and dust-proof customization for desert areas, as well as special voltage, current and size parameter customization.
Our standard outdoor isolation switch provides a 3-year warranty, and the core structural parts support 8-10 years of long-term stable service. We provide professional after-sales technical support and global shipping services.
In the global outdoor electrical equipment market, many low-cost products have problems such as thin materials, insufficient protection level, unstable performance and short service life, which bring great hidden dangers to engineering projects. We always adhere to power-grade production standards, and every outdoor isolation switch has undergone strict raw material inspection, process production, and finished product testing.
Strict Quality Control: All products are manufactured in strict accordance with IEC international electrical standards, with complete test reports and certification documents. Each batch of products undergoes waterproof test, voltage resistance test, mechanical life test and salt spray test before leaving the factory.
Super Cost-Performance: Direct factory sales, no middlemen markup. On the premise of ensuring high weather resistance, high safety and long service life, we provide customers with competitive factory prices, helping project owners reduce overall engineering costs.
Professional Technical Team: We have more than ten years of experience in outdoor electrical equipment R&D and production. We can provide targeted product selection schemes according to customer project environment, voltage level, current demand and installation conditions, avoiding model mismatch and performance waste.
Perfect After-Sales Service: Provide global fast delivery, professional installation guidance, technical training and long-term after-sales maintenance services. Whether it is small-batch retail or large-batch project procurement, we can provide efficient and high-quality service support.
Outdoor isolation switch is the key safety barrier of outdoor power system operation and maintenance. Excellent weather resistance, corrosion resistance, safety and stability are the essential attributes of qualified outdoor disconnect switches. Our IP66 waterproof outdoor isolation switches rely on superior structural design, strict production technology and reliable performance, and have become the trusted choice for global power grid, new energy, industrial and municipal engineering projects.
If you are looking for durable, safe and cost-effective outdoor isolation switches, or need customized electrical isolation solutions for special outdoor environments, please feel free to contact our team. We will provide you with professional product consultation, parameter matching and exclusive quotation services.
