Introduction

In urban and rural distribution networks, many lines run overhead. These lines need protection and control — but moving indoor switchgear up onto a utility pole isn't practical.

That's what outdoor pole-mounted vacuum circuit breakers are for. They install directly on poles or outdoor structures, handle load switching, clear short-circuit faults, and work with controllers for auto-reclosing and remote monitoring.

This article uses the ZW32 series as an example to explain the key features, technical parameters, and selection considerations for outdoor vacuum circuit breakers.

1️⃣ Model Naming: What Do ZW32-12 and ZW32-40.5 Mean?

ZW32 is a common model series for outdoor vacuum circuit breakers in the Chinese market. The naming is straightforward:

So ZW32-12 is a 12kV outdoor vacuum circuit breaker, and ZW32-40.5 is the 40.5kV version (for 35kV systems).

For international customers, think of it this way:

• ZW32-12 → 12kV Outdoor Pole-Mounted Vacuum Circuit Breaker

• ZW32-40.5 → 40.5kV Outdoor Pole-Mounted Vacuum Circuit Breaker

2️⃣ Key Features: Why It Suits Overhead Lines

Vacuum arc quenching — safe and reliable

The ZW32 uses a vacuum interrupter to extinguish arcs. Vacuum breakers have no fire or explosion risk, long mechanical life, and low maintenance requirements. The vacuum interrupter typically uses a ceramic housing and copper-chromium contacts — stable breaking performance and minimal contact wear.

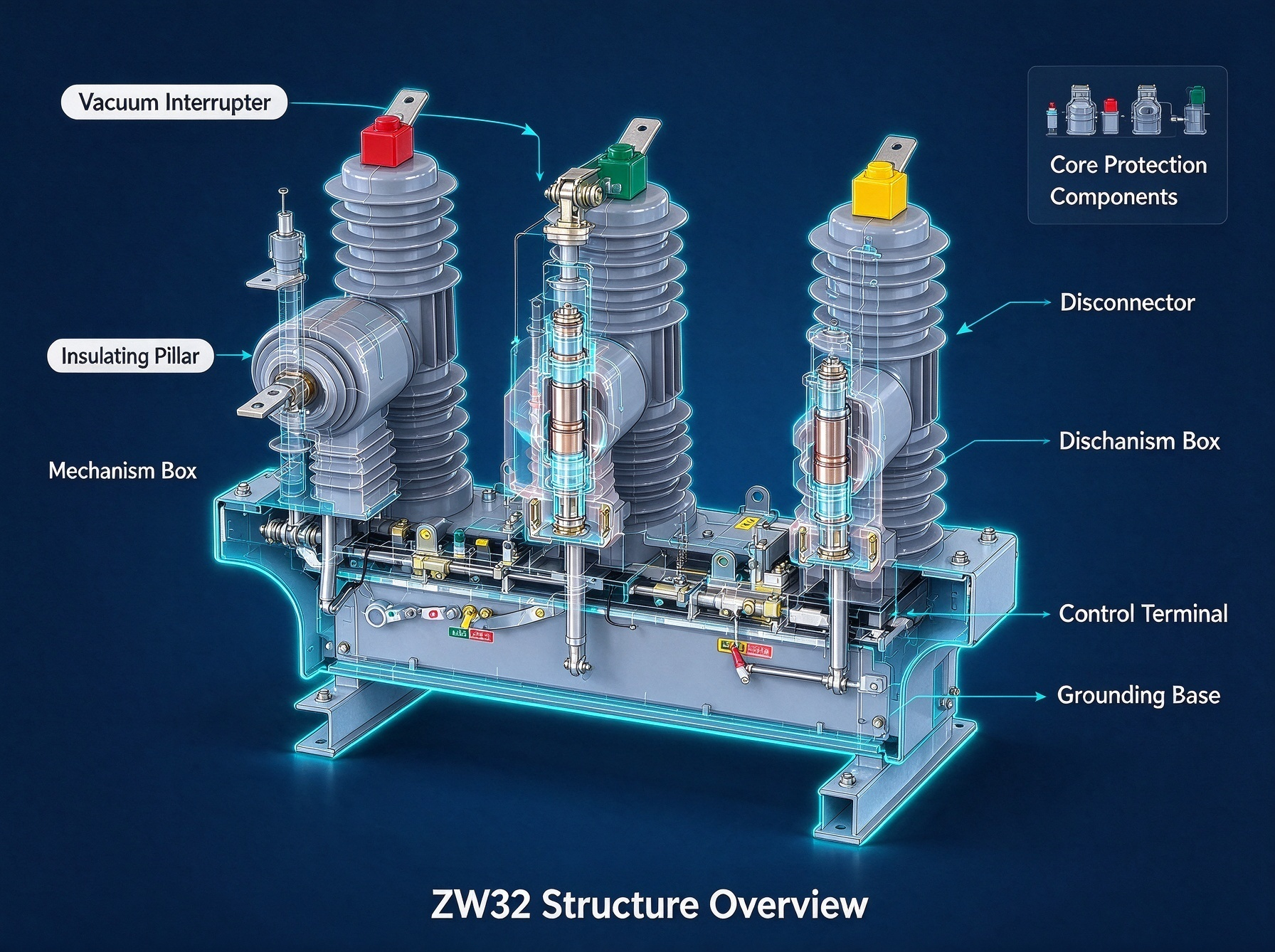

Three-phase pillar structure — prevents phase-to-phase short circuits

The breaker uses a three-phase separated pillar design. Each phase is independently mounted on an insulating pillar, so a fault in one phase won't trigger a three-phase short circuit.

Fully sealed design — built for harsh environments

The operating mechanism and arc-quenching system are housed in a sealed mechanism box, solving the problem of mechanism corrosion in outdoor environments. Insulating bushings use silicone rubber or epoxy resin, offering excellent hydrophobicity and anti-pollution flashover performance — suitable for humid, dusty, and salt-spray conditions.

Optional disconnector — visible isolation point

The ZW32 can be equipped with a disconnector to provide a visible break point for line maintenance, ensuring safety during servicing.

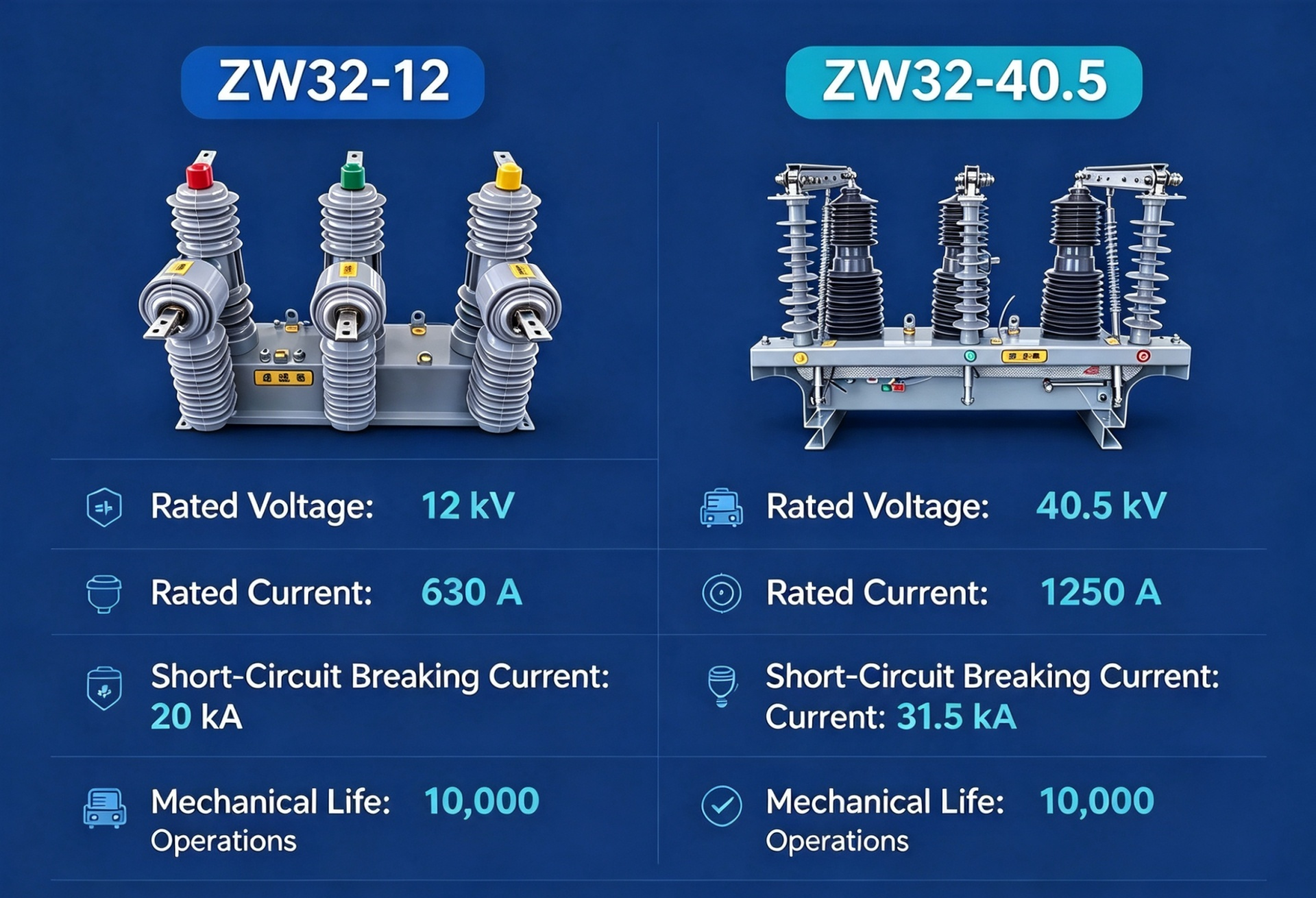

3️⃣ Key Technical Parameters

Typical parameters for the ZW32 series (12kV and 40.5kV versions):

Source: Typical manufacturer data for ZW32 series

4️⃣ Selection Considerations

① Voltage level matching

• 10kV system → ZW32-12

• 35kV system → ZW32-40.5

② Short-circuit breaking capacity
Must exceed the prospective short-circuit current at the installation point. For industrial parks and renewable energy interconnection points, 25kA or higher is recommended.

③ Operating mechanism selection

• Spring mechanism: High reliability, easy maintenance — suitable for most applications

• Permanent magnetic mechanism: Fast operation, low energy consumption, excellent cold-weather performance — ideal for frequent switching or extremely cold regions

④ Whether an intelligent controller is needed
If automation functions are required (fault detection, auto-reclosing, remote communication), an intelligent controller should be specified. The ZW32 can be paired with a controller for four-remote functionality (telemetry, remote signaling, remote control, remote adjustment).

⑤ Environmental adaptability

• Standard type for altitudes up to 2000m; high-altitude type required above 3000m

• For humid, dusty, or coastal salt-spray areas, confirm protection rating and anti-corrosion treatment

5️⃣ Main Applications

The ZW32 series is particularly suited to rural power grids and locations requiring frequent operation, and can handle harsh weather and polluted environments.

6️⃣ Maintenance Tips

Key maintenance priorities for outdoor vacuum circuit breakers:

In outdoor environments, sealing and moisture protection of the mechanism box is a top priority. Water ingress can cause rust, auxiliary switch failure, and subsequent refusal to operate or misoperation.

Conclusion

The ZW32 series outdoor vacuum circuit breaker is a core protection device for overhead distribution lines. Selection hinges on: matching voltage level, adequate short-circuit breaking capacity, the right operating mechanism, and whether an intelligent controller is needed.

If you are planning an overhead line project and need selection advice for outdoor vacuum circuit breakers, feel free to contact us.
