Reliable medium-voltage power distribution is essential for industrial facilities, commercial buildings, infrastructure projects, renewable energy systems, and utility networks. The RM6 Series Ring Main Unit (RMU) is designed to provide a compact, reliable, and flexible solution for medium-voltage power distribution and protection.

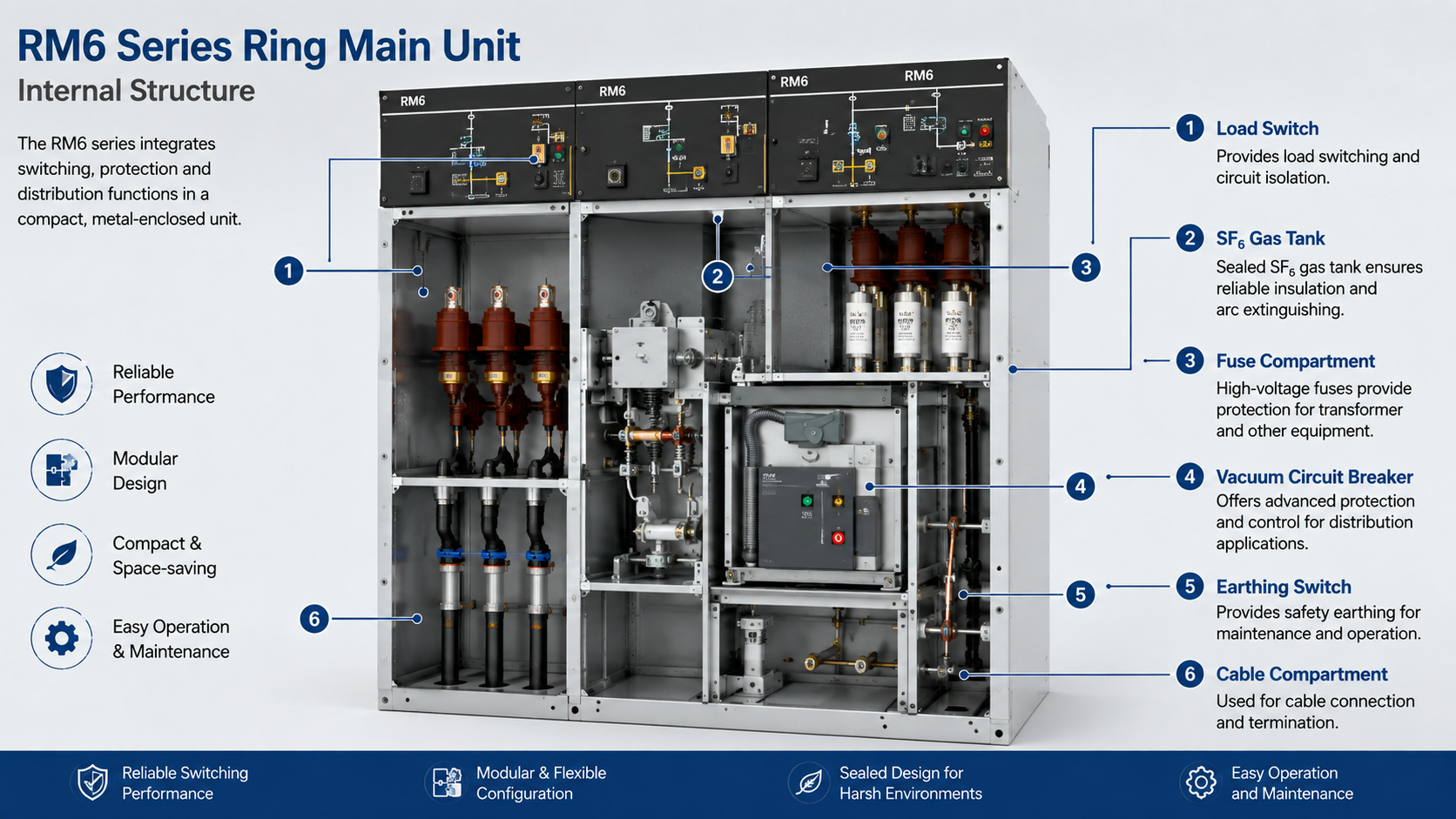

The RM6 series combines switching, protection, and distribution functions in a compact metal-enclosed unit. Its modular configuration allows different functional units to be selected according to project requirements, making it suitable for various medium-voltage distribution applications.

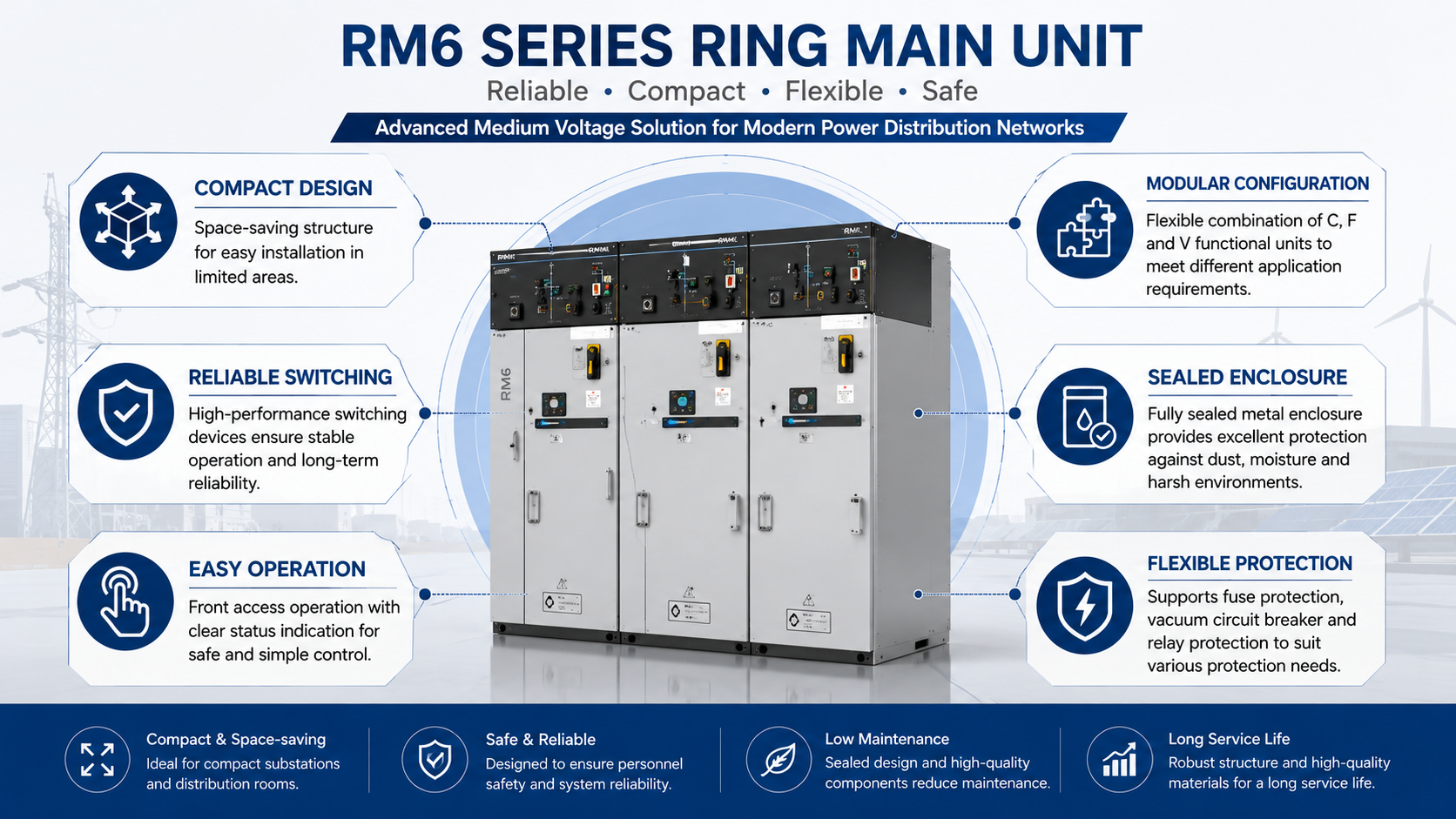

With a compact footprint, sealed construction, and flexible configuration, the RM6 series is an ideal choice for customers looking for reliable medium-voltage switchgear with simplified installation and maintenance.
An RM6 Ring Main Unit is a medium-voltage switchgear assembly commonly used in ring-type distribution networks. It can be installed in substations, distribution rooms, industrial plants, commercial buildings, infrastructure projects, and renewable energy facilities.
The RM6 series can typically integrate several functions within one compact enclosure, including:
Load switching
Ring network connection
Transformer protection
Feeder protection
Cable connection
Earthing
Medium-voltage isolation
Depending on the application, different functional modules can be combined to create a customized RMU configuration.
One of the key advantages of the RM6 series is its modular design. Different switching and protection functions can be combined according to the requirements of the electrical system.
The C unit is generally used for incoming or outgoing cable connections in medium-voltage distribution networks.
Typical applications include:
Ring network incoming feeder
Ring network outgoing feeder
Cable switching
Load switching
Network sectionalizing
This configuration is suitable for distribution networks where reliable cable switching and isolation are required.
The F unit combines a load switch with high-voltage fuse protection and is commonly used for transformer protection.
It can provide protection against certain types of transformer faults and is particularly suitable for compact distribution substations.
Typical applications include:
Distribution transformer protection
Compact substations
Commercial buildings
Industrial facilities
The V unit uses a vacuum circuit breaker for more advanced protection and control requirements.
Compared with a conventional fuse-switch solution, a circuit-breaker-based configuration provides greater flexibility for protection systems and can be integrated with protection relays and automation systems.
Typical applications include:
Industrial power distribution
Important commercial facilities
Renewable energy projects
Transformer feeders
Applications requiring relay-based protection
Space is often limited in medium-voltage distribution rooms. The RM6 series adopts a compact structure to reduce the required installation area.
This makes it suitable for:
Urban substations
Commercial buildings
Industrial plants
Prefabricated substations
Renewable energy projects
Different functional units can be combined according to project requirements.
For example, an RMU configuration may include cable switching units, transformer protection units, and vacuum circuit breaker units.
This modular approach helps customers select a suitable configuration without using unnecessarily complex equipment.
The RM6 series is designed for reliable switching and isolation in medium-voltage distribution networks.
Depending on the selected configuration, it can provide functions such as load switching, circuit breaking, earthing, and transformer protection.
The switching components are housed within a sealed enclosure, helping protect internal components from external environmental influences.
This design can be particularly useful in applications where equipment needs to operate reliably in environments with dust, humidity, or other external conditions.
The RM6 series is designed with a straightforward operating mechanism and clear operating positions.
The front operating interface allows operators to perform switching and earthing operations efficiently while reducing unnecessary operating procedures.
Different protection solutions can be selected depending on the project.
For transformer applications, a fuse-switch combination may provide a simple and economical protection solution. For applications requiring more advanced protection and control, a vacuum circuit breaker with a protection relay can be selected.
The RM6 series can be used in a wide range of medium-voltage power distribution systems.
Factories and industrial plants often require reliable medium-voltage power distribution for motors, production equipment, transformers, and other electrical loads.
RM6 switchgear can be used for incoming power distribution, transformer feeders, and ring network connections.
Shopping malls, office buildings, hotels, hospitals, and other large commercial facilities require reliable power distribution while also having strict space requirements.
The compact RM6 design makes it suitable for these applications.
Solar photovoltaic and other renewable energy projects require reliable medium-voltage collection and distribution equipment.
RM6 units can be used for:
Transformer feeders
Collector systems
Medium-voltage cable connections
Sectionalizing
Protection and isolation
The compact structure of RM6 switchgear makes it suitable for integration into prefabricated substations and compact substations.
The RMU can be combined with a transformer and low-voltage distribution equipment to create an integrated power distribution solution.
RM6 series equipment can also be applied in infrastructure projects such as airports, railway systems, data centers, water treatment plants, and other facilities requiring dependable medium-voltage distribution.
When selecting an RM6 RMU, several technical factors should be considered.
The rated voltage should match the medium-voltage network.
Common project requirements may include:
12 kV
17.5 kV
24 kV
36 kV
The actual voltage rating should be selected according to the local electrical system and project specifications.
The rated current should be selected according to the expected load current and distribution system requirements.
The RMU should have an appropriate short-time withstand current and peak withstand current according to the fault level of the electrical network.
Customers should determine whether the application requires:
Load switch protection
Fuse protection
Vacuum circuit breaker protection
Protection relay
Remote control and automation
The required number and type of modules depend on the network configuration.
For example, a typical ring network application may require two cable switching units and one transformer protection unit, while a more complex distribution system may require additional circuit breaker or feeder modules.

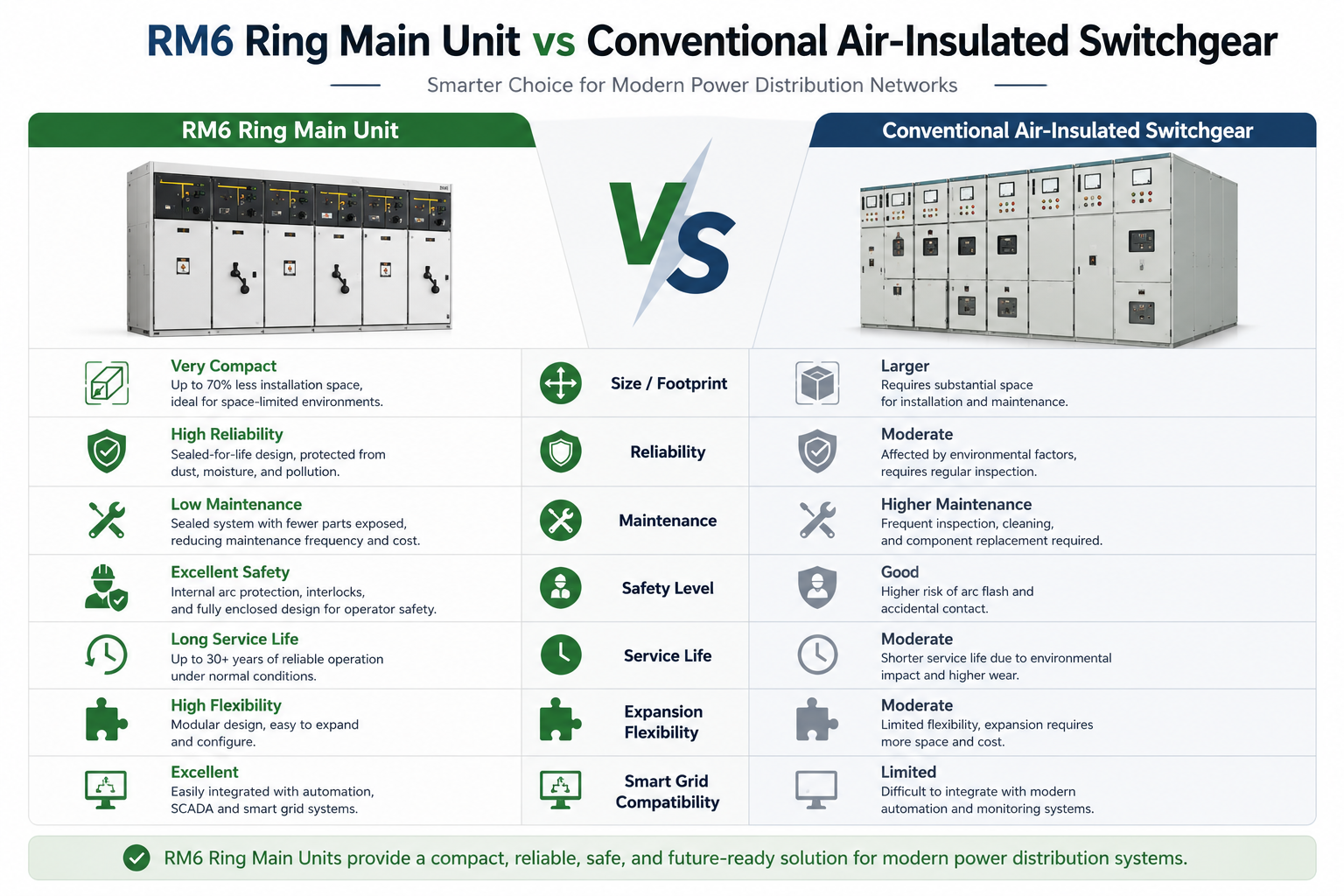

Compared with conventional large switchgear assemblies, an RMU provides a more compact solution for medium-voltage distribution applications.
The main differences include:
Feature | RM6 Ring Main Unit | Conventional MV Switchgear |
|---|---|---|
Footprint | Compact | Generally larger |
Configuration | Modular | Flexible but often more complex |
Installation | Space-saving | Requires more installation space |
Ring Network Application | Excellent | Available |
Transformer Feeder | Available | Available |
Automation | Optional | Widely available |
Maintenance | Designed for simplified maintenance | Depends on configuration |
Typical Application | Distribution networks, compact substations | Industrial and utility substations |
The most suitable solution depends on the voltage level, protection requirements, installation environment, and project specifications.
As a professional electrical equipment manufacturer, we provide medium-voltage power distribution solutions for international customers.
Our RM6 series can be configured according to different project requirements, including:
Rated voltage customization
Different functional unit combinations
Transformer protection solutions
Vacuum circuit breaker configurations
Protection relay integration
Cable connection solutions
Earthing functions
Remote control and automation options
We can also provide supporting equipment such as distribution transformers, box-type substations, low-voltage switchgear, and other medium-voltage electrical equipment, allowing customers to source multiple components from one supplier.
The RM6 Series Ring Main Unit provides a compact and flexible solution for medium-voltage power distribution. Its modular configuration, reliable switching functions, compact structure, and multiple protection options make it suitable for industrial, commercial, infrastructure, renewable energy, and prefabricated substation applications.
When selecting an RM6 RMU, customers should consider the rated voltage, rated current, short-circuit level, protection method, number of functional units, installation environment, and automation requirements.
For projects requiring reliable and space-saving medium-voltage distribution equipment, the RM6 series can provide a practical and scalable solution.
Looking for an RM6 Ring Main Unit for your next project? Contact us with your required voltage, current, protection configuration, and application. Our engineering team can recommend a suitable RM6 configuration based on your project requirements.
