RMU, Switchgear, GIS: Can You Tell Them Apart?

In power distribution systems, three types of equipment are often confused by customers: Ring Main Unit (RMU) , Switchgear, and Gas Insulated Switchgear (GIS) .

They may look somewhat similar, and their names overlap, but their functions, applications, and price levels are very different. Choose the wrong one – you either waste money or compromise safety.

This article helps you tell them apart once and for all.

1️⃣ What Exactly Are the Differences Between These Three?

The comparison table below gives you a quick overview of the core differences:

From the table, you can see:

• RMU: Most flexible, most worry-free – ideal for customer-side distribution

• Switchgear: Most traditional, lowest cost – but sensitive to dirt and needs regular maintenance

• GIS: Most compact, most expensive – suitable for urban core areas

2️⃣ What Are Their Respective Characteristics?

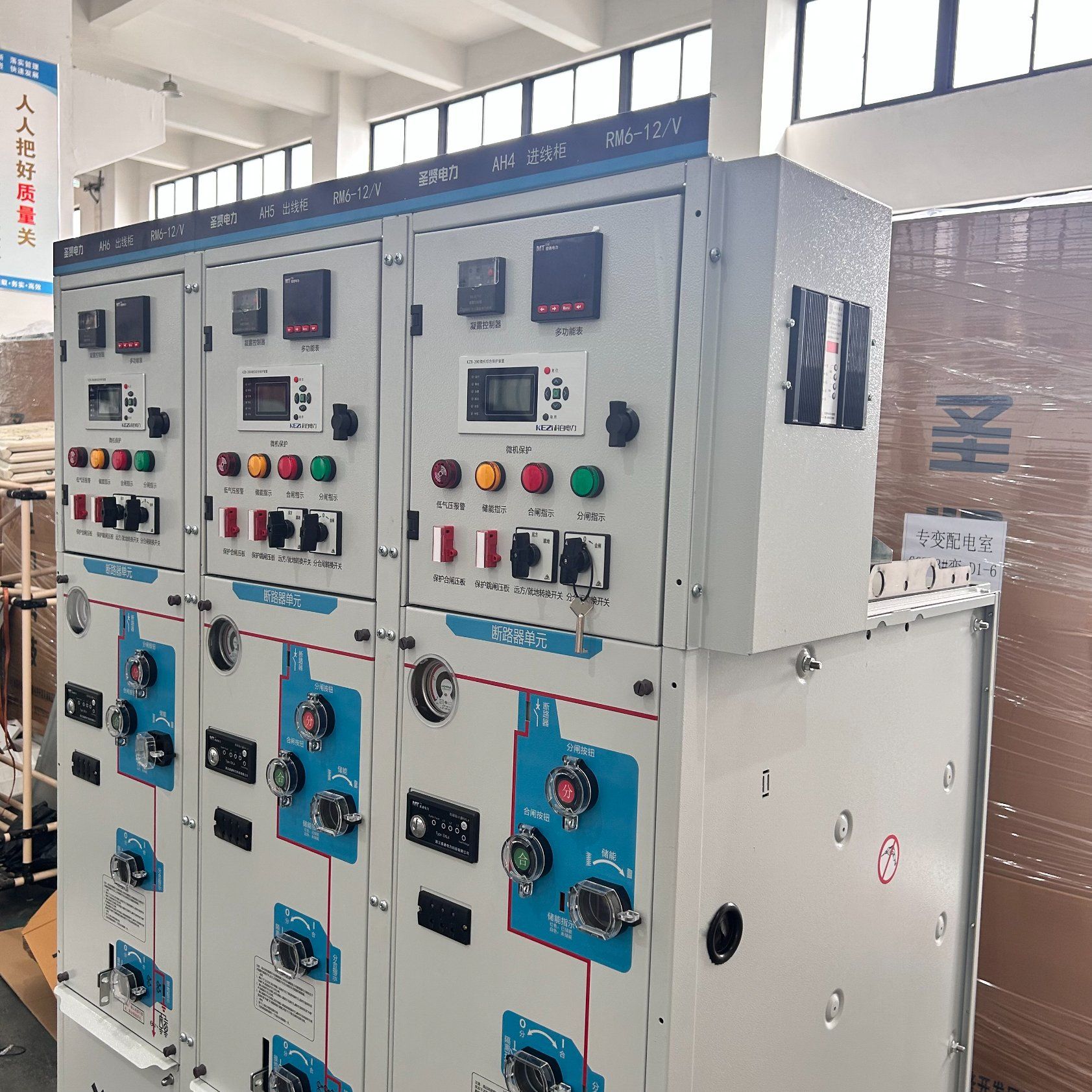

RMU (Ring Main Unit): The Workhorse of Customer-Side Distribution

One-line positioning: A customer-side distribution device used for ring network feeding, commonly found in factories, residential compounds, commercial buildings, and PV plants.

Key features:

• Fully insulated and fully sealed – withstands harsh environments

• Compact size – can be installed roadside or in basements

• Supports ring network feeding – fast fault isolation and restoration

• Very low or zero maintenance

Typical applications:

• Residential compound distribution

• Small factories and industrial parks

• Commercial complexes

• Distributed PV power plants

✅ Best for: Customer-side distribution projects that require ring network feeding, small footprint, and simple maintenance.

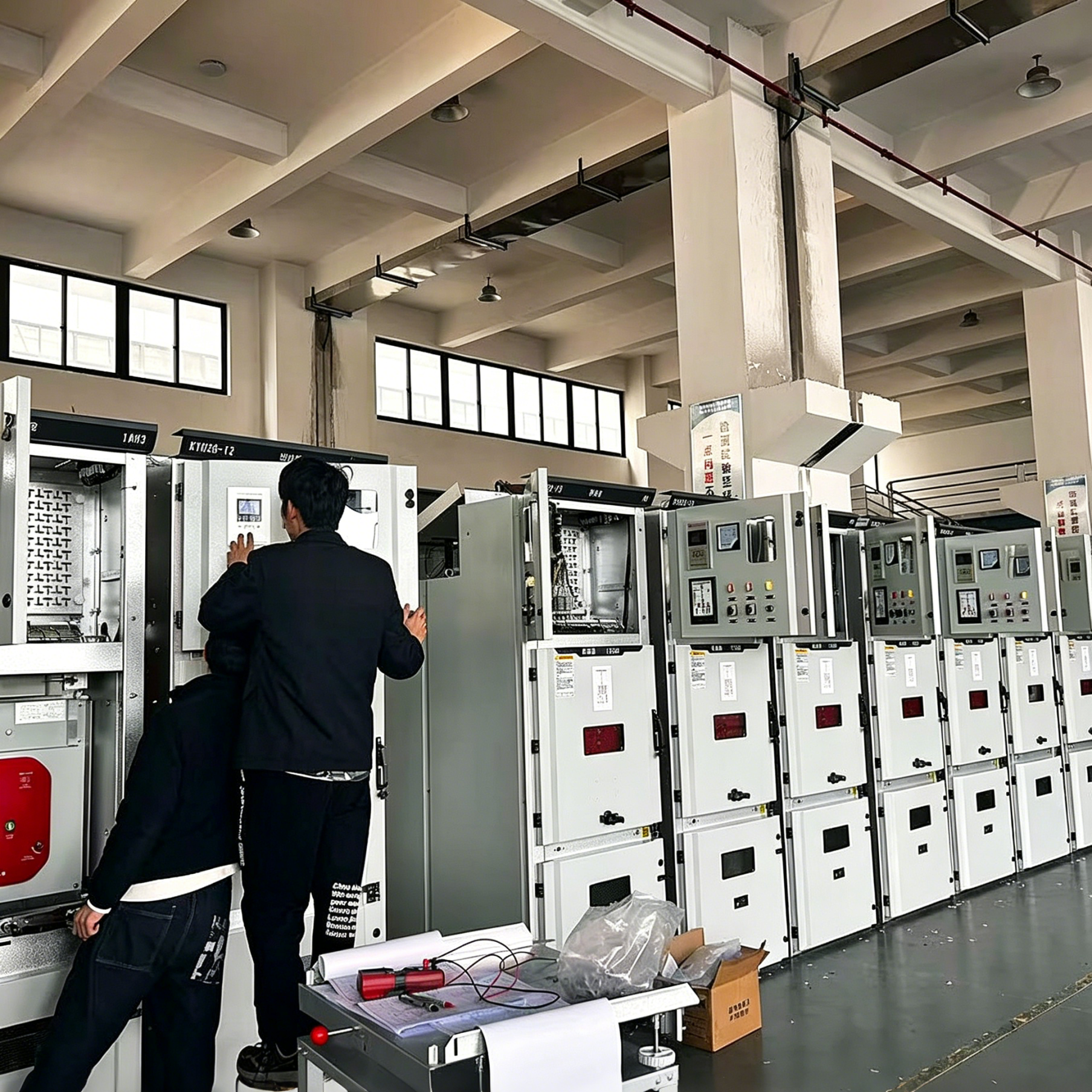

Switchgear: The Traditional Choice for Substations and Industrial Distribution

One-line positioning: The most common medium voltage distribution equipment, used for substation outgoing feeders and large-capacity industrial distribution.

Key features:

• Insulation medium is air – parts are exposed or semi-enclosed

• Large size – needs a dedicated electrical room

• Can be equipped with circuit breakers – high breaking capacity

• Requires regular insulator cleaning (to prevent flashover)

Typical applications:

• Substation outgoing feeder cabinets

• Large factory electrical rooms

• Large-capacity industrial users such as mines and steel plants

✅ Best for: Projects with a dedicated electrical room, limited budget, and larger capacity, provided the environment is relatively clean – otherwise maintenance becomes heavy.

GIS (Gas Insulated Switchgear): The Compact Choice for Urban Substations

One-line positioning: A gas insulated fully enclosed switchgear that integrates circuit breakers, disconnectors, earthing switches, instrument transformers, etc., all sealed inside an SF6 tank.

Key features:

• Extremely compact – for the same voltage level, footprint is only 1/5 to 1/10 of air-insulated switchgear

• Fully sealed – unaffected by environmental conditions

• Very high reliability – but also the highest cost

• Suitable for higher voltage levels (35kV – 500kV)

Typical applications:

• Urban substations (space-constrained)

• Underground substations

• Offshore platforms and high-altitude areas

• Critical grid nodes with extremely high reliability requirements

✅ Best for: Projects with extremely limited space, sufficient budget, and very high reliability requirements. Ordinary customer-side distribution rarely uses GIS due to cost.

3️⃣ Quick Selection Table – At a Glance ✅

Conclusion

None of the three is absolutely "better" than the others – it is all about what fits your project best.

• RMU: The best value for customer-side distribution – ideal for ring network feeding, small footprint, and maintenance-free operation

• Switchgear: The backbone of traditional industrial distribution – suitable for larger capacities and dedicated electrical rooms

• GIS: The premium compact solution – ideal for urban substations and extremely space-constrained locations
