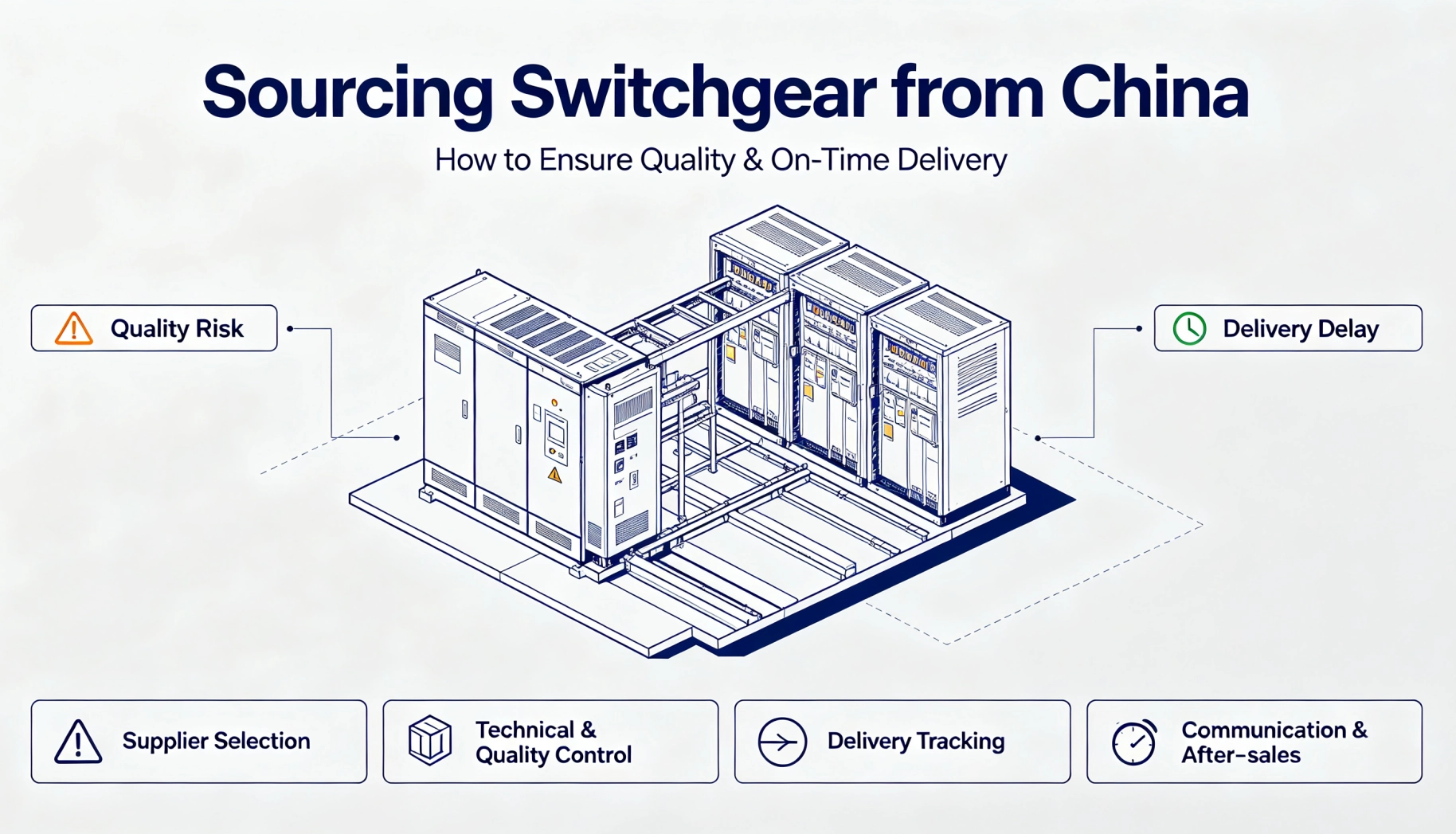

Introduction

For many overseas customers sourcing switchgear from China, the two biggest concerns are: Will the quality meet the required standards? Will the delivery be delayed?

These risks do exist, but they can be managed and controlled. This article covers four key areas — supplier selection, quality control, progress tracking, and communication/after-sales — to help you source reliable switchgear from China.

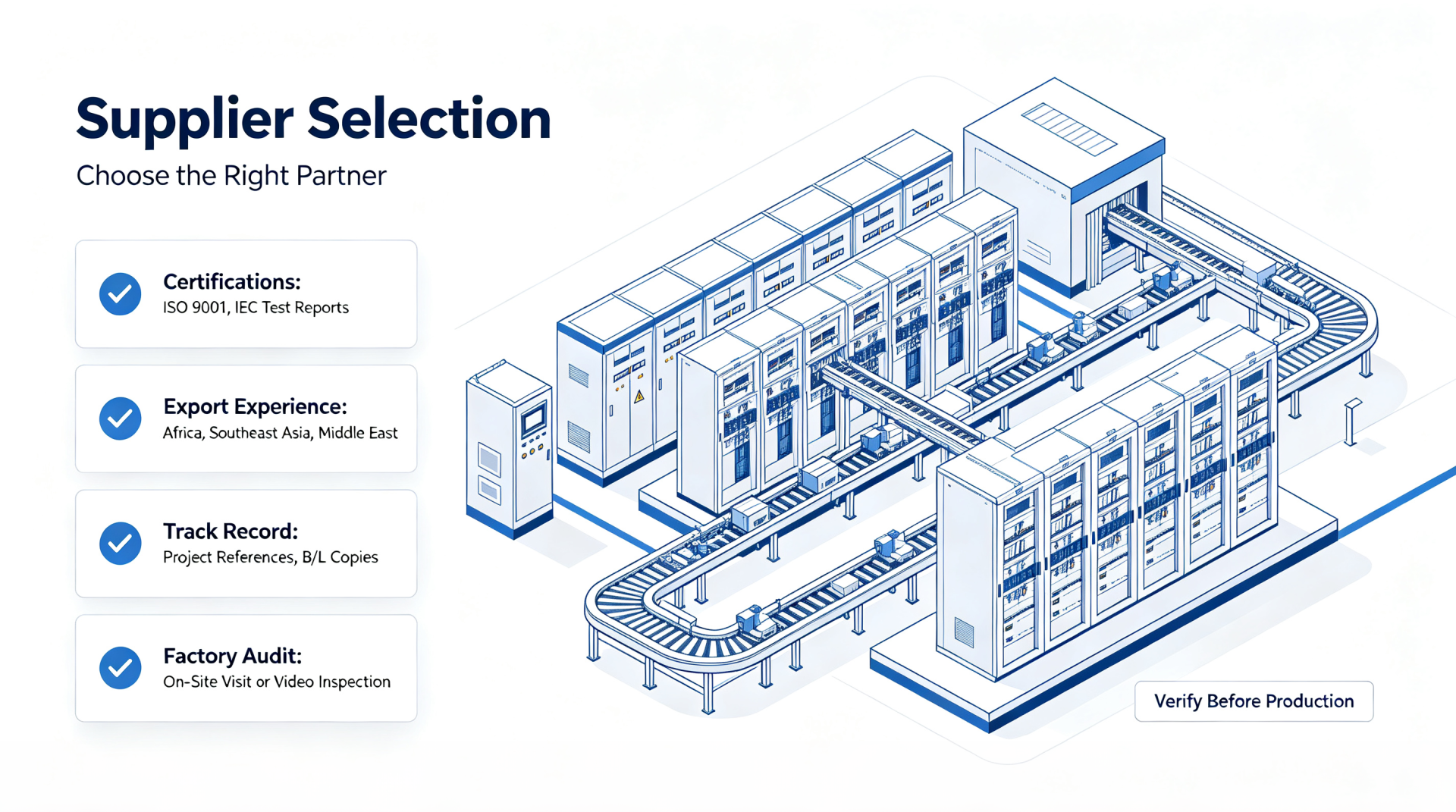

1️⃣ Supplier Selection – Choose the Right Partner

Selecting the right supplier is the first and most critical step.

2️⃣ Technical Clarification – Define Requirements Clearly to Avoid Disputes

Most disputes in procurement come down to one thing: “I thought you knew.“

Key items to clarify:

• Rated voltage, rated current, short-circuit capacity

• Protection rating (IP rating)

• Enclosure dimensions and color

• Component brand requirements

• Cable entry/exit direction (top/bottom/side)

• Special environmental requirements (high temperature, high humidity, high altitude)

Recommended approach:

• Compile all technical requirements into a Technical Specification document

• Have both parties sign off on the drawings and bill of materials before production begins

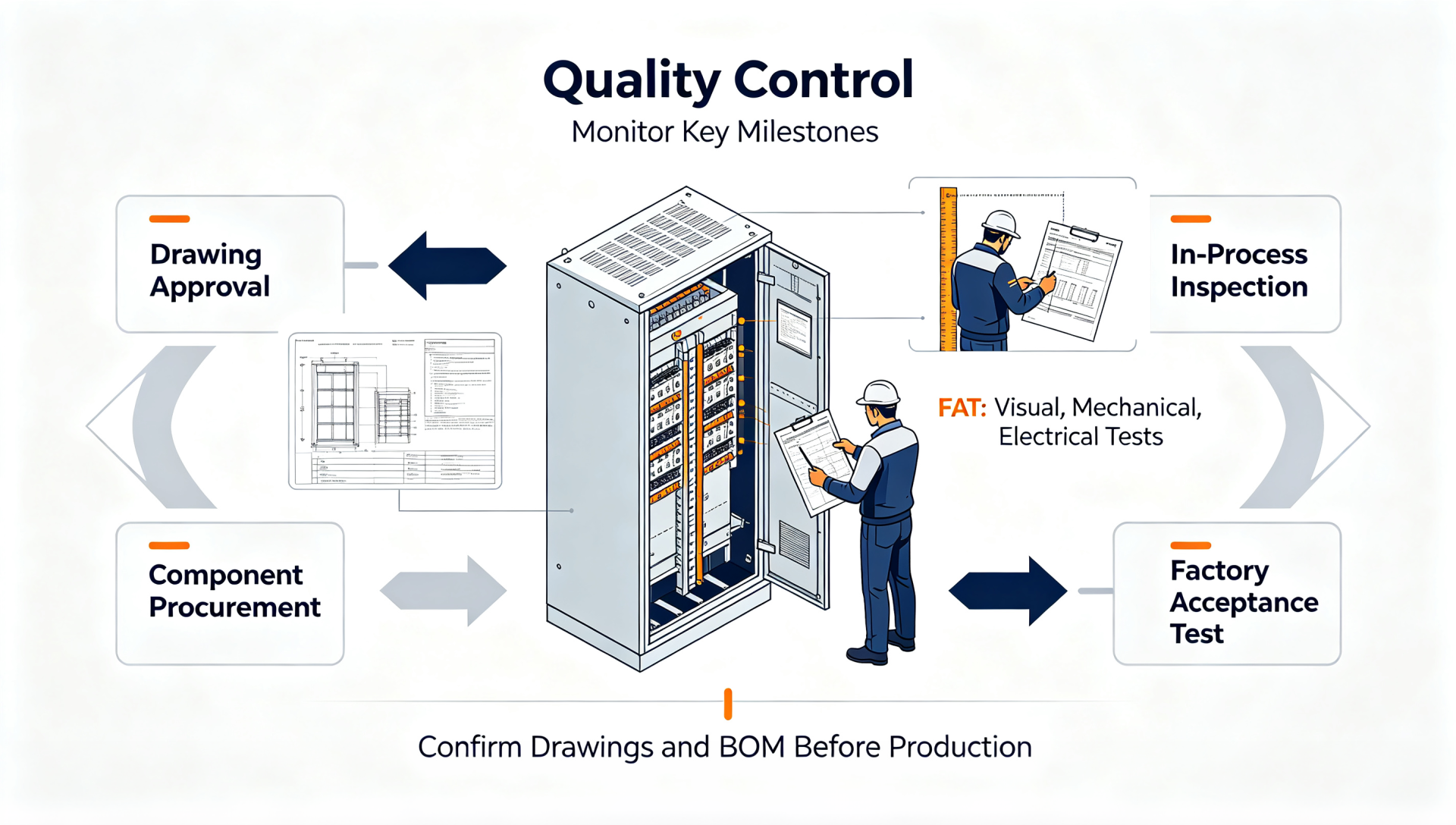

3️⃣ Quality Control – Key Milestones to Monitor

The production cycle for switchgear is typically 2–6 weeks. During this period, several milestones require attention:

① Drawing Approval Phase:
Review and confirm the general arrangement drawing, electrical schematic, and front panel layout. Once drawings are approved, avoid changes — they will affect both delivery time and cost.

② Component Procurement Phase:
Confirm that all components have been ordered, especially long-lead items (such as air circuit breakers and protection relays).

③ In-Process Inspection:
After enclosure welding is complete, request weld quality and dimensional inspection records from the supplier.

④ Factory Acceptance Test (FAT):
This is the most important step. It typically includes:

• Visual inspection (scratches, deformation, color consistency)

• Component verification (brand and model match the contract)

• Mechanical operation test (trolley movement, earthing switch operation)

• Electrical tests (power frequency withstand voltage, insulation resistance, protection function tests)

• Factory test report

FAT recommendations:

• If possible, send a representative to witness the FAT in person

• If not, request a complete factory test report with photos/videos

• Or hire a third-party inspection agency to conduct the FAT on your behalf

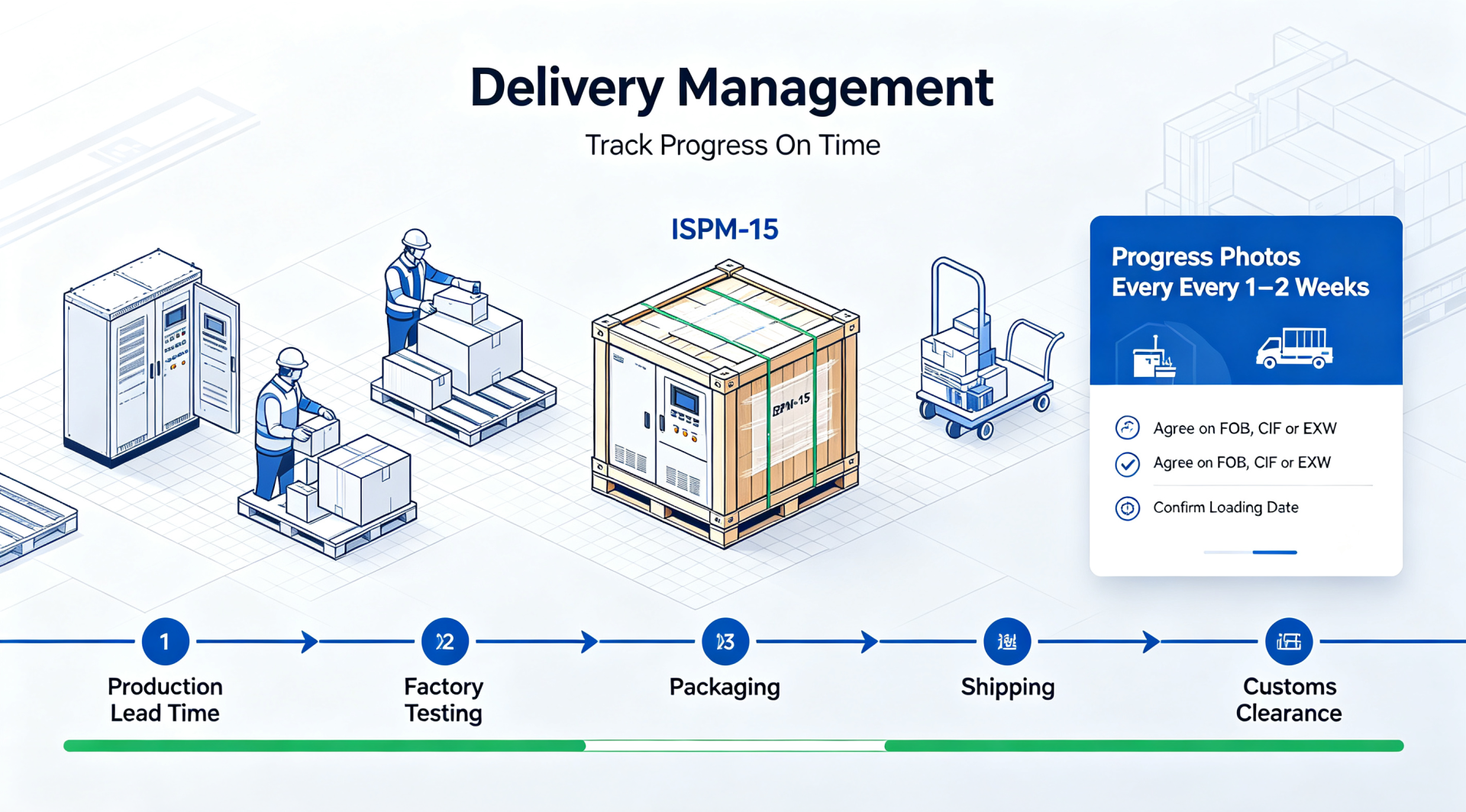

4️⃣ Delivery Management – Set Clear Milestones and Track Progress

The total delivery time for switchgear depends on three stages: production lead time + shipping time + customs clearance time.

Production lead times:

• Standard configurations: 2–3 weeks

• Custom configurations: 4–6 weeks

• Large projects or special requirements: longer

Progress tracking:

• Agree on a production schedule and key milestones with the supplier

• Request progress photos every 1–2 weeks

• Require proactive updates at milestones: components received, enclosure assembly complete, factory testing done

Packaging and shipping:

• Confirm packaging standards: ISPM-15 compliant crates + moisture-sealed barrier packaging

• Agree on delivery terms: FOB, CIF, or EXW

• Confirm loading date and arrange vessel booking



5️⃣ Communication and After-Sales

Communication tips:

• Assign clear points of contact (technical and commercial)

• Use written communication (email) for important confirmations

• Consider time zone differences — agree on a suitable contact window in advance

After-sales support:

• Confirm whether the supplier provides remote video guidance

• Confirm spare parts supply commitment (list of recommended spares + lead time)

• Confirm warranty period and coverage



Conclusion

Sourcing switchgear from China is not complicated. The key is: choose the right supplier, define requirements clearly, control quality at critical milestones, and track progress regularly.

Four core recommendations:

1. Selecting the supplier: Check certifications, track record, and factory conditions

2. Before signing the contract: Both parties confirm technical drawings and the bill of materials

3. During production: Request regular progress photos and milestone updates

4. Before shipment: Review the factory test report and acceptance records

If you have a specific project and need sourcing advice or supplier evaluation support, feel free to contact us.
