Temporary power is common on construction sites, outdoor events, mining operations, and similar settings. But precisely because it’s “temporary,” it often doesn‘t get the attention it deserves—incomplete configurations, undersized cables, missing earthing.
Temporary power is a high-risk area for electrical accidents. This article covers the basic configuration and safety requirements for temporary power, helping you set up a system that is safe, adequate, and properly organized.

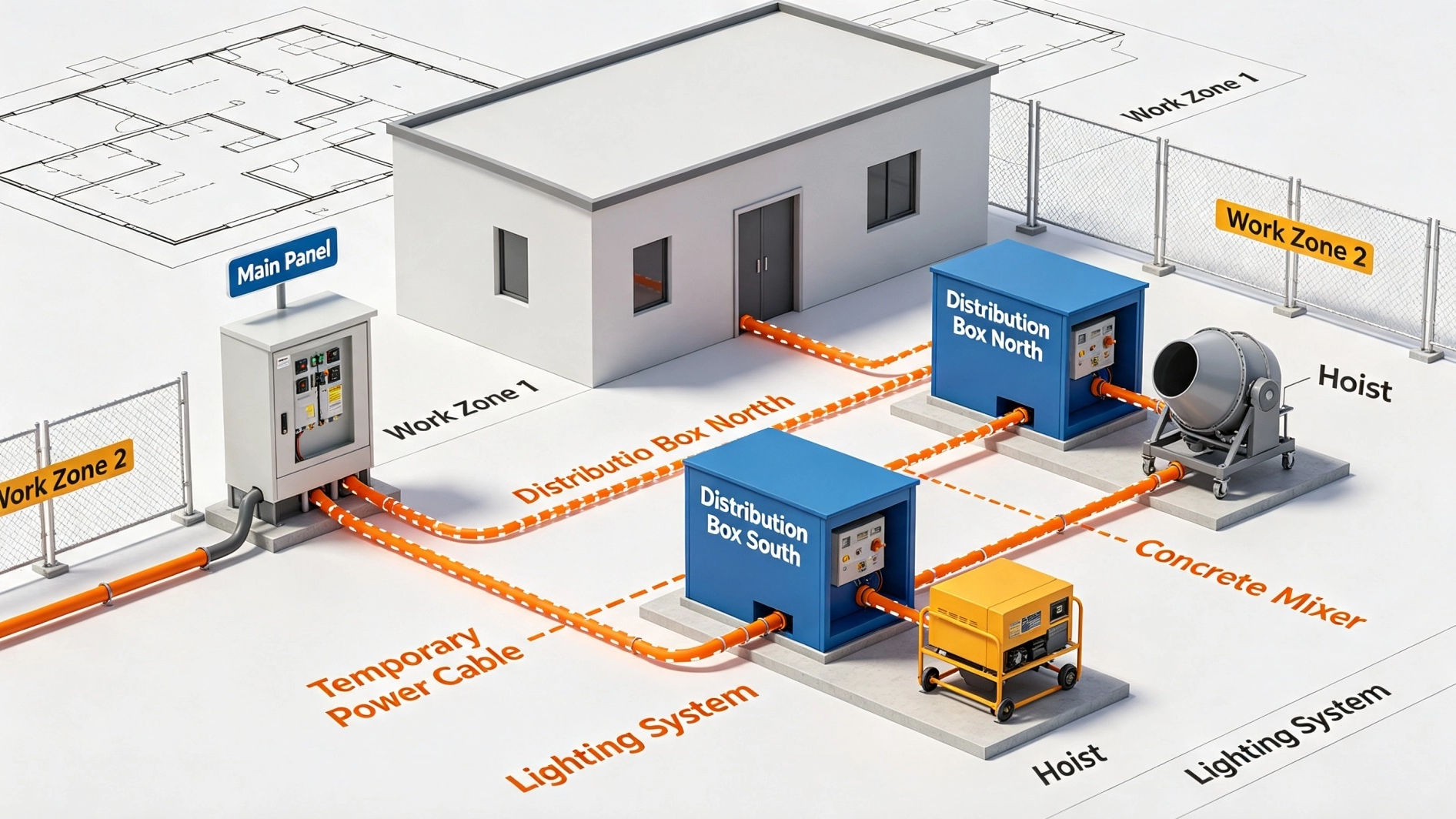

A complete temporary power distribution system typically consists of the following equipment:
Equipment | Function |
|---|---|
Main distribution panel | Takes power from the source and provides overall protection (main breaker + disconnector) |
Sub-distribution panels | Branch off from the main panel to supply different areas or equipment |
Switch boxes | One per piece of equipment, providing final-level protection |
Cables | Transmit power from the source to each point of use |
Three-level distribution with two-level RCD protection is the fundamental principle: main panel → sub-panels → switch boxes; with residual current protection at both the main panel and switch box levels.
The main distribution panel is the "master switch" for temporary power and should include:
Component | Function | Sizing Advice |
|---|---|---|
Disconnector | Isolates the power supply for maintenance | Rated current ≥ total circuit current |
Main circuit breaker | Overload and short circuit protection | Trip setting ≥ calculated circuit current |
Main RCD | Prevents electric shock from leakage | Trip current 100–300mA, trip time ≤0.2s |
Outgoing circuits | Distribute to sub-panels | Each circuit with its own breaker and RCD |
Key point: The main panel must have RCD protection—this is one of the biggest differences between temporary and permanent installations.
Sub-distribution panels take power from the main panel and distribute it to different work areas. A typical configuration includes an incoming disconnector + multiple outgoing circuits (each with breaker and RCD).
Switch boxes are the final-level boxes that connect directly to individual equipment—one per piece of equipment. Each contains: disconnector + circuit breaker + RCD.
The difference: Sub-panels serve multiple circuits; switch boxes are one-to-one with equipment. Every piece of equipment must have its own switch box—this is a mandatory requirement.
Cables for temporary power have different requirements than permanent installations and must suit the site conditions.
Requirement | Explanation |
|---|---|
Use weather-resistant cables | The sheath must resist abrasion and aging—ordinary indoor cables are not acceptable |
Choose adequate cross-section | Consider voltage drop, especially for long-distance supply |
Installation method | Overhead or along walls; avoid dragging on the ground or running over them |
Crossing protection | Cables crossing roadways must be protected by conduit or cover plates |
Important: Do not use flexible cords (extension-type cables), damaged cables, or mix different voltage-rated cables in the same route.
Earthing for temporary power is even more critical than for permanent installations, because construction sites are often damp and the environment is unpredictable.
Earthing requirements:
The main panel must have a repetitive earthing connection
Earthing resistance must be ≤10Ω (per code)
The protective earth conductor (PE) must be separate—do not share it with the neutral conductor
RCD requirements:
Main panel: trip current 100–300mA, 0.2s trip time
Switch boxes: trip current ≤30mA, 0.1s trip time
Wet/damp environments (e.g., tunnels, underwater operations): trip current ≤15mA
Temporary power is temporary—but safety requirements are not.
Three core requirements:
Three-level distribution with two-level RCD protection (main panel → sub-panels → switch boxes)
Earthing must be done properly (repetitive earthing + independent PE conductor)
Cables must be adequately sized (consider voltage drop and mechanical strength)
Setting up temporary power correctly is not complicated, but it requires care and attention. If you have a temporary power project and need configuration advice or equipment selection support, feel free to contact us.
