Every time you flip a switch, start a motor, or charge a battery, a transformer is quietly working behind the scenes. In industrial and commercial settings, transformers do more than just change voltage levels – they determine your energy bills, equipment lifespan, and operational reliability.
Yet many buyers focus only on price per kVA, ignoring long‑term costs like energy losses, maintenance, and premature failure. That’s a costly mistake.
In this guide, we’ll show you what really matters when selecting a transformer, how our advanced designs outperform conventional units, and why the right transformer pays for itself many times over.
With rising electricity tariffs and stricter environmental regulations, low‑efficiency transformers are becoming a liability. A standard transformer loses 1‑3% of energy as heat – but over 20 years, those losses can represent more than the purchase price.
Take a 1000 kVA distribution transformer running 24/7. A 1% loss difference equals ~87,600 kWh wasted annually. At $0.12/kWh, that’s over $10,500 per year – enough to buy a smaller transformer every year.
Our transformers use:
High‑permeability grain‑oriented silicon steel or amorphous metal cores – reducing core losses by 50‑70%.
Optimized winding designs (continuous transposed conductors) that cut load losses.
Low‑loss insulation materials that perform consistently across temperature ranges.
Result: You meet or exceed DOE 2016, EcoDesign (EU) 548/2014 Tier 2, and other global standards – while saving thousands annually.
A transformer failure means production stops, safety risks rise, and repair costs spiral. Our engineering philosophy starts with defensive design.

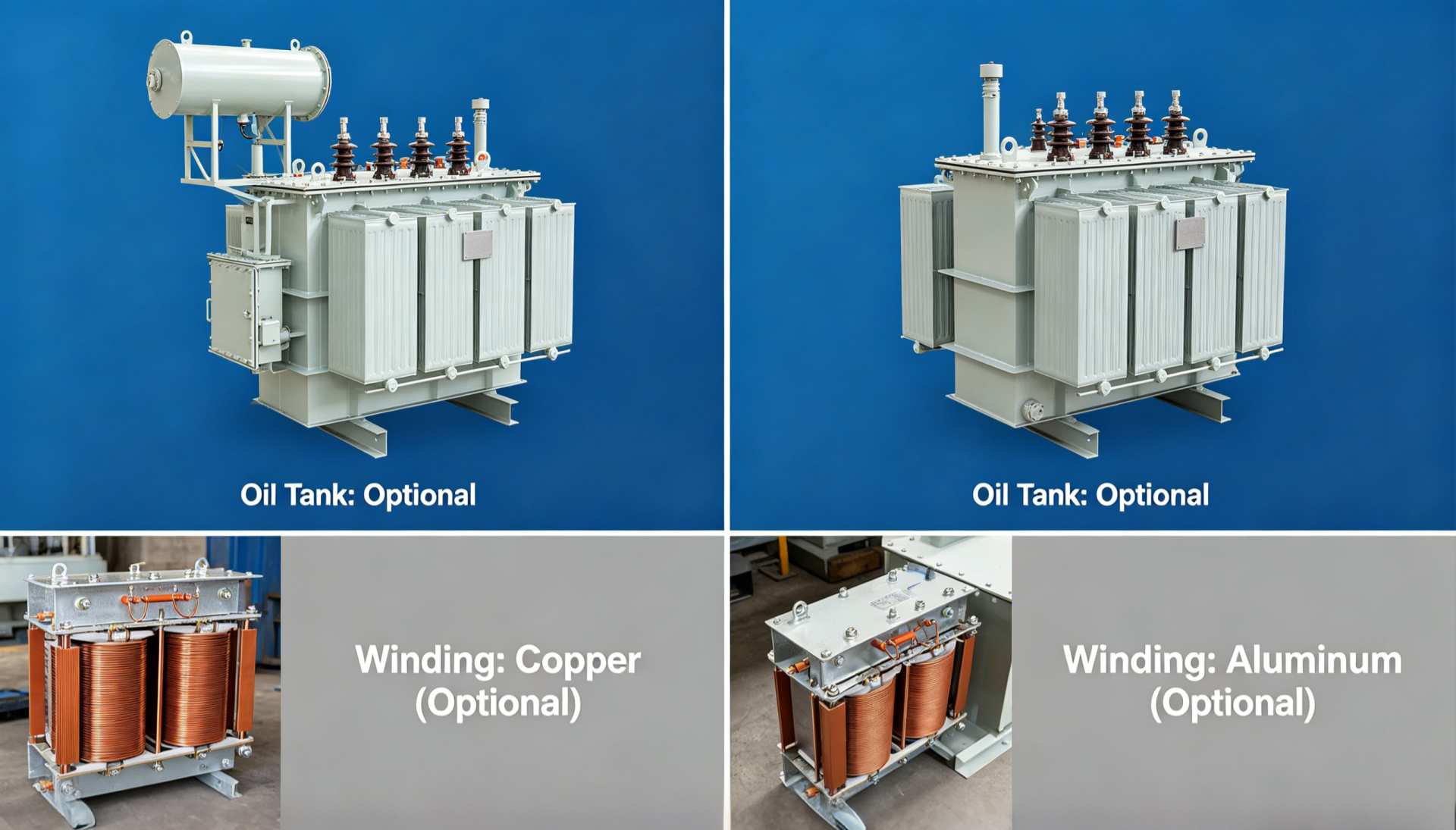

Copper windings (not aluminum) for better thermal conductivity and short‑circuit withstand. Copper expands less under load, reducing insulation stress.
Vacuum pressure impregnation (VPI) for dry‑type units – eliminates voids, prevents corona discharge.
Robust clamping systems that keep windings locked even under through‑fault currents up to 25x rated current.
IP54 to IP68 enclosures available – dust‑tight, hose‑downable, even submersible.
Wide temperature range – from -40°C to +55°C ambient, with custom cooling (ONAN/ONAF/OFWF).
Corrosion protection for coastal or chemical plants: C5‑M marine grade coating and stainless steel hardware.

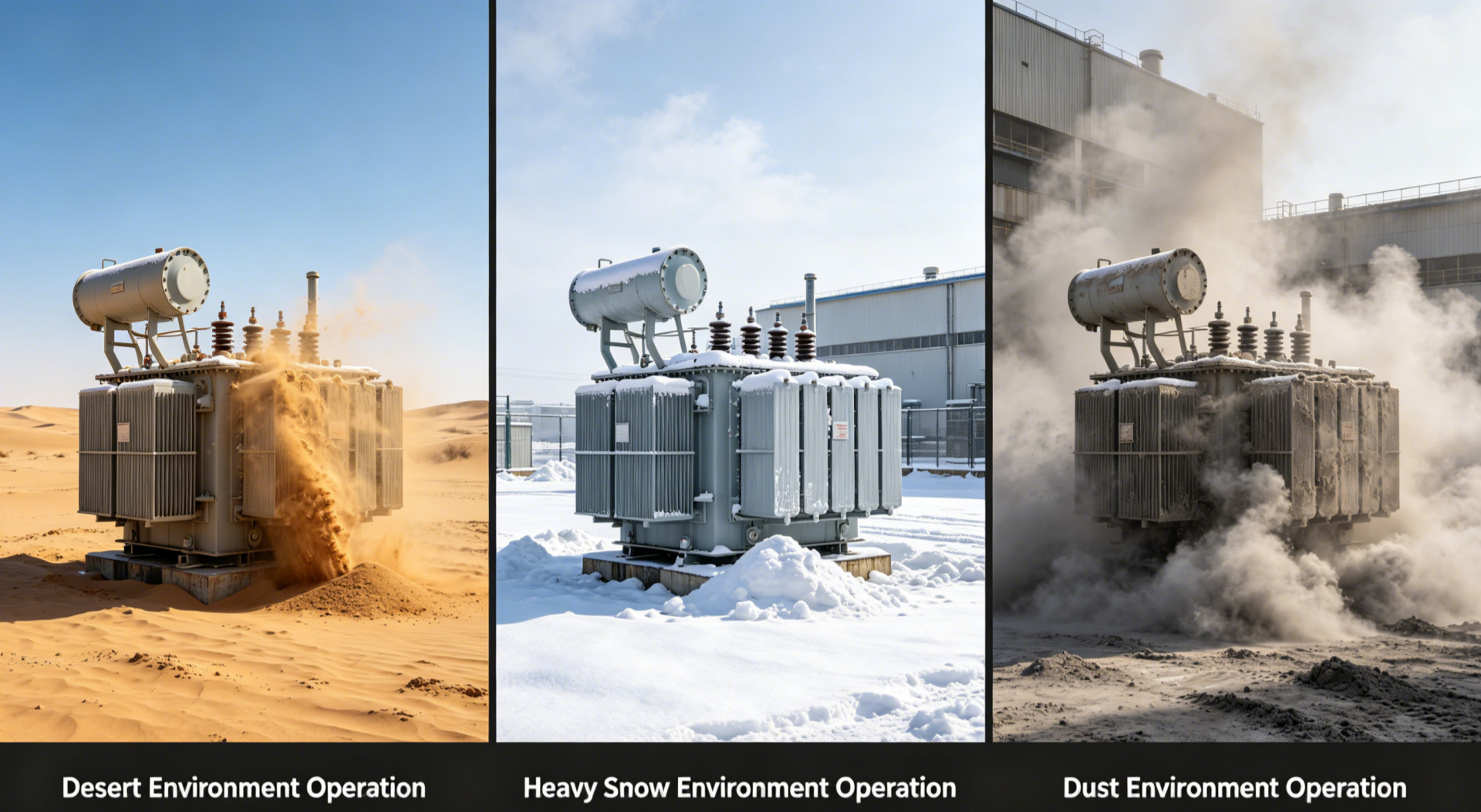

Real‑life example: A mining customer in the Atacama Desert reported zero transformer‑related downtime over 18 months despite daily dust storms and 45°C heat.
Every transformer we ship complies with IEC 60076, ANSI C57.12, or CSA C88 – plus location‑specific requirements (e.g., seismic rating for Japan, high‑altitude for Andean projects).
Over‑temperature protection with PT100 sensors and alarm/shutdown logic.

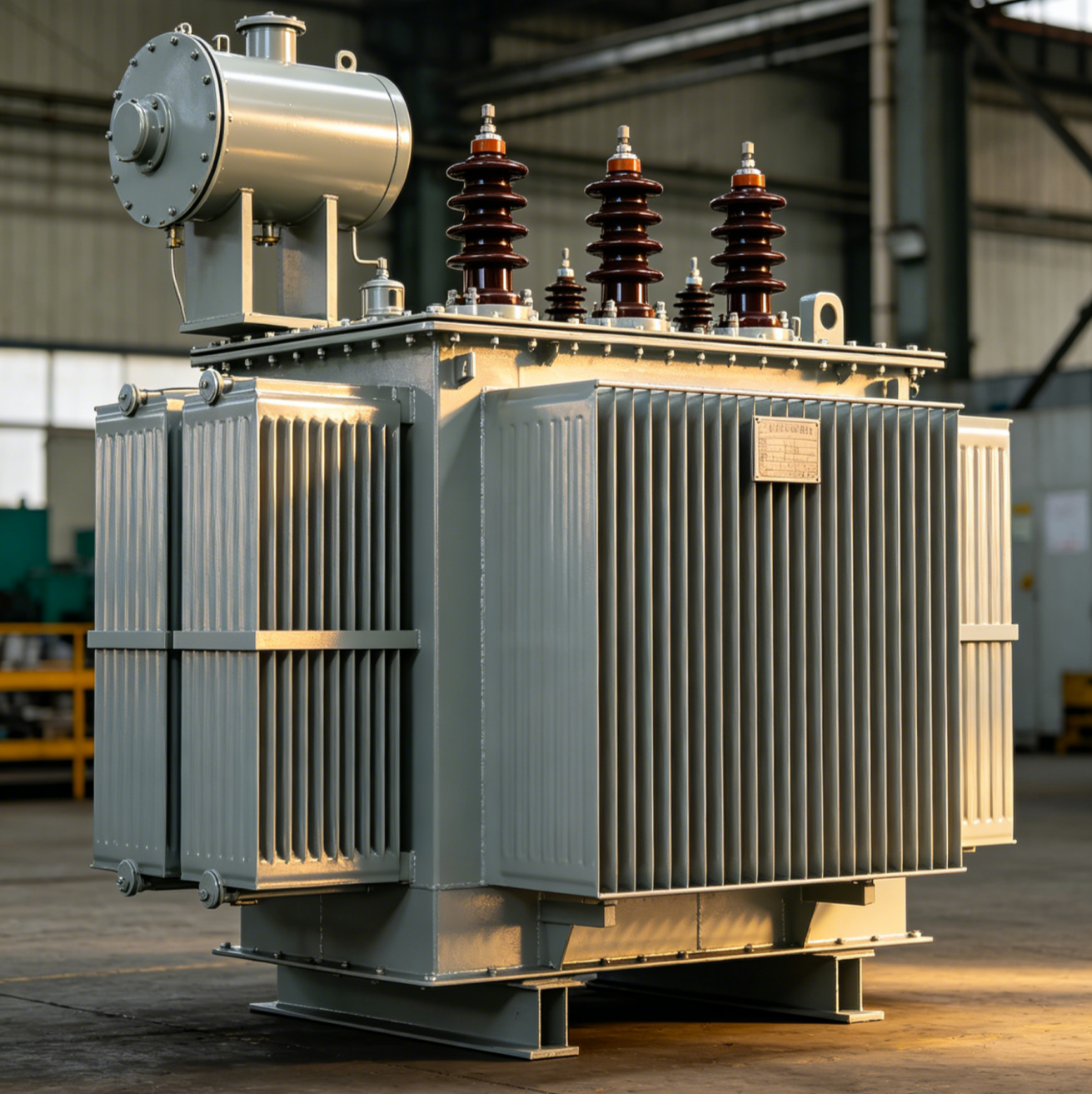

Pressure relief devices for oil‑filled units to prevent tank rupture.
Fire‑safe dry‑type using UL 94V‑0 class resin – no leaking oil, minimal smoke.
Dual‑voltage isolation shields for personnel safety during maintenance.
We also provide optional online monitoring (partial discharge, top oil temperature, load current) to catch issues before they become failures.
Off‑the‑shelf transformers often force compromises – wrong impedance, unsuitable tap range, or mismatched cooling. We don’t do compromises.
Voltage ratings – primary and secondary from 0.2 kV to 36 kV (or higher via special order).
Tap changers – off‑circuit or on‑load, with custom step sizes (±2.5%, ±5%, or other).
Impedance – optimized for motor starting, harmonics, or paralleling with existing units.
Enclosure & cooling – ventilated, sealed, cast resin, or oil‑filled with coolers/radiators.
Terminations – NEMA or IEC cable boxes, busbars, plug‑in connectors, or custom junction boxes.
Smart sensors – integrate with your SCADA or IoT platform (Modbus, DNP3, Profibus).

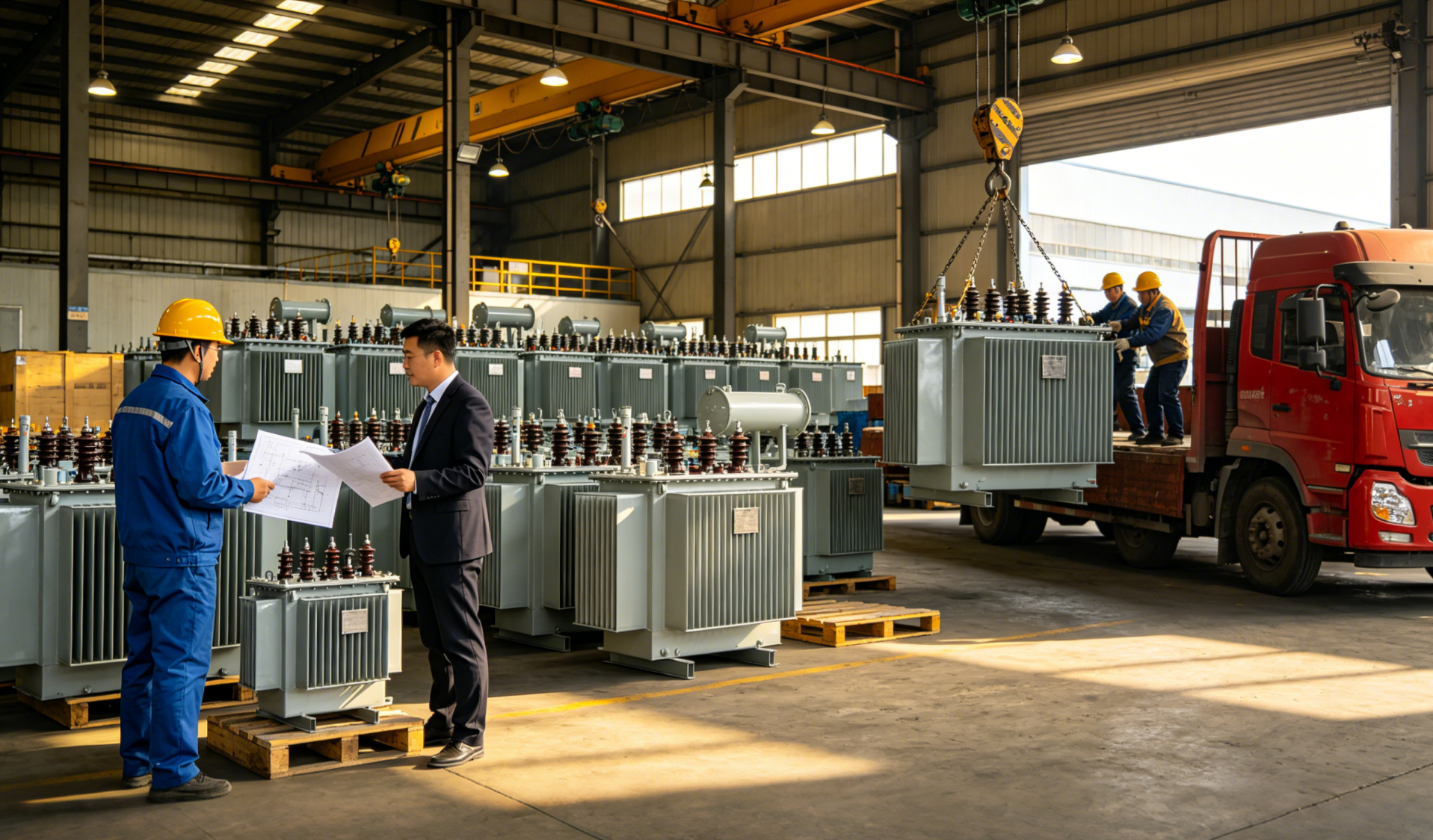

Lead time: Standard designs 6‑8 weeks, custom 12‑14 weeks – with expediting options.
Solar and wind farms need transformers that handle fluctuating loads and harmonic distortion. Our amorphous core units keep no‑load losses extremely low during nighttime or calm periods, improving plant ROI.
Zero downtime is the only acceptable target. We supply dry‑type, low‑sound (≤45 dBA) transformers with N+1 redundancy and overtemperature monitoring – critical for Tier III/IV facilities.
Cement plants, steel mills, and automotive factories have frequent high‑inrush currents and voltage sags. Our extra‑high impedance (6‑8%) designs stabilize voltage and protect downstream drives.
Hotels, hospitals, and shopping malls need silent, non‑flammable units for indoor installation. Our encapsulated dry‑type transformers mount directly on walls or inside electrical rooms without fire‑rated vaults.
When evaluating vendors, ask these five questions:
What are the guaranteed losses (no‑load & load) at rated temperature? – Real test reports, not theoretical sheets.
What is the short‑circuit withstand rating? – Should match or exceed your system’s available fault current.
Is the insulation system fully moisture‑resistant? – Especially important for outdoor or unheated spaces.
What spare parts and service support do you offer? – Local stock of fans, thermostats, bushings?
Can you provide a life‑cycle cost (LCC) analysis? – We’ll calculate 10‑year ownership cost including losses.
We answer all five – with data.
Buying a transformer is the beginning, not the end. We provide:
Site commissioning – Including power factor testing, turns ratio verification, and thermography.
Predictive maintenance – Oil sampling (for oil‑filled) or insulation resistance trends (dry‑type). We interpret results and recommend actions.
24/7 technical hotline – For urgent troubleshooting.
Emergency replacement – We keep key ratings in stock for quick shipment.
Warranty: 5 years standard (up to 10 years for certain models) – covering both materials and workmanship.
Stop overpaying for energy losses and risking unplanned outages. Tell us your voltage, power rating, and application – we’ll respond within 24 hours with a preliminary datasheet and budget quote.
Email: RachLSY981125@gmail.com
19518189808@163.com
Website: https://www.chxsdl.com
https://yqsxdl.en.made-in-china.com/
Phone/Whatsapp: +86 19518189808
Ask about our free one‑hour technical consultation – no obligation.
