For factories, commercial buildings, hospitals, infrastructure projects, and other facilities, a sudden loss of utility power can cause much more than temporary inconvenience.
Production lines may stop, critical equipment may shut down, communication systems may be interrupted, and sensitive electrical equipment may be exposed to abnormal operating conditions.
For this reason, many facilities use standby diesel generators as an emergency power source.
However, simply installing a generator is not enough.
The real challenge is:
How can the system automatically detect a grid failure, start the generator, transfer the load, and restore normal operation when utility power returns?
A properly designed generator synchronizing panel provides the control and coordination required for this process.
In a recent power distribution project in Kenya, our team supplied a generator synchronizing panel designed to coordinate backup generation with the utility power supply and support automatic power transfer.
This article explains how such a system works and what buyers should consider when selecting a generator synchronizing panel.
A generator synchronizing panel is a control and distribution cabinet used to monitor, control, and coordinate one or more generators within a power supply system.
Depending on the system configuration, it can manage functions such as:
Utility power monitoring
Generator start/stop control
Voltage monitoring
Frequency monitoring
Phase sequence monitoring
Generator synchronization
Automatic power transfer
Generator protection
Load management
Manual/automatic operation
Remote monitoring and communication
For systems with multiple generators, the synchronizing panel can also coordinate the generators so that they can operate in parallel under controlled conditions.
The basic concept is:

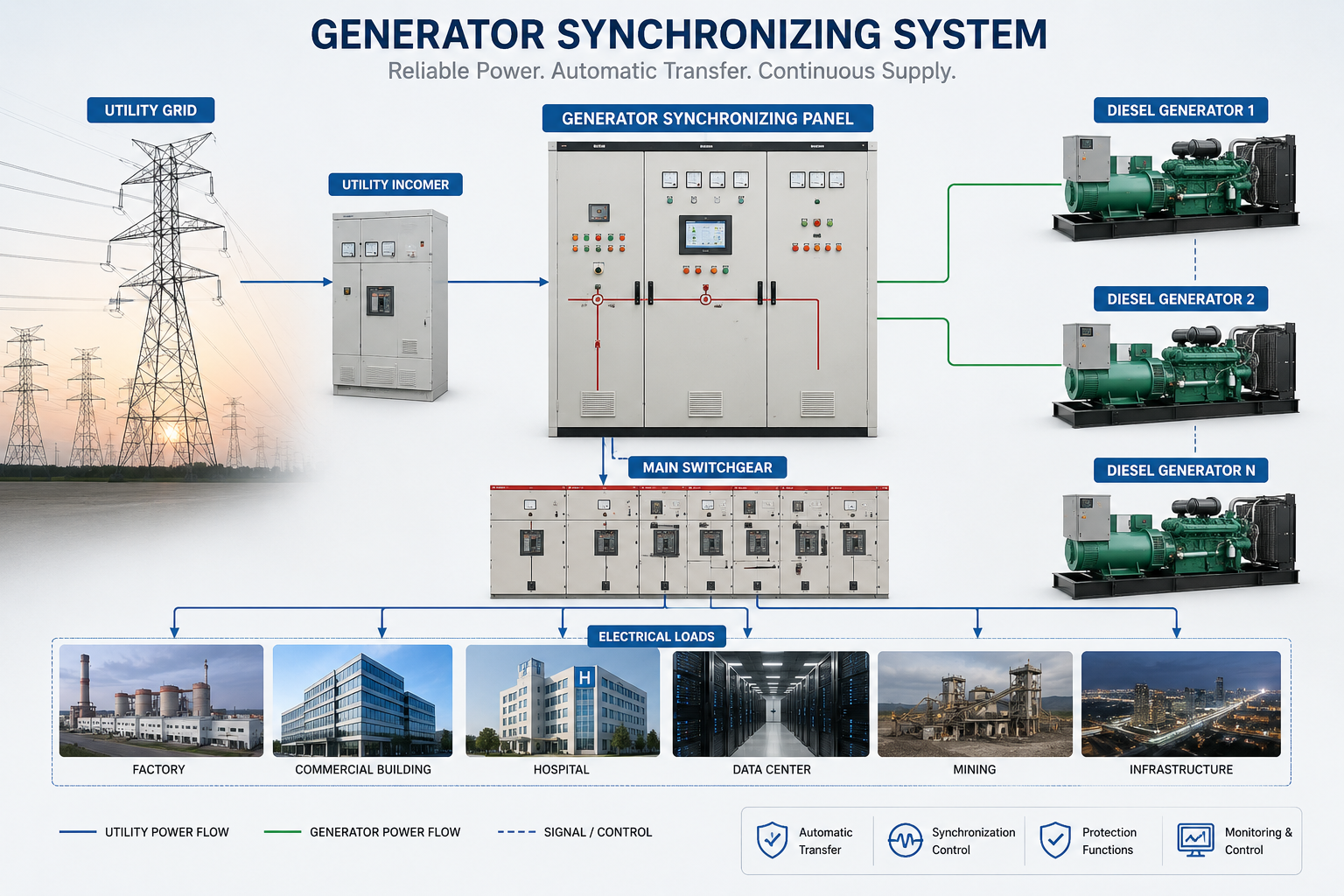

Utility Grid + Generator(s) → Control & Synchronization → Main Distribution System → Electrical Loads
The panel acts as the control center between the power sources and the loads.
One of the most important functions of the system is automatic response to a utility power failure.
A typical operating sequence can be divided into several stages.
Under normal conditions, the facility is supplied by the utility grid.
The control system continuously monitors the incoming power supply.
Typical monitored parameters include:
Voltage
Frequency
Phase sequence
Phase loss
Overvoltage
Undervoltage
As long as the utility supply remains within the configured operating range, the system remains in normal operation.
Grid → Main Switchgear → Electrical Loads
When the utility supply fails or falls outside the preset limits, the control system identifies the abnormal condition.
For example, the system may detect:
Grid Failure
↓
Undervoltage
↓
Phase Loss
↓
Abnormal Frequency
The exact protection and detection logic depends on the project requirements and control configuration.
The important point is that the system does not rely on manual observation.
The control panel can automatically respond to the detected power abnormality.
After confirming the utility power failure, the control system sends a start command to the standby generator.
The generator then starts automatically.
Once the generator reaches its required operating condition, the control system checks whether the generator output is suitable for supplying the load.
Important parameters include:
Generator voltage
Generator frequency
Phase sequence
Generator status
Protection status
Only when the required conditions are satisfied should the system proceed to the next stage.
For systems using multiple generators or requiring generator paralleling, synchronization becomes especially important.
Before connecting a generator to a common bus, the electrical parameters must meet the required synchronization conditions.
The system can monitor parameters such as:
The generator voltage must be within the required range.
The generator frequency must be compatible with the system frequency.
The phase sequence must be correct.
The phase relationship between the generator and the bus must meet the synchronization requirements.
This process is essential because generators should not simply be connected to a live bus without proper synchronization control.
Once the backup power source is confirmed to be ready, the system can transfer the load from the utility supply to the generator.
The simplified power flow becomes:
Utility Grid
↓
Grid Failure
↓
Generator Start
↓
Voltage & Frequency Check
↓
Synchronization
↓
Automatic Transfer
↓
Generator
↓
Electrical Loads
This automatic sequence reduces the need for manual intervention and helps maintain continuity of power supply for important loads.
The system also needs to manage what happens after the utility supply is restored.
When the grid returns, the control system monitors the utility voltage and frequency to determine whether the supply has become stable.
After the configured conditions are satisfied, the system can automatically transfer the load back to the utility supply.
The generator can then continue running for a cooling period before automatically stopping.

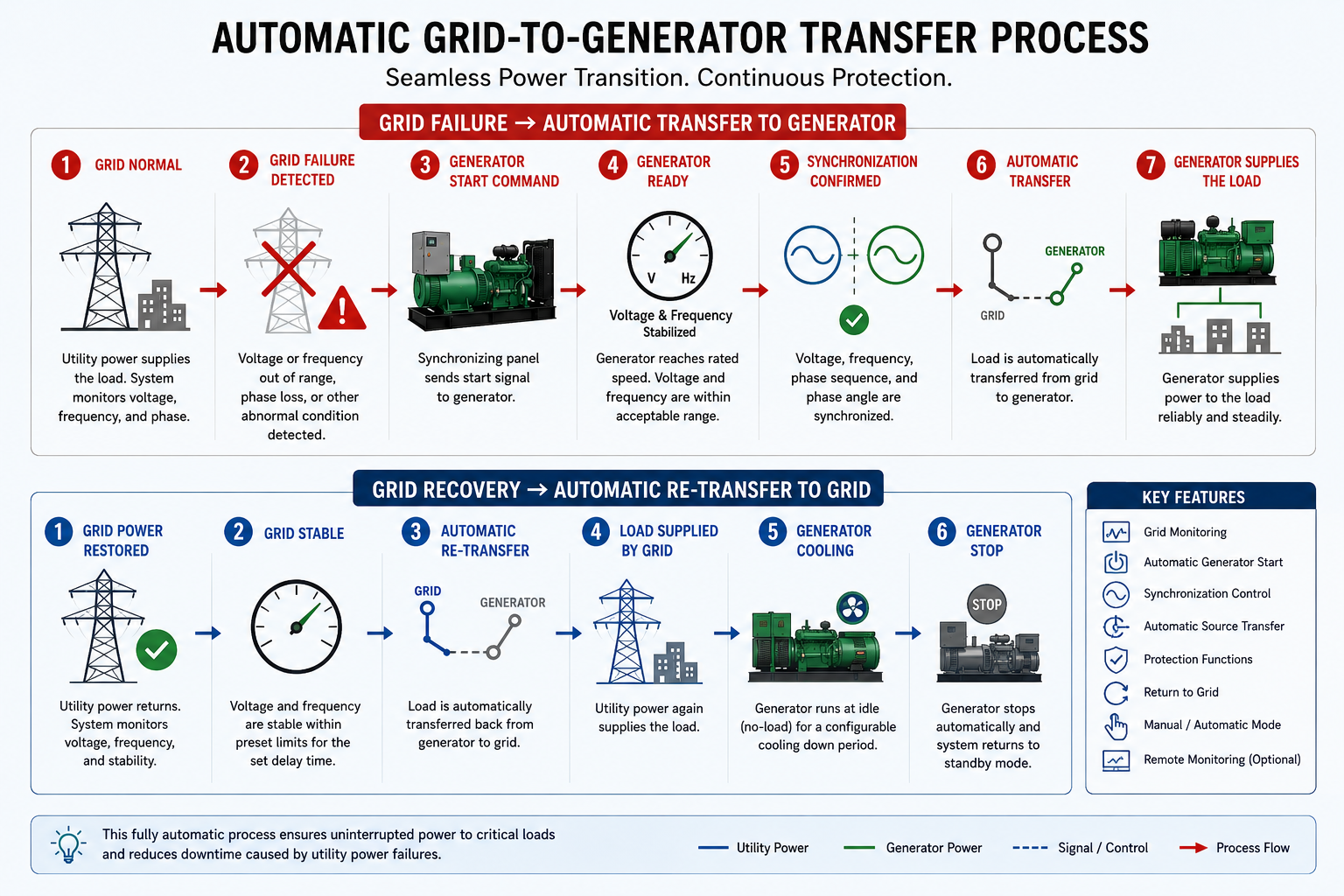

The complete sequence can therefore be summarized as:
Grid Normal
→ Grid Failure
→ Generator Start
→ Generator Ready
→ Synchronization
→ Load Transfer
→ Generator Supplies Load
→ Grid Recovery
→ Automatic Re-transfer
→ Generator Cooling
→ Generator Stop
This creates a complete automatic backup power cycle.
A common question from electrical equipment buyers is:
Is a generator synchronizing panel the same as an ATS?
Not exactly.
An Automatic Transfer Switch (ATS) primarily performs the function of transferring a load between two available power sources, such as utility power and generator power.
A generator synchronizing panel can provide more advanced generator management and coordination functions.
Function | ATS | Generator Synchronizing Panel |
|---|---|---|
Utility power monitoring | ✓ | ✓ |
Grid failure detection | ✓ | ✓ |
Generator start signal | ✓ | ✓ |
Automatic source transfer | ✓ | ✓ |
Generator synchronization | Limited | ✓ |
Multiple generator paralleling | Limited/No | ✓ |
Load sharing | Limited/No | ✓ |
Generator coordination | Limited | ✓ |
Generator protection | Depends on system | ✓ |
Centralized generator control | Limited | ✓ |
Therefore, the choice depends on the actual power system.
For a simple backup application with one generator, an ATS-based solution may be sufficient.
For a system involving multiple generators, generator paralleling, synchronization, or load sharing, a dedicated synchronizing and control system provides significantly more functionality.
For a single-generator backup system, the main requirement may simply be transferring the load from the grid to the generator.

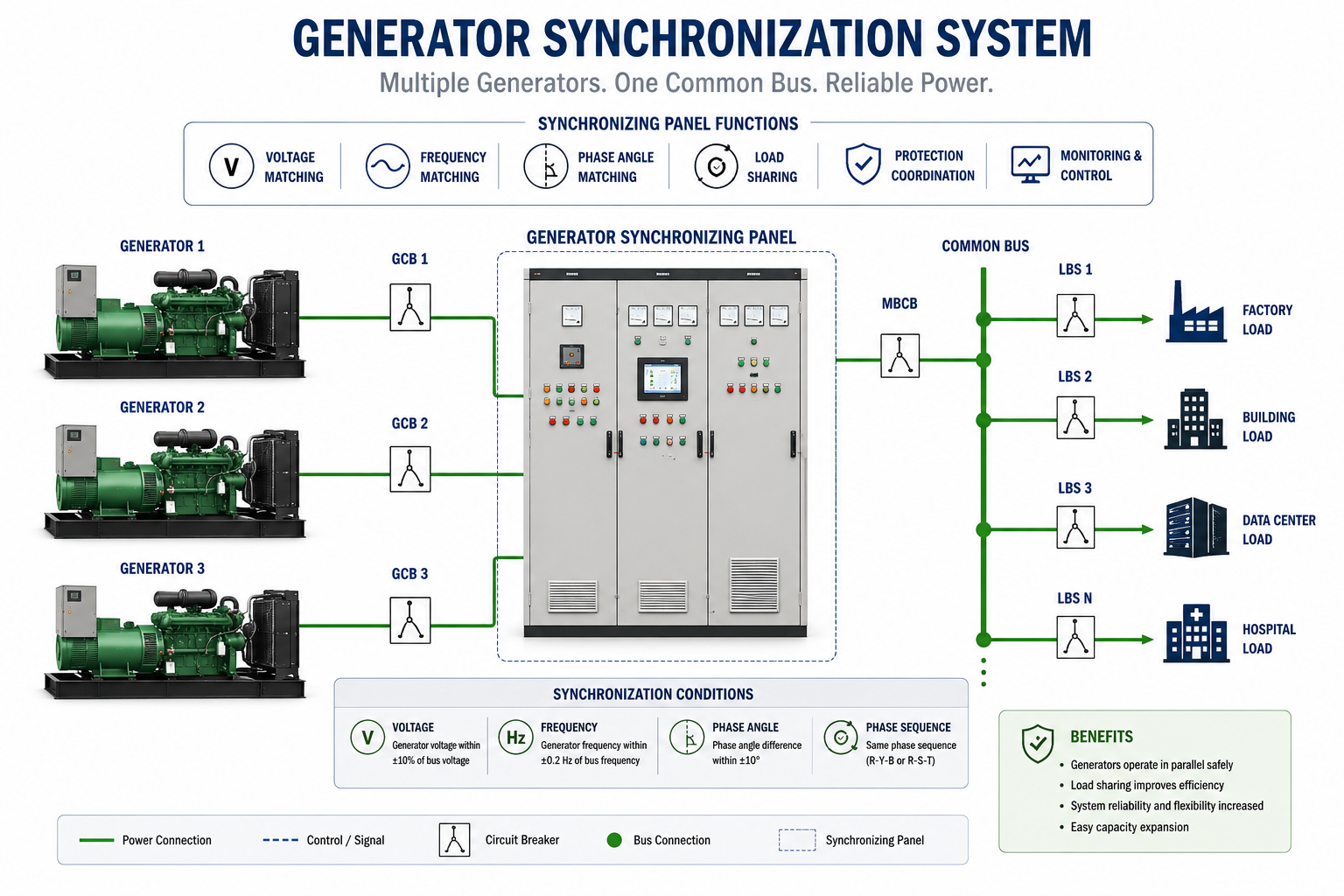

However, larger facilities may require multiple generators to work together.
For example:
Generator 1 + Generator 2 + Generator 3
↓
Synchronizing Panel
↓
Common Bus
↓
Main Loads
In this configuration, the generators need to operate together under controlled conditions.
The synchronizing system can help coordinate:
Generator voltage
Frequency
Phase relationship
Breaker operation
Load distribution
Generator operating status
This allows the system to make better use of available generating capacity.
For example, instead of operating one very large generator continuously, a facility may use multiple generators according to its actual load demand.

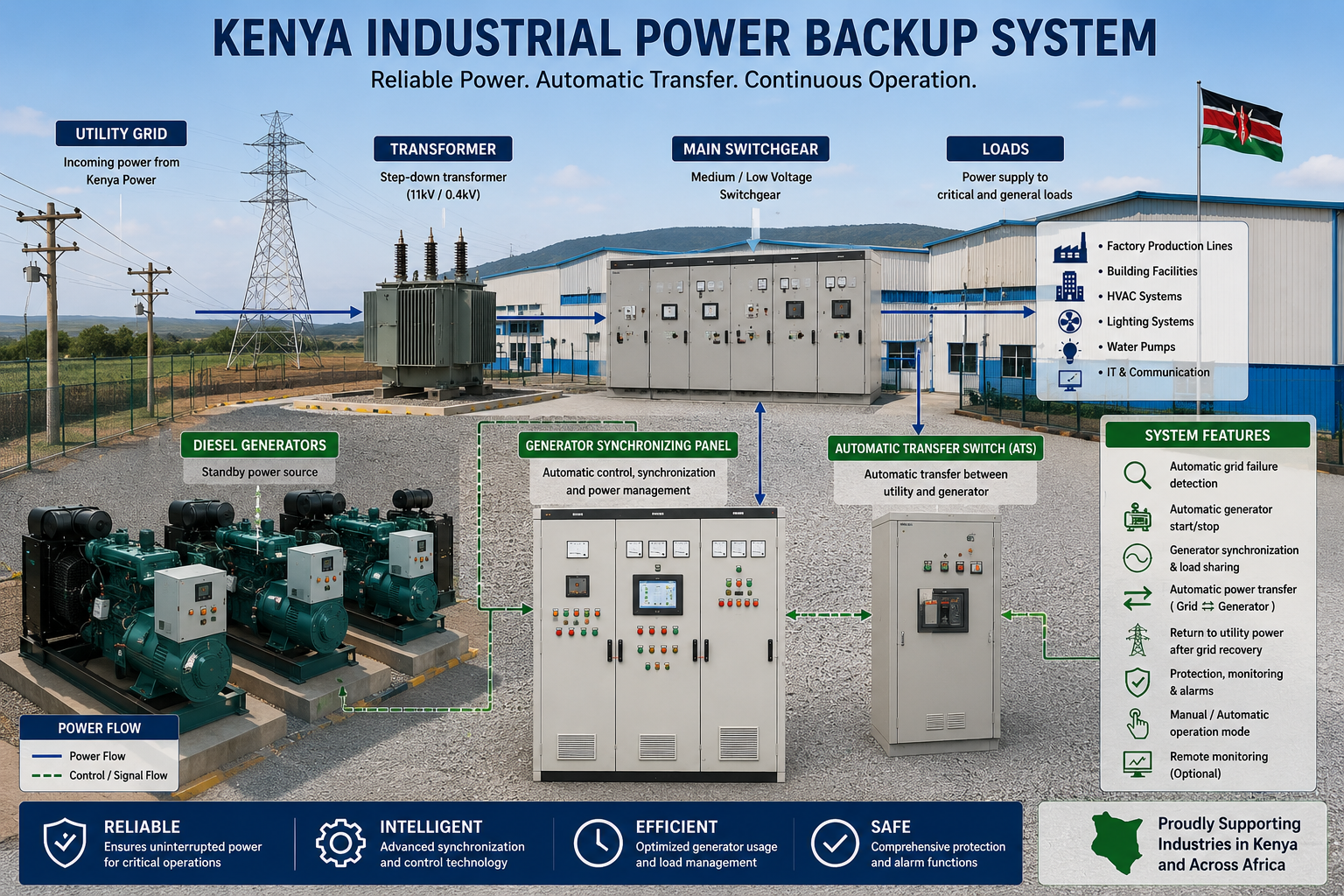

For our Kenya project, the generator synchronizing panel was designed as part of a complete power distribution system.
The application required the backup generation system to coordinate with the utility power supply and provide automatic response when the grid experienced a failure.
The system was designed around several key requirements:
Utility power monitoring
Automatic grid failure detection
Generator automatic start
Generator synchronization
Automatic power transfer
Generator protection
Manual and automatic operating modes
Return to utility power after grid restoration
This type of configuration is particularly valuable for facilities where an unexpected power interruption can affect production, equipment operation, or business continuity.
The project also demonstrates an important principle in power distribution:
A reliable backup power system is not simply about having a generator. It is about controlling how different power sources work together.
Generator synchronization and automatic transfer systems can be applied across many industries.
Production equipment may require continuous power.
Automatic generator transfer can reduce production interruptions caused by utility failures.
Shopping centers, office buildings, hotels, and large commercial facilities often require backup power for essential electrical systems.
Medical equipment, emergency systems, lighting, and other critical loads require reliable backup power.
Data centers require highly reliable electrical power because interruptions can affect servers, communication systems, and data availability.
Mining operations may be located in areas where the utility grid is less stable or where backup generation is essential.
Transportation, communication, water treatment, and other infrastructure facilities may require reliable standby power systems.
In regions where grid reliability is a major consideration, automatic generator systems can provide an additional layer of power security.
Kenya and other African markets have significant demand for reliable backup power solutions across industrial and commercial applications.
The system can respond automatically when utility power fails, reducing dependence on manual operation.
The control system coordinates the transfer between available power sources according to the configured operating logic.
For multiple-generator applications, synchronization helps generators operate together safely and effectively.
Generator status, utility conditions, breaker status, and operating modes can be managed from a centralized panel.
For systems with multiple generators, load management and generator coordination can help optimize generator operation.
Depending on the design, the system can support both automatic and manual operation, providing flexibility for commissioning, maintenance, and emergency situations.
The correct panel should be designed according to the actual power system rather than selected only according to the generator capacity.
Before requesting a quotation, buyers should prepare the following information.
Number of generators
Generator rated power
Generator voltage
Frequency
Rated current
Generator controller
Generator manufacturer
Generator operating mode
Utility voltage
Frequency
Incoming breaker rating
Transformer capacity
Number of utility incomers
Total connected load
Maximum demand
Motor loads
Critical loads
Starting current
Required backup capacity
Automatic/manual operation
Automatic grid-to-generator transfer
Automatic return to grid
Generator synchronization
Load sharing
Generator priority
Remote monitoring
Communication requirements
Providing this information allows the engineering team to determine the appropriate control logic, breaker configuration, cabinet structure, and synchronization strategy.
Generator synchronizing systems are not always "one-size-fits-all" products.
Different projects can have completely different requirements.
For example:
One Generator + Utility
may require a relatively simple automatic transfer system.
While:
Multiple Generators + Utility + Common Bus + Critical Loads
may require a more advanced synchronization and paralleling system.
Other projects may require:
Multiple incoming feeders
Emergency bus sections
Load shedding
Priority loads
Remote monitoring
Automatic sequencing
Generator load sharing
Therefore, the panel should be engineered based on the complete electrical single-line diagram and operating requirements.
A generator synchronizing panel is only one part of a complete electrical distribution system.
For larger projects, the overall solution may include:
Utility Grid
↓
Transformer
↓
MV/LV Switchgear
↓
ATS / Synchronizing System
← Generator 1
← Generator 2
← Generator 3
↓
Main Distribution Panel
↓
Critical & Non-Critical Loads
This is where an experienced electrical equipment manufacturer can provide additional value.
Instead of supplying only a control cabinet, the supplier can help coordinate the generator system with:
Medium-voltage switchgear
Low-voltage switchgear
Transformers
Automatic transfer systems
Distribution panels
Protection systems
Monitoring systems
This approach helps ensure that individual electrical components work together as one complete power distribution solution.
A utility power failure does not necessarily have to result in a long interruption.
With a properly engineered generator synchronizing panel, the system can monitor the utility supply, detect abnormal conditions, start standby generators, synchronize available power sources, transfer the load, and return to normal utility operation after the grid is restored.
For industrial and commercial projects, especially where power continuity is critical, the combination of generator synchronization + automatic transfer + intelligent control provides a more complete backup power solution than a standalone generator.
Our Kenya project is an example of how generator control and automatic power transfer can be integrated into a practical power distribution system.
Planning a generator synchronization or automatic power transfer project?
Provide your generator capacity, quantity, voltage, utility parameters, load requirements, and single-line diagram, and our engineering team can evaluate the configuration and recommend a suitable solution.
