What Is a KYN28 Switchgear and Why Is It Widely Used in Power Distribution?

Introduction

In modern electrical power systems, safety, reliability, and operational efficiency are more important than ever. As industries, substations, commercial buildings, and renewable energy projects continue to expand, the demand for dependable medium-voltage distribution equipment is rapidly increasing. Among the many medium-voltage switchgear solutions available on the market, the KYN28 switchgear has become one of the most widely used and trusted options.

But what exactly is a KYN28 switchgear? Why is it so popular in medium-voltage power distribution systems? And what makes it different from other switchgear types?

This article will provide a comprehensive overview of KYN28 switchgear, including its structure, working principle, technical advantages, applications, safety features, and selection considerations. Whether you are an electrical engineer, project contractor, distributor, or industrial buyer, understanding the capabilities of KYN28 switchgear can help you choose the right solution for your power distribution project.

What Is a KYN28 Switchgear?

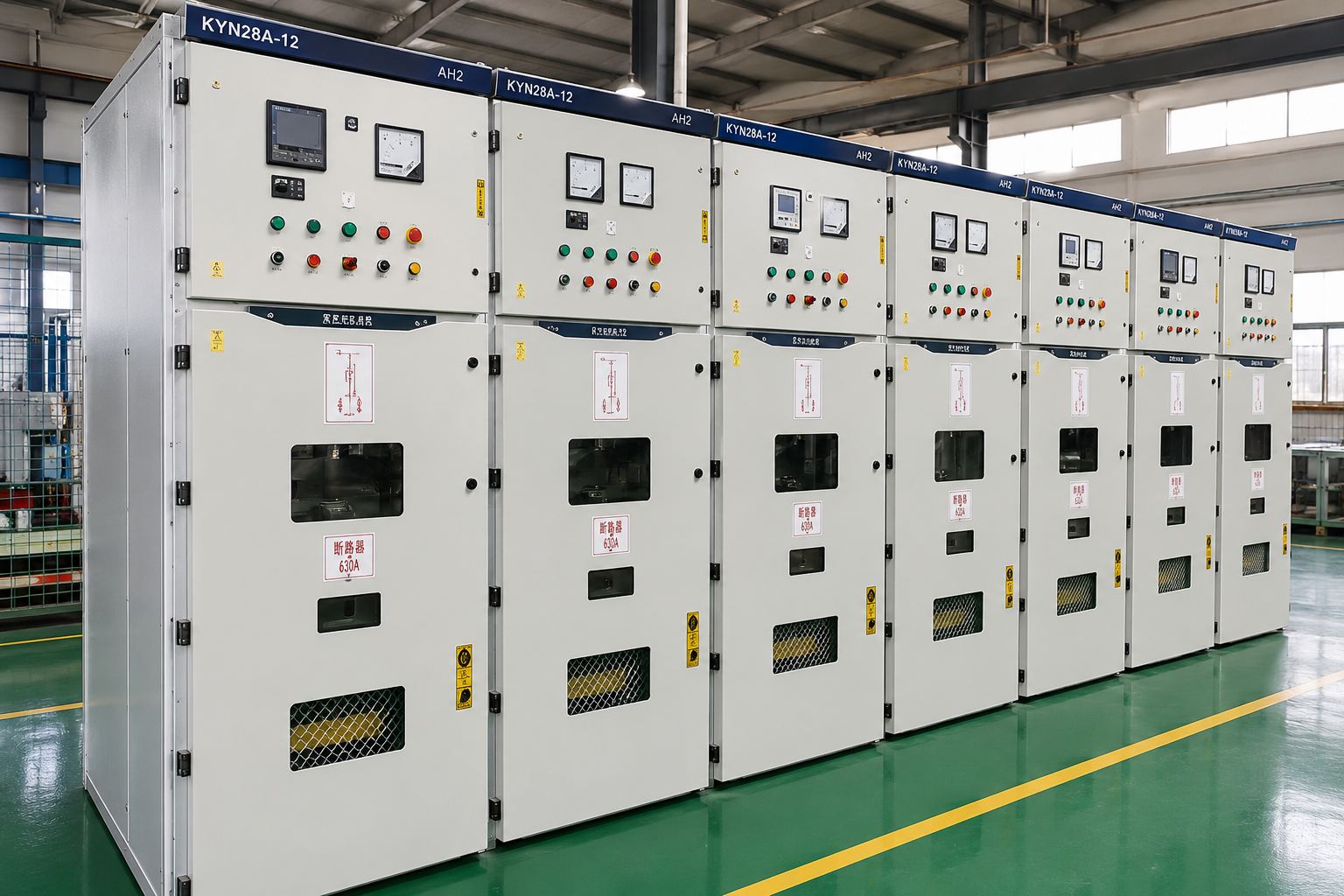

KYN28 switchgear, also known as KYN28A-12 armored removable AC metal-enclosed switchgear, is a type of indoor medium-voltage switchgear widely used in power distribution systems with rated voltages up to 12kV.

It is designed for receiving and distributing electrical energy while providing control, protection, and monitoring functions for electrical circuits. The cabinet adopts a metal-clad structure and uses a withdrawable vacuum circuit breaker, making maintenance safer and more convenient.

The KYN28 switchgear is commonly used in:

• Power substations

• Industrial plants

• Commercial buildings

• Renewable energy projects

• Mining operations

• Data centers

• Infrastructure projects

Because of its high safety level, compact structure, and reliable performance, it has become one of the standard switchgear solutions in medium-voltage applications worldwide.

Main Technical Specifications of KYN28 Switchgear

The technical parameters of KYN28 switchgear may vary depending on project requirements, but common specifications include:

These specifications make KYN28 suitable for most medium-voltage power distribution systems.

Structure of KYN28 Switchgear

One of the most important features of KYN28 switchgear is its metal-clad compartmentalized structure. The cabinet is divided into several independent compartments to improve operational safety and simplify maintenance.

The main compartments include:

1. Busbar Compartment

The busbar compartment is located at the top rear section of the cabinet and contains the main busbars used for power transmission between switchgear panels.

The busbars are usually insulated with heat-shrink sleeves to improve insulation performance and reduce the risk of phase-to-phase faults.

2. Circuit Breaker Compartment

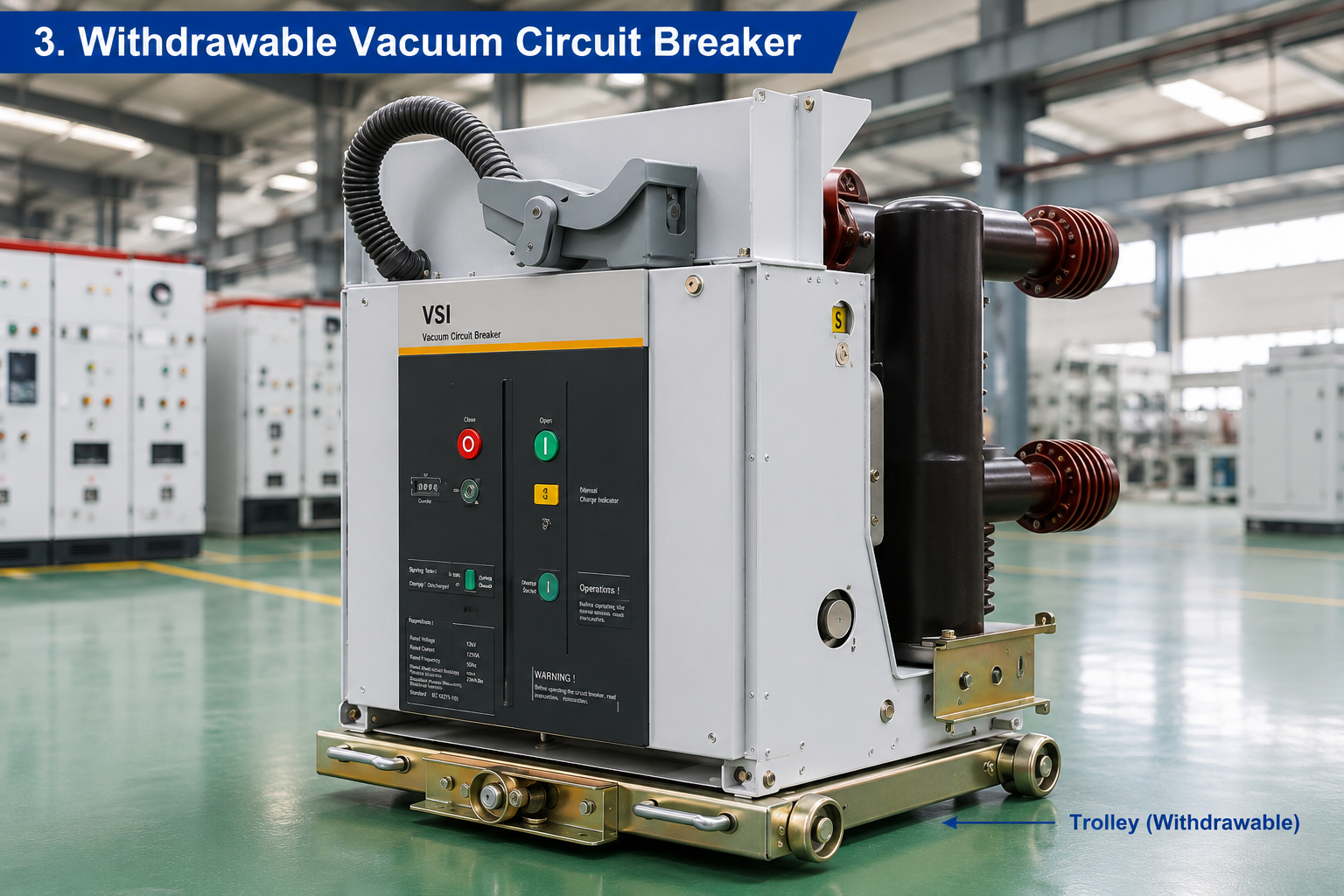

This compartment houses the withdrawable vacuum circuit breaker.

The breaker can move between:

• Service position

• Test position

• Isolated position

The withdrawable design greatly improves maintenance convenience and operational safety.

3. Cable Compartment

The cable compartment is used for connecting incoming and outgoing power cables. It may also contain:

• Current transformers (CT)

• Grounding switch

• Surge arresters

This compartment provides sufficient space for cable installation and maintenance.

4. Relay and Instrument Compartment

This compartment contains:

• Protection relays

• Measuring instruments

• Control devices

• Communication equipment

Modern KYN28 switchgear can integrate intelligent monitoring and remote communication systems for smart grid applications.

How Does KYN28 Switchgear Work?

The KYN28 switchgear operates by controlling and protecting medium-voltage electrical circuits.

When the system is operating normally, the vacuum circuit breaker remains closed, allowing current to flow through the circuit.

If a fault occurs, such as:

• Short circuit

• Overload

• Ground fault

The protection relay detects the abnormal condition and sends a trip signal to the vacuum circuit breaker.

The breaker then interrupts the current quickly to protect:

• Transformers

• Cables

• Motors

• Generators

• Other electrical equipment

Because vacuum interrupters have excellent arc-extinguishing capabilities, the system can interrupt fault currents rapidly and safely.

Why Is KYN28 Switchgear Widely Used?

There are many reasons why KYN28 switchgear has become a preferred solution in medium-voltage distribution systems.

1. Excellent Safety Performance

Safety is one of the biggest advantages of KYN28 switchgear.

The cabinet adopts a fully metal-clad design, which isolates live parts from operators and reduces the risk of electrical accidents.

The switchgear also includes comprehensive interlocking systems to prevent incorrect operations.

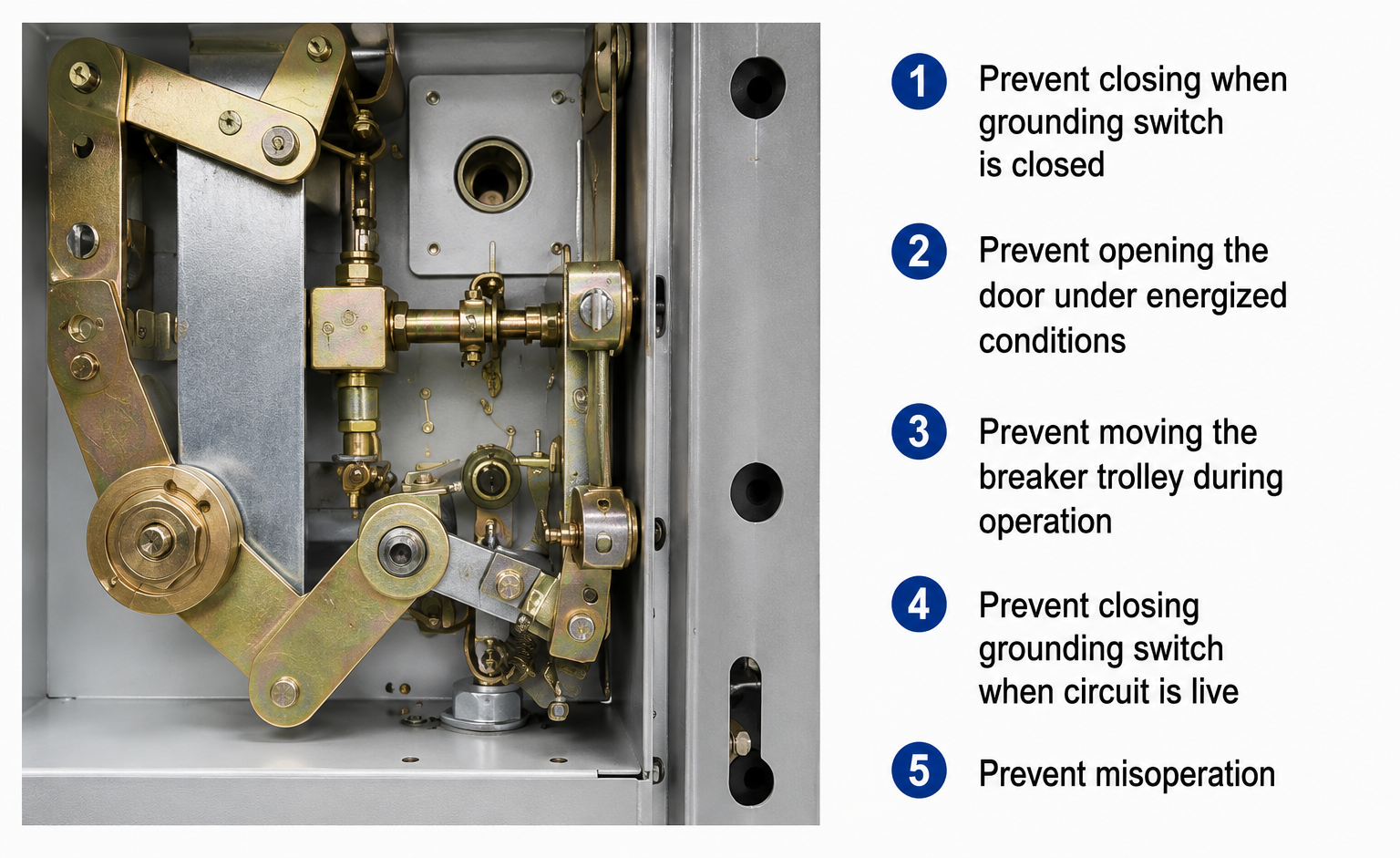

Common Interlock Functions

The system prevents:

• Closing the breaker when grounding switch is closed

• Opening compartment doors under energized conditions

• Moving the breaker trolley during operation

• Closing grounding switch when circuit is live

These safety mechanisms significantly improve operator protection.

2. High Reliability

KYN28 switchgear is designed for long-term stable operation.

Key reliability features include:

• High-quality vacuum circuit breakers

• Strong insulation performance

• Durable metal enclosure

• Advanced protection relays

The equipment can operate reliably even in demanding industrial environments.

3. Easy Maintenance

The withdrawable breaker design allows operators to inspect or replace components without shutting down the entire switchgear lineup.

This reduces:

• Downtime

• Maintenance costs

• Operational risks

Maintenance personnel can safely access the breaker in the test position while keeping the busbar energized.

4. Compact Structure

Compared with traditional switchgear systems, KYN28 offers a compact design that saves installation space.

This is especially important for:

• Urban substations

• Commercial buildings

• Industrial plants with limited space

5. Intelligent Monitoring Capability

Modern KYN28 switchgear can integrate:

• Digital protection relays

• Online temperature monitoring

• Partial discharge monitoring

• Remote communication systems

These smart features support:

• Remote monitoring

• Predictive maintenance

• Smart grid integration

Applications of KYN28 Switchgear

KYN28 switchgear is suitable for various industries and applications.

1. Power Substations

KYN28 is widely used in medium-voltage substations for power receiving and distribution.

2. Industrial Plants

Factories and manufacturing facilities require reliable power distribution systems to support continuous production.

KYN28 switchgear is commonly used in:

• Steel plants

• Cement factories

• Chemical plants

• Mining operations

3. Renewable Energy Projects

Solar and wind power stations often use KYN28 switchgear for:

• Grid connection

• Power distribution

• Transformer protection

4. Commercial Buildings

Large commercial facilities such as:

• Shopping malls

• Airports

• Hospitals

• Data centers

require stable medium-voltage distribution systems.

KYN28 switchgear helps ensure reliable operation of critical electrical systems.

Advantages of Vacuum Circuit Breakers in KYN28

The vacuum circuit breaker is one of the core components of KYN28 switchgear.

Compared with oil circuit breakers or SF6 breakers, vacuum breakers offer several advantages.

1. Long Electrical Life

Vacuum interrupters can perform many switching operations with minimal contact wear.

2. Minimal Maintenance

Vacuum breakers require less maintenance compared with oil-based systems.

3. Environmentally Friendly

Unlike SF6 gas, vacuum interrupters do not produce greenhouse gas emissions.

4. Fast Arc Extinction

Vacuum interrupters extinguish arcs rapidly, improving fault interruption capability.

Internal Arc Protection of KYN28

Internal arc faults are dangerous events that can occur due to insulation failure or operational mistakes.

KYN28 switchgear is designed with internal arc-resistant features to improve personnel safety.

Arc Protection Measures Include:

• Metal-clad compartment separation

• Pressure relief channels

• Reinforced enclosure

• Arc-resistant structure

KYN28 vs Other Switchgear Types

Many buyers compare KYN28 with other medium-voltage switchgear types such as:

• HXGN

• XGN15

• RMU

• GIS switchgear

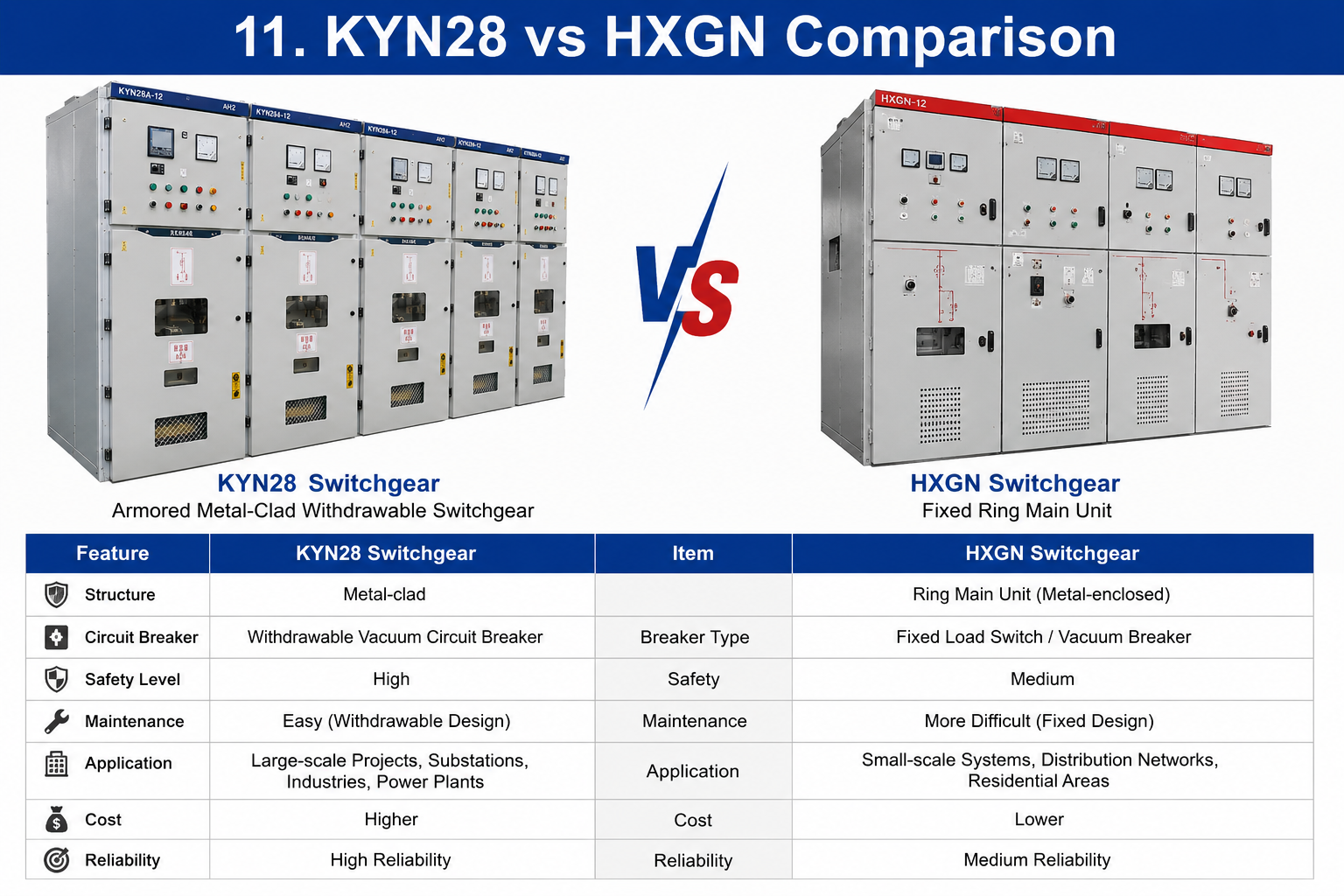

KYN28 vs HXGN

KYN28 is generally preferred for projects requiring higher reliability and safety.

How to Choose the Right KYN28 Switchgear

Selecting the proper KYN28 switchgear depends on multiple technical factors.

1. Rated Voltage

Choose according to system voltage:

• 6kV

• 10kV

• 11kV

• 12kV

2. Rated Current

Select based on load requirements:

• 630A

• 1250A

• 1600A

• 2500A

• 3150A

3. Short-Circuit Capacity

Ensure the switchgear can safely interrupt the maximum fault current in the system.

4. Installation Environment

Consider:

• Temperature

• Humidity

• Altitude

• Dust conditions

5. Protection and Automation Requirements

Modern projects may require:

• SCADA communication

• Intelligent relays

• Remote monitoring

Installation and Maintenance Tips

Proper installation and maintenance are essential for reliable operation.

Installation Recommendations

• Ensure proper grounding

• Maintain ventilation space

• Follow cable bending radius requirements

• Verify phase sequence

Maintenance Recommendations

• Periodically inspect breaker contacts

• Check insulation condition

• Test protection relays

• Clean dust accumulation

Preventive maintenance helps extend equipment lifespan and reduce unexpected failures.

Future Trends of Medium-Voltage Switchgear

As electrical systems become more intelligent and environmentally conscious, KYN28 switchgear continues to evolve.

Future development trends include:

• Smart monitoring systems

• Digital substations

• IoT integration

• Predictive maintenance

• Eco-friendly materials

Manufacturers are also improving:

• Compactness

• Energy efficiency

• Safety standards

These advancements will further strengthen the role of KYN28 switchgear in modern power systems.

Conclusion

KYN28 switchgear has become one of the most important medium-voltage distribution solutions in modern electrical systems. Its metal-clad structure, high safety level, reliable vacuum circuit breaker technology, and intelligent monitoring capabilities make it ideal for substations, industrial facilities, renewable energy projects, and commercial infrastructure.

With excellent operational reliability, convenient maintenance, and strong protection performance, KYN28 switchgear continues to play a critical role in ensuring stable and safe power distribution around the world.

For engineers, contractors, and project owners seeking dependable medium-voltage switchgear solutions, KYN28 remains a proven and highly trusted choice.

FAQ

What does KYN28 mean?

KYN28 refers to armored removable AC metal-enclosed switchgear designed for medium-voltage power distribution systems.

What voltage is KYN28 switchgear used for?

KYN28 switchgear is commonly used for systems up to 12kV.

Is KYN28 switchgear suitable for solar power plants?

Yes. KYN28 switchgear is widely used in solar and renewable energy projects for power distribution and grid connection.

What breaker is used in KYN28?

KYN28 usually uses a withdrawable vacuum circuit breaker.

What are the advantages of KYN28 switchgear?

Key advantages include:

• High safety

• Reliable operation

• Easy maintenance

• Compact structure

• Intelligent monitoring capability
