As global energy demand continues to rise, power distribution systems are evolving faster than ever. In recent years, one solution has rapidly gained popularity across solar farms, industrial facilities, commercial buildings, mining projects, and urban infrastructure developments: the compact substation.
But why are so many projects abandoning traditional transformer rooms and turning to compact substations instead?
The answer lies in efficiency, safety, installation speed, and long-term operational value.
In this article, we will explore what compact substations are, why they are becoming essential in modern power systems, and how they help reduce project costs while improving reliability.
A compact substation, also known as a prefabricated substation or box-type substation, is a complete power distribution unit that integrates:
Medium-voltage switchgear
Distribution transformer
Low-voltage distribution panel
Protection and control systems
All components are enclosed inside a compact outdoor housing.
Unlike traditional substations that require separate buildings and lengthy on-site installation work, compact substations arrive pre-assembled and factory-tested, significantly reducing construction time.
Compact substations are widely used in:
Solar photovoltaic projects
Wind power stations
Residential communities
Industrial plants
Commercial complexes
Infrastructure projects
Mining operations
Railway systems

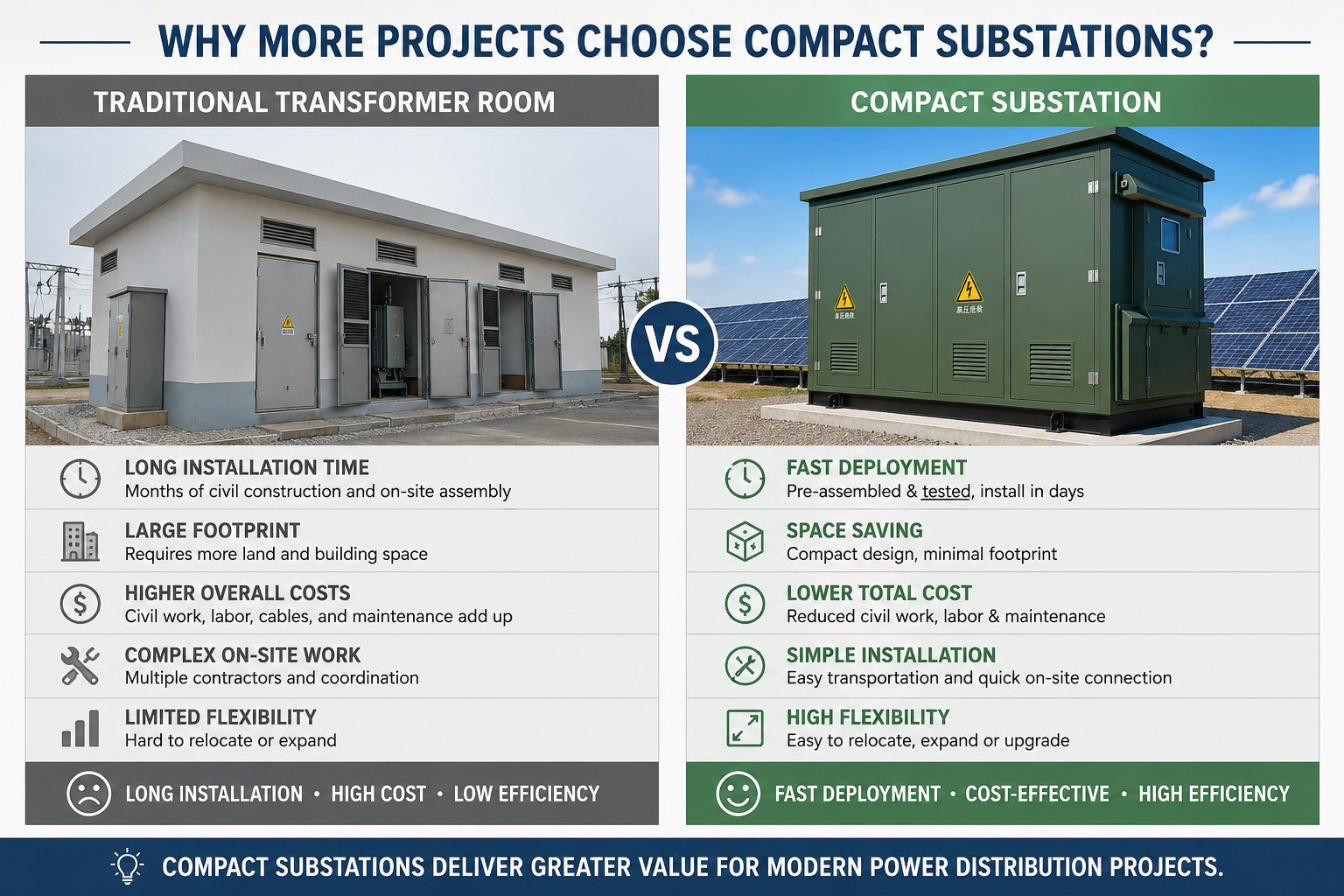

Traditional transformer rooms were once the standard solution for electrical distribution systems. However, they come with several disadvantages:
Traditional substations require:
Civil construction
Cable trench preparation
Equipment transportation
On-site assembly
Multiple contractor coordination
This process may take several months.
Compact substations can often be installed and commissioned within days.
Although traditional transformer rooms may appear cheaper initially, hidden costs quickly accumulate:
Land occupation
Construction labor
Engineering design
Additional protection systems
Maintenance expenses
Compact substations reduce these costs by integrating everything into one prefabricated system.
Modern projects demand flexible and scalable solutions.
Compact substations can be relocated, expanded, or customized much more easily than conventional transformer buildings.
One of the most important benefits is rapid deployment.
Since compact substations are factory-assembled and pre-tested, on-site work is minimized.
For EPC contractors and project developers, faster installation means:
Earlier project completion
Faster grid connection
Reduced labor costs
Lower project risks
This is especially important for renewable energy projects where project timelines directly affect profitability.
Compact substations occupy significantly less space than traditional substations.
This makes them ideal for:
Urban environments
Rooftop solar projects
Commercial buildings
Small industrial plants
The integrated design allows maximum functionality within a minimal footprint.
Modern compact substations are designed to operate in harsh environments, including:
High humidity
Desert heat
Heavy rain
Snow regions
Coastal salt spray environments
High-quality enclosures provide excellent protection levels such as IP54 or higher.
Many systems also include:
Anti-corrosion coating
Ventilation systems
Temperature monitoring
Arc protection
Safety is a major concern in electrical distribution systems.
Compact substations improve safety through:
Fully enclosed structure
Interlocking systems
Grounding protection
Internal arc resistance
Automatic protection devices
This minimizes operational risks for maintenance personnel.

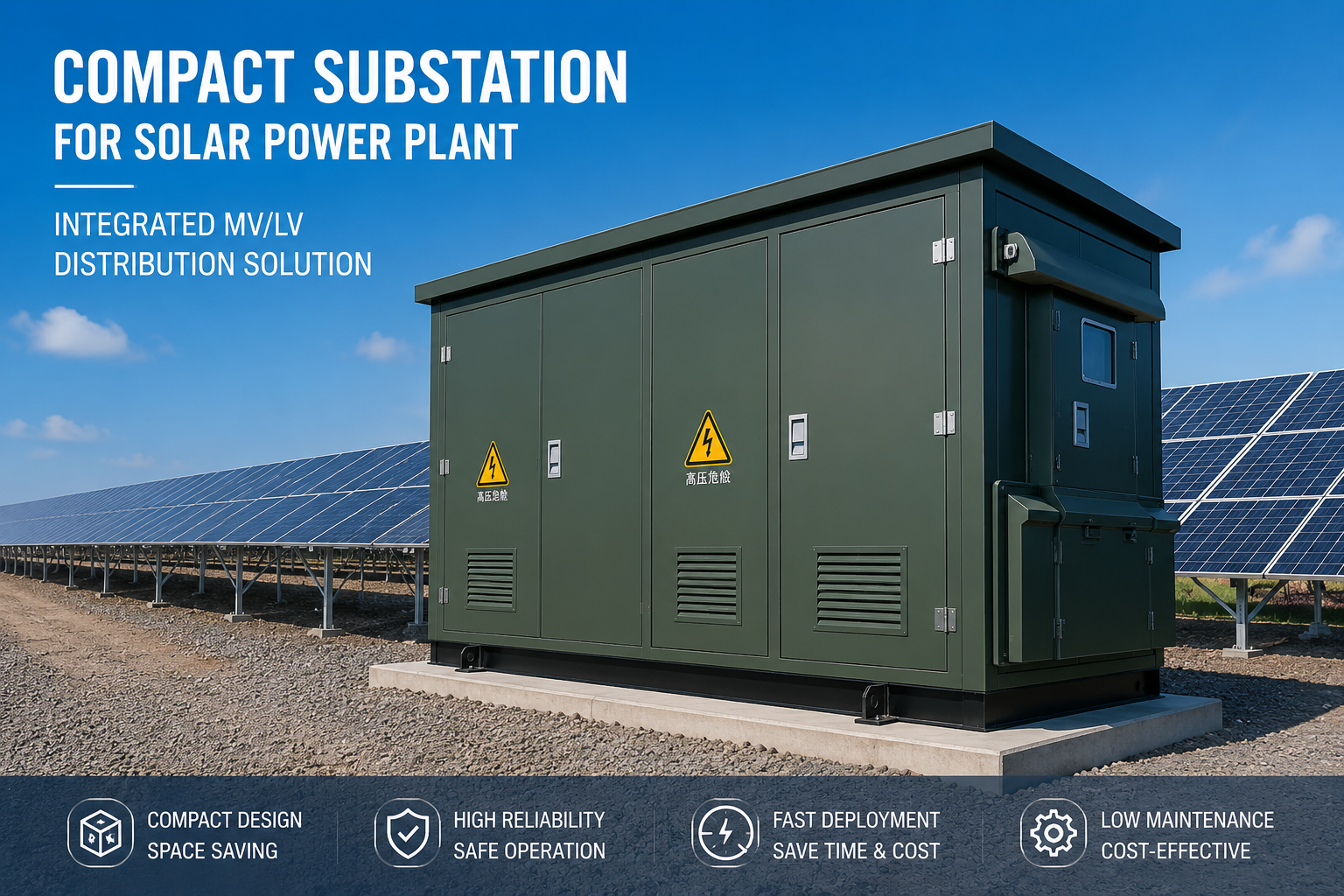

Solar projects have become one of the largest application areas for compact substations.
Here’s why:
Solar panels generate low-voltage electricity.
Compact substations efficiently:
Collect inverter output power
Step up voltage
Connect power to the utility grid
This integrated process improves transmission efficiency.

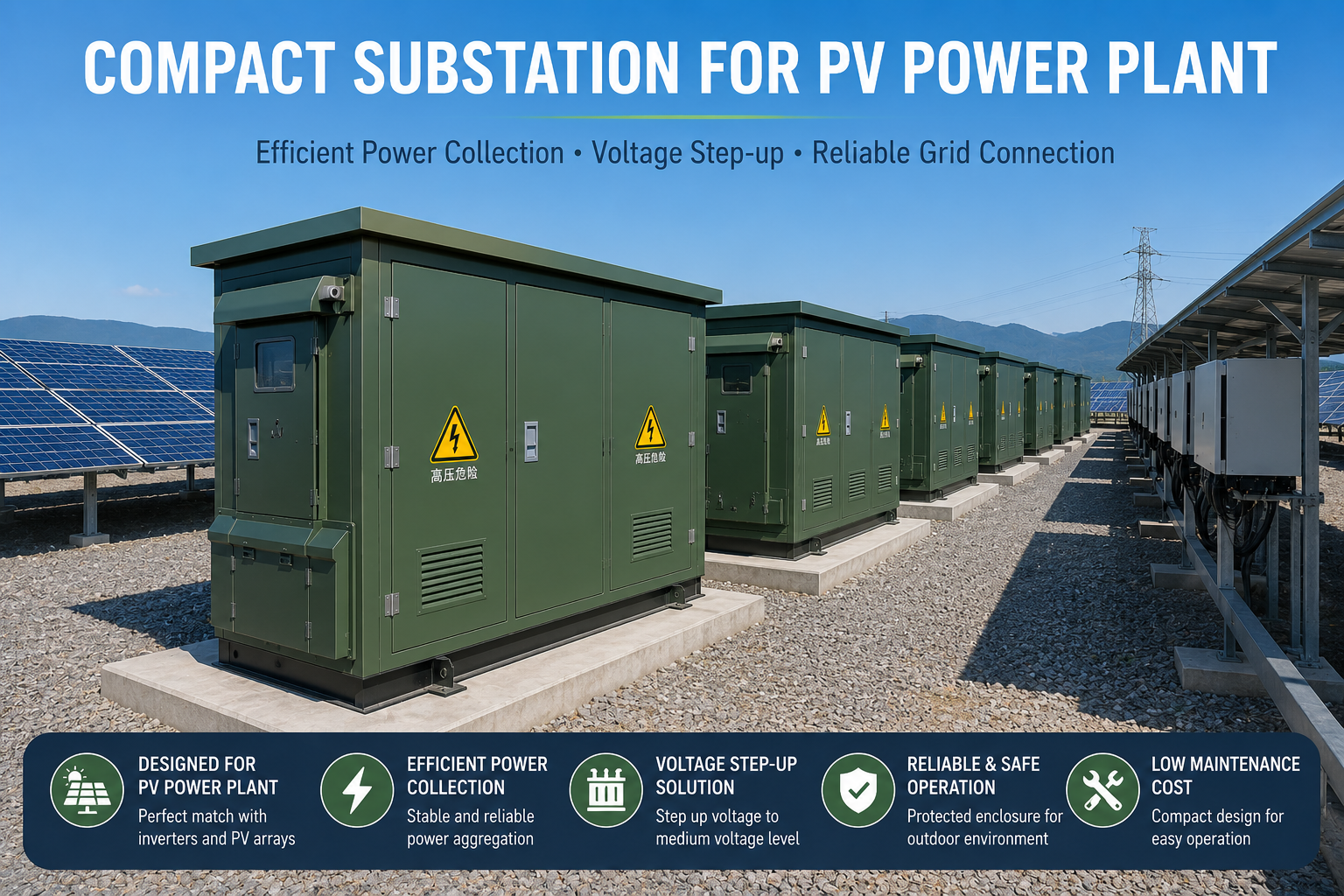

Solar farms are usually located outdoors in remote environments.
Compact substations are designed specifically for outdoor use and can withstand:
UV exposure
Dust
Rain
Temperature fluctuations
Compared with traditional substations, compact substations require less maintenance because:
Components are integrated
Wiring is optimized
Factory testing improves reliability
This helps reduce long-term operating costs.
In utility-scale solar projects, construction speed is critical.
Compact substations shorten installation time dramatically, allowing developers to meet project deadlines and secure earlier revenue generation.
When selecting a compact substation, buyers should pay attention to several important technical factors.
Common options include:
Oil-immersed transformer
Dry-type transformer
Oil-immersed transformers are suitable for outdoor heavy-duty applications, while dry-type transformers are preferred for environmentally sensitive areas.
Typical configurations include:
11kV / 0.4kV
13.8kV / 0.4kV
33kV / 0.69kV
The correct voltage depends on local grid requirements.
Cooling methods include:
ONAN
ONAF
Efficient cooling ensures stable long-term operation.
Outdoor substations should generally have:
IP54 or higher enclosure protection
Additional anti-corrosion treatment is recommended for coastal areas.

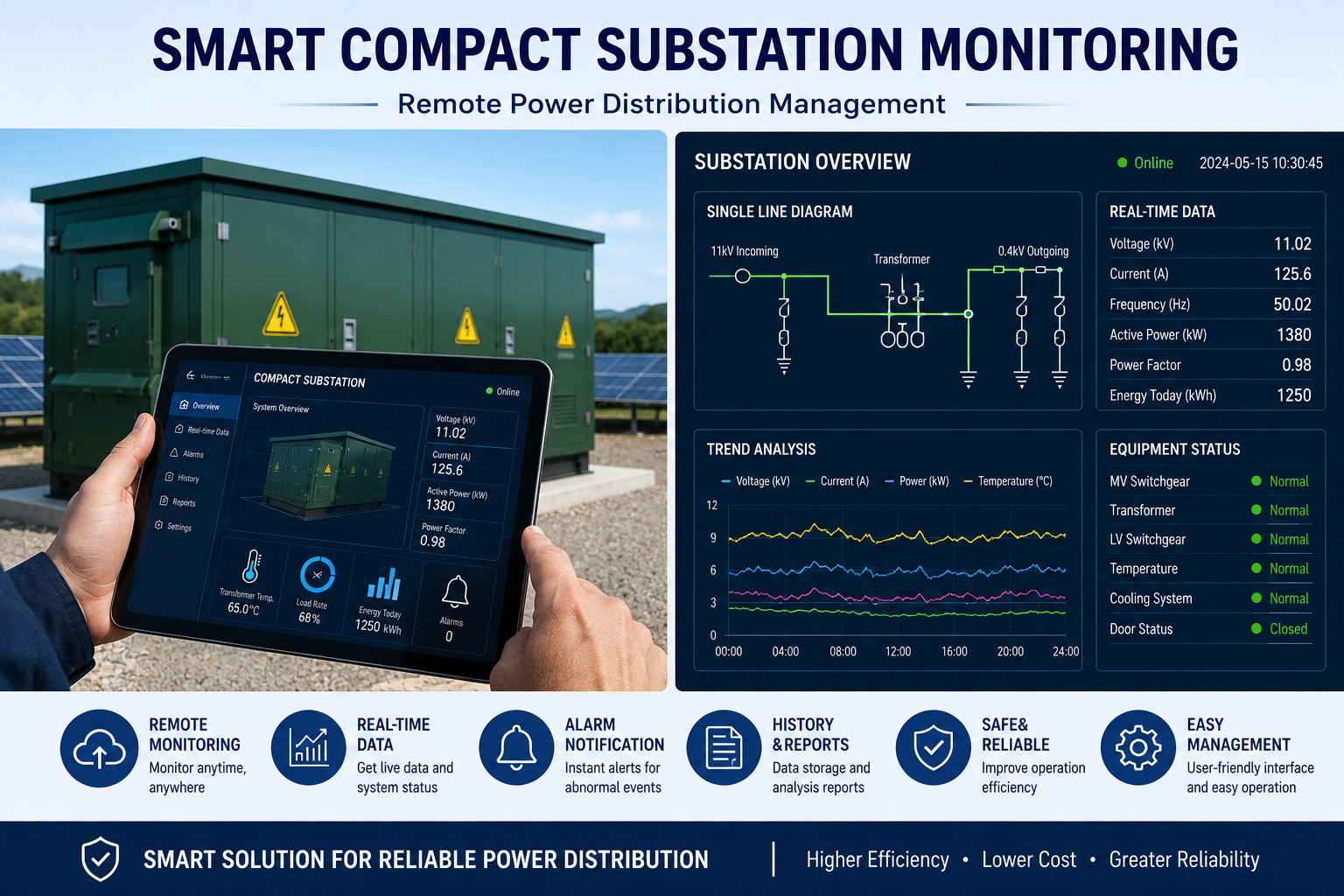

Modern compact substations may include:
Remote monitoring
SCADA integration
Temperature sensors
Smart meters
IoT communication modules
These features improve operational efficiency and predictive maintenance.
Choosing the right manufacturer is crucial for project success.
A reliable supplier should offer:
Look for manufacturers with:
Professional technical teams
Customized design capability
International project experience
Important certifications may include:
IEC standards
CE certification
ISO certification
These certifications ensure product quality and compliance.
A reputable manufacturer should provide:
Routine testing
FAT reports
Quality inspection records
Factory testing greatly reduces field installation risks.
Good suppliers provide:
Technical support
Installation guidance
Spare parts service
Long-term maintenance support
As smart grids and renewable energy continue to expand, compact substations are becoming more intelligent and efficient.
Future development trends include:
Digital substations
Smart monitoring systems
Eco-friendly insulation materials
Higher energy efficiency
Remote operation and predictive maintenance
Compact substations will continue playing a critical role in modern power infrastructure.
Compact substations are no longer just an alternative to traditional transformer rooms — they are becoming the preferred solution for modern power distribution projects.
Their advantages in installation speed, cost savings, safety, flexibility, and renewable energy integration make them ideal for today’s rapidly evolving energy market.
Whether for solar farms, industrial plants, commercial buildings, or infrastructure projects, compact substations provide a reliable, efficient, and future-ready power distribution solution.
If you are planning a power distribution project, choosing the right compact substation can significantly improve both technical performance and long-term investment returns.
