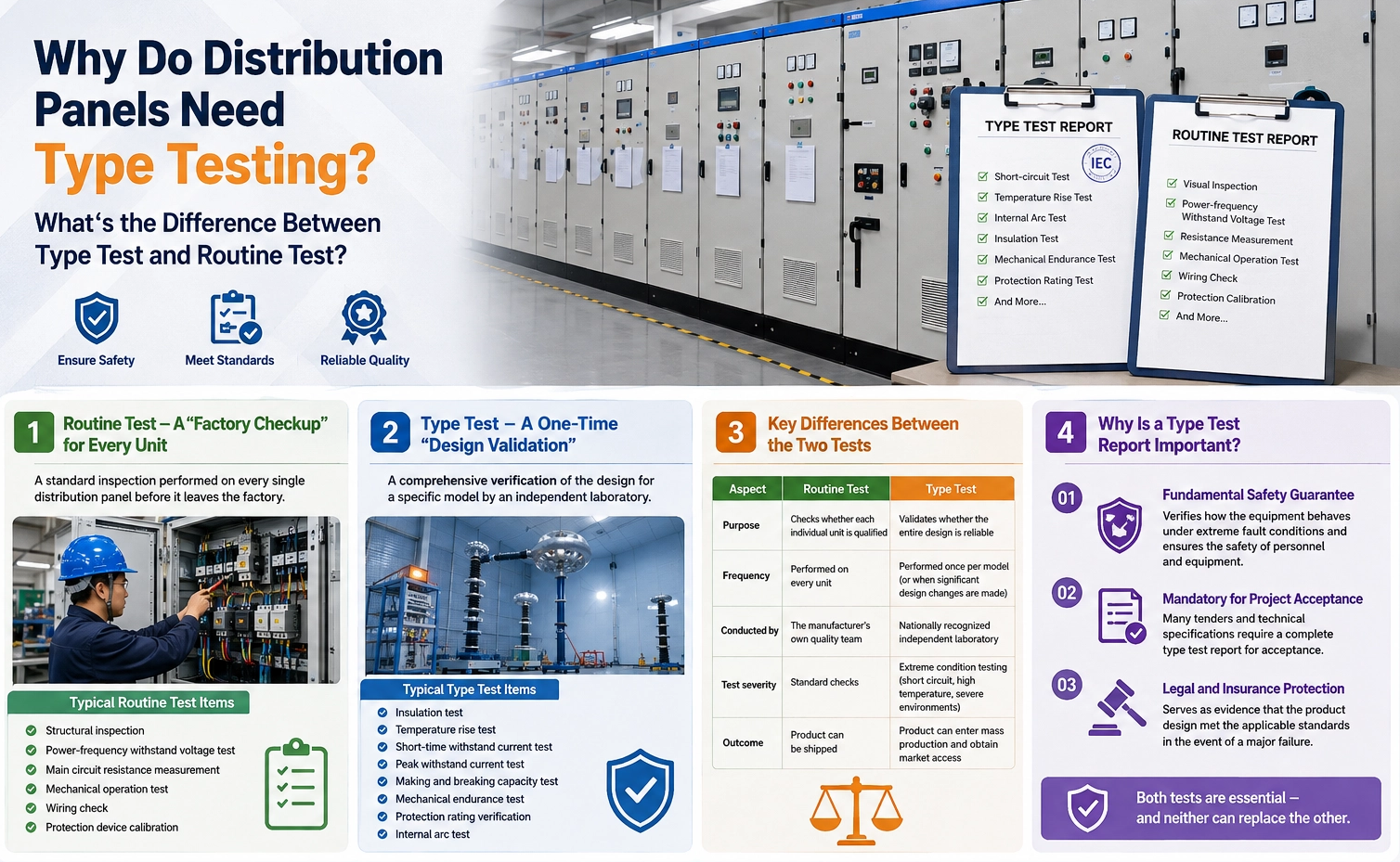

When purchasing distribution panels, you may come across two terms in the technical documentation: “Type Test Report“ and “Routine Test Report.“ They sound similar, but they serve entirely different purposes.
Some assume that “routine tests on every unit are enough,“ while others think type testing is just a formality. In reality, these two tests serve fundamentally different roles — one verifies that the design itself is sound, and the other checks that each finished product meets the standard.
This article explains the difference so you know what to look for and what to ask when making a purchase.
A routine test is exactly what it sounds like: a standard inspection performed on every single distribution panel before it leaves the factory.
In simple terms: no matter how large the order or who the customer is, every unit must pass this check before shipment.
Typical routine test items include:
Item | What It Checks |
|---|---|
Structural inspection | Whether installation and busbar arrangement comply with drawings |
Power-frequency withstand voltage test | Whether main and auxiliary circuits can withstand specified voltage |
Main circuit resistance measurement | Whether connections are properly tightened |
Mechanical operation test | Whether breakers and disconnectors operate smoothly and interlocks are reliable |
Wiring check | Whether all connections are correct |
Protection device calibration | Whether relays and instruments function properly |
The purpose of routine testing is to ensure that every panel meets manufacturing standards and leaves the factory without any obvious defects. Test records are provided to the customer with the shipment.
The key difference between type testing and routine testing is this: it is not performed on every unit. Instead, it is a comprehensive verification of the design for a specific model.
When a manufacturer develops a new product or makes significant improvements to an existing one, a prototype is sent to a nationally recognized independent laboratory to undergo a full suite of rigorous tests in accordance with IEC or GB standards. Only after passing these tests can the model enter mass production.
Typical type test items include:
Test Item | What It Validates |
|---|---|
Insulation test | Ability to withstand power-frequency and lightning impulse voltages |
Temperature rise test | Whether temperature rise at each component stays within limits at rated current |
Short-time withstand current test | Ability to withstand thermal stress under short-circuit conditions |
Peak withstand current test | Whether mechanical structure can withstand the electrodynamic forces of a short circuit |
Making and breaking capacity test | Whether main switch can reliably open and close under short-circuit conditions |
Mechanical endurance test | Whether mechanical mechanism remains reliable after repeated operation |
Protection rating verification | Whether the IP rating meets the declared level |
Internal arc test | Whether the enclosure can contain an internal arc fault safely |
One important point: routine tests cover far fewer items than type tests. Many critical tests — such as temperature rise, short-circuit withstand, and protection rating verification — are performed only during type testing and are not repeated during routine testing.
Aspect | Routine Test | Type Test |
|---|---|---|
Purpose | Checks whether each individual unit is合格 | Validates whether the entire design is reliable |
Frequency | Performed on every unit | Performed once per model (or when significant design changes are made) |
Conducted by | The manufacturer‘s own quality team | Nationally recognized independent laboratory |
Test severity | Standard checks | Extreme condition testing (short circuit, high temperature, severe environments) |
Outcome | Product can be shipped | Product can enter mass production and obtain market access |
① It‘s a fundamental safety guarantee
Tests such as short-circuit withstand and internal arc simulation are designed to verify how the equipment behaves under extreme fault conditions. Passing these tests proves that the panel will not endanger personnel even in the worst-case scenario.
② It‘s often a mandatory requirement for project acceptance
Many project tenders and technical specifications explicitly require the supplier to provide a complete type test report. Without it, the equipment may fail acceptance inspection.
③ It provides legal and insurance protection
In the event of a major failure, the type test report serves as evidence that the product design itself met the applicable standards.
Routine tests confirm that “this unit is合格.“ Type tests confirm that “this design is reliable.“ Both are essential — and neither can replace the other.
At our factory, all products are backed by complete IEC standard type test reports. Every unit also undergoes rigorous routine testing before shipment, with full records kept on file. Reports are available for review upon request.
