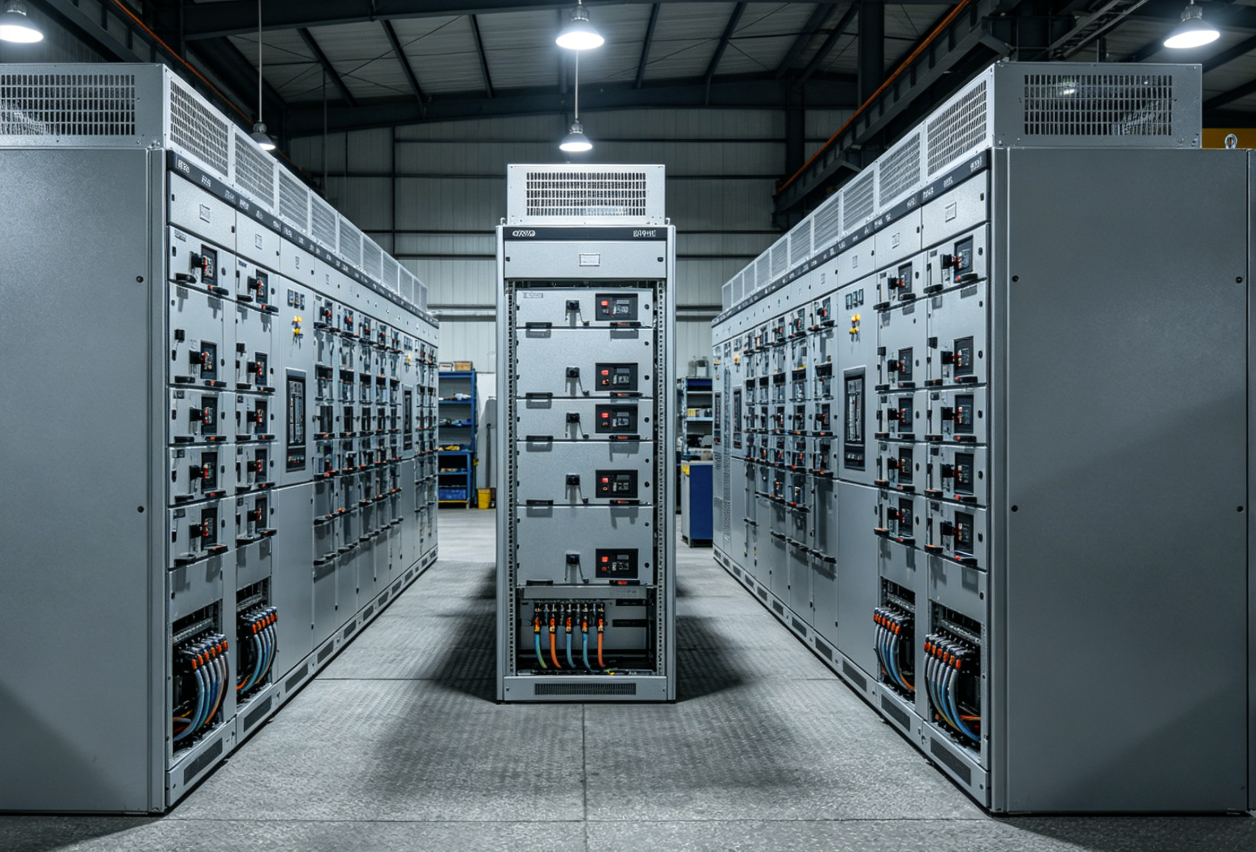

Low voltage switchgear is one of the most important components in a power distribution system.
It connects power sources with loads, distributes electrical energy, provides protection against abnormal conditions and allows operators to control and isolate electrical circuits.
However, many low voltage switchgear projects encounter problems after the equipment has already been ordered.
The reason is often not that the cabinet itself is technically defective.
Instead, the problem may have started much earlier—with the wrong product selection, incomplete technical requirements or insufficient communication between the buyer and manufacturer.
A cabinet may look similar from the outside, but its internal configuration can be completely different.
Two low voltage switchgear cabinets may have the same rated voltage and rated current while having very different:
Busbar configurations
Breaker arrangements
Protection functions
Cable entry methods
Compartment structures
Internal clearances
Heat dissipation capabilities
Maintenance accessibility
Degree of protection
Automation functions
This is why purchasing low voltage switchgear based only on price can create unexpected problems later.
Below are eight common mistakes buyers should avoid.
One of the most common mistakes is choosing a cabinet model first and determining the system requirements afterward.
For example, a buyer may simply request:
“We need GGD low voltage cabinets.”
But this information is not enough to produce a technically appropriate solution.
The manufacturer also needs to understand:
Rated voltage
Rated current
Short-circuit current
Incoming power supply
Number of outgoing feeders
Load types
Motor loads
Transformer capacity
Cable specifications
Protection requirements
Metering requirements
Control requirements
Communication requirements
Installation environment
The cabinet should be selected according to the electrical system, rather than the other way around.
Start with the single-line diagram (SLD) and electrical load list.
Then determine:
Power source → Main incoming → Busbar → Distribution feeders → Loads
Once the electrical architecture is clear, the appropriate cabinet structure and component configuration can be selected.
This approach significantly reduces the risk of redesign and modification after production.
Rated current is important, but it is not the only parameter that matters.
A buyer may compare two cabinets based on:
Rated Voltage: 400 V
Rated Current: 1600 A
and assume they are equivalent.
They may not be.
Short-circuit withstand capability is another critical consideration.
A low voltage distribution cabinet must be able to withstand the electrical stresses associated with prospective short-circuit conditions according to the applicable design and project requirements.
Other parameters may include:
Short-time withstand current
Peak withstand current
Breaking capacity of circuit breakers
Busbar capacity
Temperature-rise performance
Internal clearances
Protection coordination
Therefore, a technically suitable cabinet is determined by a combination of parameters, not a single current value.
MNS, GCK and GGD are commonly encountered low voltage switchgear configurations, but they are not simply different names for the same product.
Their structural characteristics and typical applications can differ.
GGD is generally designed as a fixed-type low voltage distribution cabinet.
It is commonly used for:
Power distribution
Transformer secondary distribution
Industrial facilities
Commercial buildings
General low voltage distribution systems
Its relatively straightforward structure makes it suitable for many conventional distribution applications.
GCK typically adopts a withdrawable/drawer-type structure.
This can provide advantages in applications requiring:
Convenient operation
Faster circuit isolation
Improved maintenance accessibility
Multiple functional units
It can be used in industrial distribution and motor control applications depending on the project design.
MNS is a modular low voltage switchgear system that can support a high degree of functional-unit configuration.
It is commonly considered for applications requiring:
Flexible configurations
Motor control
Power distribution
High-density equipment installation
More sophisticated functional arrangements
The important point is:
Do not choose the cabinet simply because one model appears more advanced.
Choose according to the project's electrical architecture, space limitations, operation requirements and budget.
The busbar system is one of the most important internal components of low voltage switchgear.
It carries and distributes electrical current throughout the cabinet.
However, buyers sometimes focus heavily on the circuit breakers while paying insufficient attention to the busbar system.
A proper busbar design should consider:
Rated current
Short-circuit withstand capability
Material
Cross-sectional area
Arrangement
Insulation
Temperature rise
Clearances
Mechanical support
Copper is widely used because of its excellent electrical conductivity, while the exact material and dimensions should be determined according to the project's electrical and mechanical requirements.
A cabinet with high-quality circuit breakers cannot compensate for an inadequately designed busbar system.
The entire current-carrying path must be considered as one system.
Circuit breakers are essential for protecting low voltage distribution systems.
But simply installing high-quality breakers does not automatically create a well-protected system.

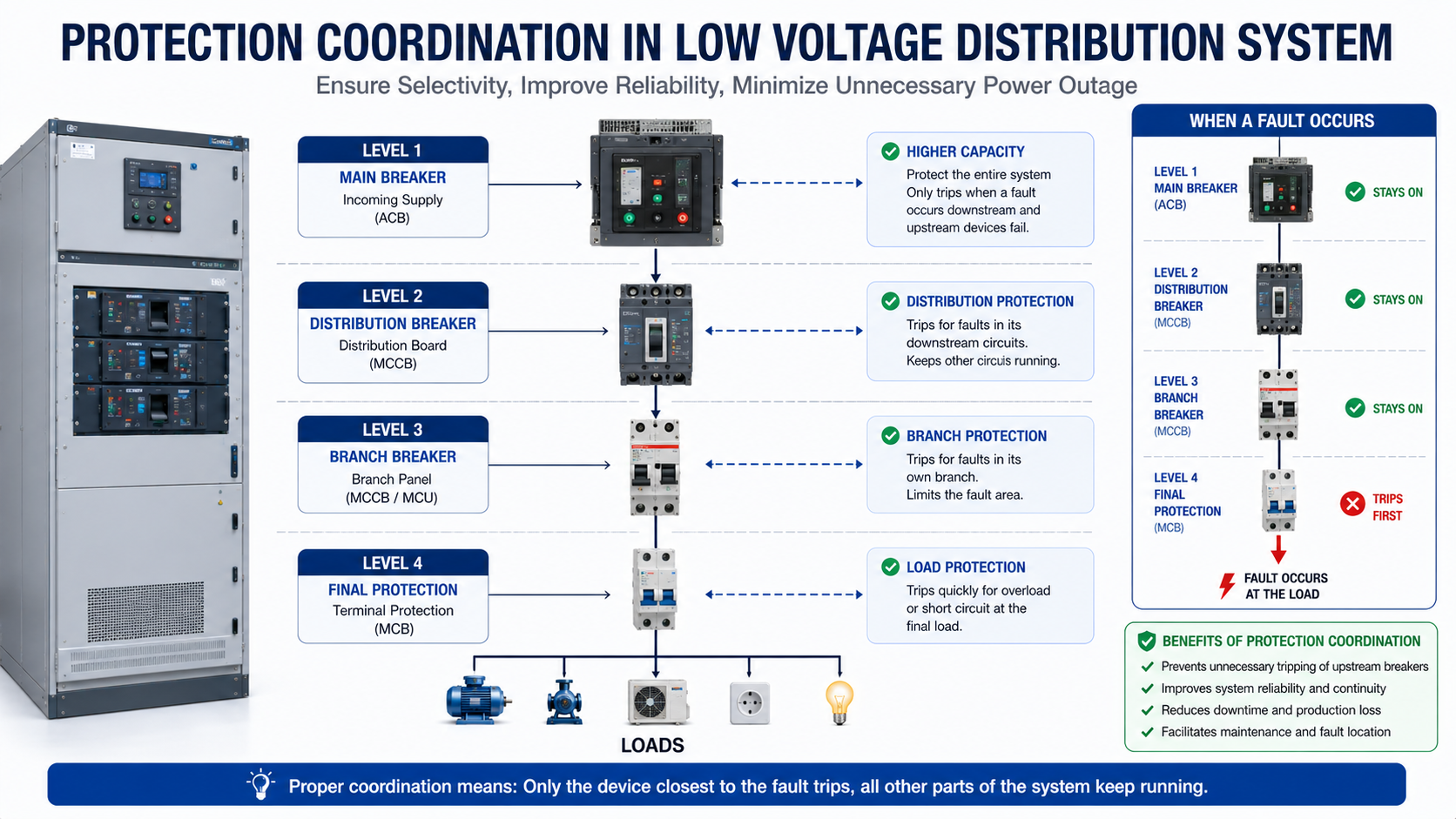

Protection coordination should be considered between different levels of the distribution network.
For example:
Main breaker → Distribution breaker → Branch breaker → Final load
When a fault occurs downstream, the goal is generally to isolate the affected section while keeping healthy sections energized whenever practical.
This requires appropriate consideration of:
Rated current
Short-circuit breaking capacity
Overload protection
Short-circuit protection
Selectivity
Protection settings
Upstream/downstream coordination
Poor coordination may result in unnecessary tripping of the main breaker.
That means a small downstream fault could potentially interrupt a much larger part of the facility.
For critical industrial and commercial applications, this can be particularly costly.

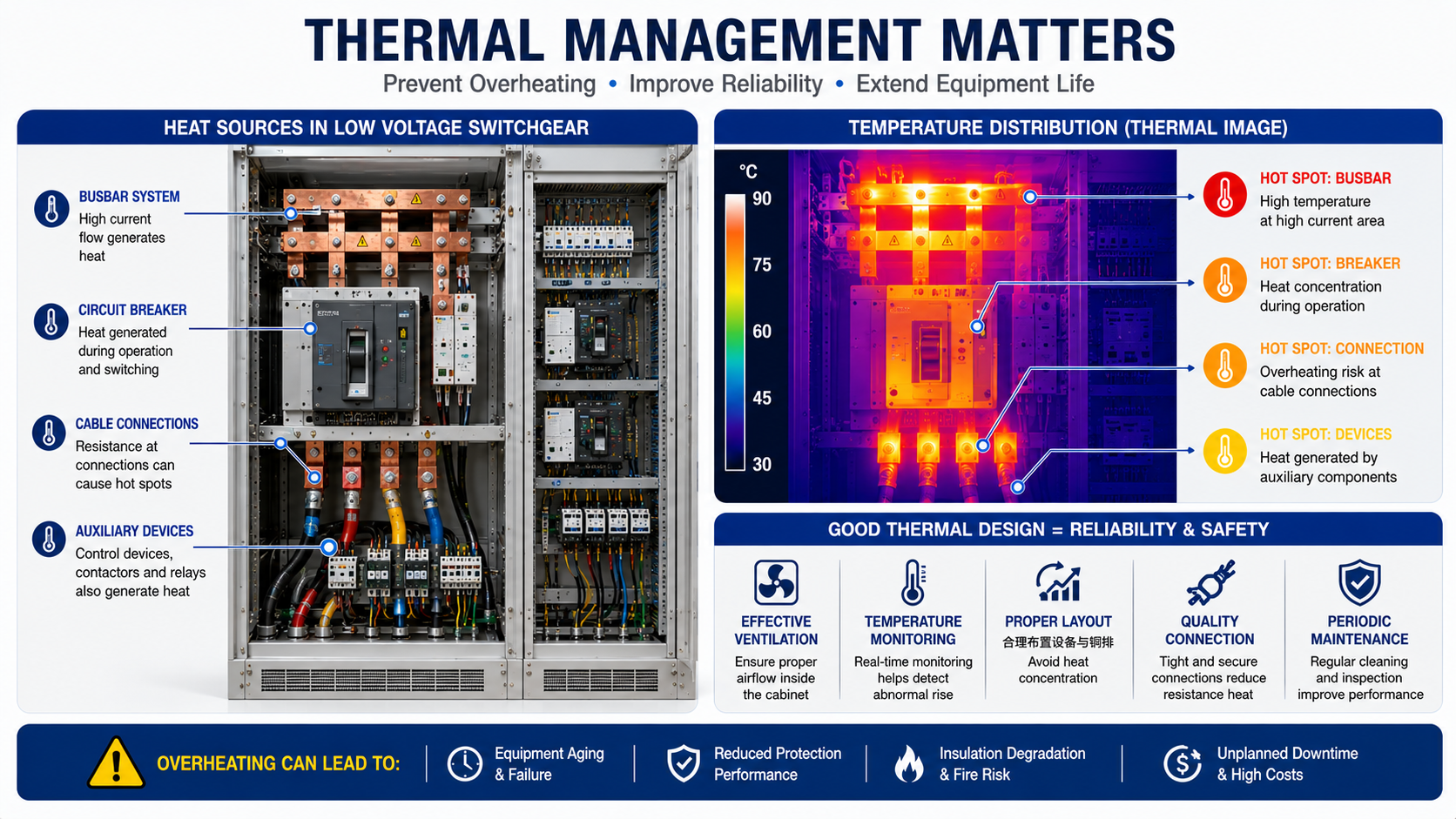

Electrical current generates heat.
As the current increases and components become more densely installed, thermal management becomes increasingly important.
This is particularly relevant for compact low voltage switchgear.
Potential heat sources include:
Circuit breakers
Contactors
Busbars
Cable connections
Variable frequency drives
Motor starters
Power electronics
If heat cannot be adequately dissipated, internal temperature can increase.
This may affect:
Equipment service life
Component reliability
Protection performance
Insulation aging
Operational safety
Therefore, buyers should consider cabinet ventilation, internal arrangement and temperature-rise performance during the design stage.
A compact cabinet is not necessarily a better cabinet.
Space efficiency must be balanced with thermal performance and maintainability.
A technically correct cabinet can still create problems if it does not match the installation conditions.
Before placing an order, buyers should clarify:
Cable entry from top or bottom
Cable size
Number of incoming cables
Number of outgoing cables
Cable bending radius
Foundation arrangement
Cabinet dimensions
Maintenance space
Door opening direction
Front or rear access
Indoor or outdoor installation
For example, a cabinet designed for bottom cable entry may require significant modification if the project requires top entry.
Likewise, insufficient cable space can make installation unnecessarily difficult.
These details may seem small during procurement.
They can become major problems on site.
Price matters.
But low voltage switchgear is not a simple commodity where the lowest quotation is automatically the best option.
The real cost of a project includes much more than the initial purchase price.
Consider:
Purchase Cost + Installation Cost + Commissioning Cost + Maintenance Cost + Downtime Risk
A cheaper cabinet that requires extensive modification, creates installation difficulties or has poor after-sales support may ultimately cost more.
When evaluating a manufacturer, buyers should consider:
Can the supplier understand electrical drawings and develop the required cabinet configuration?
Does the manufacturer have appropriate production and testing processes?
Can the supplier provide internationally recognized or project-approved components when required?
Can the finished cabinet undergo appropriate routine testing and inspection?
Can the manufacturer modify:
Cabinet dimensions
Breaker configuration
Busbar arrangement
Cable entry
Metering
Protection
Control
Communication
according to project requirements?
Can the supplier provide drawings, technical documentation and commissioning support?
A reliable supplier should be able to provide more than a quotation.
They should provide a complete electrical solution.
One of the easiest ways to improve the accuracy of a low voltage switchgear quotation is to provide sufficient technical information from the beginning.
Ideally, buyers should prepare:
The SLD helps the manufacturer understand the complete electrical architecture.
Include the power, quantity and type of major loads.
For example:
380 V
400 V
415 V
440 V
depending on the project.
Specify the expected current for incoming and outgoing circuits.
Provide the required short-circuit withstand or prospective fault current where available.
Clearly indicate the number and type of outgoing circuits.
Include:
Cable size
Cable quantity
Entry direction
Connection requirements
Specify required breaker types, protection functions and coordination requirements where applicable.
If the cabinet needs remote monitoring or communication, specify the required interface or protocol.
Provide:
Indoor/outdoor
Ambient temperature
Altitude
Humidity
Dust conditions
Available installation space
The more complete the information, the more accurate the technical proposal and quotation can be.
This is another common question when selecting low voltage switchgear.
There is no universal answer.
Advantages may include:
Simpler structure
Lower initial cost
Straightforward maintenance
Suitable for conventional distribution applications
Fixed configurations can be practical when the system does not require frequent circuit withdrawal or rapid replacement.
Advantages may include:
Convenient operation
Easier isolation
Flexible functional-unit arrangement
Improved maintenance efficiency
Reduced maintenance interruption in suitable applications
Withdrawable systems may be particularly attractive for large industrial facilities and applications with many functional units.
The correct choice depends on:
Application + Maintenance Strategy + Space + Budget + Operational Requirements
rather than simply choosing the more expensive option.
A practical selection process can be simplified into five stages.
Start with the SLD and load requirements.
Confirm:
Voltage
Current
Frequency
Short-circuit level
Protection requirements
Determine whether the project requires:
Fixed type
Withdrawable type
GGD
GCK
MNS
Customized configuration
Select appropriate:
ACBs
MCCBs
MCBs
Contactors
Relays
Metering devices
Protection devices
Control components
according to the project.
Before production, confirm:
General arrangement drawings
Single-line diagram
Component list
Wiring diagrams
Busbar arrangement
Cable entry
Dimensions
Testing requirements
This final confirmation can prevent many costly mistakes.
Not every project can be solved effectively with a standard cabinet.
Different facilities may have completely different requirements.
For example:
An industrial plant may require numerous motor control feeders.
A commercial building may focus on reliable power distribution and metering.
A solar power project may require integration with transformers, protection systems and monitoring equipment.
A data center may prioritize redundancy and high availability.
Therefore, customized low voltage switchgear can provide a more suitable solution when standard configurations cannot meet the project requirements.
Customization may involve:
Cabinet dimensions
Incoming and outgoing circuits
Breaker brands
Protection settings
Busbar configuration
Cable entry
Metering
Communication
Control circuits
Cabinet arrangement
The goal is not customization for its own sake.
The goal is to create a cabinet that fits the actual electrical system and installation environment.

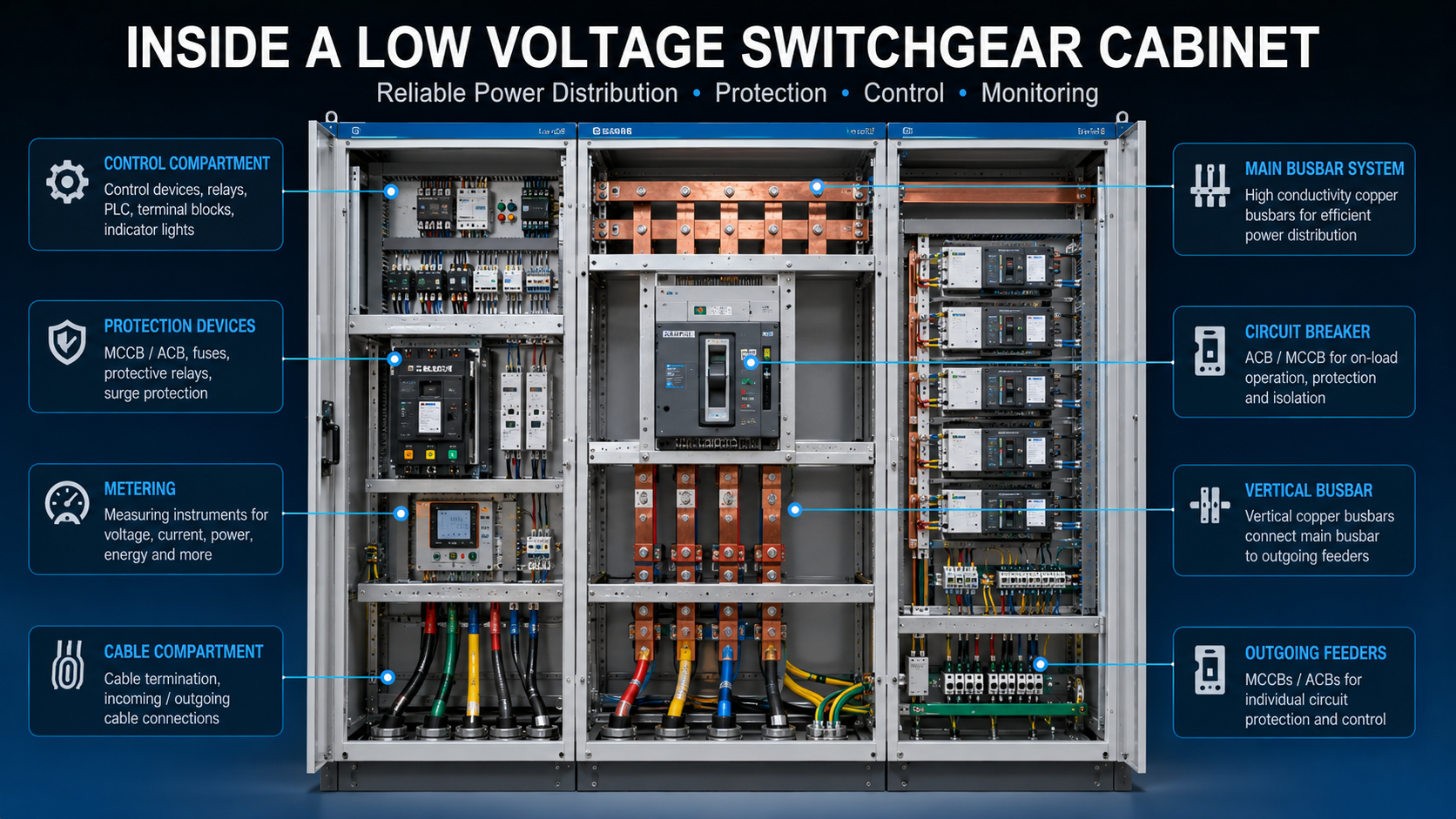

A low voltage switchgear cabinet may look simple from the outside.
Inside, however, it contains a complete electrical system involving:
Power Distribution + Protection + Control + Measurement + Communication
This is why selecting low voltage switchgear should be treated as an engineering decision rather than simply a purchasing decision.
A good solution should balance:
Electrical performance
Safety
Reliability
Maintainability
Space efficiency
Cost
Future expansion
Project standards
The right cabinet is not necessarily the largest, most expensive or most complicated one.
It is the cabinet that matches the project's actual requirements.
Most low voltage switchgear problems do not begin when the cabinet arrives at the project site.
They often begin much earlier.
They begin when buyers:
Choose a model before defining the electrical system
Focus only on rated current
Ignore short-circuit requirements
Select MNS, GCK or GGD without understanding the differences
Overlook busbar design
Ignore protection coordination
Forget thermal management
Fail to confirm cable entry and installation conditions
Select suppliers based only on price
Avoiding these mistakes can significantly improve project efficiency and reduce the risk of costly modifications.
Before ordering your next low voltage switchgear system, ask one simple question:
“Does this cabinet fit my electrical system—or am I trying to make my electrical system fit the cabinet?”
The first approach is almost always the better starting point.
Whether you need GGD, GCK, MNS or another low voltage switchgear configuration, the right solution should be based on your electrical diagram, load requirements, protection scheme and installation conditions.
We can support project-specific configurations including power distribution, protection, metering, control and communication functions.
Send us your single-line diagram, technical specification or equipment list, and our engineering team can help you evaluate the appropriate low voltage switchgear configuration for your project.
