As global industries continue to expand and power demand keeps increasing, modern electrical systems require equipment that is safe, reliable, and easy to maintain. In medium-voltage power distribution networks, KYN28 switchgear has become one of the most trusted solutions for substations, factories, commercial buildings, and renewable energy projects.
But why is KYN28 switchgear still so popular today?
The answer lies in its advanced safety design, flexible configuration, stable performance, and intelligent upgrade capabilities.
In this article, we will explore everything you need to know about KYN28 switchgear, including its structure, operating principle, technical advantages, applications, and future trends.
KYN28 switchgear, also called KYN28A-12 metal-clad withdrawable switchgear, is an indoor medium-voltage electrical distribution cabinet commonly used in power systems ranging from 3.6kV to 12kV.
Its main functions include:
Receiving electrical energy
Distributing power
Protecting electrical equipment
Controlling circuits
Monitoring system operation
KYN28 switchgear is usually equipped with a vacuum circuit breaker and can work together with transformers, protection relays, and other electrical components to form a complete medium-voltage distribution system.
Because of its reliable performance and compact structure, KYN28 switchgear is widely used in:
Power substations
Manufacturing plants
Data centers
Commercial buildings
Mining industries
Renewable energy projects
Infrastructure construction

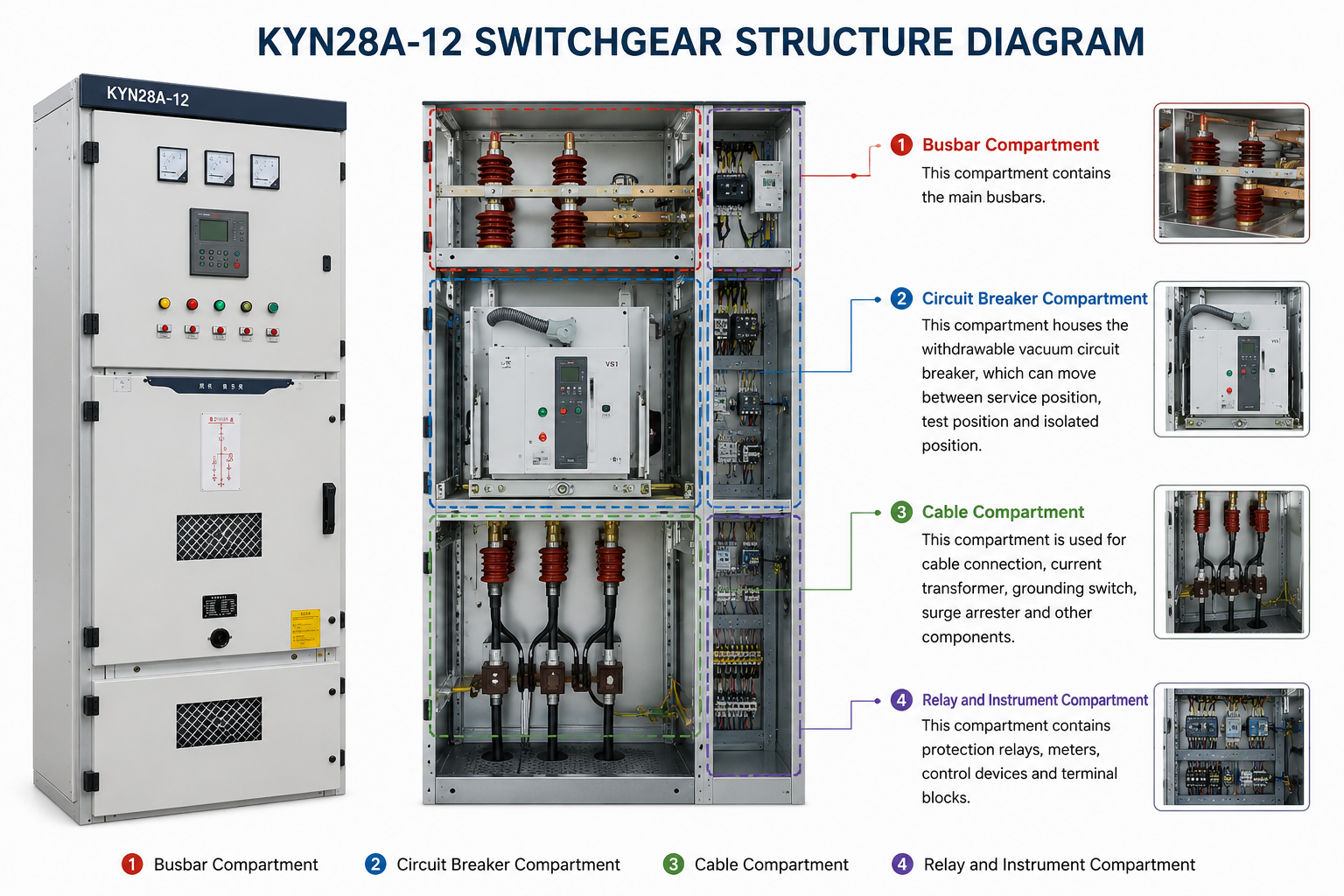

One of the biggest advantages of KYN28 switchgear is its compartmentalized metal-clad structure. Each functional section is separated by metal partitions, greatly improving operational safety.
The cabinet is mainly divided into four compartments.
The busbar compartment contains the main copper or aluminum busbars responsible for transmitting electrical power between cabinets.
This compartment is usually insulated to reduce electrical risks and improve reliability.
This compartment houses the vacuum circuit breaker.
The withdrawable design allows the breaker to move between:
Service position
Test position
Isolated position
This feature greatly improves maintenance safety and operational convenience.
The cable compartment is used for connecting incoming and outgoing power cables.
It may also contain:
Current transformers (CT)
Voltage transformers (VT/PT)
Grounding switches
Surge arresters
This upper section contains protection relays, measuring instruments, control switches, and intelligent monitoring devices.
Modern KYN28 switchgear often integrates digital protection systems for smart grid applications.
The primary purpose of KYN28 switchgear is to safely control and protect medium-voltage electrical systems.
Under normal operating conditions, electrical power flows through the busbars, circuit breakers, and cables to supply electricity to various loads.
When faults occur, such as:
Short circuits
Overload conditions
Ground faults
the protection relay quickly detects abnormal conditions and sends a trip signal to the vacuum circuit breaker.
The breaker then disconnects the faulty circuit immediately, protecting transformers, motors, cables, and other electrical equipment from severe damage.
The metal-clad design also prevents internal arc faults from spreading between compartments, improving personnel safety.
Safety is one of the main reasons why KYN28 switchgear is widely used around the world.
Its safety features include:
Metal-clad compartment separation
Mechanical interlocking systems
Reliable grounding protection
Arc-resistant structure
Withdrawable breaker mechanism
These features help minimize operational risks and improve operator protection.
KYN28 switchgear is designed for long-term stable operation in demanding environments.
It offers:
Excellent insulation performance
Strong short-circuit resistance
Stable mechanical operation
Long service life
Low maintenance requirements

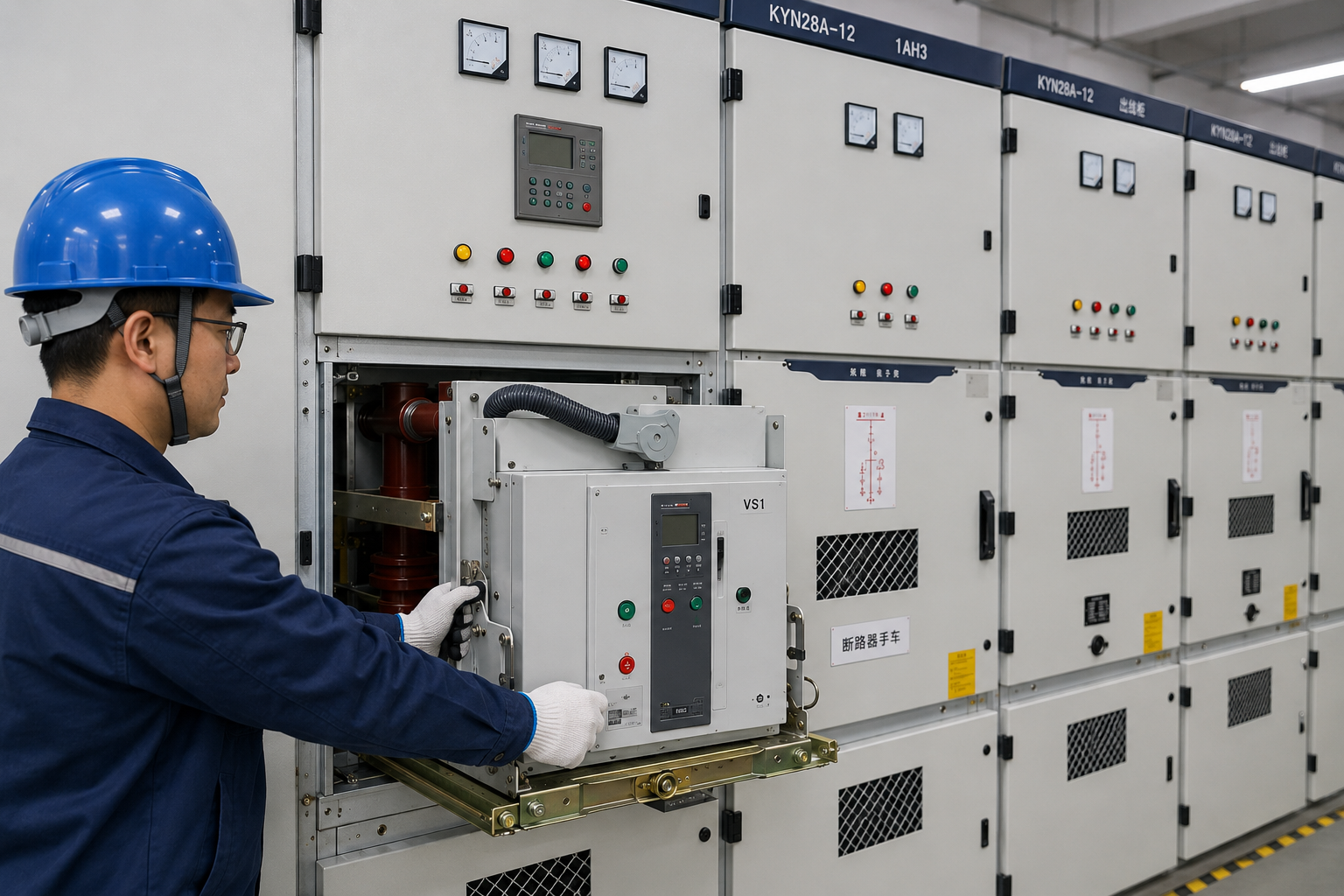

Because the circuit breaker is withdrawable, maintenance personnel can inspect or replace components without shutting down the entire system.
This significantly reduces downtime and improves efficiency.
KYN28 switchgear can be customized according to project requirements.
Available options include:
Different protection relay brands
Various breaker models
Multiple busbar configurations
Different cable entry directions
Intelligent monitoring systems
This flexibility makes KYN28 suitable for many industries and applications.
Although configurations vary depending on the project, common technical specifications of KYN28 switchgear include:
Item | Specification |
|---|---|
Rated Voltage | 3.6kV – 12kV |
Rated Frequency | 50Hz / 60Hz |
Rated Current | Up to 3150A |
Short Circuit Breaking Current | Up to 40kA |
Protection Degree | IP4X |
Installation Type | Indoor |
Circuit Breaker Type | Vacuum Circuit Breaker |
These specifications allow KYN28 switchgear to meet the requirements of most medium-voltage distribution systems.

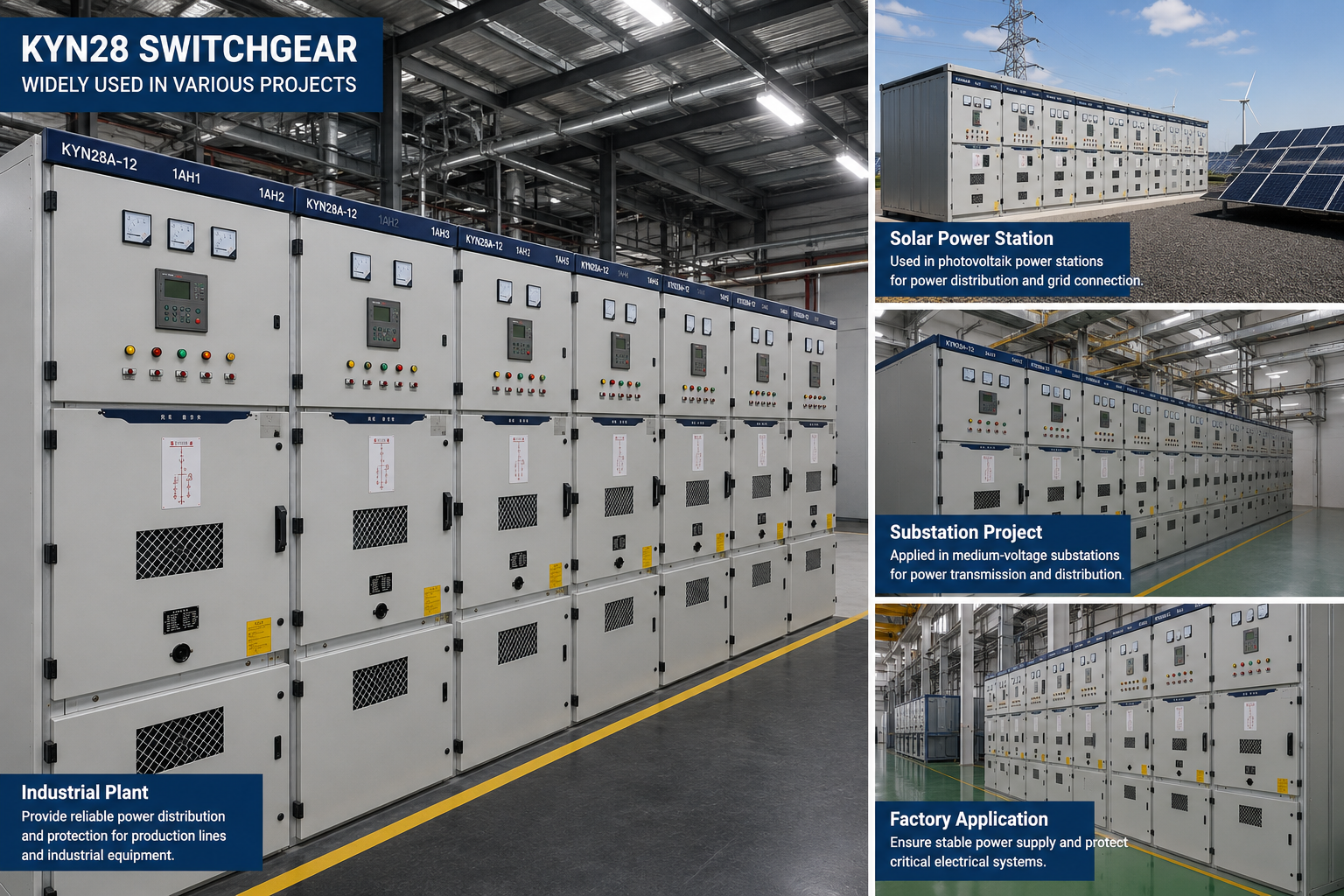

KYN28 switchgear is widely used in many industries because of its reliability and flexibility.
Factories and production plants require stable power systems to ensure continuous operation of equipment and machinery.
KYN28 switchgear provides reliable power distribution and protection.
Solar power plants and wind farms often use KYN28 switchgear in substations and grid connection systems.
Large commercial complexes, hospitals, airports, and office buildings rely on KYN28 switchgear for centralized power control and protection.

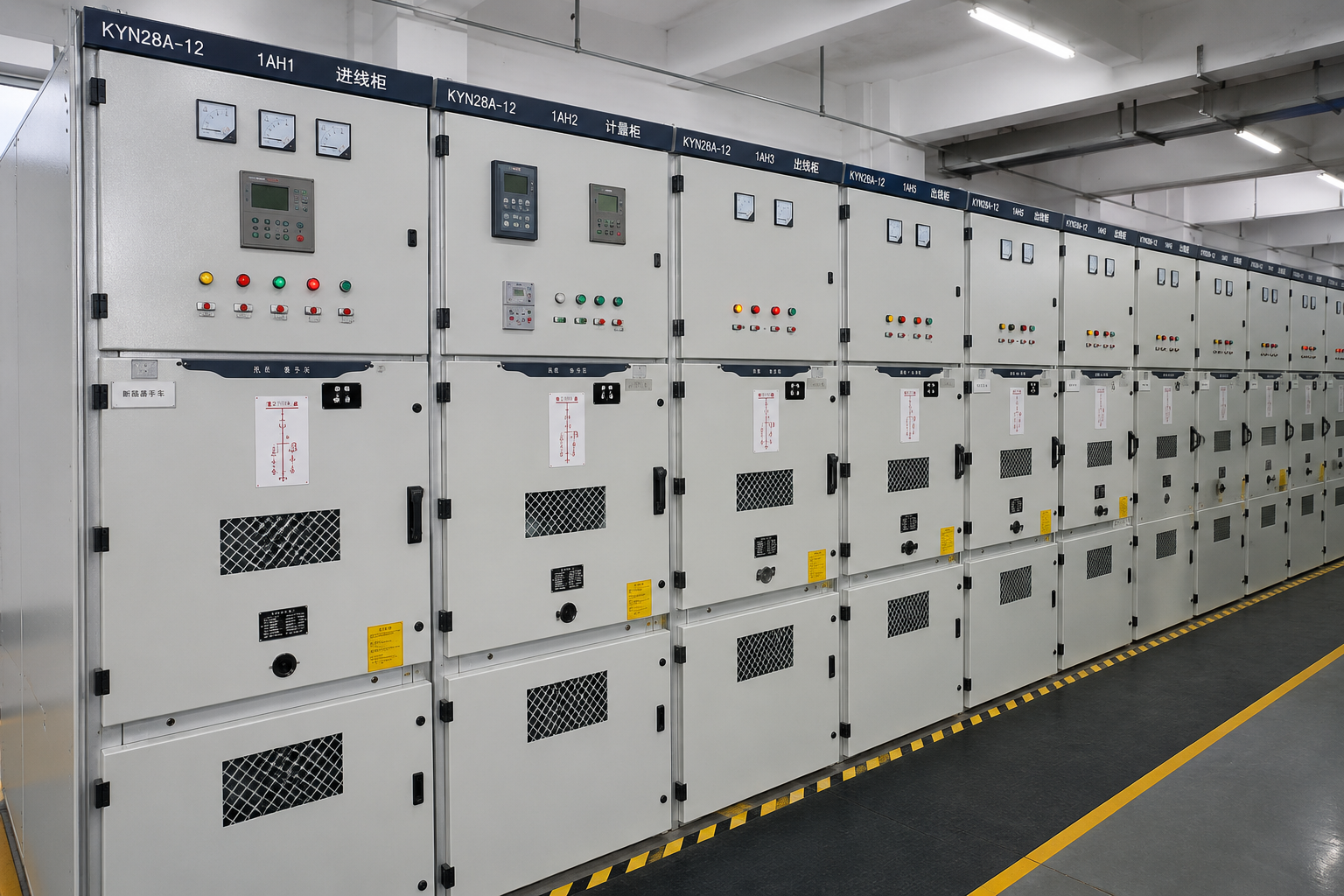

KYN28 switchgear is commonly installed in medium-voltage substations for utility power transmission and distribution networks.
Mining environments often involve harsh operating conditions.
KYN28 switchgear offers strong protection and stable operation in demanding industrial applications.
Compared with traditional fixed-type switchgear, KYN28 offers several important advantages.
Feature | KYN28 Switchgear | Traditional Switchgear |
|---|---|---|
Safety | Higher | Lower |
Maintenance | Easier | More Difficult |
Withdrawable Breaker | Yes | Usually No |
Arc Protection | Better | Limited |
Intelligent Upgrade | Easier | Limited |
Because of these advantages, many modern projects prefer KYN28 solutions.
Before purchasing KYN28 switchgear, buyers should carefully evaluate several factors.
Select suitable rated voltage and current according to project requirements.
The switchgear must withstand possible fault currents within the power system.
Reliable protection relays are essential for stable operation and fault protection.
Choosing an experienced manufacturer can ensure product quality and technical support.
Check whether the switchgear complies with IEC standards and other required certifications.
With the rapid development of smart grids and digital substations, KYN28 switchgear is becoming increasingly intelligent.
Future development trends include:
Online temperature monitoring
Partial discharge monitoring
Remote operation systems
Intelligent protection relays
IoT integration
Cloud-based energy management
These technologies help improve reliability, reduce maintenance costs, and support smarter power systems.
KYN28 switchgear remains one of the most important medium-voltage power distribution solutions in modern electrical systems.
Its advanced safety design, reliable performance, easy maintenance, and flexible configuration make it widely used in substations, industrial plants, commercial buildings, and renewable energy projects.
As global industries continue moving toward smarter and more efficient electrical systems, KYN28 switchgear will continue to play a vital role in modern power distribution networks.
For buyers and project engineers, choosing high-quality KYN28 switchgear from an experienced manufacturer can help ensure safer operation, higher efficiency, and long-term project reliability.
