Inside every distribution panel, there is a humble metal bar — the copper busbar. It is not flashy, but it acts as the panel‘s "blood vessel." All current flows through it.
Many customers pay attention to circuit breakers and enclosures when purchasing, but rarely focus on the busbars. In reality, the busbar material determines the lifespan and safety of the entire distribution panel.
The gap between full copper, copper-clad aluminum, and full aluminum is much wider than most people realize.

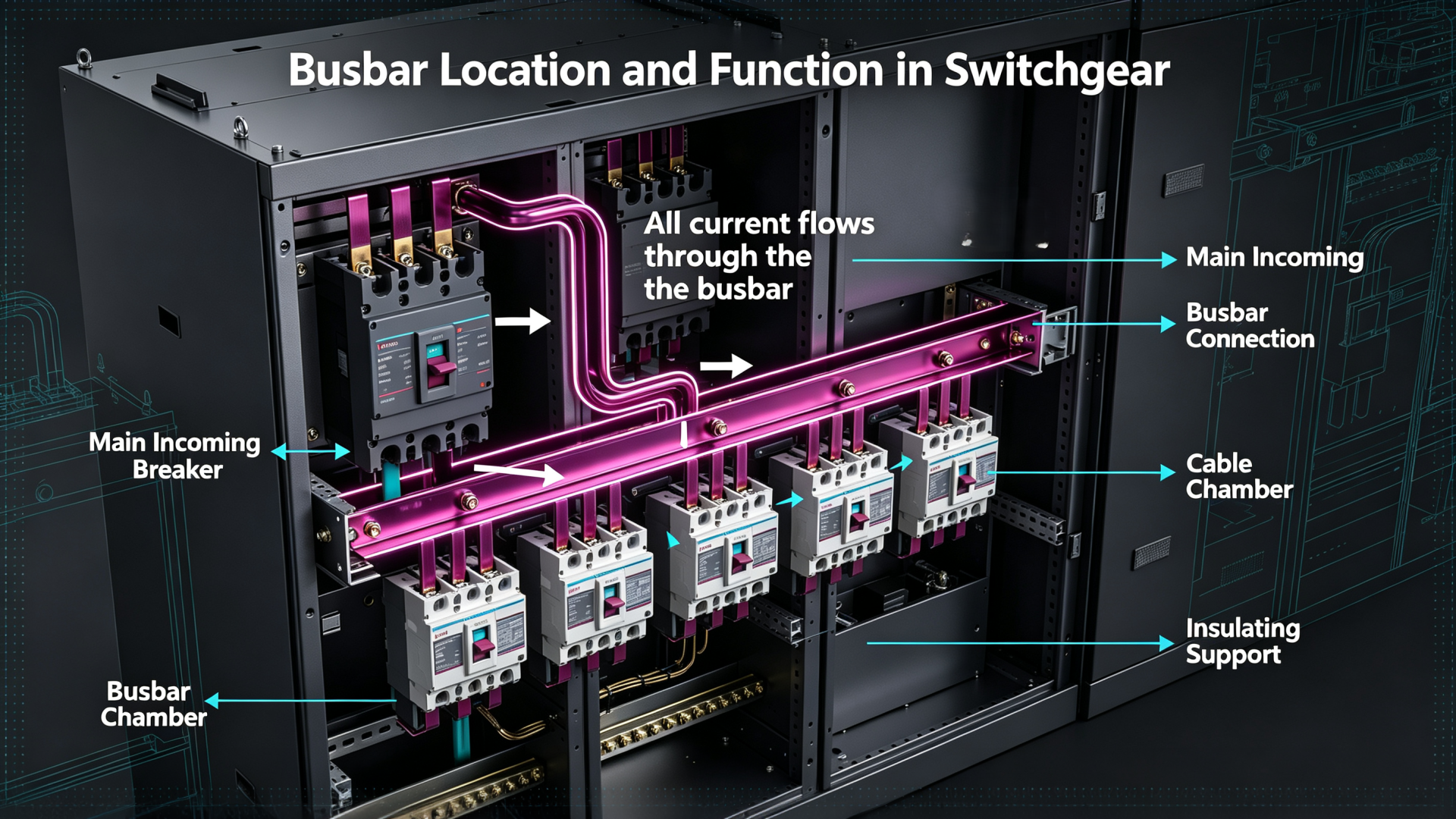

A busbar is the conductive main inside a distribution panel that connects the various components. It carries electrical power from the main incoming supply to each outgoing circuit.
Simply put: without a busbar, current cannot flow.
The busbar material directly affects three key factors:
Conductivity — whether current flows smoothly
Heat generation — higher current means more heat
Service life — different materials have vastly different lifespans

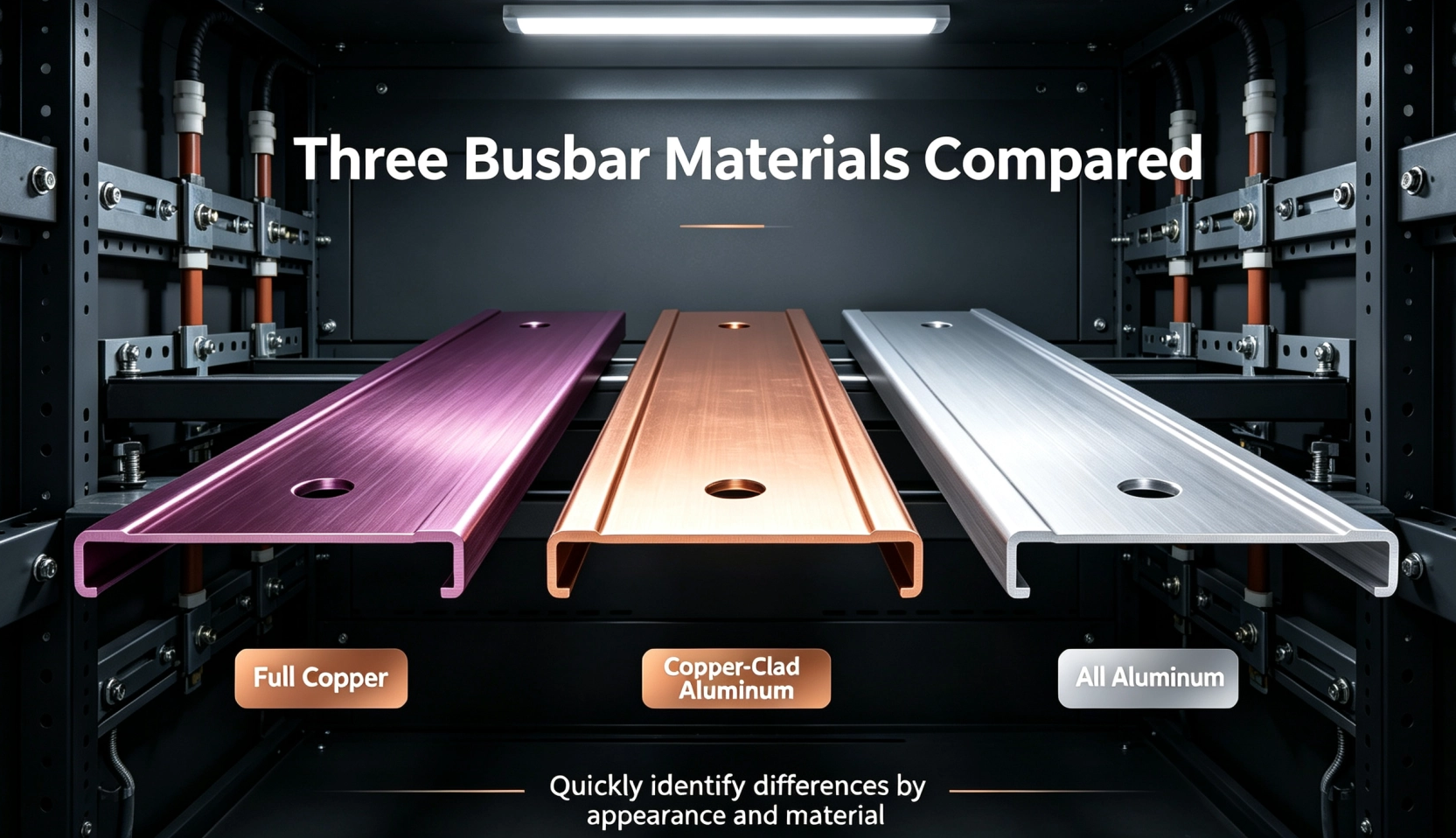

Feature | Full Copper | Copper-Clad Aluminum | Full Aluminum |
|---|---|---|---|

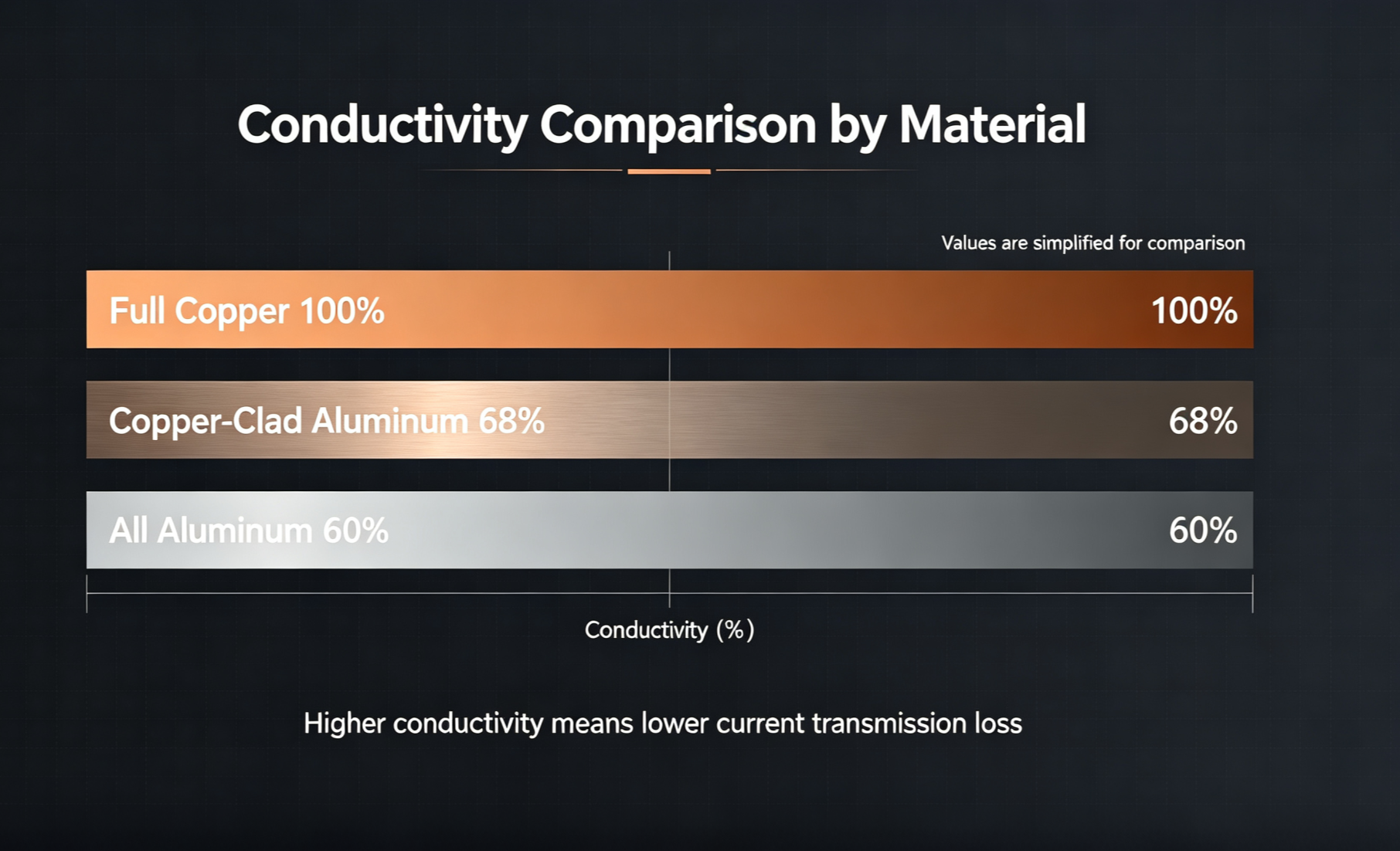

Conductivity | High | Medium | Low (about 60% of copper) |
Heat generation | Low | Medium | High |
Oxidation resistance | Good | Fair | Poor |
Service life | Long (20+ years) | Medium | Short |
Cost | High | Medium | Low |
Common issues | Higher upfront cost | Plating may peel if poorly manufactured | Prone to oxidation and overheating |
Full Copper (T2 grade)
Widely recognized as the best conductive material
Low heat generation, low energy loss, long life
Minimal oxidation at connection points — stable contact resistance
Disadvantage: Higher cost
Best for: projects where reliability is critical
Copper-Clad Aluminum
Aluminum core with a copper coating on the surface — looks like copper
Looks similar to full copper, but performance is far inferior
Risk: if the coating is scratched or damaged, the exposed aluminum oxidizes quickly, sharply increasing contact resistance
Best for: not recommended unless explicitly requested
Full Aluminum
The lowest-cost option
Conductivity is only about 60% of copper
Higher heat generation at the same current — requires larger cross-section
Risk: aluminum and copper have different thermal expansion rates — connections can loosen over time and overheat
Best for: limited industrial applications only
Overheated connections lead to downtime and expensive repairs
Oxidized aluminum connections cause poor contact, increasing fire risk
A panel with full copper busbars can last 20–30 years. With aluminum, you may need major repairs or replacement within 10 years.
The money you save on busbars will come back to haunt you in maintenance costs.
Method | What to Do |
|---|---|
Check the quotation | Look for clear wording like "Full copper T2 busbar" |
Ask directly | Ask the supplier: "Are the busbars full copper or copper-clad aluminum?" |
Check the cross-section | Copper-clad aluminum shows a silver-white core at the cut edge |
Weigh it | At the same size, full copper is significantly heavier than aluminum |
Third-party testing | For large projects, hire an independent lab to verify materials |
The simplest approach: Specify "full copper" clearly in the quotation and include a note that random sampling will be carried out during inspection.

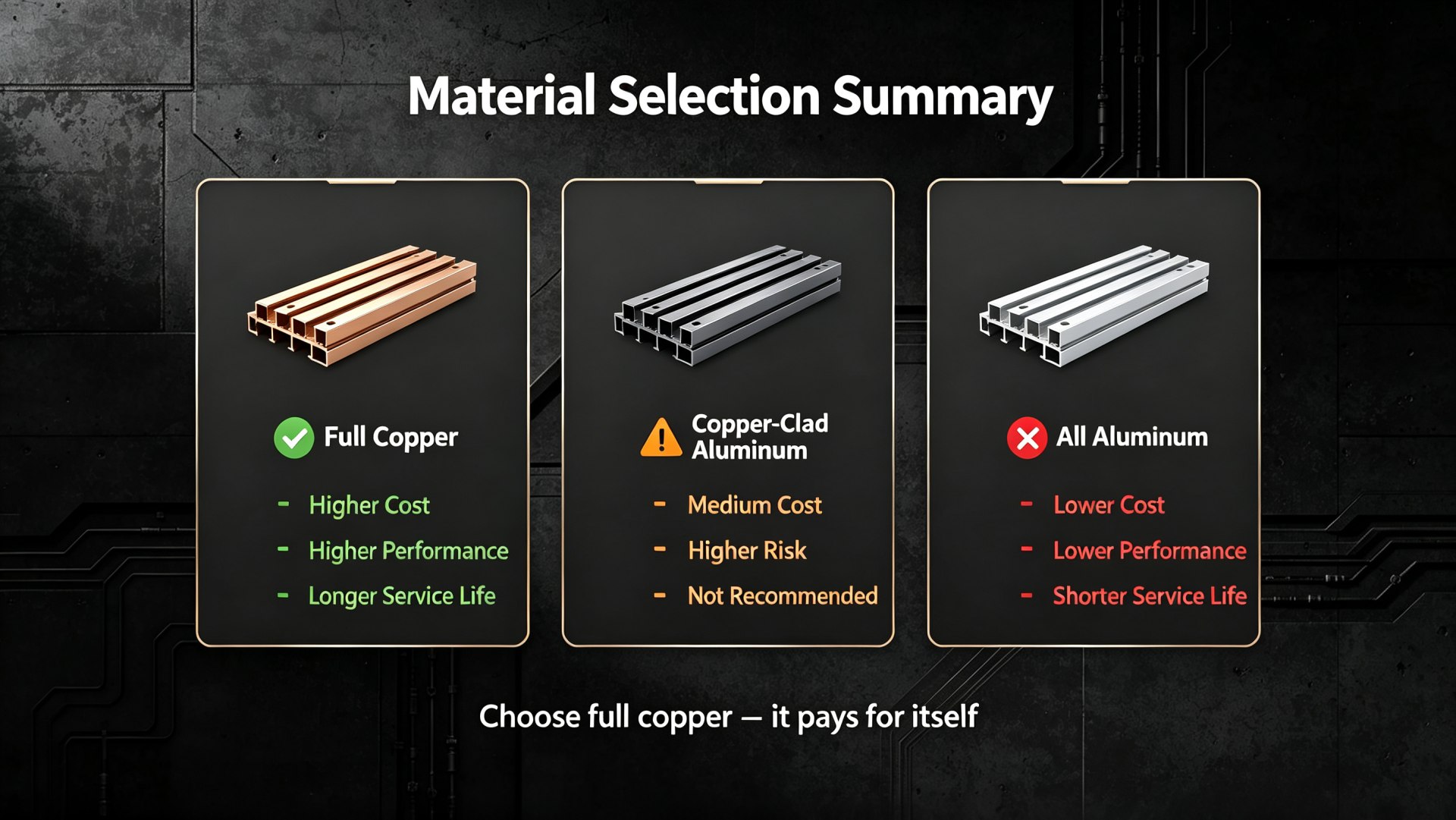

The busbar is the component you don‘t see, but it determines everything.
Full copper: costs a bit more, but delivers 20 years of reliable service
Copper-clad aluminum: looks like copper, behaves like aluminum — the riskiest choice
Full aluminum: cheap, but not recommended
When purchasing a distribution panel, always get the busbar material specified in the contract.
