The rapid growth of urban infrastructure, renewable energy integration, and industrial development has increased the demand for reliable medium-voltage distribution systems. Utilities and project developers require equipment that can provide uninterrupted power supply, minimize maintenance requirements, and ensure operator safety.
Among various medium-voltage switchgear solutions, the RM6 Ring Main Unit (RMU) has emerged as a leading option due to its compact footprint, modular flexibility, and dependable performance.
Whether installed in urban substations, commercial complexes, industrial facilities, or renewable energy projects, the RM6 RMU plays a critical role in maintaining efficient and reliable power distribution.
The RM6 Ring Main Unit is a compact medium-voltage switchgear assembly typically designed for power distribution systems up to 12kV.
It consists of several functional modules integrated into a sealed and insulated enclosure. The system enables switching, protection, and isolation functions within a ring distribution network.
The RM6 design is particularly popular because of its:
Compact dimensions
Modular construction
High operational reliability
Low maintenance requirements
Enhanced personnel safety
Flexible expansion capabilities
The unit is commonly installed in secondary distribution substations and ring network systems where continuity of power supply is essential.

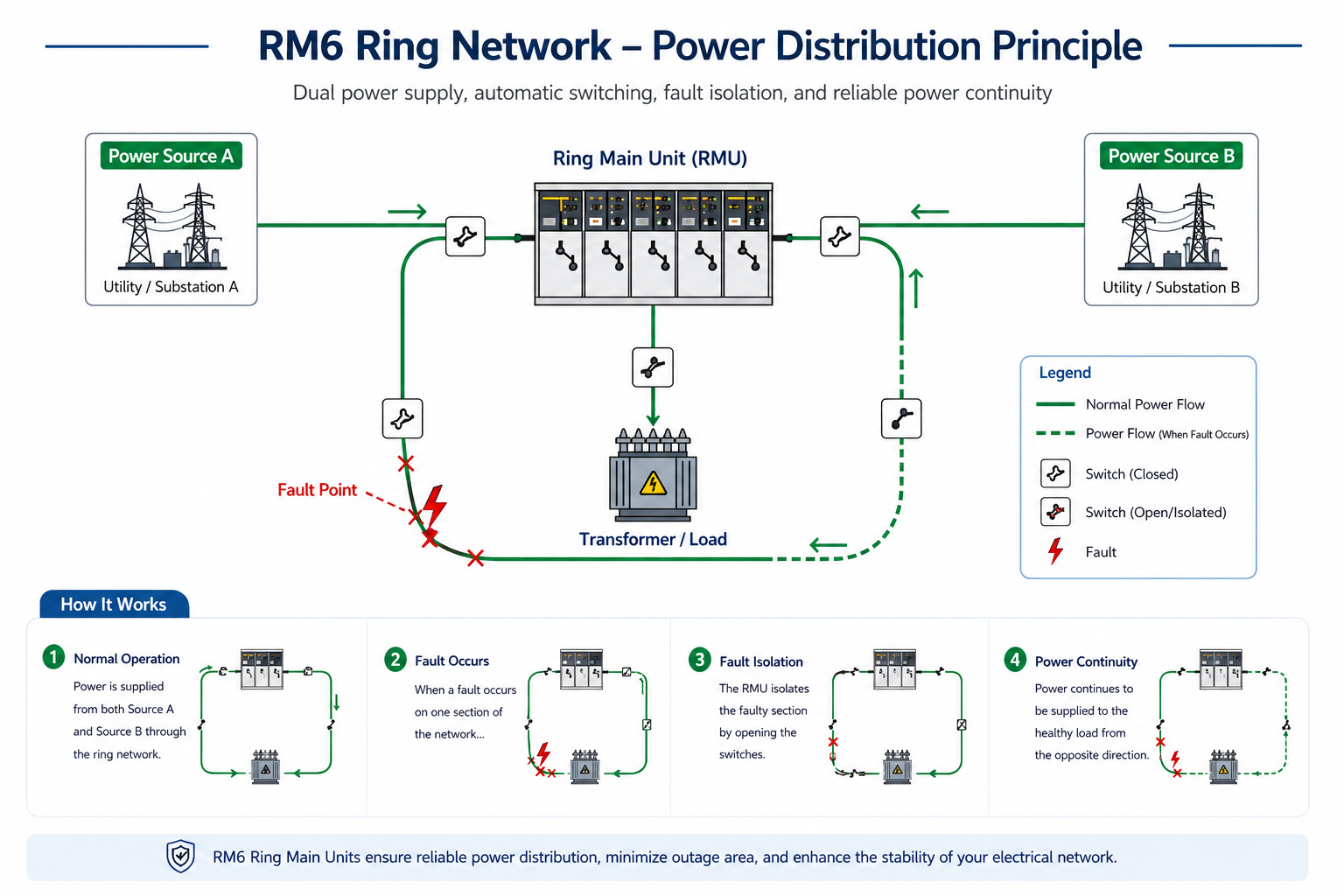

A ring main network allows electrical power to flow from two directions. If one section of the network experiences a fault, power can continue to be supplied from the opposite direction.
The RM6 Ring Main Unit helps achieve this reliability through:
The load break switch allows operators to safely switch normal load currents without interrupting the distribution system.
When a fault occurs, the faulty section can be isolated quickly, preventing widespread outages.
Fuse-switch combinations or circuit breakers protect distribution transformers against overloads and short circuits.
The ring structure ensures uninterrupted power supply to healthy sections of the network.
This design significantly improves power reliability compared to radial distribution systems.

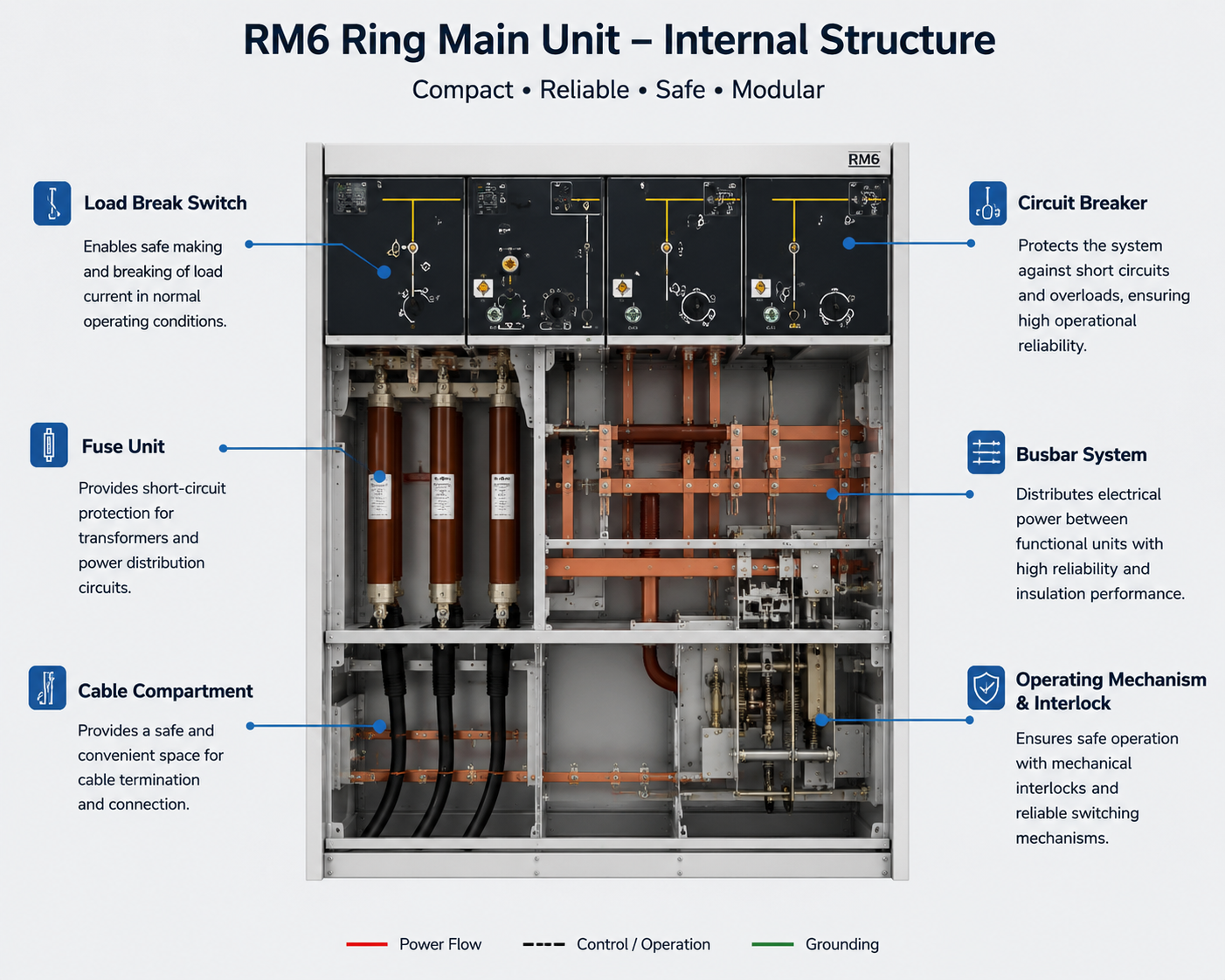

These switches connect the RMU to the ring network and enable switching operations under normal load conditions.
The circuit breaker provides protection against:
Short circuits
Overloads
Ground faults
Modern circuit breakers are often combined with intelligent protection relays.
Fuse modules offer economical transformer protection, especially for smaller transformer capacities.
The busbar distributes electrical power between functional units while maintaining insulation and safety.
Operators can control switching functions manually or through motorized mechanisms for remote operation.
These compartments provide safe cable termination and connection points.
Advanced RM6 systems may include:
Digital relays
Fault indicators
Remote monitoring systems
SCADA integration
Smart grid communication interfaces
Urban substations often face severe space limitations.
The RM6's compact footprint allows installation in:
Underground substations
Commercial buildings
Residential developments
Industrial plants
Renewable energy stations
This makes it ideal for modern infrastructure projects.
The sealed-for-life design protects critical components from:
Dust
Moisture
Pollution
Corrosive environments
As a result, RM6 units maintain reliable performance even in harsh operating conditions.
Safety is one of the most important factors in medium-voltage systems.
RM6 units typically include:
Internal arc resistance
Mechanical interlocks
Visible isolation points
Grounding switches
Safe cable compartments
These features help reduce operational risks for maintenance personnel.
The sealed insulation system greatly reduces maintenance compared to conventional air-insulated switchgear.
Benefits include:
Reduced inspection frequency
Lower operating costs
Increased equipment availability
Longer service life
One of the strongest advantages of RM6 RMUs is their modular architecture.
Common module configurations include:
C Module (Load Break Switch)
F Module (Switch-Fuse Combination)
V Module (Vacuum Circuit Breaker)
D Module (Direct Connection)
Metering Module
Users can combine these modules according to project requirements.
Electric utilities widely deploy RM6 systems in secondary distribution substations to improve network reliability.
Manufacturing plants require continuous power supply to avoid costly production interruptions.
RM6 units help ensure:
Reliable operation
Fast fault isolation
Safe maintenance procedures
Shopping malls, office towers, hospitals, and airports often use RM6 switchgear because of its compact size and high reliability.
RM6 RMUs are increasingly used in:
Solar power plants
Wind farms
Battery energy storage systems
They help connect distributed generation sources to the utility grid safely and efficiently.
Applications include:
Railways
Metro systems
Data centers
Smart cities
Water treatment facilities

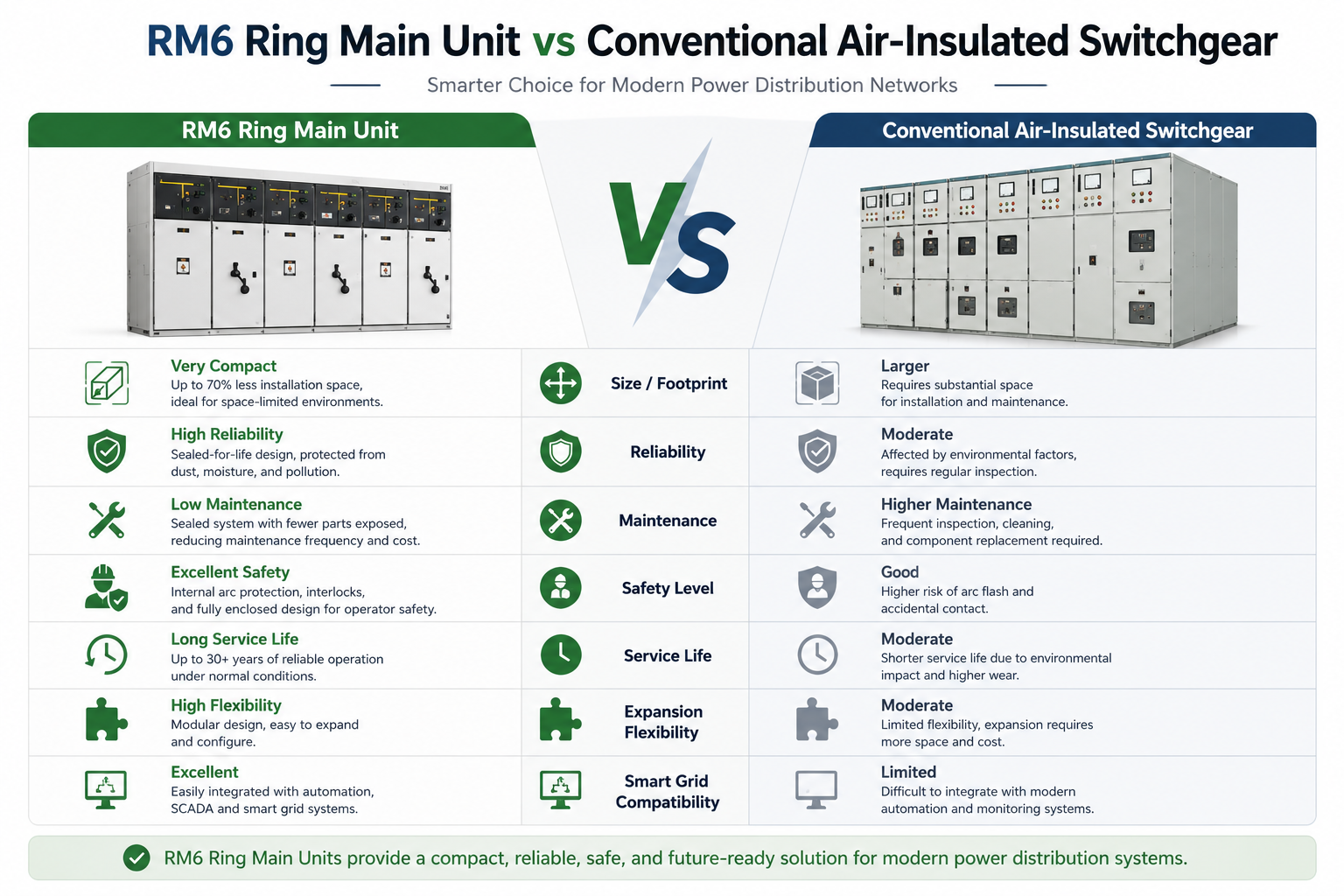

Feature | RM6 RMU | Conventional Switchgear |
|---|---|---|
Footprint | Very Compact | Larger |
Installation Space | Minimal | Significant |
Maintenance | Low | Higher |
Reliability | High | Moderate |
Safety Level | Excellent | Good |
Expansion Flexibility | High | Moderate |
Smart Grid Compatibility | Excellent | Limited |
The comparison demonstrates why many modern projects prefer RM6 technology for medium-voltage distribution.
Confirm compatibility with the distribution system voltage, commonly 12kV.
Select according to expected load demand and future expansion requirements.
Ensure the equipment can safely withstand potential fault currents.
Choose between:
Fuse protection
Vacuum circuit breaker protection
Intelligent relay protection
Environmental conditions will influence enclosure design and protection ratings.
Modern utilities increasingly require:
Remote monitoring
Fault detection
SCADA integration
Smart grid communication
These features should be considered during project planning.
As distribution networks become smarter, RM6 technology continues to evolve.
Future developments include:
Advanced sensors and communication systems provide real-time monitoring and diagnostics.
Utilities can perform switching operations remotely, reducing response times during network faults.
Digital monitoring systems help detect equipment issues before failures occur.
Future RMUs will play an even greater role in distributed energy systems and microgrids.
Manufacturers are actively developing eco-friendly insulation technologies to reduce environmental impact while maintaining performance.
The RM6 Ring Main Unit has become a cornerstone of modern medium-voltage distribution networks due to its compact design, operational safety, reliability, and flexibility. Whether deployed in utility substations, industrial facilities, commercial developments, or renewable energy projects, RM6 switchgear provides an efficient solution for maintaining uninterrupted power distribution.
As smart grids and renewable energy systems continue to expand worldwide, the demand for intelligent, reliable, and compact RMU solutions is expected to grow significantly. Selecting a high-quality RM6 Ring Main Unit can help operators improve network reliability, reduce maintenance costs, and enhance long-term system performance.
