Why the Global Power Industry Is Shifting from SF6 to Air Insulation

I. What's the Problem with SF6

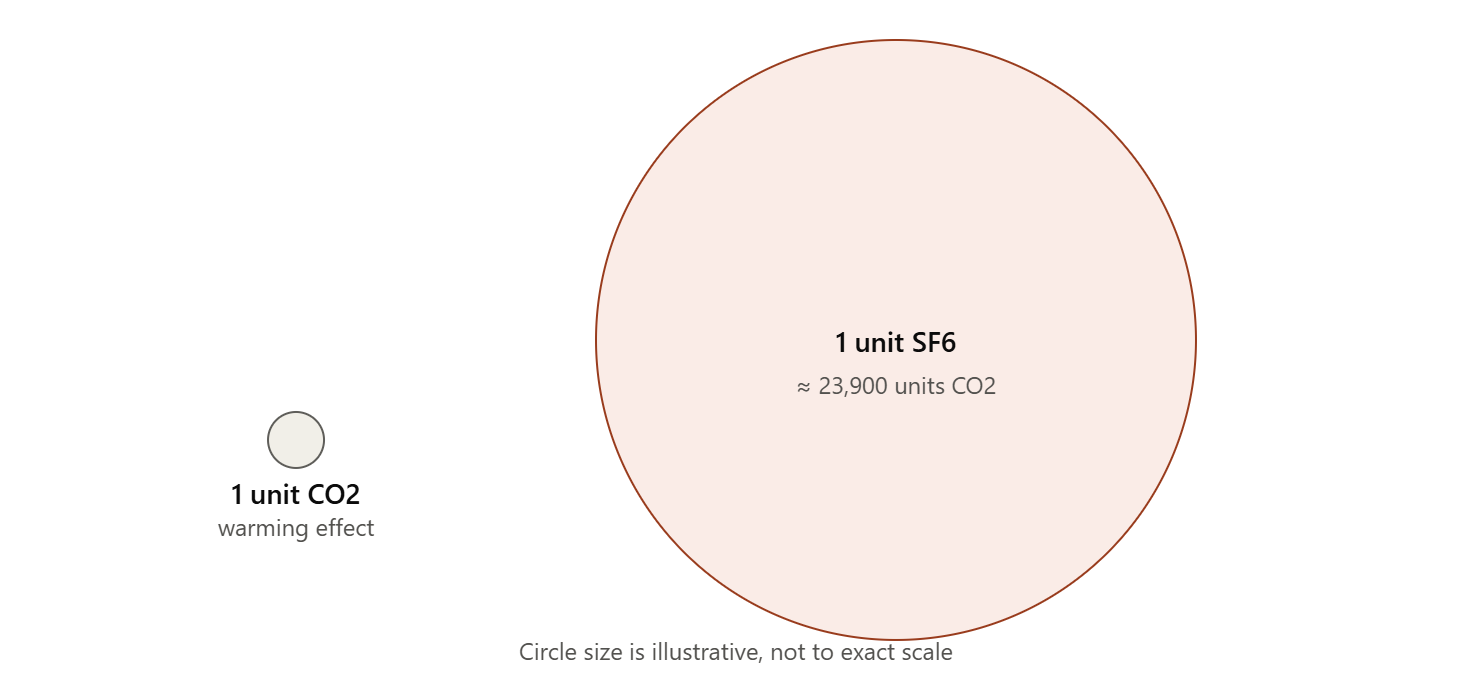

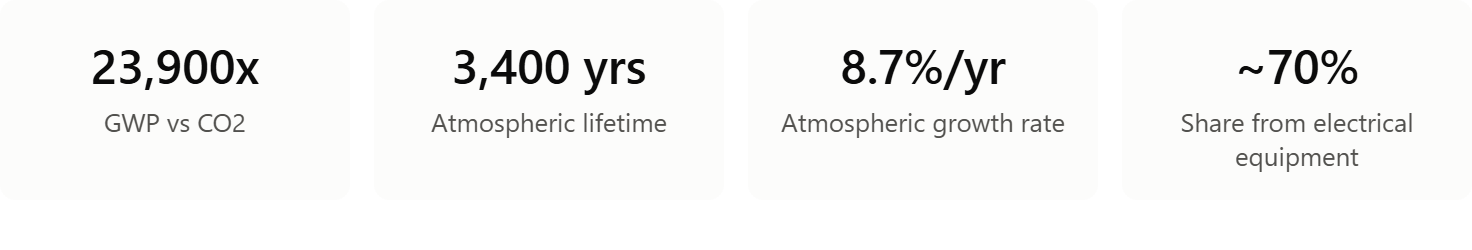

SF6 (sulfur hexafluoride) has long been the dominant insulating medium in medium and high voltage switchgear, prized for its excellent performance. But it's also an extremely potent greenhouse gas: SF6 has a global warming potential roughly 23,900 times that of CO2, with an atmospheric lifetime of 3,400 years. More critically, atmospheric SF6 concentration is growing at about 8.7% per year, and electrical equipment is the primary source of SF6 emissions, accounting for roughly 70% of the total.

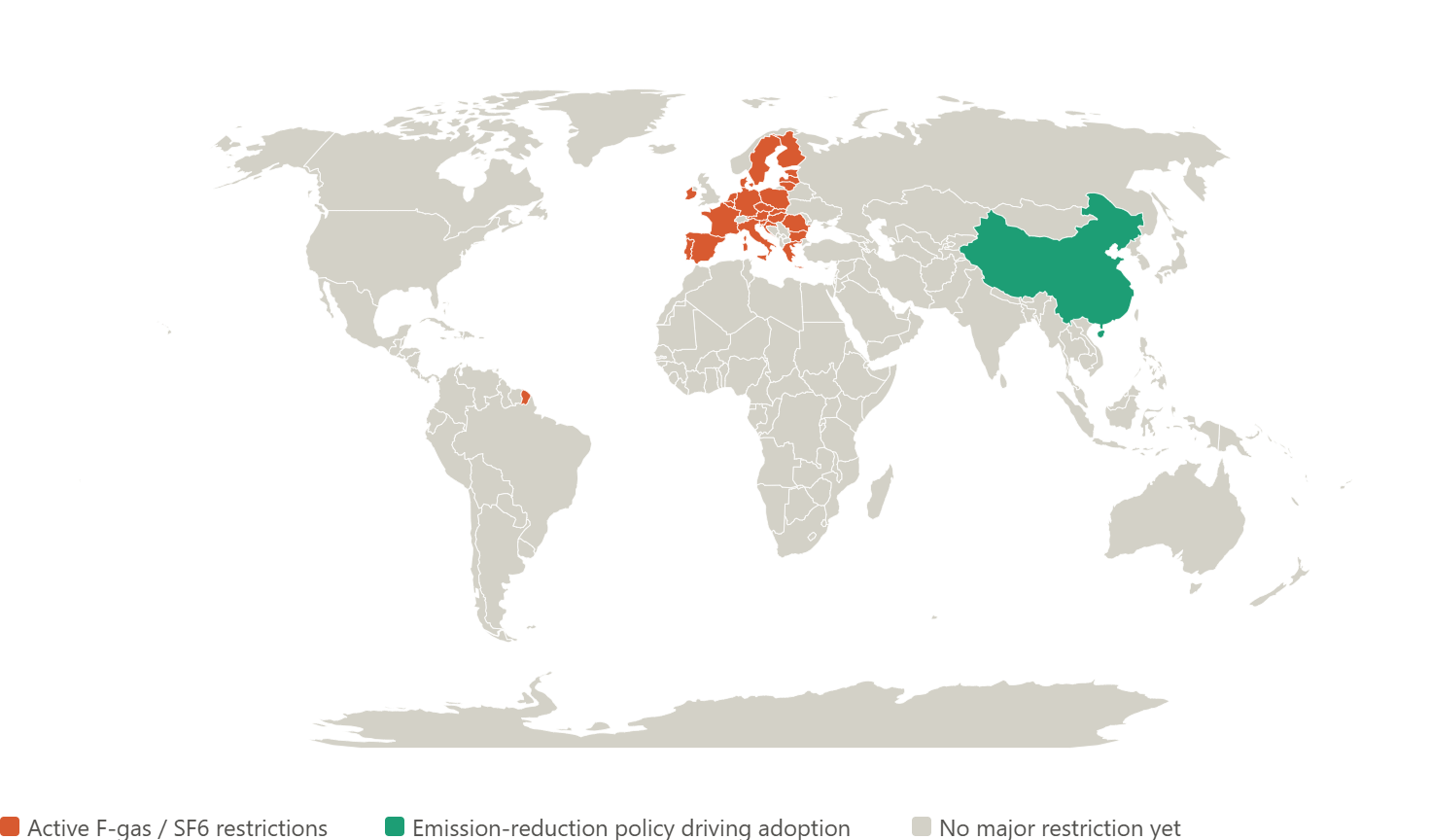

That's why the 1997 Kyoto Protocol already called for fundamentally restricting SF6 use by 2020, and regions like the EU have continued tightening restrictions on SF6-based equipment in recent years.

II. What Alternative Routes Exist

The industry has explored three main categories of alternatives:

1. Conventional gases (dry air, N2, CO2, and their mixtures): stable properties, low production cost, and a liquefaction temperature well below SF6's, with lower greenhouse impact

2. SF6 gas mixtures: can meet insulation requirements and lower the liquefaction temperature for cold-climate use, but can't fully eliminate SF6 use and don't fundamentally solve the greenhouse gas problem

3. Strongly electronegative gases and novel insulating gases (e.g. C4F7N, C5F10O): still in research and limited-scale application

Among these, the conventional gas route — dry air in particular — has become the most widely adopted direction, because it offers the cleanest environmental profile and the highest technical maturity.

III. Why "Vacuum + Air Insulation" Has Become the Mainstream Combination

Air insulation alone has a limitation — its insulation strength is less than 40% of SF6's — so the industry has largely converged on a combined approach: vacuum interruption + clean/dry air insulation:

• Vacuum interruption: solves the switching problem — vacuum interrupters can reach a mechanical life of 10,000+ operations and are typically maintenance-free for their entire service life

• Clean dry air/nitrogen insulation: solves the insulation problem, replacing SF6 gas

This technology route is already fairly mature: it's widely applied at the 40.5kV and 72.5kV voltage classes and is now being extended to 145kV and above.

IV. Real Cases, Not Just a Paper Trend

• In 2025, China Southern Power Grid commissioned a 145kV GIS at the Xinan substation (110kV) in Shantou, Guangdong, using an environmentally friendly gas mixture to replace SF6 — cutting greenhouse gas emissions by more than 99% while maintaining the same compact size and reliability as conventional equipment.

• Sweden's E.ON has replaced its SF6 medium voltage switchgear with SF6-free equipment, supporting its 2025 fossil-fuel-free target while eliminating gas recovery costs and reducing maintenance and replacement expenses.



V. What This Means for Buyers

1. Regulatory pressure will keep increasing — if your project involves export to regions with tightening F-gas (fluorinated greenhouse gas) regulations, such as Europe, planning ahead for SF6-free equipment avoids future compliance risk

2. Long-term operating costs may be lower — SF6-free equipment removes the maintenance burden of gas testing, recovery, and refilling

3. The technology is mature enough now — current vacuum + air insulation solutions already match traditional SF6 equipment in compact size and reliability; it's no longer a trade-off between "eco-friendly" and "high performance"

4. Not every installation needs immediate replacement — existing SF6 equipment remains safe and reliable under normal operation; the shift shows up mainly in the selection direction for new projects and equipment upgrades

VI. Summary
