In modern power distribution systems, reliable switching and effective fault protection are essential for maintaining a stable electricity supply. For substations, industrial plants, and power generation facilities, selecting the right high-voltage circuit breaker can significantly influence system safety, operational efficiency, and long-term maintenance requirements.
The ZN85 series indoor vacuum circuit breaker is designed to meet these requirements. Commonly used in 40.5kV power distribution systems, this high-voltage switching device provides reliable control and protection for electrical equipment under normal operating and fault conditions.
In this article, we will explore the working principle, key features, applications, and selection considerations of the ZN85 indoor vacuum circuit breaker.

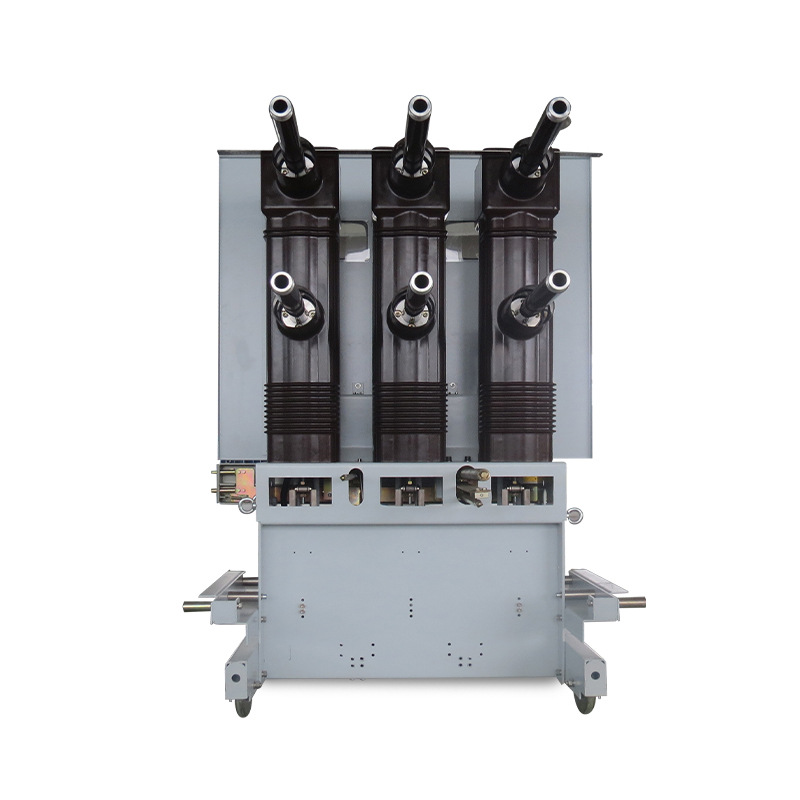

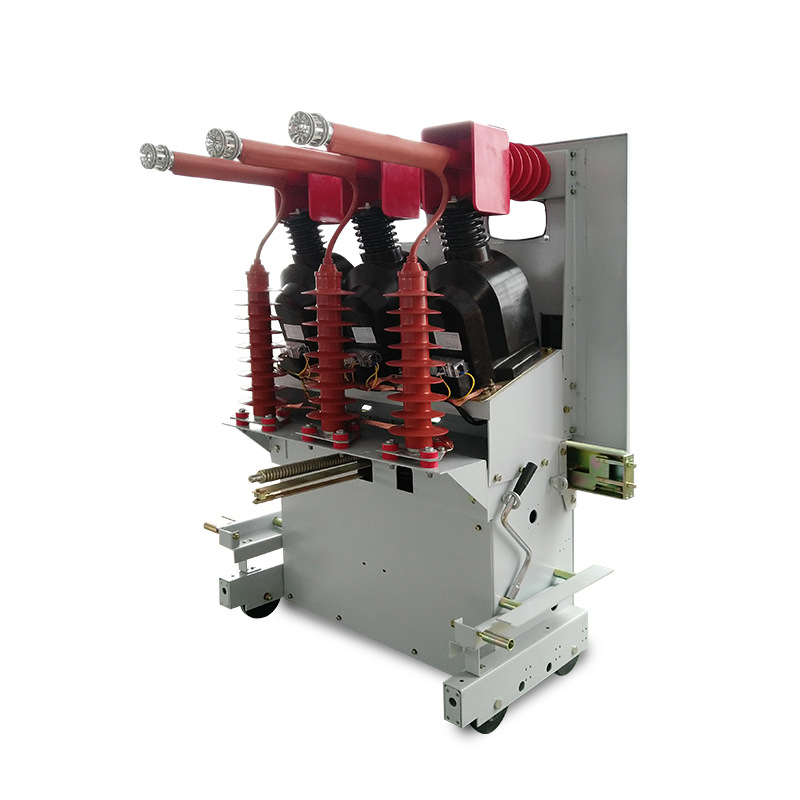

The ZN85 series is an indoor high-voltage vacuum circuit breaker designed for three-phase AC power distribution systems. The ZN85-40.5 model is commonly used in systems with a rated voltage of 40.5kV and a rated frequency of 50Hz.
Its primary function is to switch electrical circuits on and off under normal operating conditions and interrupt fault currents when required by the protection system.
The ZN85 vacuum circuit breaker is widely applied in:
High-voltage substations
Power generation plants
Industrial and mining facilities
Medium- and high-voltage distribution networks
Electrical power distribution projects
Depending on the specific design, the ZN85 series can be configured for integration into compatible indoor switchgear, such as KYN61-40.5 metal-clad switchgear.
By combining vacuum interruption technology with a reliable operating mechanism, the ZN85 series provides an effective solution for high-voltage circuit control and protection.
The ZN85 indoor vacuum circuit breaker uses a vacuum interrupter as its arc-extinguishing unit.
When the circuit breaker opens under load or fault conditions, its contacts separate inside the vacuum interrupter. An electrical arc may form between the contacts, but the vacuum environment helps extinguish the arc when the current passes through zero.
Once the arc is extinguished, the vacuum gap rapidly recovers its dielectric strength, helping prevent the current from being re-established.
The main operating process includes three stages:
Closing operation: The operating mechanism drives the moving contacts into the closed position, allowing current to flow through the circuit.
Opening operation: When an opening command is received, the mechanism separates the contacts and interrupts the circuit.
Fault interruption: When a short circuit or another electrical fault occurs, the protection system sends a trip signal to the circuit breaker, allowing it to disconnect the faulty section.
This operating principle helps protect transformers, cables, motors, and other electrical equipment from the damaging effects of excessive current.
The vacuum interrupter is the core component of the ZN85 circuit breaker. Its arc-extinguishing process takes place inside a sealed vacuum environment, reducing the need for conventional arc-extinguishing media.
Vacuum interruption technology offers several advantages, including effective arc extinction, compact construction, and reduced routine maintenance requirements.
These characteristics make the ZN85 series suitable for demanding power distribution applications.

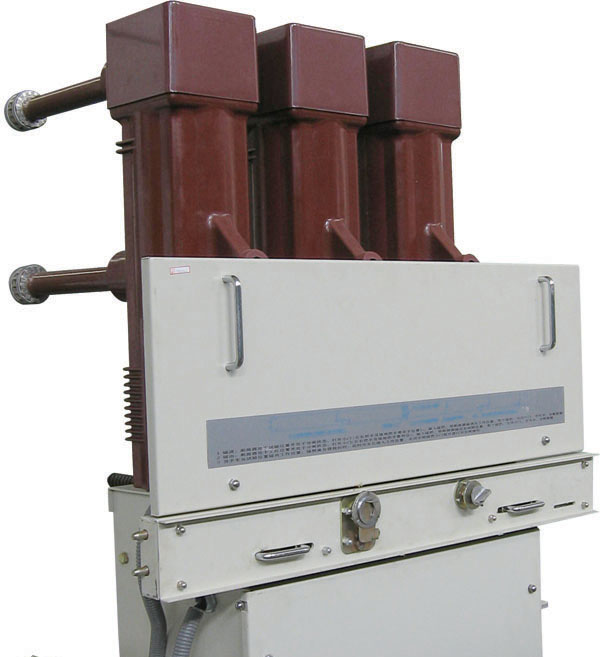

The ZN85-40.5 design commonly adopts an upper-and-lower arrangement of the main circuit components and operating mechanism.
This structural layout helps reduce the overall depth of the circuit breaker and supports integration into compatible high-voltage switchgear.
For projects with specific installation space requirements, the overall dimensions and mounting arrangement should be confirmed against the approved technical drawings.
The ZN85 series typically uses a spring operating mechanism to control the opening and closing operations.
The mechanism stores mechanical energy in a spring and releases it when an operating command is received. This arrangement supports dependable switching performance and consistent mechanical operation.
Depending on the configuration, the circuit breaker may support both electrical and manual operation, making it suitable for different operating and maintenance requirements.
Compared with some conventional switching technologies, vacuum circuit breakers generally require less routine maintenance of the arc-extinguishing system.
The sealed vacuum interrupter reduces exposure of the internal contacts to the surrounding environment during normal operation.
However, regular inspection of the operating mechanism, electrical connections, insulation components, and auxiliary circuits remains important. The maintenance schedule should follow the manufacturer's instructions and the actual operating conditions.
The ZN85-40.5 series is commonly designed for use with compatible 40.5kV indoor switchgear systems.

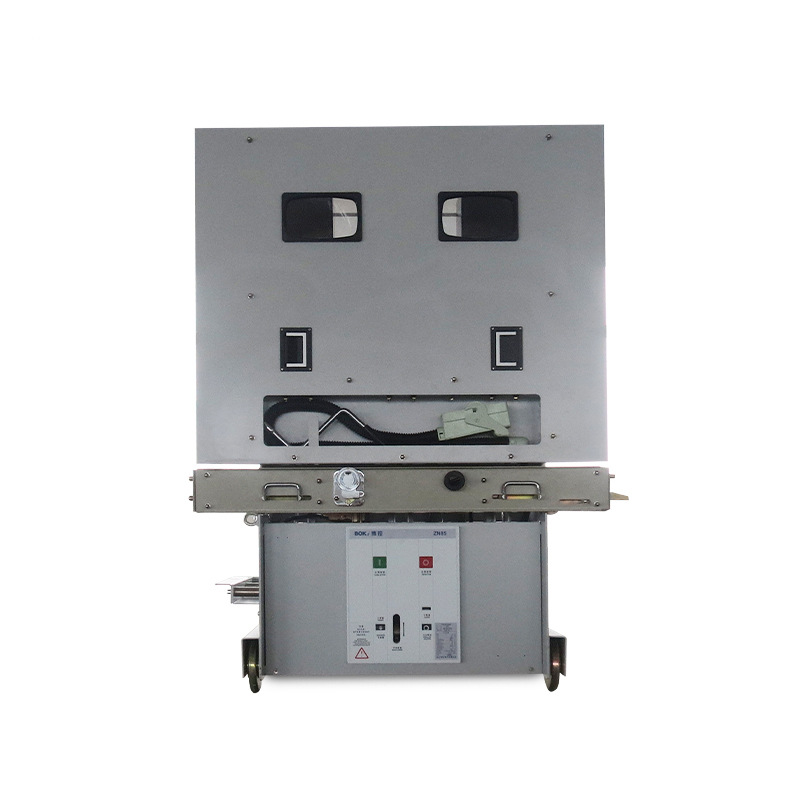

Depending on the product configuration, it can be supplied as a withdrawable or fixed installation type.
For withdrawable designs, the circuit breaker can be installed in a matching switchgear compartment, allowing the equipment to be moved between designated operating and isolated positions.
Correct coordination of the breaker, switchgear cabinet, interlocking system, and protection circuit is essential for safe operation.
The ZN85-40.5 is a common configuration within the ZN85 series. Actual electrical ratings vary by model and manufacturer.
Parameter | Typical specification |
|---|---|
Product type | Indoor vacuum circuit breaker |
Model | ZN85-40.5 |
Rated voltage | 40.5kV |
Rated frequency | 50Hz |
Rated current | Common options include 1250A, 1600A, and 2000A |
Rated short-circuit breaking current | Common options include 25kA and 31.5kA |
Operating mechanism | Spring operating mechanism |
Installation | Withdrawable or fixed, depending on design |
Typical application | Indoor high-voltage switchgear |
The values above are representative options for the ZN85-40.5 product family, not a universal specification for every unit. Other ratings may be available depending on the manufacturer's design.
Before placing an order, buyers should confirm the rated current, short-circuit breaking capacity, insulation level, operating voltage, installation dimensions, and applicable standards.
The ZN85 series is suitable for a range of power distribution applications where reliable high-voltage switching and protection are required.
In substations, the ZN85 vacuum circuit breaker can be used to control incoming and outgoing feeders, helping isolate faulty sections and support the safe operation of the power distribution network.
It can also form part of a coordinated protection system involving transformers, busbars, and other high-voltage equipment.
Manufacturing facilities often rely on stable power distribution to maintain production continuity.
The ZN85 series can be used in industrial power distribution systems to switch and protect electrical circuits supplying production equipment, auxiliary systems, and other industrial loads.
Power generation facilities require reliable switching equipment for electrical distribution and auxiliary power systems.
When selected according to the system voltage, rated current, and fault level, the ZN85 series can serve as part of the plant's electrical protection and control arrangement.
Mining operations and heavy industrial facilities may require robust electrical distribution systems to support motors, processing equipment, and other high-power loads.
The ZN85 series can be considered for suitable indoor installations, provided that the environmental conditions and electrical requirements comply with the product's specifications.
Selecting a suitable vacuum circuit breaker involves more than confirming the rated voltage. Buyers should evaluate the following technical factors before requesting a quotation.
Rated voltage
Confirm that the circuit breaker's rated voltage is appropriate for the system. For a 40.5kV application, the ZN85-40.5 is a relevant model to evaluate.
Rated current
The rated current must meet the continuous current requirements of the connected circuit. Common configurations include 1250A, 1600A, and 2000A, with other options depending on the design.
Short-circuit breaking capacity
The rated short-circuit breaking current must be sufficient for the prospective fault current at the installation point. This value should be determined through the project's electrical system calculations.
Switchgear compatibility
Check the cabinet model, installation type, mounting dimensions, primary connection arrangement, and mechanical interlocking requirements.
For example, when integrating a ZN85-40.5 into KYN61-40.5 switchgear, the breaker and cabinet specifications must be coordinated.
Control voltage
Confirm the required AC or DC control voltage for the opening coil, closing coil, and other auxiliary circuits.
Operating environment
Consider the ambient temperature, installation altitude, humidity, and other site conditions. Special environmental requirements should be communicated to the manufacturer in advance.
Standards and documentation
Confirm the applicable product standards and request the relevant technical datasheet, dimensional drawings, routine test documentation, and other project-specific documents.
Careful selection helps reduce installation problems and improves the reliability of the complete power distribution system.
Vacuum circuit breakers are widely used in modern power distribution systems because of their effective interruption performance and practical maintenance characteristics.
For suitable indoor applications, the main benefits include:
Reliable switching: Designed to perform routine switching and interrupt fault currents within its rated capacity.
Compact design: Supports integration into appropriately designed switchgear.
Low routine maintenance: The sealed vacuum interrupter reduces maintenance requirements associated with the arc-extinguishing system.
Long mechanical service life: The operating mechanism is designed for repeated switching operations, subject to the specified service conditions and maintenance requirements.
Flexible system integration: Available configurations can accommodate different switchgear and control requirements.
The actual service life and operating performance depend on the product configuration, installation quality, operating frequency, and maintenance practices.
Choosing the right circuit breaker is an important step in building a safe and reliable electrical distribution system.
The ZN85 series indoor vacuum circuit breaker provides a practical solution for 40.5kV-class applications in substations, industrial facilities, and power generation projects. Its vacuum interruption technology, spring operating mechanism, and switchgear integration options make it suitable for a wide range of high-voltage distribution requirements.
