Medium-voltage distribution networks operate in environments where reliability, fast fault interruption, and easy maintenance are essential. Outdoor distribution equipment must not only handle normal load currents but also respond quickly when overloads or short circuits occur.
This is where an outdoor vacuum circuit breaker can provide an effective solution.
The ZW32 series outdoor vacuum circuit breaker is designed for medium-voltage power distribution applications. A typical ZW32-12 configuration is rated for 12 kV and is used to switch load, overload, and short-circuit currents in distribution systems. Depending on the configuration, it can also be integrated with control and automation equipment for applications such as feeder protection and distribution automation.
But what makes the ZW32 suitable for outdoor distribution networks, and what should buyers consider when selecting one?

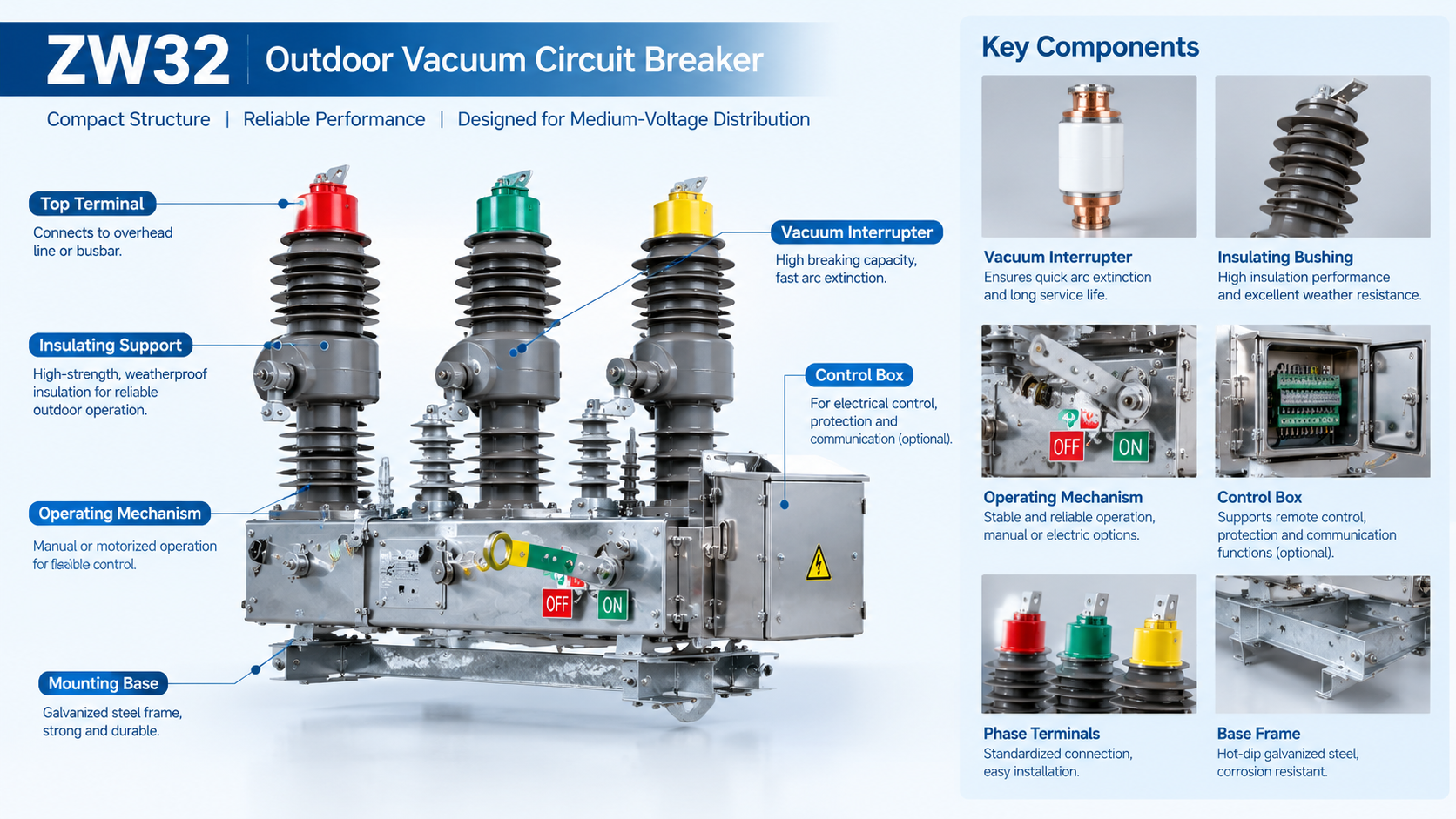

The ZW32 is an outdoor high-voltage vacuum circuit breaker commonly used in medium-voltage distribution systems.
Unlike traditional circuit breakers that use air or other media for arc interruption, the ZW32 uses a vacuum interrupter. When the circuit breaker opens, the vacuum interrupter helps extinguish the electrical arc and interrupt the fault current.
A typical ZW32-12 model is designed for three-phase AC systems with a rated voltage of 12 kV and a frequency of 50 Hz. Typical configurations include a rated current of 630 A and short-circuit breaking capacities such as 20 kA, although the exact rating depends on the selected configuration.
The circuit breaker can be installed outdoors, including on poles in overhead distribution systems, making it suitable for applications where indoor switchgear is not practical.
A distribution network may experience several types of abnormal conditions, including:
Overload
Short circuits
Line faults
Equipment failures
Temporary faults on overhead lines
When a fault occurs, the circuit breaker needs to interrupt the fault current quickly and safely.

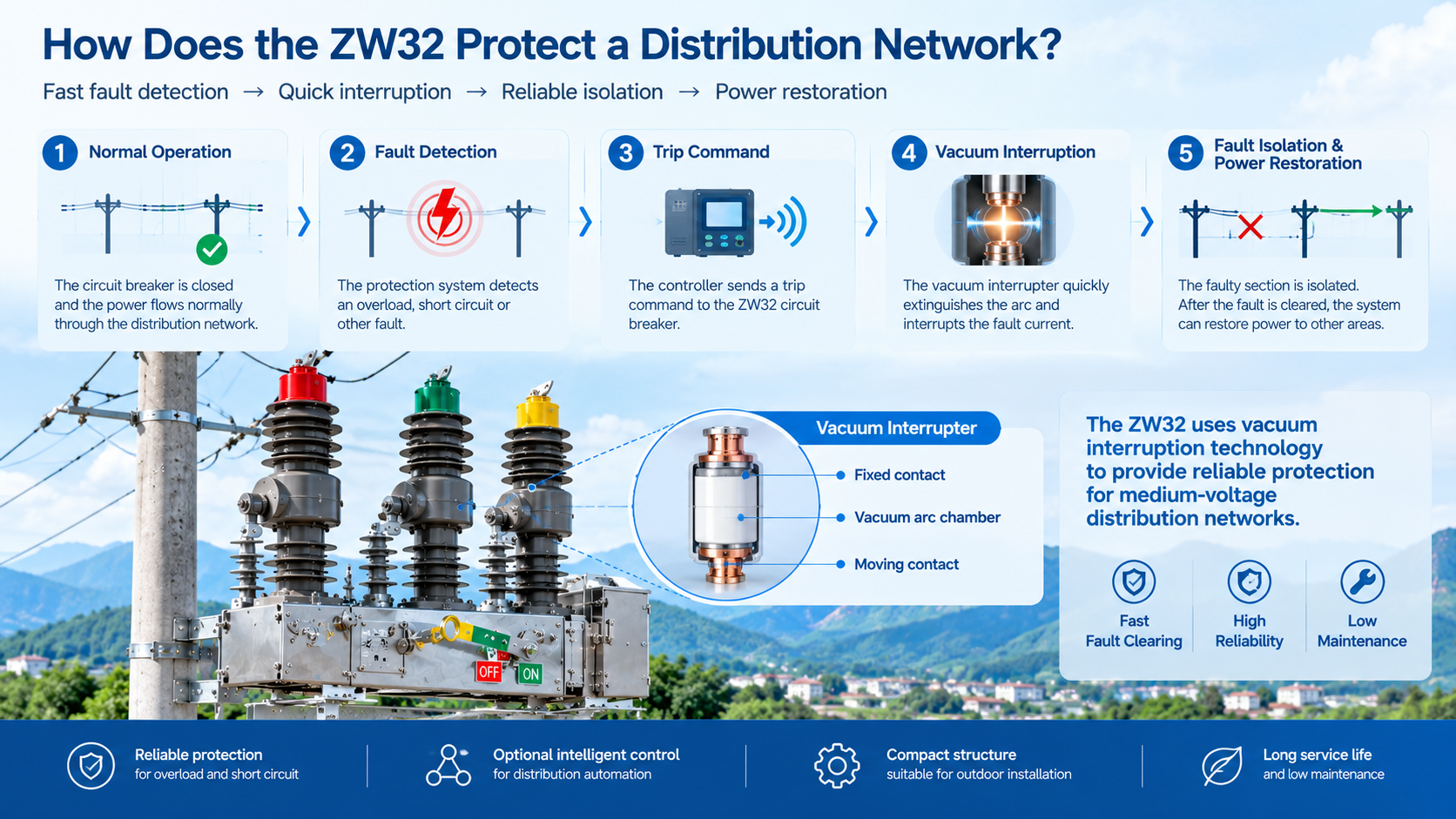

The basic operating process is:
Normal Operation → Fault Detection → Trip Command → Vacuum Interruption → Fault Isolation → Power Restoration
The ZW32 itself performs the switching and interruption function. When equipped with suitable protection and control equipment, it can form part of an automated distribution system.
This makes the ZW32 particularly useful for distribution feeders where rapid fault isolation and reliable switching are important.
The vacuum interrupter is one of the key components of the ZW32.
Inside the vacuum interrupter, the electrical contacts are separated in a vacuum environment. This allows the arc to be interrupted without using conventional arc-extinguishing media such as oil.
For distribution applications, vacuum interruption offers several practical advantages:
Vacuum interrupters are sealed components, which helps reduce maintenance requirements associated with arc-interruption media.
Outdoor ZW32 products are also commonly designed with sealed or enclosed structures to improve resistance to moisture and condensation.
The vacuum interrupter is designed to interrupt load and fault currents while maintaining the insulation performance required by the circuit breaker.
Depending on the specific design, ZW32 products can provide thousands of mechanical operating cycles. For example, several commercially available ZW32-12 configurations specify a mechanical life of 10,000 operations.
The actual performance should always be verified against the manufacturer's test report and technical datasheet.

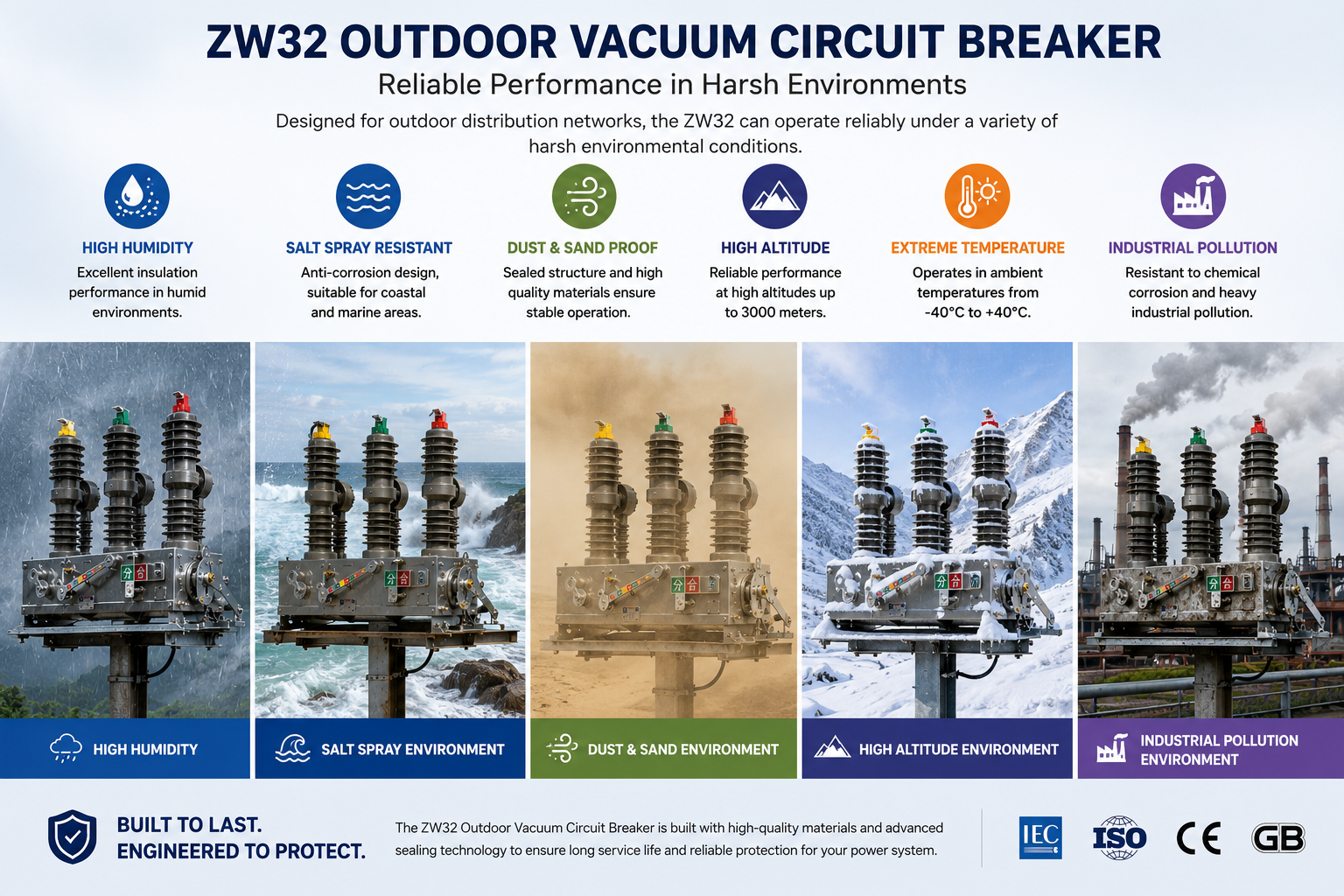

Outdoor circuit breakers face significantly different conditions from indoor switchgear.
They may be exposed to:
Rain
Humidity
Dust
Temperature changes
Solar radiation
Condensation
Pollution
Wind and other environmental conditions
Therefore, outdoor construction is an important consideration when selecting a ZW32.
Many ZW32 designs use insulated poles and outdoor-rated enclosures to improve environmental adaptability. Some configurations use epoxy-resin insulation and corrosion-resistant housings to provide protection against moisture, ultraviolet exposure, temperature changes, and aging.
For projects located in coastal, humid, dusty, or high-temperature areas, buyers should confirm the required environmental conditions with the manufacturer before finalizing the configuration.
The ZW32 is commonly used in medium-voltage distribution applications where outdoor switching and protection are required.
The pole-mounted structure makes the ZW32 suitable for overhead distribution feeders.
It can be installed at strategic points along a distribution network to provide switching and protection for individual sections.
Rural distribution networks often contain long overhead feeders and may require outdoor switching equipment that can operate reliably with relatively simple maintenance requirements.
The ZW32 is widely used for this type of application.
The breaker can also be applied to urban medium-voltage distribution systems, particularly where compact outdoor equipment is required.
Industrial plants and mining facilities may have medium-voltage feeders supplying motors, transformers, production equipment, and other electrical loads.
A properly configured ZW32 can provide switching and protection for these distribution circuits.
The ZW32 can be used as an outdoor switching and protection device in suitable substation applications.
When combined with a suitable intelligent controller, communication interface, and protection system, the ZW32 can be incorporated into distribution automation applications.
This can support functions such as remote operation, fault isolation, and feeder management, depending on the complete system configuration.
Modern distribution networks increasingly require more than simple manual switching.
An intelligent ZW32 configuration may be combined with:
Intelligent controller
Protection relay
Current transformers
Voltage transformers
Communication interface
Remote-control system
Distribution automation terminal
With the appropriate control system, the outdoor vacuum circuit breaker can become part of a distribution automation solution.
For example:
Fault Occurs → Protection System Detects Fault → Trip Command → ZW32 Opens → Faulty Section Isolated
After the fault is isolated, the control system can coordinate with other distribution equipment to support network restoration.
The exact automation functions depend on the controller, protection scheme, communication protocol, and overall project design.
Choosing an outdoor vacuum circuit breaker should not be based only on the model number.

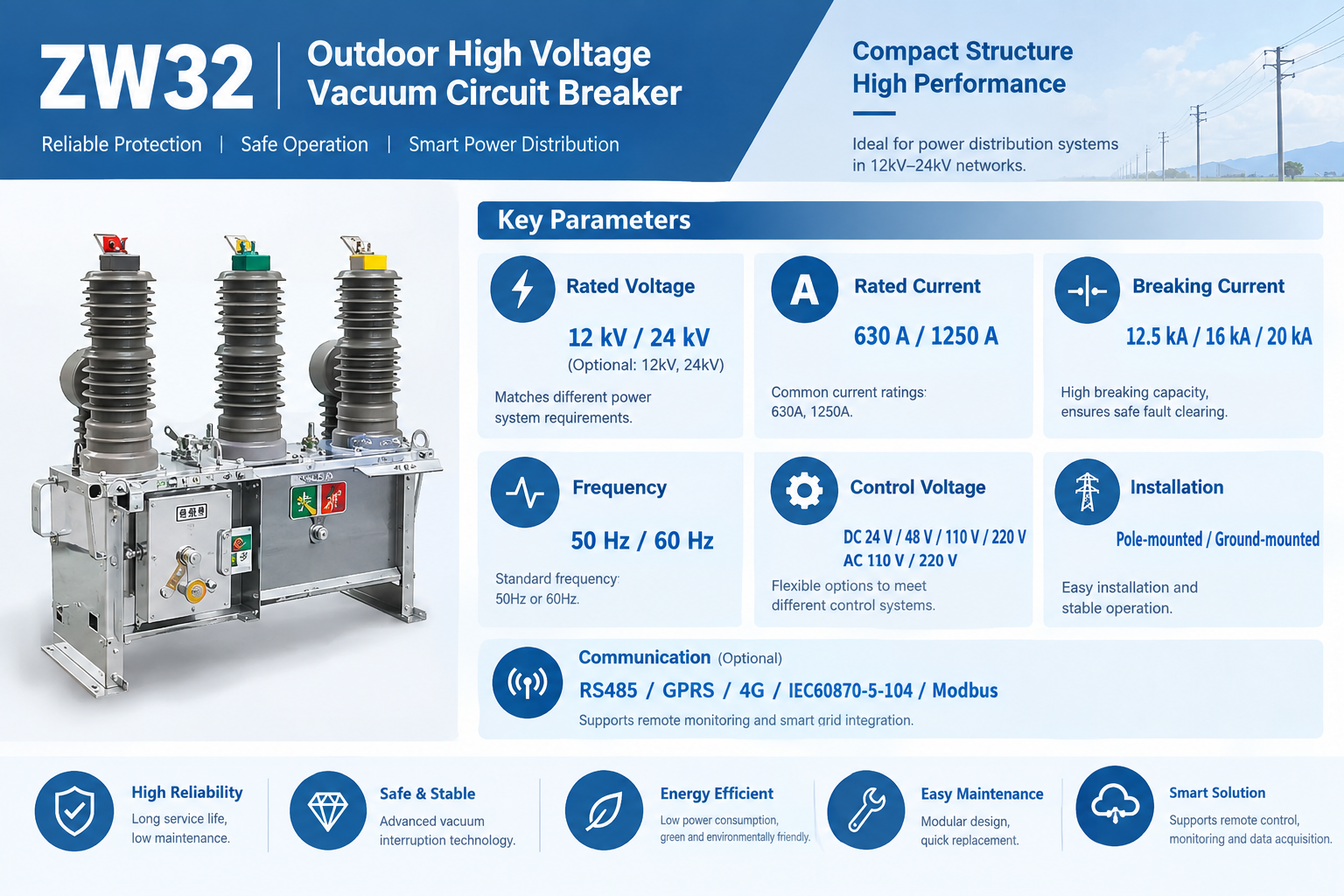

Before purchasing a ZW32, buyers should confirm the following technical parameters.
Parameter | What to Check |
|---|---|
Rated Voltage | 12 kV, 24 kV or other required voltage |
Rated Current | According to feeder load |
Short-Circuit Breaking Current | According to system fault level |
Rated Frequency | 50 Hz or 60 Hz |
Power-Frequency Withstand Voltage | According to insulation requirements |
Lightning Impulse Withstand Voltage | According to system insulation coordination |
Operating Mechanism | Manual, motorized or other configuration |
Control Voltage | AC/DC voltage required by the project |
Mechanical Life | Required number of operations |
Installation | Pole-mounted or other outdoor arrangement |
Communication | Required protocol/interface for automation |
Accessories | CT, VT, disconnector, controller, etc. |
For example, commercially available ZW32-12 products commonly use a 12 kV rated voltage, while rated current and short-circuit breaking capacity vary by configuration.
Therefore, a complete technical specification should always be confirmed before quotation.
The ZW32-12 is one of the commonly used configurations in medium-voltage distribution.
Typical specifications found in commercial products include:
Rated voltage: 12 kV
Rated frequency: 50/60 Hz depending on design
Rated current: commonly 630 A, with other configurations available
Short-circuit breaking current: commonly 20 kA, with other options available
Outdoor installation
Vacuum interruption
Manual or electric operation depending on configuration
Optional intelligent control and automation functions
For example, one manufacturer specifies 12 kV, 630 A and 20 kA for its ZW32-12 product, while other manufacturers offer different current and breaking-capacity configurations.
This is why buyers should avoid selecting equipment based only on the “ZW32-12” model name. The complete technical configuration is more important.
For an overseas power distribution project, product quality is only one part of the purchasing decision.
A reliable supplier should also be able to provide:
The supplier should be able to provide datasheets, drawings, wiring diagrams, installation information, and relevant test documentation according to the project requirements.
Different projects may require different:
Rated currents
Breaking capacities
Control voltages
CT ratios
Communication functions
Installation arrangements
Disconnector configurations
For export projects, technical communication is particularly important.
A professional manufacturer should be able to review the customer's single-line diagram, technical specification, installation conditions, and protection requirements before recommending a final configuration.
For medium-voltage equipment, buyers should pay attention to routine testing, type-test documentation where applicable, insulation performance, mechanical operation, and the applicable standards.
The ZW32-12 products listed by major manufacturers are commonly specified against standards including IEC 62271-100 and IEC 62271-1.
Before sending an RFQ, prepare the following information:
1. System voltage:
For example, 11 kV, 12 kV or 24 kV.
2. Rated current:
Determine the normal maximum load current of the feeder.
3. Short-circuit level:
The breaker must have sufficient short-circuit breaking capacity for the actual network fault level.
4. Installation environment:
Specify temperature, altitude, humidity, pollution, coastal conditions and other relevant environmental requirements.
5. Control requirements:
Clarify whether manual operation, electric operation, remote control or automatic recloser functions are required.
6. Protection requirements:
Provide information about CTs, protection relays, controller functions and the required protection scheme.
7. Communication requirements:
For smart-grid applications, specify the required communication interface or protocol.
Providing these details allows the manufacturer to recommend a configuration that is better matched to the actual application.
One common question from buyers is whether an outdoor ZW32 can simply replace an indoor vacuum circuit breaker.
The answer depends on the application.
An indoor vacuum circuit breaker is generally designed to operate inside switchgear, where environmental conditions are controlled by the switchgear enclosure.
The ZW32, by contrast, is specifically designed as an outdoor switching device and can be installed in exposed distribution environments.
Therefore, the two products may use the same basic vacuum interruption principle but serve different installation requirements.
For overhead distribution networks, pole-mounted outdoor equipment can provide a more suitable solution than installing conventional indoor switchgear outdoors.
The ZW32 outdoor vacuum circuit breaker is designed to provide reliable switching and protection for medium-voltage distribution networks.
Its combination of vacuum interruption, outdoor construction, compact design, and optional intelligent control makes it suitable for applications ranging from overhead distribution feeders and rural power networks to industrial facilities and substations.
However, selecting the correct ZW32 should always start with the actual project requirements.
Rated voltage, rated current, short-circuit breaking capacity, insulation level, environmental conditions, control method, and automation requirements should all be evaluated before finalizing the product configuration.
If you are looking for a 12 kV outdoor vacuum circuit breaker, pole-mounted vacuum circuit breaker, or customized ZW32 solution, providing your technical specification or single-line diagram can help the manufacturer recommend the appropriate configuration for your project.
