Reliable power distribution depends on more than just transformers and switchgear. The circuit breaker is one of the most important protection devices in a medium-voltage network because it must quickly interrupt fault currents and protect electrical equipment from damage.
For outdoor medium-voltage distribution systems, the ZW32 outdoor vacuum circuit breaker has become a popular solution because of its compact structure, reliable vacuum interruption technology, and suitability for harsh outdoor environments.
But how do you choose the right ZW32 circuit breaker for your project?
This article explains the working principle, major advantages, applications, key specifications, and selection considerations of the ZW32 outdoor vacuum circuit breaker.
The ZW32 is a type of outdoor medium-voltage vacuum circuit breaker designed for switching and protecting electrical distribution systems.
Unlike traditional circuit breakers that use oil or other insulating media for arc interruption, a vacuum circuit breaker uses a sealed vacuum interrupter. When the contacts separate during a fault condition, the arc is extinguished inside the vacuum interrupter.
The ZW32 series is commonly used in medium-voltage distribution networks, particularly for applications involving overhead lines, distribution transformers, industrial facilities, substations, and rural or urban power networks.
Typical applications include systems rated around:
12 kV
11 kV
10 kV
24 kV
33 kV, depending on the specific model and design
The exact rated voltage, current, breaking capacity, and other parameters should always be selected according to the actual project requirements.

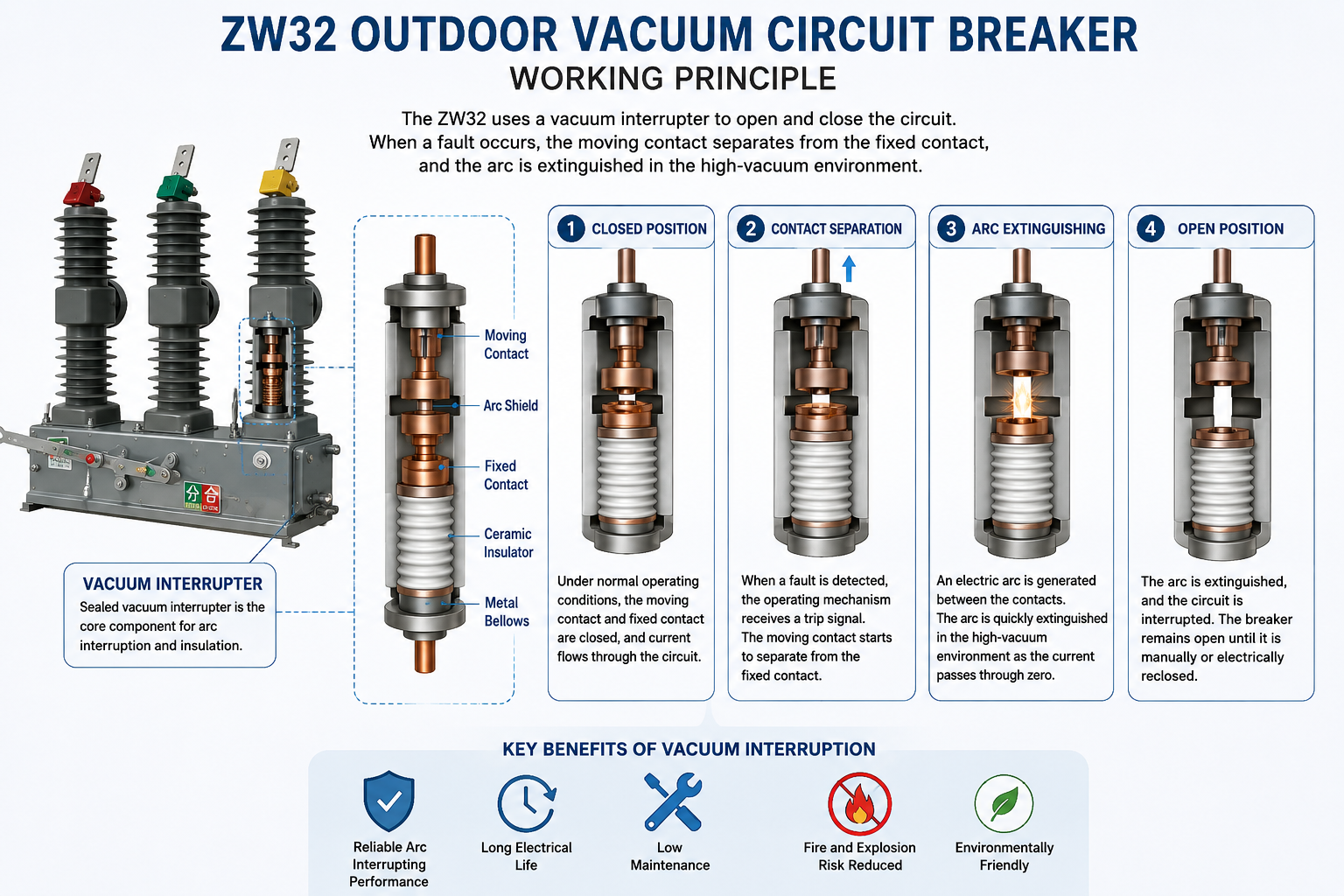

The operating principle of the ZW32 is relatively straightforward.
Under normal operating conditions, the circuit breaker contacts remain closed and allow current to flow through the electrical circuit.
When the protection system detects an abnormal condition such as:
Short circuit
Overcurrent
Ground fault
Other defined fault conditions
the operating mechanism receives a trip signal.
The contacts inside the vacuum interrupter then separate. Because the contacts are located inside a high-vacuum environment, the arc is rapidly extinguished as the current passes through its natural zero point.
After the fault has been cleared, the circuit breaker can be manually or electrically reclosed, depending on the configuration.
This fast interruption process helps reduce the risk of damage to transformers, cables, distribution lines, and other electrical equipment.
Vacuum interruption technology provides several advantages for medium-voltage switching applications.
The vacuum interrupter provides an effective environment for extinguishing electrical arcs.
This allows the circuit breaker to interrupt fault currents quickly and reliably while reducing the risk of continued arcing.
Because there is no conventional arc-extinguishing oil inside the vacuum interrupter, contact erosion can be effectively controlled.
This contributes to a long electrical operating life when the breaker is correctly selected and maintained.
Vacuum circuit breakers generally require less maintenance than many traditional oil circuit breakers.
The vacuum interrupter is a sealed component, reducing the need for regular inspection of arc-extinguishing media.
The ZW32 is designed for outdoor applications where installation space may be limited.
Its compact structure makes it suitable for pole-mounted distribution systems and other outdoor installations.
The vacuum interrupter is sealed and does not require oil as the arc-extinguishing medium.
This eliminates risks associated with oil leakage and significantly reduces the fire hazard related to oil-based interruption technology.
Different manufacturers may offer different configurations, but a typical ZW32 outdoor vacuum circuit breaker can include the following features.
The ZW32 is designed specifically for outdoor medium-voltage applications.
Its enclosure and structural design can be configured to withstand environmental conditions such as:
Rain
Dust
Temperature variations
Humidity
Solar radiation
Outdoor pollution
For projects located in extremely cold, hot, humid, or high-altitude environments, environmental requirements should be confirmed before ordering.
The vacuum interrupter is the core switching component of the ZW32.
It provides electrical insulation between the contacts when the breaker is open and rapidly interrupts the current when a fault occurs.
A high-quality vacuum interrupter is therefore critical to the overall reliability and service life of the circuit breaker.
Depending on the configuration, the ZW32 can be equipped with a spring operating mechanism and electrical operating components.
The mechanism is responsible for opening and closing the main contacts.
For automated distribution systems, the breaker can also be integrated with remote-control and protection systems.
Different projects may require different operating methods.
A ZW32 can typically be configured for:
Manual operation
Electrical operation
Remote operation
Automatic control
The appropriate configuration depends on whether the circuit breaker is being used as a simple line protection device or as part of an automated distribution network.
The ZW32 is particularly suitable for outdoor medium-voltage distribution systems.
One of the most common applications is the protection and control of medium-voltage overhead distribution lines.
The breaker can be installed on poles to provide local switching and fault protection.
This configuration is especially useful for distribution networks where conventional indoor switchgear is not practical.
The ZW32 can be used to protect distribution transformers from abnormal current conditions.
When a serious fault occurs downstream, the circuit breaker can interrupt the fault current and prevent the fault from causing further damage to the transformer and upstream equipment.
Factories and industrial facilities often require reliable medium-voltage protection.
A ZW32 circuit breaker can be incorporated into outdoor distribution systems serving:
Manufacturing plants
Mining facilities
Oil and gas facilities
Infrastructure projects
Industrial parks
Large commercial facilities
Outdoor vacuum circuit breakers are also suitable for rural distribution networks.
Their compact outdoor design allows installation on distribution poles and helps utilities improve network protection without constructing additional indoor switchgear rooms.
The ZW32 can also be integrated into distribution automation systems.
When combined with suitable protection relays, controllers, communication equipment, and sensors, it can help utilities monitor and control distribution networks remotely.
This is particularly valuable for modern smart-grid applications.
Choosing a circuit breaker only according to its model number is not enough.

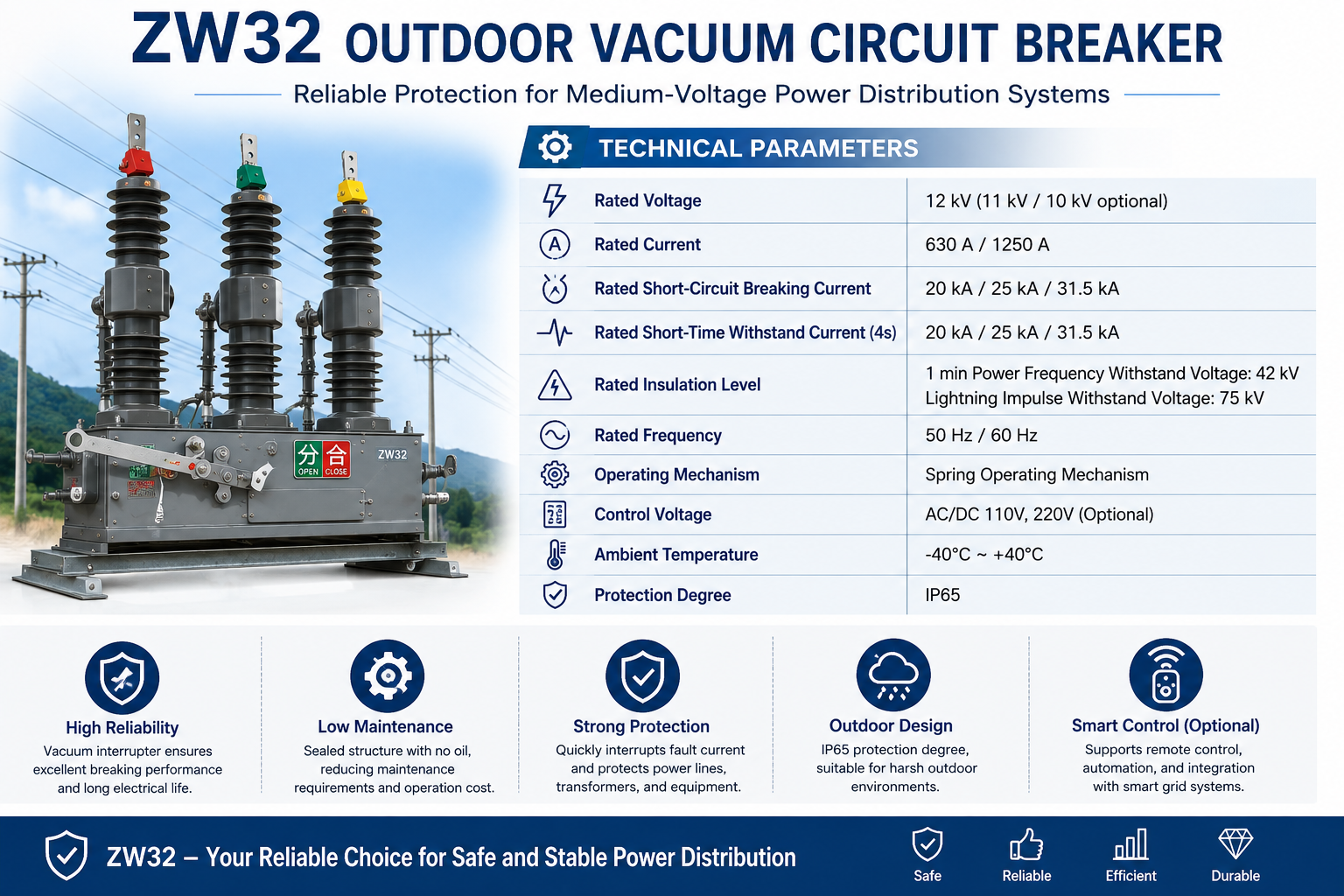

Before purchasing a ZW32 outdoor vacuum circuit breaker, buyers should carefully check the following parameters.
The rated voltage must match the voltage level of the distribution network.
For example, a project operating on a 10 kV or 11 kV network may require a circuit breaker with a rated voltage suitable for that system.
Common ZW32 configurations include 12 kV-class applications, while higher-voltage versions may also be available depending on the manufacturer's design.
Rated current determines the maximum continuous current that the circuit breaker is designed to carry under specified operating conditions.
Typical configurations may include:
630 A
1250 A
Other ratings according to project requirements
The selected rating should consider the normal operating load as well as future load growth.
This is one of the most important specifications when selecting a medium-voltage circuit breaker.
The rated short-circuit breaking current indicates the fault current that the circuit breaker can safely interrupt under specified conditions.
For example, different ZW32 configurations may be designed for different short-circuit breaking capacities.
The correct value must be determined from the short-circuit calculation of the electrical system.
Do not select the breaker based only on rated current.
A breaker with sufficient continuous current capacity may still be unsuitable if its short-circuit breaking capacity is too low.
The ZW32 is commonly used in power systems operating at:
50 Hz
60 Hz
The frequency should correspond to the local electrical network.
The required operating mechanism depends on the project.
For basic distribution applications, manual operation may be sufficient.
For automated networks, electrical operation and remote-control functions may be required.
Before ordering, confirm whether the project requires:
Motor operation
Remote opening
Remote closing
Local/remote control
Automatic reclosing
Auxiliary contacts
Protection and control interfaces
A common question from buyers is:
Why choose an outdoor ZW32 instead of an indoor vacuum circuit breaker?
The main difference is the intended installation environment.
Feature | ZW32 Outdoor VCB | Indoor VCB |
|---|---|---|
Installation | Outdoor | Indoor switchgear |
Typical application | Pole-mounted/outdoor distribution | Indoor switchgear |
Environmental design | Outdoor environment | Indoor environment |
Installation space | Compact | Requires switchgear panel |
Typical network | Medium-voltage distribution | Substations and industrial systems |
Remote control | Available depending on configuration | Available depending on configuration |
The ZW32 is particularly advantageous when the project requires a compact outdoor solution without installing a complete indoor switchgear lineup.
If you are purchasing ZW32 circuit breakers for an overseas project, providing only the model name may not be enough for the manufacturer to prepare an accurate quotation.
We recommend providing the following information:
Rated voltage
Rated current
Rated frequency
Short-circuit breaking current
Short-time withstand current
Insulation level
Power-frequency withstand voltage
Lightning impulse withstand voltage
Pole-mounted or other installation method
Operating mechanism
Number of operations
Mechanical interlocking requirements
Manual or electrical operation
Control voltage
Trip coil voltage
Closing coil voltage
Motor voltage
Auxiliary contact requirements
Remote-control requirements
Communication requirements
Ambient temperature
Altitude
Humidity
Pollution level
Wind conditions
Installation environment
Providing these details can significantly reduce communication time and help the manufacturer recommend the correct configuration.
A 630 A breaker is not necessarily suitable simply because the system load is below 630 A.
Short-circuit capacity, insulation level, system voltage, and operating conditions must also be considered.
An outdoor circuit breaker may be installed in environments with extreme temperatures, high humidity, dust, salt pollution, or high altitude.
These conditions can affect insulation performance and mechanical operation.
Always communicate the actual installation environment to the manufacturer.
Different projects may use different control voltages.
For example, the control circuit may require AC or DC power depending on the system design.
Confirm the control voltage before production.
The ZW32 should not be considered as an independent device.
Its protection settings need to coordinate with upstream and downstream equipment.
Poor coordination may result in unnecessary tripping or failure to isolate faults effectively.
For medium-voltage distribution projects, the circuit breaker is a critical protection device.
A reliable ZW32 should provide:
Stable vacuum interruption performance
Reliable mechanical operation
High insulation performance
Strong outdoor environmental resistance
Long service life
Low maintenance requirements
Flexible control options
Compatibility with modern distribution automation systems
For international projects, the manufacturer should also be able to provide technical documentation, drawings, test reports, and customized configurations according to project requirements.
The ZW32 outdoor vacuum circuit breaker is a practical solution for medium-voltage outdoor power distribution.
Its combination of vacuum interruption technology, compact structure, outdoor installation capability, and optional electrical control makes it suitable for overhead distribution lines, transformer protection, industrial facilities, substations, and distribution automation systems.
However, selecting the right ZW32 should go beyond simply choosing a model number.
Rated voltage, rated current, short-circuit breaking capacity, insulation level, operating mechanism, control voltage, environmental conditions, and protection coordination should all be considered before placing an order.
For distributors, EPC contractors, utilities, and electrical equipment buyers, working directly with an experienced manufacturer can also help ensure that the circuit breaker configuration matches the actual project requirements.
Contact us with your required voltage, current, short-circuit capacity, control voltage, and installation conditions. Our engineering team can recommend a suitable ZW32 configuration and provide technical specifications, drawings, and a quotation based on your project requirements.
