Ring Main Units (RMUs) are widely used in medium-voltage distribution systems because of their compact design, operational flexibility, and high reliability. They are commonly installed in utility substations, industrial facilities, renewable energy plants, commercial buildings, airports, mining projects, and urban distribution networks.
Although modern RMUs are designed for decades of service, failures can still occur. Unexpected outages not only interrupt power supply but also increase maintenance costs and may damage other electrical equipment.
Understanding the most common causes of RMU failure is the first step toward improving the reliability of your electrical network.
This article explains the nine most common RMU problems and provides practical recommendations for preventing them.
One of the leading causes of RMU failure begins before the equipment is even energized.
Improper installation can create hidden defects that may not become apparent until months or years later.
Common installation mistakes include:
Loose busbar connections
Incorrect cable terminations
Improper grounding
Misaligned switch mechanisms
Incorrect torque on electrical connections
Poor cable bending radius
These issues can cause excessive heating, insulation degradation, and premature equipment failure.
Follow manufacturer installation instructions.
Use calibrated torque tools.
Perform insulation resistance tests.
Conduct commissioning tests before energization.
Many RMUs operate reliably for years with minimal attention, leading some operators to neglect regular inspections.
Without preventive maintenance, small issues can gradually develop into serious failures.
Routine inspections should include:
Mechanical operation checks
Cable termination inspection
Partial discharge detection
Thermal imaging
Cleaning of internal compartments
Verification of protection devices
A preventive maintenance schedule can significantly extend equipment life.
Moisture is one of the biggest enemies of medium-voltage equipment.
Water entering cable compartments or operating mechanisms can result in:
Corrosion
Insulation breakdown
Tracking
Flashover
Rusted operating mechanisms
Outdoor RMUs are particularly vulnerable if enclosure seals deteriorate.
Use IP-rated enclosures.
Replace damaged door seals.
Install anti-condensation heaters where necessary.
Inspect ventilation systems regularly.

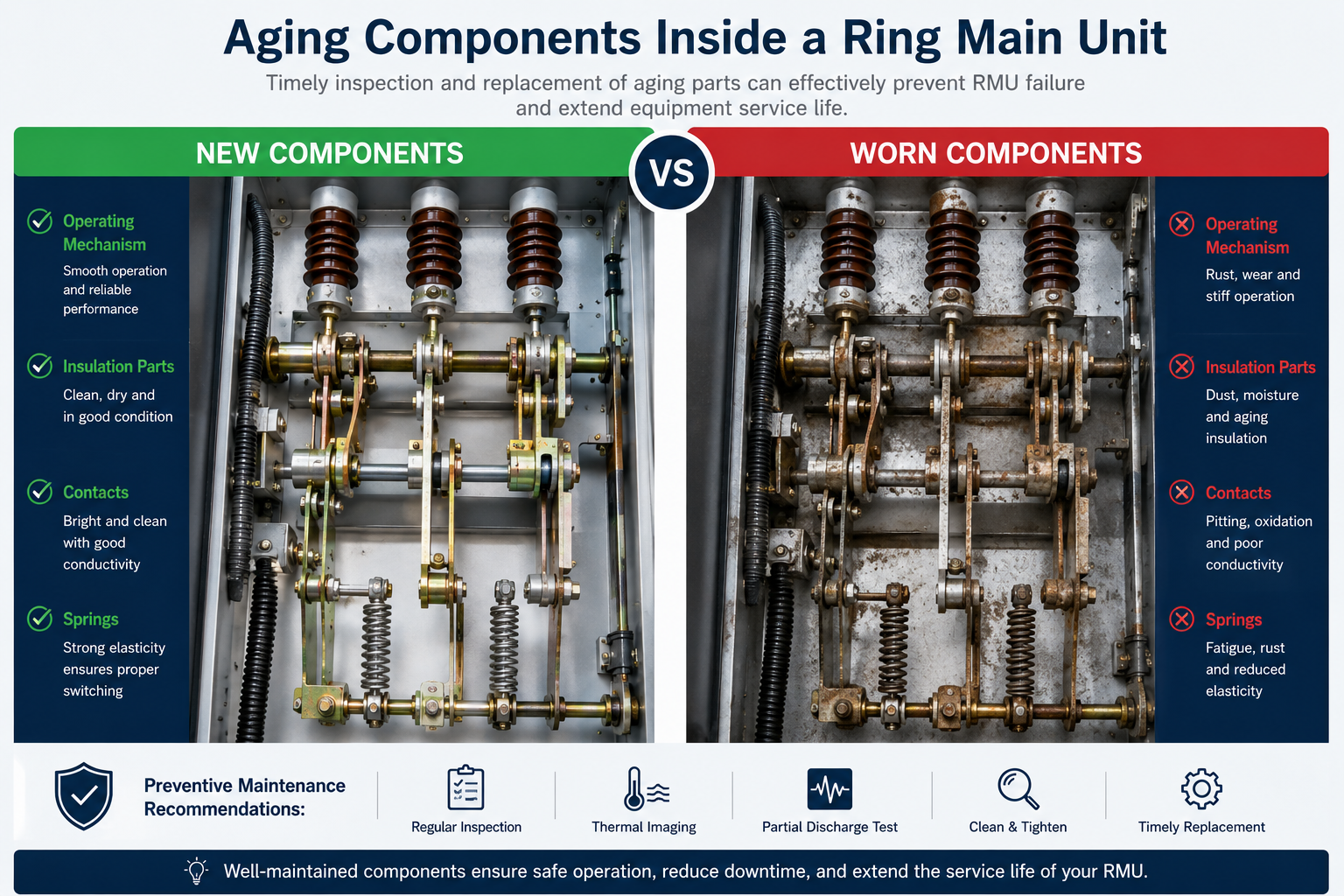

Even high-quality RMUs experience natural aging.
Components affected include:
Insulation materials
Bushings
Operating springs
Vacuum interrupters
Gas seals
Auxiliary contacts
As components age, operating performance gradually declines.
Signs of aging include:
Slower switching
Increased operating force
Abnormal noise
Gas pressure alarms
Visible corrosion
Replacing worn components before failure reduces downtime.
For gas-insulated RMUs, maintaining the correct SF6 gas pressure is essential.
Gas leakage can reduce insulation performance and interrupt safe switching operations.
Possible causes include:
Damaged seals
Aging gaskets
Improper transportation
Mechanical impact
Manufacturing defects
Modern RMUs typically include gas density indicators that provide early warning of pressure loss.
Inspect gas indicators regularly.
Perform leak detection tests during maintenance.
Replace damaged sealing components immediately.
RMUs are designed to operate within specified electrical ratings.
Continuous overload can result in:
Excessive conductor temperature
Contact wear
Insulation aging
Cable damage
Reduced equipment life
Load growth in industrial facilities often exceeds the original system design.
Regular load monitoring helps identify potential overload conditions before failures occur.
Human error remains a major cause of equipment failure.
Examples include:
Incorrect switching sequence
Closing onto an existing fault
Operating under unsafe conditions
Failure to follow lockout/tagout procedures
Proper operator training significantly reduces operational mistakes.
Many modern RMUs include mechanical and electrical interlocks that prevent dangerous switching operations.
Harsh environments accelerate equipment deterioration.
Common contaminants include:
Dust
Salt spray
Chemical vapors
Industrial pollution
Sand
High humidity
Contamination may create conductive paths across insulation surfaces.
For coastal or industrial areas, corrosion-resistant enclosures and routine cleaning are highly recommended.
Protection devices are designed to isolate faults before equipment damage occurs.
Poor coordination between:
Relays
Circuit breakers
Fuses
Current transformers
may allow faults to persist longer than intended.
Proper protection studies help ensure that only the affected section of the network is disconnected during a fault.
The following practices can significantly improve RMU reliability:
Perform annual preventive maintenance.
Conduct infrared thermal inspections.
Monitor insulation resistance.
Verify gas pressure regularly.
Replace aging components proactively.
Keep operating records.
Train maintenance personnel.
Use genuine spare parts.
Install equipment according to international standards.
Not all RMUs offer the same level of reliability.
When selecting a supplier, consider:
Compliance with IEC 62271 standards
Type test certification
Quality of vacuum interrupters
Gas sealing technology
Mechanical endurance
Protection options
Factory testing procedures
Technical support
Spare parts availability
Customization capabilities
A reputable manufacturer provides not only reliable products but also long-term technical support.
Ring Main Unit failures rarely happen without warning. Most problems develop gradually due to installation errors, insufficient maintenance, aging components, environmental conditions, or operational mistakes.
By implementing a preventive maintenance program, monitoring equipment health, and choosing high-quality RMUs from an experienced manufacturer, utilities and industrial users can significantly reduce downtime, improve operational safety, and extend equipment service life.
Whether your project involves urban power distribution, renewable energy integration, industrial facilities, or commercial infrastructure, investing in reliable RMUs is one of the best ways to ensure a stable and efficient electrical network.
Poor maintenance, environmental contamination, moisture ingress, and aging components are among the leading causes.
A visual inspection is recommended every 6–12 months, with comprehensive preventive maintenance performed annually or according to the manufacturer's guidelines.
Yes. Low SF6 gas pressure can reduce insulation performance and compromise safe switching operations. Gas density indicators should be checked regularly.
A high-quality RMU generally has a service life of 25–40 years, depending on operating conditions, maintenance practices, and environmental factors.
Proper installation, routine preventive maintenance, thermal inspections, load monitoring, and selecting equipment from a trusted manufacturer are the most effective ways to minimize failures.
