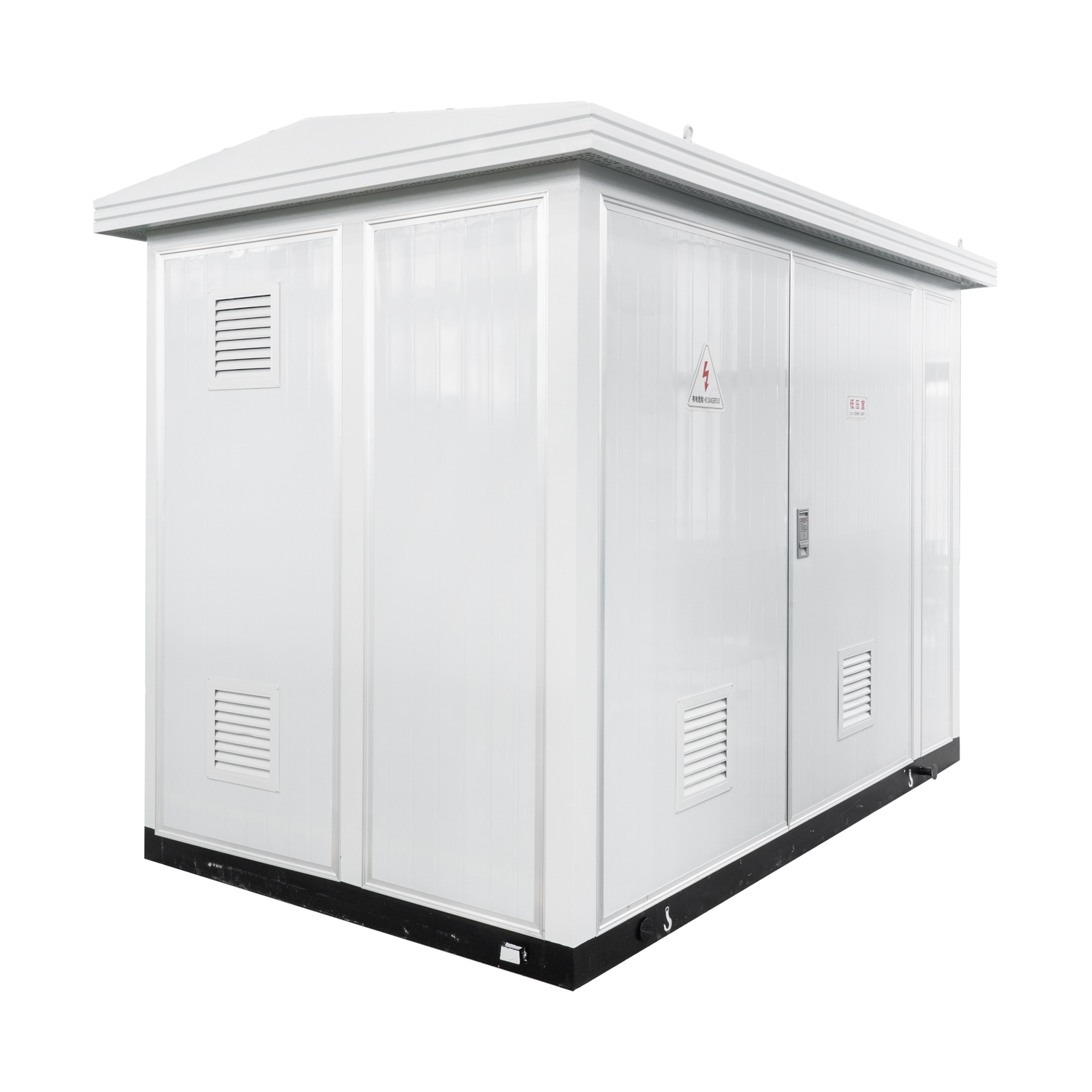

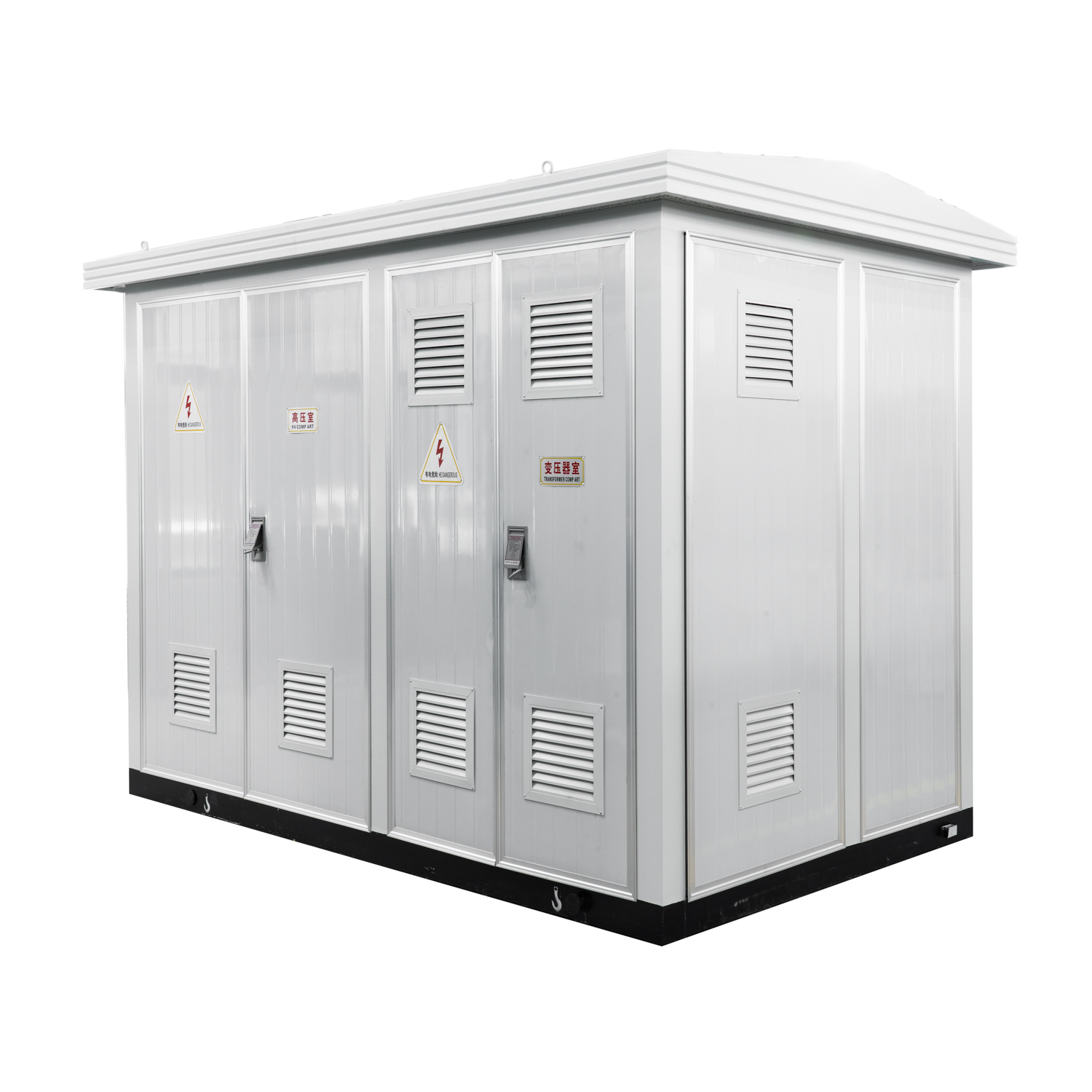

The YBM Series Prefabricated Substation is a compact and integrated power distribution solution designed for medium voltage electrical systems. It combines the main medium voltage, transformer and low voltage distribution equipment within a compact enclosure, helping simplify installation and reduce the space required for a conventional substation.

The prefabricated substation can be configured with an oil immersed transformer or dry type transformer, together with suitable medium voltage switchgear and low voltage distribution equipment. The internal arrangement can be customized according to the customer's voltage level, transformer capacity, electrical configuration and project requirements.

Designed for outdoor installation, the compact substation is suitable for industrial plants, commercial buildings, infrastructure projects, solar power systems, wind power projects and other power distribution applications.

Why Choose a Prefabricated Substation?

• Integrated Design: Combines medium voltage switchgear, transformer and low voltage distribution equipment into one compact power distribution unit.

• Space Saving: The compact structure helps reduce the installation footprint compared with separately installed electrical equipment.

• Faster Installation: Major electrical components can be assembled and tested at the factory, reducing on site installation work.

• Flexible Configuration: Transformer type, MV switchgear, LV distribution equipment and electrical parameters can be configured according to project requirements.

• Outdoor Application: Designed for outdoor power distribution applications with a suitable enclosure and protection configuration.

• Complete Power Distribution Solution: Can be supplied as an integrated substation for industrial, commercial and renewable energy projects.

Key Features of YBM Series

• Compact Integrated Structure: The substation integrates the main power distribution equipment into a compact enclosure for convenient transportation and installation.

• Medium Voltage Section: The MV section can be configured with suitable medium voltage switchgear or RMU according to the required electrical system.

• Transformer Section: Oil immersed or dry type transformers can be selected according to the project requirements.

• Low Voltage Distribution: The LV section can be equipped with a suitable low voltage distribution cabinet for outgoing circuits and load distribution.

• Flexible Electrical Configuration: Rated voltage, transformer capacity, protection devices, cable connections and other parameters can be customized.

• Outdoor Enclosure: The enclosure provides protection for the internal electrical equipment and can be configured according to the installation environment.

• Factory Assembly: The main components can be assembled and checked before shipment to help simplify project installation and commissioning.

YBM Series Technical Data

The following specifications are reference configurations for YBM Series prefabricated substations. Final technical parameters shall be confirmed according to the approved technical specification and drawings.

Note: Transformer capacity, voltage combination, switchgear configuration, enclosure dimensions and other technical parameters can be customized according to project requirements. Final dimensions and equipment configuration shall be subject to the approved technical drawings.

Typical Applications

Industrial Power Distribution

Suitable for factories, manufacturing plants, workshops, mining projects and other industrial facilities requiring medium voltage power distribution.

Commercial & Public Buildings

Can be used for shopping centers, office buildings, hotels, warehouses and other commercial or public facilities.

Renewable Energy

Suitable for solar PV and wind power projects where medium voltage electricity needs to be transformed and distributed through an integrated substation.

Infrastructure Projects

Applicable to ports, water treatment facilities, transportation infrastructure, tunnels and other infrastructure power distribution systems.

Construction Projects

The compact structure makes the prefabricated substation suitable for construction projects where installation space and construction time are important considerations.

Buyer’s Guide: Selecting the Right Prefabricated Substation

To select a suitable prefabricated substation, the following information should be confirmed:

• Voltage Level: Confirm the medium voltage system, such as 10kV, 11kV or other required voltage.

• Transformer Capacity: Select the transformer capacity according to the connected load and expected future demand.

• Transformer Type: Choose between an oil immersed transformer and dry type transformer according to the installation environment and project requirements.

• MV Switchgear: Confirm whether the project requires RMU, load break switch, circuit breaker or another MV configuration.

• Low Voltage System: Confirm the required secondary voltage, main breaker rating and number of outgoing circuits.

• Cable Entry: Confirm cable entry and connection requirements according to the site layout.

• Installation Environment: Provide information about the outdoor installation location and environmental conditions.

• Enclosure Requirements: Confirm the required protection and enclosure configuration according to the project environment.

Installation & Handling

• Install the prefabricated substation on a suitable and level foundation.

• Ensure sufficient space around the enclosure for operation, inspection and maintenance.

• Provide suitable cable trenches or cable entry arrangements according to the approved drawings.

• Check all electrical connections and grounding before commissioning.

• Use the designated lifting points when loading, unloading and positioning the substation.

• Do not lift the equipment from unauthorized components or enclosure sections.

• Keep the equipment protected from unnecessary impact during transportation and installation.

• Installation and commissioning should be carried out by qualified electrical personnel according to applicable local regulations and project requirements.

Frequently Asked Questions (FAQ)

What is a prefabricated substation?

A prefabricated substation is an integrated power distribution unit that combines a transformer with medium voltage and low voltage electrical equipment inside a compact enclosure. It is designed to simplify transportation, installation and commissioning.

What is the difference between a prefabricated substation and a conventional substation?

A prefabricated substation integrates the main electrical equipment into a factory-assembled unit, while a conventional substation normally requires individual equipment to be installed and connected on site. The prefabricated design can help reduce installation work and construction time.

What transformer can be used in a prefabricated substation?

An oil immersed transformer or dry type transformer can be selected according to the project requirements, installation environment and required capacity.

What voltage is available for a prefabricated substation?

The medium voltage can be configured according to the electrical system. Common configurations include 10kV and 12kV, with other voltage levels available according to project requirements.

Can the prefabricated substation be customized?

Yes. The transformer capacity, voltage level, MV switchgear, LV distribution equipment, cable arrangement and enclosure configuration can be customized according to the customer's technical specification.

Can the substation be used for solar power projects?

Yes. Prefabricated substations can be configured for solar PV and other renewable energy applications, depending on the project electrical system and grid connection requirements.

Can you provide factory testing before shipment?

Yes. The equipment can be inspected and tested according to the agreed technical requirements before shipment.

Factory Supply & Service

Zhejiang Shengxian Electric Power Technology Co., Ltd. is a professional manufacturer of medium and low voltage power distribution equipment. Our product range includes prefabricated substations, compact substations, MV switchgear, RMU, oil immersed transformers, dry type transformers and low voltage distribution cabinets.

We provide factory direct supply and customized power distribution solutions for overseas projects. The configuration of the prefabricated substation can be developed according to customer drawings, single line diagrams, technical specifications and project requirements.

Before shipment, the equipment can be inspected and tested according to the agreed technical requirements. We also provide export packaging, technical communication and after sales support for overseas customers.

Contact Us

For a quotation or technical proposal, please send us your required voltage level, transformer capacity and project requirements.
