Power outages remain one of the biggest challenges for utilities, industrial plants, renewable energy projects, and commercial facilities. Even a short interruption can stop production lines, damage sensitive equipment, disrupt critical services, and generate significant economic losses.
While no electrical device can completely eliminate outages caused by extreme weather, natural disasters, or major grid failures, engineers agree that Ring Main Units (RMUs) play a crucial role in minimizing interruptions and improving overall power system reliability.
So, can an RMU prevent power outages?
The short answer is: not entirely—but it can significantly reduce the frequency, duration, and impact of outages.
Let's examine why.
Before discussing the role of RMUs, it's important to understand why power outages occur.
Common causes include:
Cable faults
Equipment failures
Short circuits
Overloaded networks
Severe weather conditions
Animal interference
Human errors during maintenance
Aging infrastructure
In traditional radial distribution systems, a fault at a single point can interrupt power to all downstream customers.
This is where RMUs provide a significant advantage.

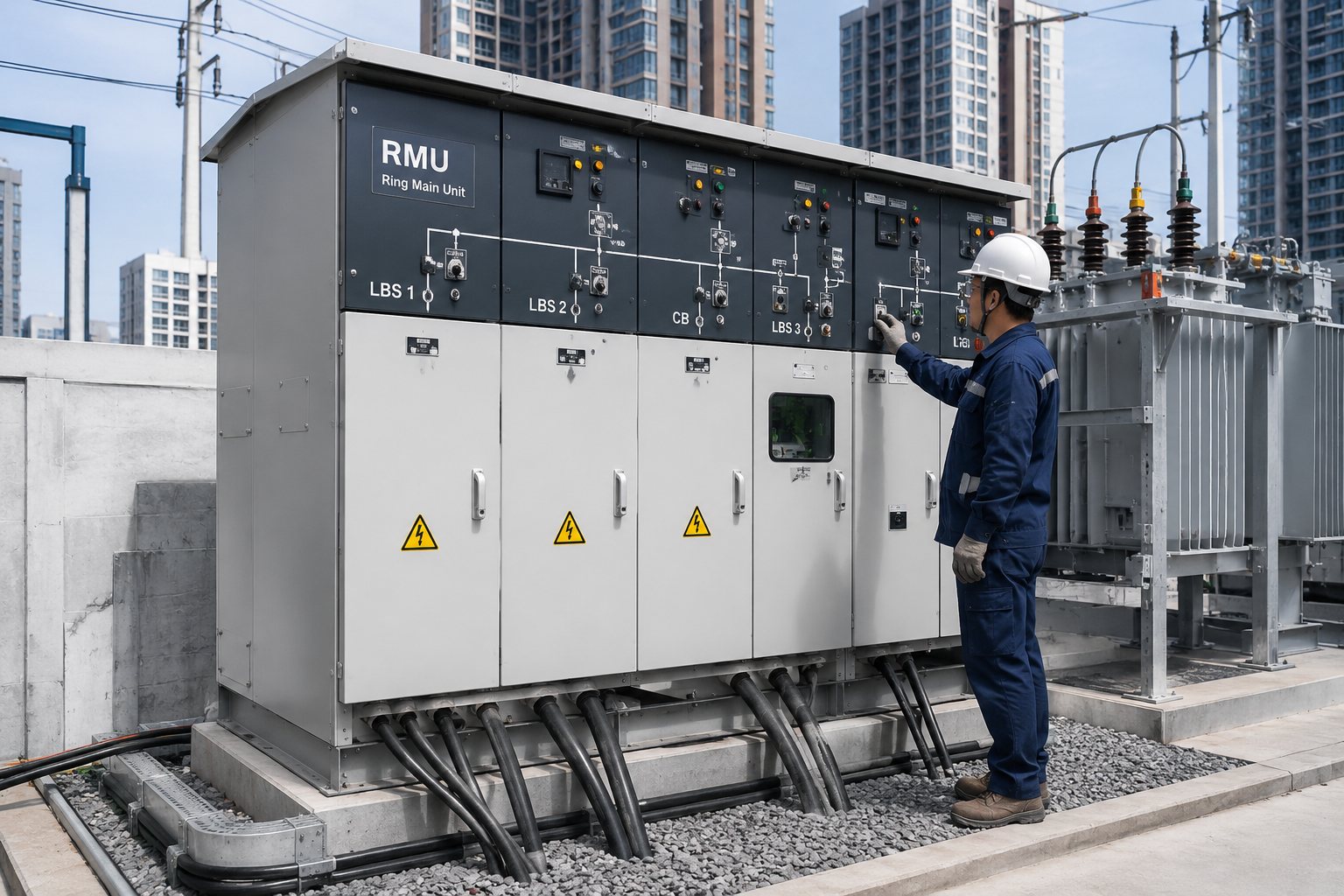

A Ring Main Unit (RMU) is a compact medium-voltage switchgear assembly used in secondary power distribution networks, typically operating at voltages up to 36kV.
An RMU generally consists of:
Load Break Switches (LBS)
Circuit Breakers
Fuse Protection Units
Busbars
Cable Compartments
Protection Relays
The equipment is designed to create a ring network rather than a radial network, allowing power to be supplied from multiple directions.
This configuration greatly improves network reliability.
One of the biggest advantages of an RMU is its ability to quickly isolate faults.
When a fault occurs in a cable section:
The protection system detects the fault.
The affected section is isolated.
Power is automatically or manually restored through another route.
Instead of shutting down an entire feeder, only the faulty section is disconnected.
As a result:
Fewer customers lose power.
Downtime is reduced.
Maintenance becomes easier.
For utilities, this capability can reduce outage durations from hours to minutes.

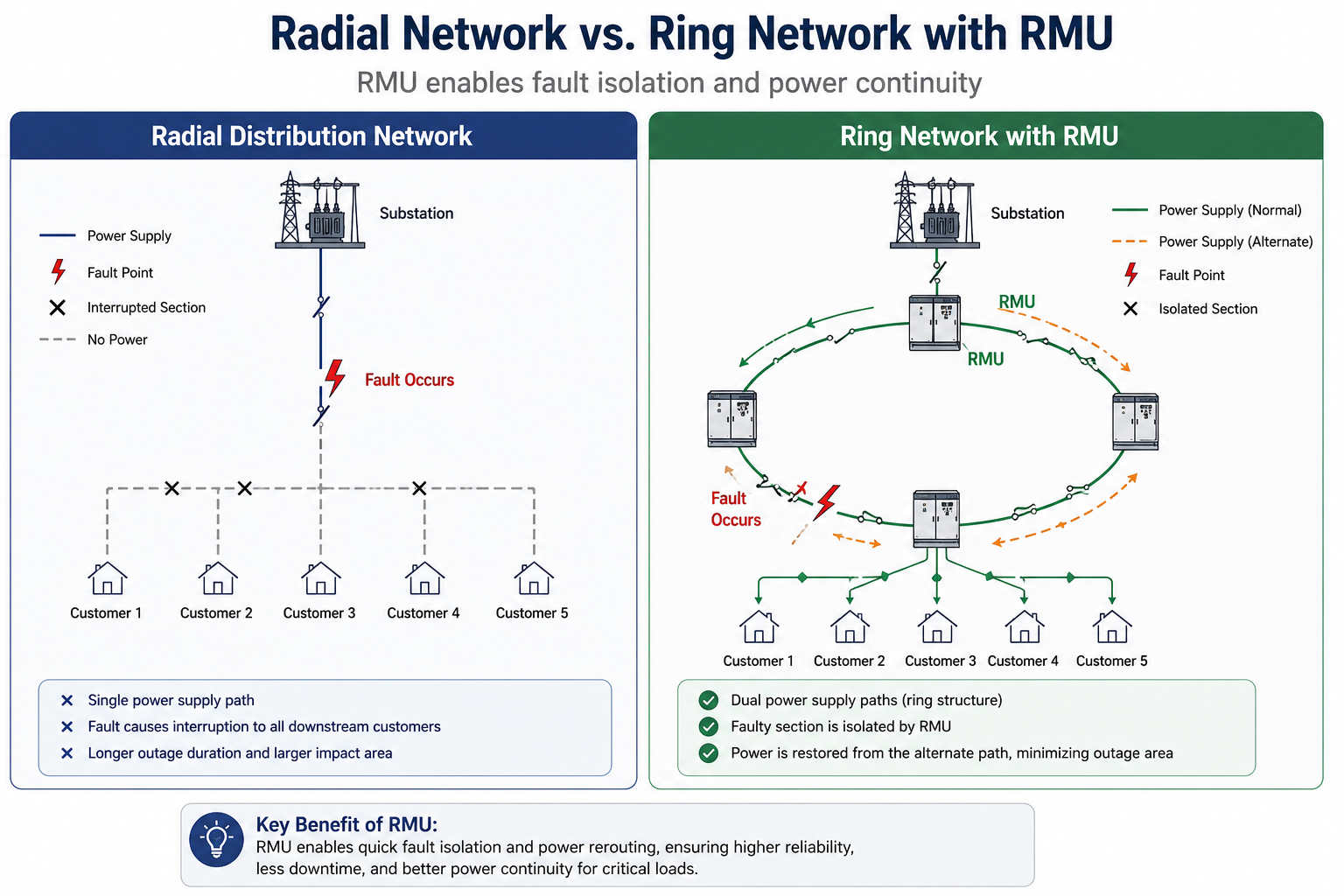

Traditional radial systems rely on a single power source.
If that source fails, power is lost.
RMUs are designed for ring network operation, which means electricity can flow from either direction.
When one feeder experiences a fault:
The faulty section is isolated.
Power is rerouted through the alternate feeder.
Most customers continue receiving electricity.
This redundancy is one of the primary reasons engineers prefer RMUs in urban distribution networks.
Reliability is often measured using indicators such as:
SAIDI (System Average Interruption Duration Index)
SAIFI (System Average Interruption Frequency Index)
Utilities worldwide continuously work to improve these metrics.
By reducing fault impact and enabling faster restoration, RMUs contribute significantly to improved reliability performance.
Many utilities have reported lower outage frequencies after upgrading from radial systems to ring network configurations.
Certain facilities cannot tolerate power interruptions.
Examples include:
Hospitals
Data centers
Airports
Manufacturing plants
Water treatment facilities
Renewable energy plants
RMUs provide an additional layer of protection by ensuring continuity of service and reducing the risk of widespread outages.
For mission-critical operations, this reliability can be invaluable.
Electrical engineers generally view RMUs as one of the most effective tools for improving medium-voltage distribution reliability.
According to industry experience, RMUs offer:
Engineers appreciate the ability to isolate faults without affecting large sections of the network.
Maintenance can often be performed on one section while keeping the rest of the network energized.
Network operators can switch power sources and reconfigure distribution paths as needed.
Modern RMUs feature:
Arc-resistant designs
Interlocking systems
Sealed compartments
Remote operation capabilities
These features help protect both personnel and equipment.
The answer is no.
Even the most advanced RMU cannot completely eliminate outages caused by:
Hurricanes
Typhoons
Floods
Lightning strikes
If the entire transmission network collapses, local RMUs cannot maintain supply independently.
Poorly maintained cables and transformers can still fail regardless of RMU installation.
Improper operation or maintenance mistakes may still result in interruptions.
However, RMUs greatly reduce the impact of these events by limiting fault propagation and enabling faster recovery.

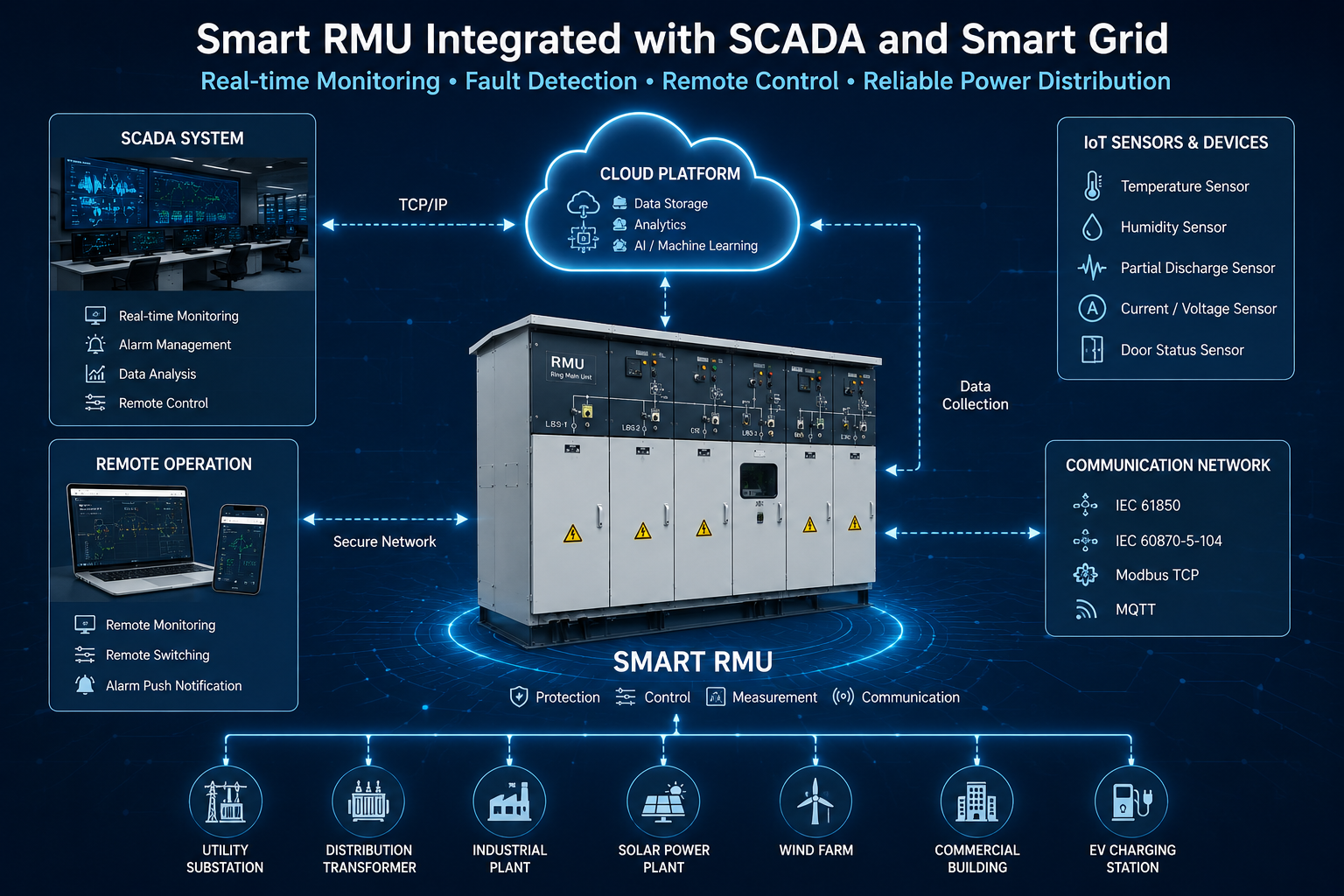

The latest generation of RMUs incorporates smart technologies.
Features include:
Remote monitoring
SCADA integration
Fault passage indicators
Real-time diagnostics
Automated switching
IoT connectivity

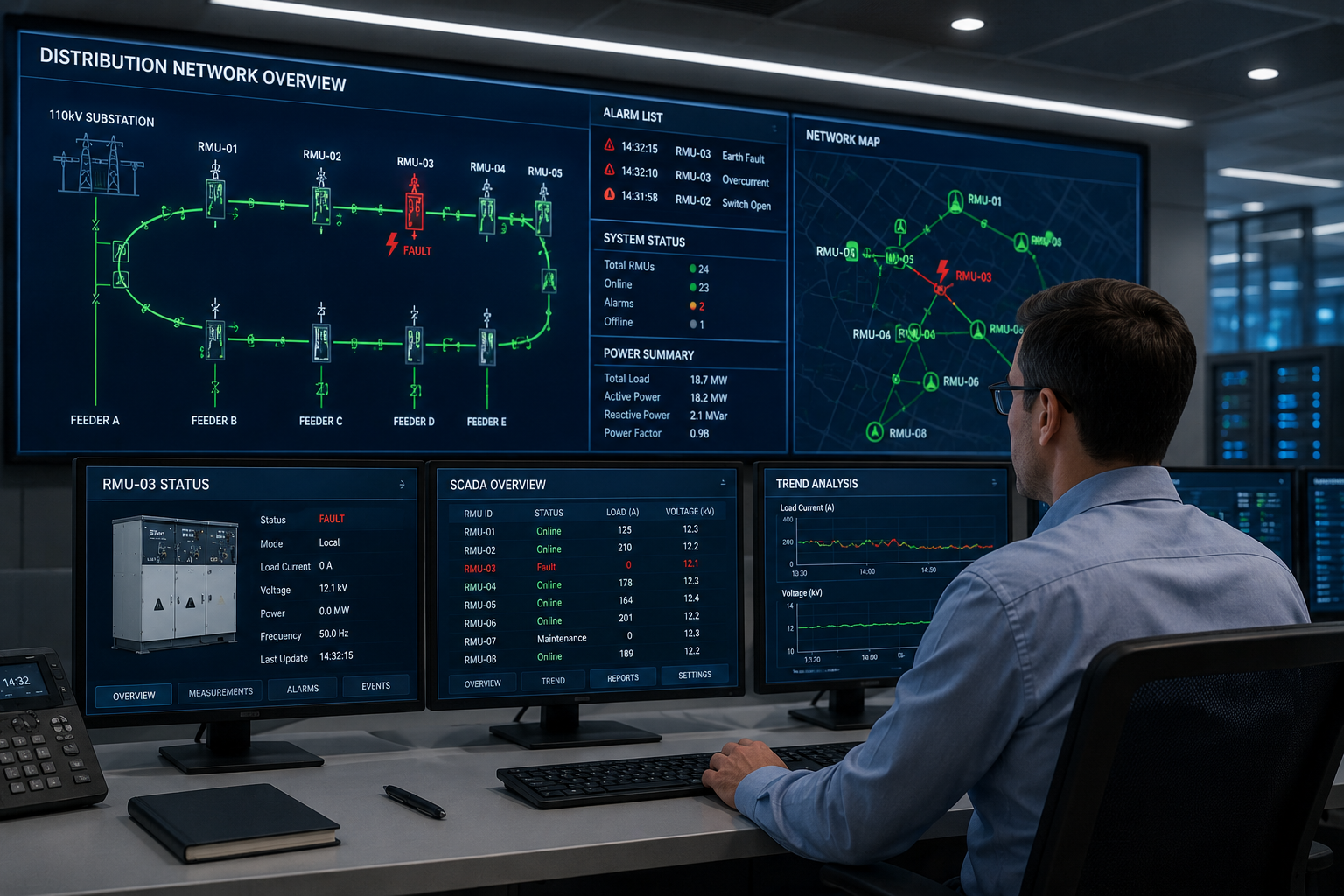

Smart RMUs allow utilities to identify problems before they cause outages.
Predictive maintenance can be performed based on actual equipment conditions rather than fixed schedules.
This further enhances network reliability and reduces operational costs.
Renewable energy installations require highly reliable distribution equipment.
RMUs are widely used in:
RMUs connect inverter stations and collector networks while ensuring reliable operation.
Ring networks help maintain power generation even when individual sections experience faults.
RMUs provide safe switching and protection for energy storage applications.
As renewable energy adoption grows, RMUs continue to play an increasingly important role in maintaining grid stability.
To achieve the best results, buyers should consider:
Ensure compatibility with network voltage levels.
Select adequate capacity for expected load growth.
Critical for fault protection performance.
Choose suitable relay and breaker arrangements.
Consider:
Humidity
Dust
Coastal environments
High-altitude installations
Future-proof your system with remote monitoring and automation capabilities.
The global shift toward urbanization, renewable energy integration, and smart grids has increased the demand for reliable distribution equipment.
RMUs help utilities:
Improve service continuity
Reduce outage duration
Minimize maintenance costs
Enhance operational flexibility
Increase network safety
Support smart grid initiatives
For these reasons, RMUs remain one of the most widely adopted solutions in modern medium-voltage distribution systems.
So, can an RMU prevent power outages?
Not completely.
However, engineers consistently agree that RMUs are among the most effective tools for reducing outage frequency, limiting fault impact, and restoring power quickly when problems occur.
By enabling fault isolation, providing alternative power paths, and supporting smart grid technologies, RMUs significantly improve the reliability of modern electrical networks.
For utilities, industrial facilities, renewable energy projects, and commercial developments, investing in a high-quality RMU is not just about equipment—it is about ensuring continuous, reliable power for years to come.
