Cast Resin Transformer Selection: 6 Key Parameters You Must Check Before Buying

Introduction

Choosing a dry type transformer is not as simple as picking a kVA number from a catalog. Get it wrong, and you risk overheating, premature failure, code violations, or simply paying for features you don't need.

This guide walks you through 6 key parameters you must check before ordering a cast resin dry type transformer for your project. Whether you are an electrical contractor, a panel builder, or a project owner, these steps will help you make the right choice.

Step 1 – Determine the Correct kVA Capacity

The most common mistake is undersizing or oversizing the transformer.

• Undersizing leads to overheating, reduced lifespan, and potential nuisance tripping.

• Oversizing wastes money on higher initial cost and increased no-load losses.

How to calculate roughly:

• Single-phase: kVA = (Volts × Amps) / 1000

• Three-phase: kVA = (Volts × Amps × 1.732) / 1000

When in doubt, add a 20–25% safety margin for future load growth. Common ratings for commercial and industrial projects range from 315kVA to 2500kVA.

✅ Tip: Ask us for a load calculation worksheet – free upon request.

Step 2 – Select Primary and Secondary Voltages

Dry type transformers are available for a wide range of voltages. You must match:

• Primary voltage – the incoming utility or generator voltage

• Secondary voltage – the voltage required by your downstream equipment

Typical voltages we supply:

We also support non-standard voltages – simply provide your required values.

✅ Tip: Always confirm frequency – 50Hz or 60Hz. Some transformers support both.

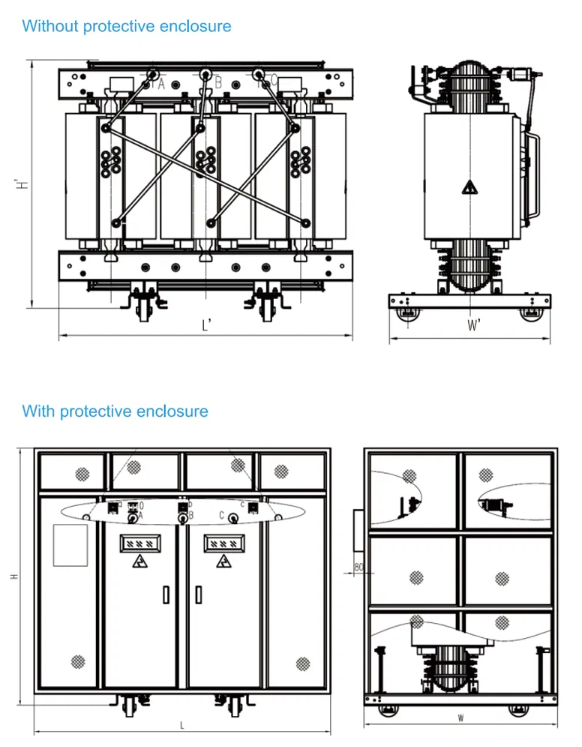

Step 3 – Choose the Right Enclosure (IP Rating)

The enclosure determines where the transformer can be safely installed.

Recommendation:

• Clean indoor electrical room → IP20 is sufficient and most economical

• Outdoor or dusty/wet environment → IP34 or IP54 with weatherproof coating

✅ Tip: For outdoor installation, also request tropicalization (anti-mold, anti-corrosion treatment).

Step 4 – Understand Insulation Class and Temperature Rise

Insulation class defines the maximum operating temperature of the windings. Higher class means better overload capability but also higher cost.

What about temperature rise?

• Standard temperature rise for Class F is 100°C (ambient + rise)

• For longer life, you can specify 80°C rise (derated operation)

✅ Tip: For most commercial buildings, Class F is perfectly adequate. Choose Class H for steel mills, mines, or high-temperature regions.

Step 5 – Check Certifications for Your Target Market

Different markets require different standards. A transformer certified to the wrong standard may be rejected at customs or by the local utility.

What we provide:

• IEC 60076 routine test report with every unit

• CE declaration for European projects

• Third-party inspection (SGS, BV, Intertek) can be arranged

✅ Tip: Ask your buyer which standard their local utility requires before ordering.

Step 6 – Copper vs Aluminum Windings – Which One?

This is one of the most debated topics in transformer selection. Here are the facts:

Our recommendation:

• For export and long-life projects (15+ years) → Copper

• For very tight budgets and local use → Aluminum acceptable

✅ Tip: If using aluminum, ensure proper bi-metallic terminals are used for copper cable connections.

Bonus – Don't Forget These Optional Features

Depending on your application, you may also need:

• Temperature sensors (PT100 or PTC) – for monitoring winding temperature and controlling cooling fans

• Forced air cooling (AF) – increases kVA capacity by 30–40% temporarily

• Sound enclosure – reduces noise below 50dB for ultra-quiet environments

• High altitude design – derating or special insulation above 1000m

• Special paint (RAL color) – for brand or project requirements

Conclusion – Your Selection Checklist

Before contacting a supplier, have these 6 items ready:

1. Rated capacity (kVA)

2. Primary voltage / Secondary voltage

3. Frequency (50Hz or 60Hz)

4. Enclosure IP rating (IP20, IP23, IP54, etc.)

5. Target market / required certification (IEC, IEEE, CE)

6. Winding material preference (copper or aluminum)

With this information, any good supplier can provide an accurate quotation and technical datasheet within 24 hours.
