Prefabricated Substation Vs Traditional Civil-Construction Substation

Prefabricated Substation vs Traditional Civil-Construction Substation: Cost and Schedule Compared

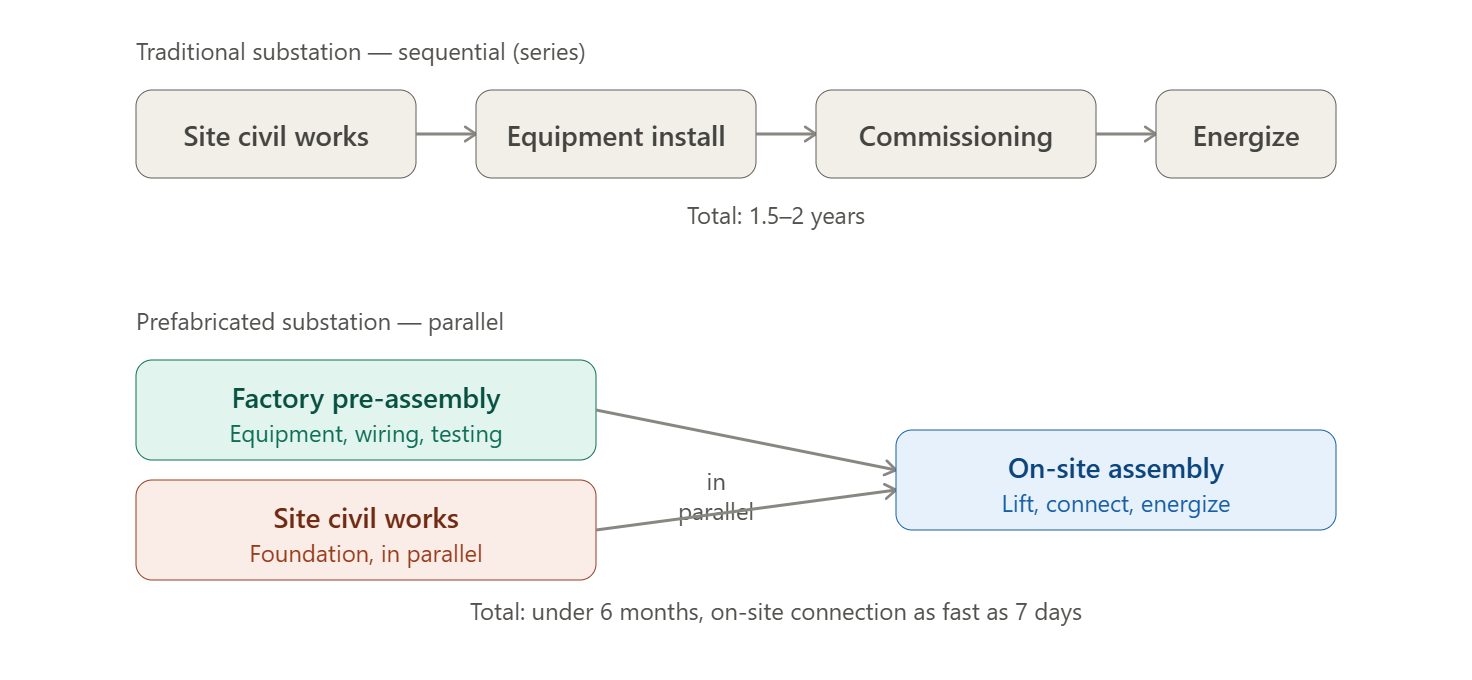

I. Core Difference Between the Two

Traditional civil-construction substation: Equipment and buildings are constructed on site — cast-in-place concrete, masonry, and finishing all happen in the field. This is a "series" process — civil works, installation, and commissioning must happen one after another, in sequence.

Prefabricated substation: Equipment is pre-assembled, wired, and commissioned inside the factory. On-site work is limited to lifting, assembling, and connecting modules. Civil works and equipment installation run in parallel instead of in series, which lets site civil works start earlier and shortens the overall construction timeline.

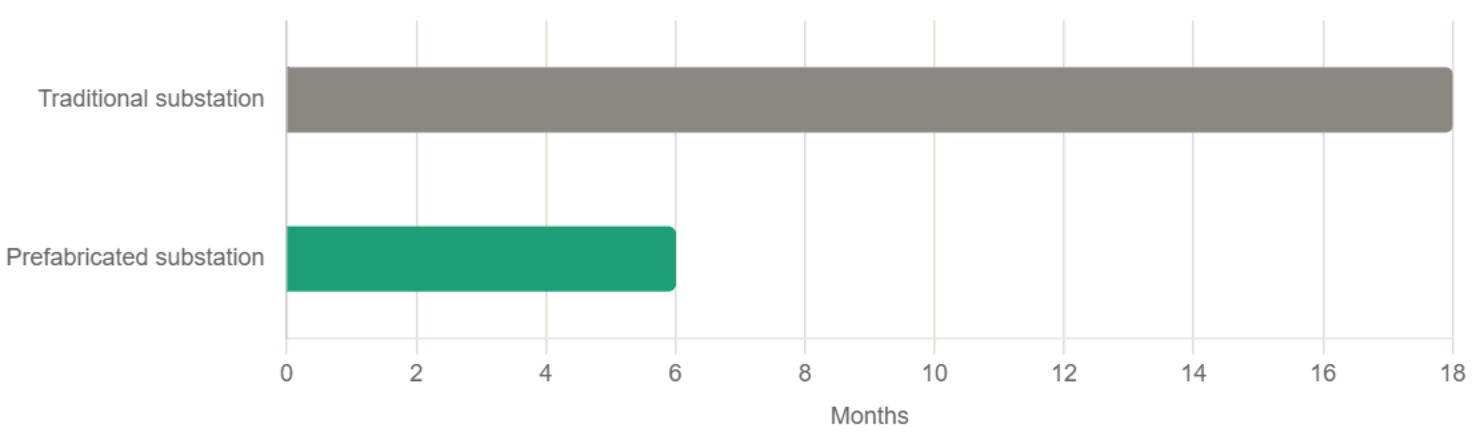

II. Schedule Comparison: How Big Is the Gap

A real overseas case illustrates the gap: one prefabricated substation project exported to Oman went from order placement, factory production, and sea freight, to on-site installation, commissioning, and final energization in under 6 months — while a traditional civil-construction substation of comparable scale would typically take 1.5 to 2 years to complete.

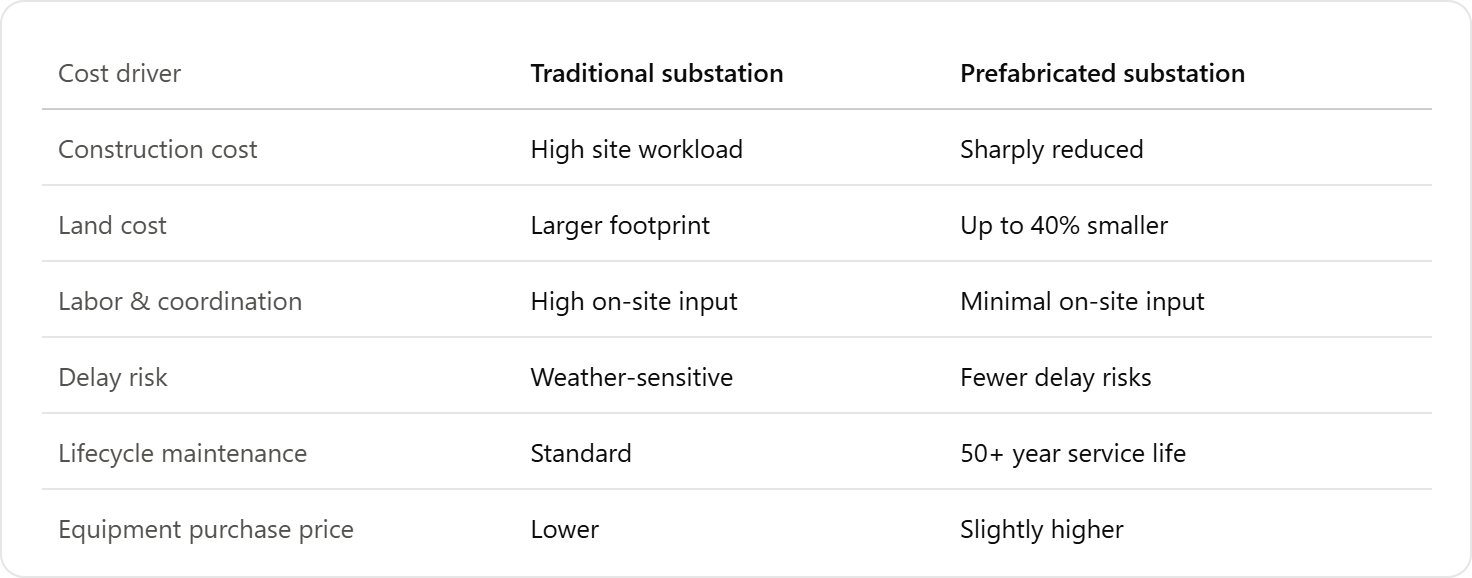

III. Cost Comparison: Where the Savings Come From

1. Construction cost: Site workload drops sharply, significantly reducing construction, coordination, and management costs

2. Land cost: Footprint can be reduced by up to 40% while still meeting usage standards, lowering land-related costs

3. Labor and coordination cost: Less on-site multi-interface coordination and fewer labor hours required

4. Delay-risk cost: Fewer construction risks and delays (e.g. from weather), indirectly reducing the hidden costs of schedule overruns

5. Long-term maintenance cost: With robust anti-corrosion treatment, prefabricated cabins are rated for 40 years without corrosion and a service life of 50+ years, lowering lifecycle maintenance costs

It's worth noting that prefabricated equipment itself typically carries a higher unit purchase price than conventional individually-sourced equipment — the savings don't come from "cheaper equipment," but from the combined reduction in civil works, labor, schedule, coordination, and land costs. The larger the project scale and the tighter the schedule requirement, the more pronounced the cost advantage of prefabricated substations becomes.

IV. When Prefabricated Substations Make More Sense

• Solar and wind power projects racing to reach commercial operation

• Overseas export projects (poor local site conditions, high local labor costs, difficult coordination)

• Cold-climate or rainy-season projects (traditional civil works can't run year-round)

• Urban distribution network upgrades with limited available land

V. When Traditional Civil Construction Remains the Reasonable Choice

• Very large-scale projects requiring custom, non-standard building design

• Locations with mature, low-cost local civil construction teams and no urgent schedule pressure

• Government projects with specific requirements on building appearance or structure

VI. Summary

[Image 4 — summary comparison table]
