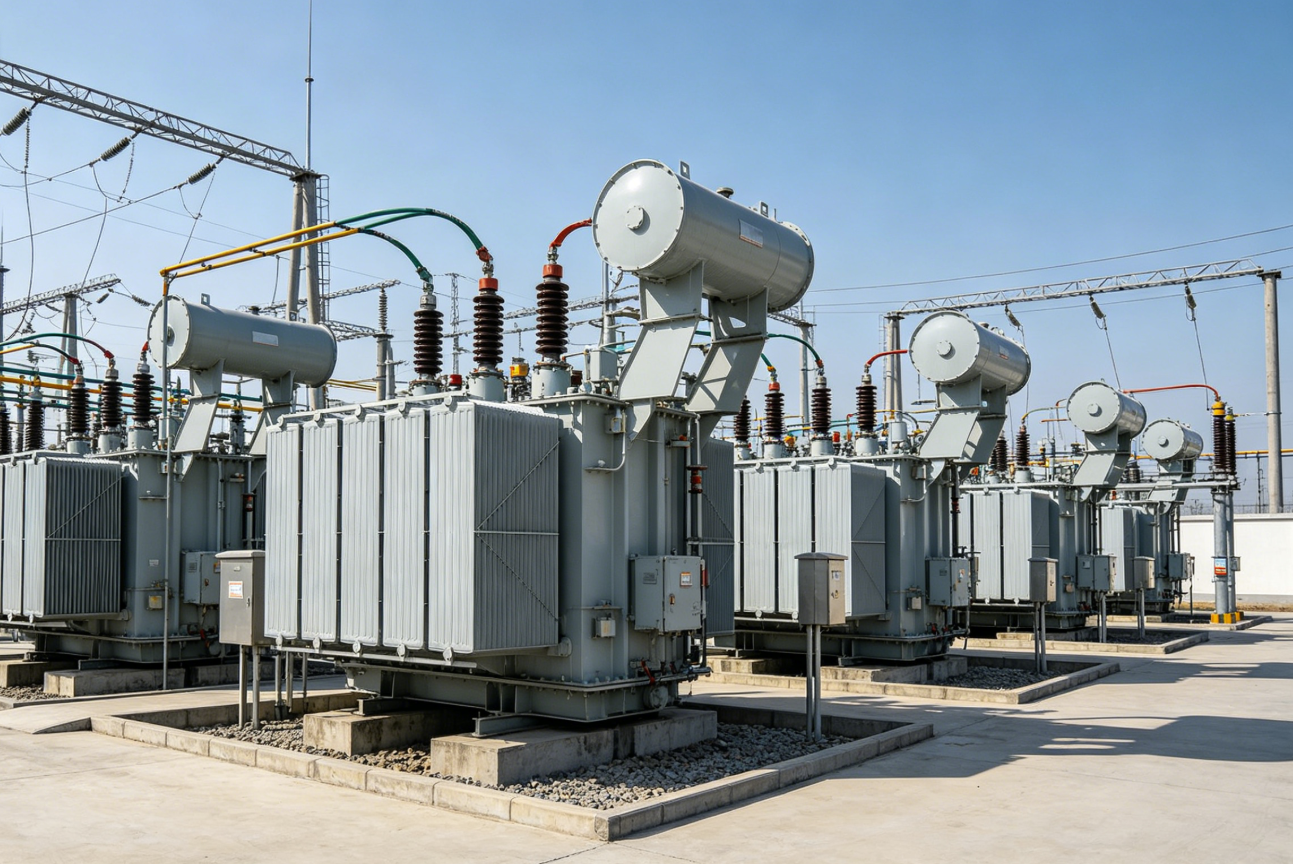

10kV distribution transformers are the backbone of medium-voltage power networks. They step down voltage from transmission levels to usable levels for industrial facilities, commercial buildings, and residential areas. However, due to continuous operation, environmental stress, and aging components, these transformers are prone to various faults.
⚡ Did you know? According to industry statistics, over 70% of transformer failures can be prevented through regular inspection and timely maintenance.
This comprehensive guide covers:
The most common types of 10kV transformer faults
Root cause analysis for each fault type
Practical daily, periodic, and online maintenance strategies
A downloadable maintenance checklist (optional)
Whether you are a power engineer, maintenance technician, or plant manager, this article will help you extend transformer life and reduce unplanned downtime.
Transformer faults can be classified into six major categories based on the affected component.
Winding faults are among the most critical failures because they often lead to complete transformer breakdown.
Common causes:

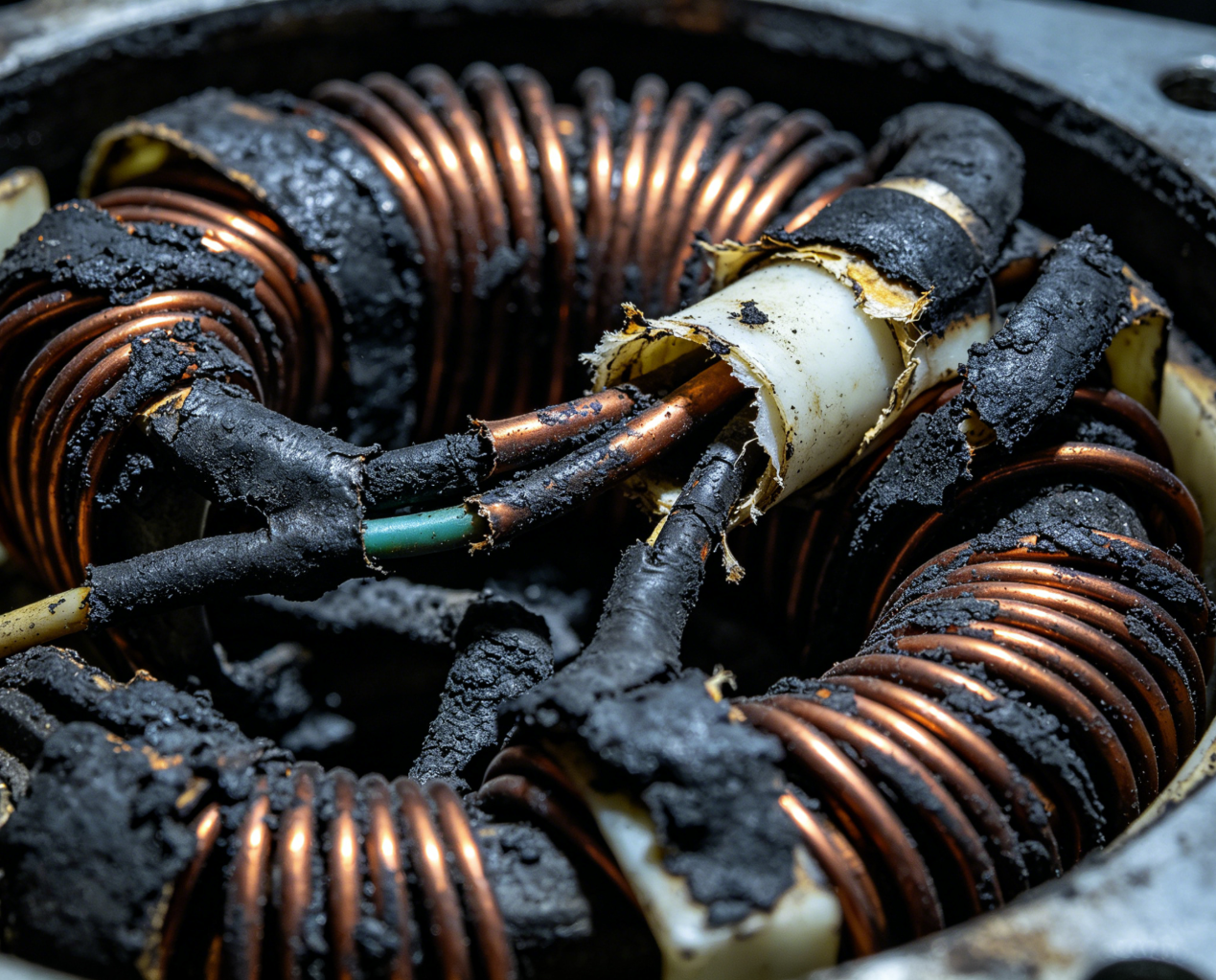

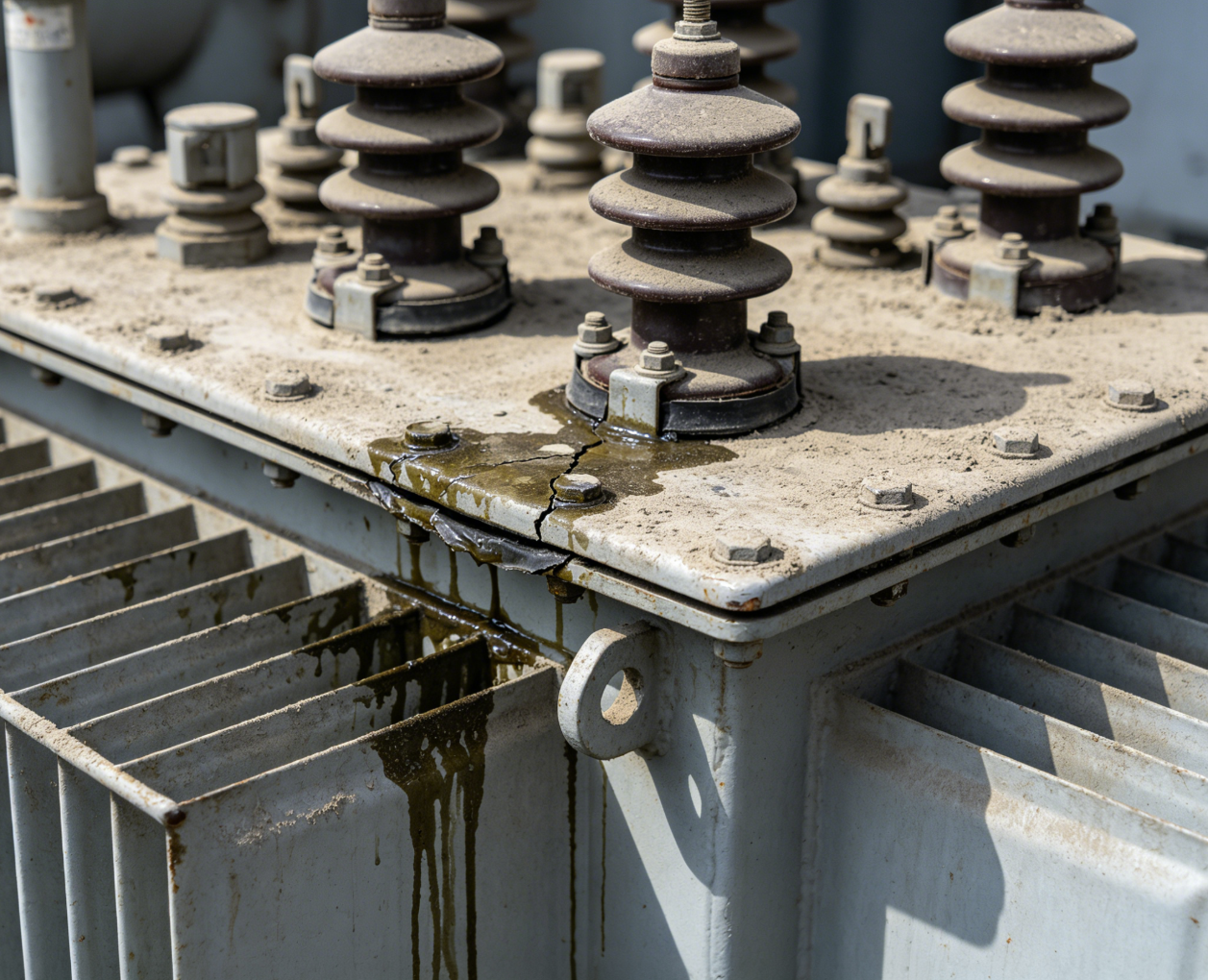

Short-circuit currents – Generate extreme heat, causing insulation aging, inter‑layer/inter‑turn short circuits, open circuits, or burnouts.
Electromagnetic forces – External short circuits create mechanical stress that deforms or breaks windings.
Poor cooling or oil leakage – Leads to overheating and gradual insulation failure.
Typical signs: Overheating, smoke, differential protection trips, abnormal noise.
The iron core provides a magnetic path for flux. Core faults usually result from mechanical or insulation issues.
Common causes:
Loose core clamps or press plates – cause vibration and audible noise.
Poor core grounding – leads to circulating currents and local overheating.
Uneven lamination – increases eddy currents, raising iron losses and temperature.
Typical signs: Increased noise, higher no‑load current, localized hot spots.
Tap changers (off‑circuit or on‑load) adjust voltage ratio. Accessories include bushings, relays, and pressure relief devices.
Common causes:
Decreased contact pressure → poor contact, misalignment, local overheating.
Failed pressure relief valve or gas relay.
Cracked porcelain bushings or flashover due to dust/oil contamination.
Malfunctioning temperature or oil level indicators.
Typical signs: Oil leakage from tap changer compartment, false alarms from gas relay, visible bushing damage.
Transformer oil serves both as insulation and coolant. Oil degradation is a gradual but dangerous process.
Common causes:
Moisture ingress – drastically reduces dielectric strength.
Oxidation – forms sludge and acids, accelerating insulation aging.
Carbonization – caused by internal arcing.
Typical signs: Dark or turbid oil, acidic smell, reduced cooling efficiency, increased dissolved gas levels (DGA).
Some faults originate from poor quality control during production or improper reassembly after maintenance.
Common causes:
Non‑standard winding fabrication.
Poor core cutting or lamination (large tolerances).
Incomplete drying or impregnation of windings.
Unqualified accessories (bushings, gaskets, etc.).
Incorrect assembly sequence during overhaul.
Typical signs: Early‑life failures (within 1–2 years), inconsistent test results.
Human factors remain a leading cause of transformer failures worldwide.
Common causes:
Continuous overload operation (exceeding nameplate rating).
Infrequent inspections – missed oil leaks or loose connections.
Delayed oil refilling after leakage.
Aged sealing gaskets not replaced → moisture ingress.
Failed monitoring devices left uncorrected.
Typical signs: Gradual performance decline, unexpected trips, visible oil stains around tank or radiators.
A well‑maintained transformer operates efficiently, safely, and reliably throughout its design life (typically 20–30 years for distribution transformers).
Benefit | Explanation |
|---|---|
Reduced operating costs | Prevents expensive emergency repairs and extends oil change intervals. |
Improved reliability | Minimizes unplanned outages that disrupt production or revenue. |
Safety compliance | Meets IEC, ANSI, or local grid code requirements. |
Data‑driven decisions | Online monitoring provides trend data for predictive maintenance. |
✅ Industry best practice: Combine visual inspections, electrical testing, and online monitoring (DGA, PD) for optimal results.
Monthly / Quarterly checks (visual and operational):

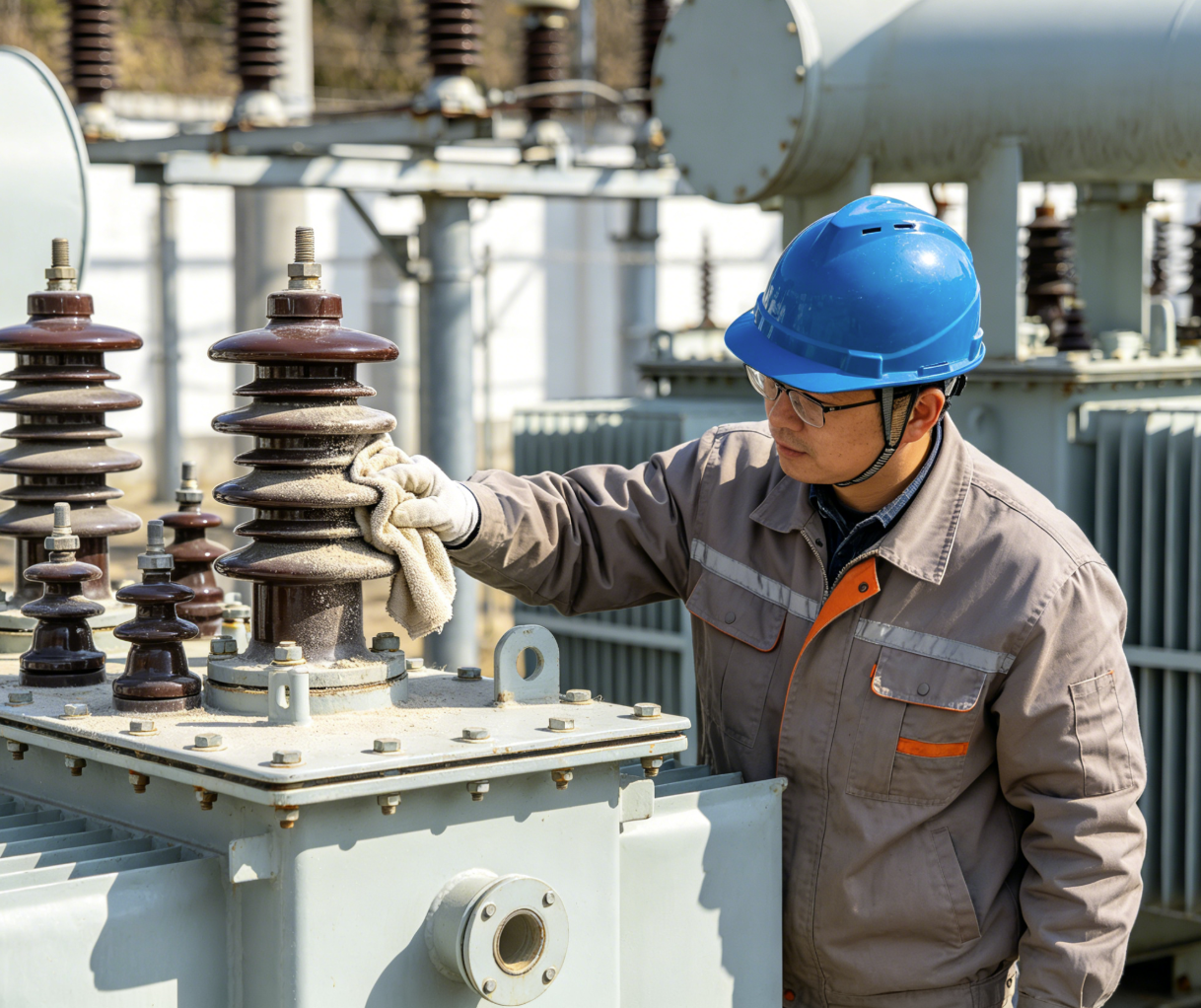

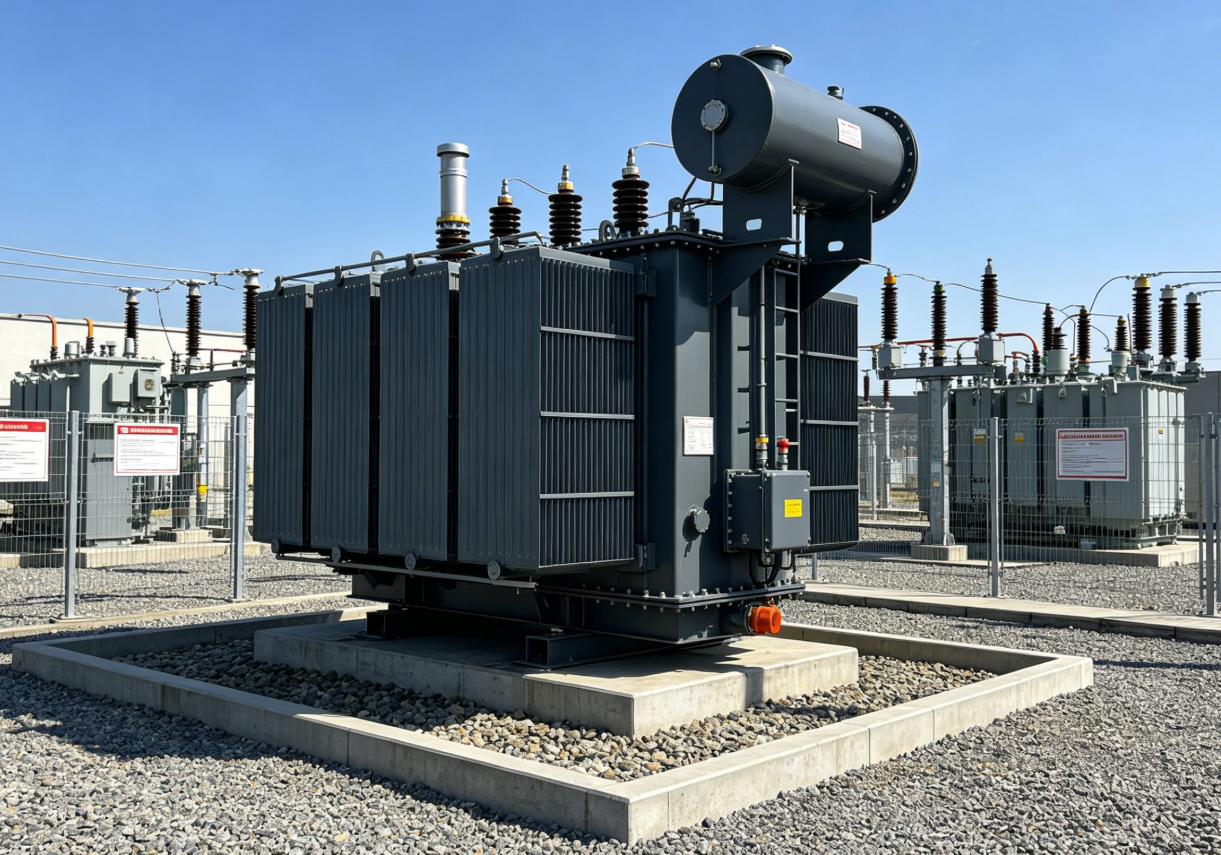

Clean bushings, insulators, and conductor surfaces – remove dust, oxidation, and rust.
Listen for abnormal vibration or noise – identify loose fasteners or core issues.
During scheduled outages, tighten all electrical connections and mechanical fasteners.
Inspect switches and contacts for tightness, smooth operation, and accurate positioning.
For oil‑immersed units – check for oil stains, rust, sludge, and proper oil level.
For dry‑type units – verify fan operation and temperature controller display.
Daily tasks are typically performed by on‑site operators or remote monitoring systems.
Immediate actions when anomalies are detected:
Symptom | Required Action |
|---|---|
Oil leak | Locate source, stop leak, refill oil, change gas protection to alarm‑only if needed. |
Overload | Reduce load immediately; consider load shedding or parallel operation. |
Abnormal sound (buzzing, cracking) | Investigate cause; schedule shutdown if discharge noise present. |
Temperature rise | Check cooling system, oil level, and ambient conditions. |
Rapid oil level drop | Stop leak, refill, and perform DGA to assess internal condition. |
Emergency shutdown criteria (immediate power removal required):
Severe internal discharge noise.
Oil spray from conservator or pressure relief device.
Oil level below sight glass with no visible leakage.
Sudden darkening of oil color.
Cracked or arcing bushing.
Online monitoring systems provide continuous, real‑time data – enabling predictive rather than reactive maintenance.
PD occurs when small electrical sparks bridge insulation gaps. Over time, PD erodes insulation and leads to failure.
How it works: Sensors detect high‑frequency signals (ultrasonic, HFCT, or UHF) generated by PD activity.
Benefit: Early warning weeks or months before catastrophic failure.
DGA is the single most effective technique for assessing internal transformer health.
Key gases monitored: Hydrogen (H₂), acetylene (C₂H₂), ethylene (C₂H₄), methane (CH₄), carbon monoxide (CO), carbon dioxide (CO₂).
Interpretation: Different fault types produce characteristic gas combinations (e.g., arcing → high H₂ and C₂H₂; overheating → high C₂H₄ and CH₄).
Benefit: Continuous tracking of gas trends allows maintenance to be scheduled exactly when needed.
Note: Modern online DGA monitors can be retrofitted to existing transformers without taking them offline.
10kV transformers are vital assets in any power distribution network. Understanding their common fault modes – from winding and core issues to oil degradation and human error – is the first step toward reliable operation.
A three‑tier maintenance strategy works best:
Regular visual/operational inspections (covers 60% of preventable faults)
Daily operational checks (quick response to anomalies)
Online monitoring (PD + DGA) (provides predictive intelligence)
By combining these approaches, power engineers and maintenance teams can significantly reduce unplanned outages, extend transformer life, and ensure safe, efficient power delivery.
A: A major overhaul is typically recommended every 5–10 years, depending on operating conditions (load, ambient temperature, pollution level). Annual oil testing and DGA are mandatory.
A: Under full load and 40°C ambient, top oil temperature should not exceed 85°C (for mineral oil). Hot‑spot temperature should remain below 105°C.
A: Not recommended. Even a small leak allows moisture and air ingress, accelerating oil degradation and insulation aging. Repair leaks at the earliest scheduled outage.
A: Off‑circuit tap changers require transformer de‑energization to change taps. On‑load tap changers (OLTC) operate under load and require more frequent maintenance.
A: Oil‑immersed – lower cost, better cooling, suitable for outdoor/indoor substations. Dry‑type – fire‑safe, no oil leakage risk, preferred for indoor installations near people or sensitive equipment.
