Proper maintenance and correct operation of power transformers are critical for electrical safety, system reliability, and long service life. Transformers are exposed to thermal, electrical, and mechanical stresses every day. This comprehensive guide explains temperature limits, temperature rise, optimal loading, voltage regulation, overload handling, and practical maintenance actions for both oil‑immersed (Class A insulation) and dry‑type transformers.
During normal operation, a transformer generates heat from two main sources:
Core losses (iron losses) – hysteresis and eddy currents in the magnetic core.
Copper losses – I⊃2;R losses in the windings.
This heat raises the temperature of the core and windings. If the temperature exceeds design limits for extended periods, the insulation materials (paper, pressboard, varnish) lose mechanical elasticity and become brittle – a process called thermal aging.
Windings – highest temperature (heat generated inside the copper)
Core – intermediate temperature
Insulating oil – cooler than core and windings
Top oil – hotter than bottom oil (natural convection)
Because winding temperature is difficult to measure directly in service, top oil temperature is used as the main operational indicator.
Component | Ultimate limit | Normal maximum |
|---|---|---|
Winding (hotspot) | 105°C | not directly measured |
Top oil (measured) | 95°C | 85°C |
Top oil – forced oil cooled | 80°C | 75°C (normal) |
⚠️ Exceeding 85°C regularly accelerates oil oxidation and sludge formation. For forced oil‑water or oil‑air cooled units, keep top oil temperature below 75°C.

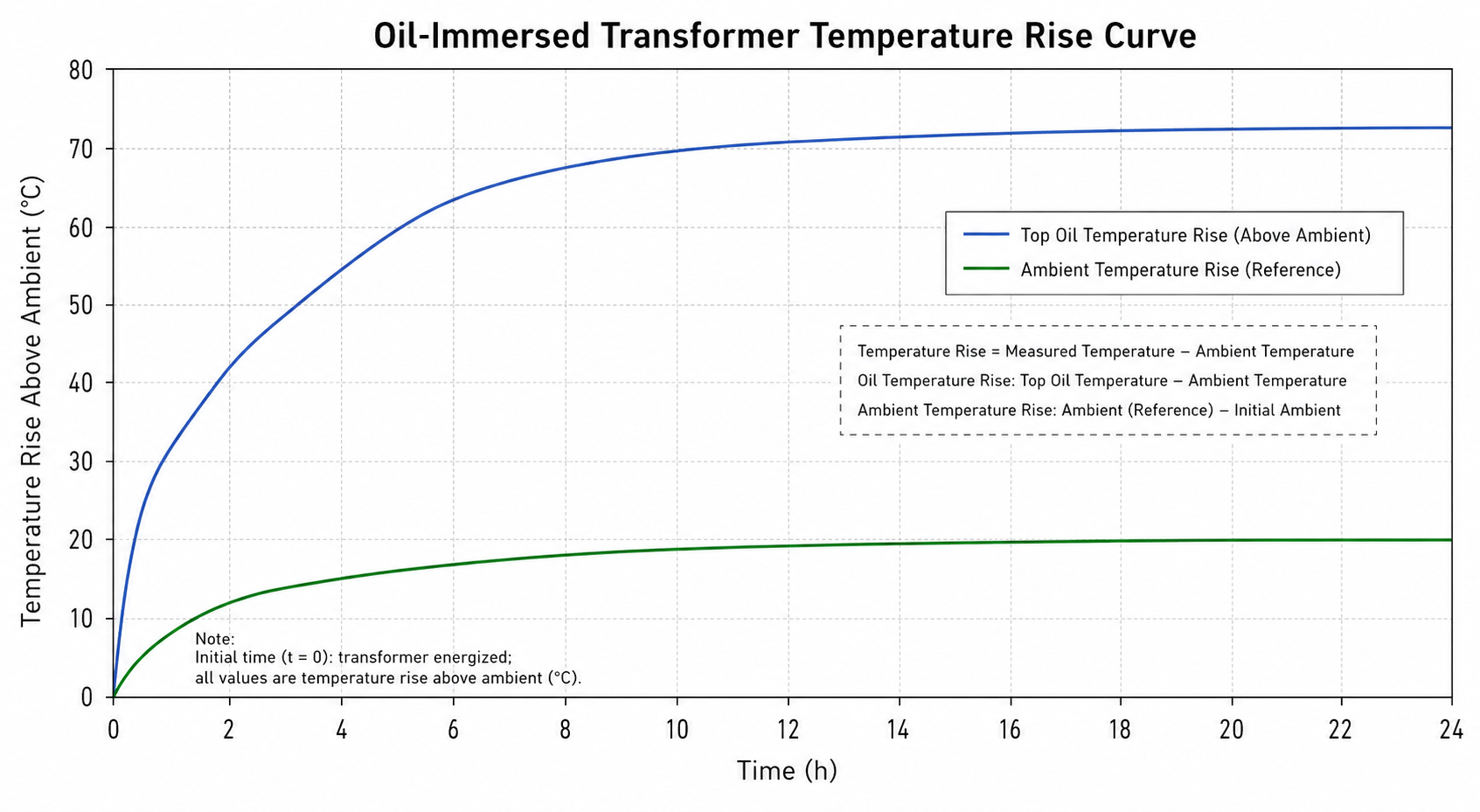

Temperature rise = top oil temperature – ambient air temperature. Monitoring only the absolute temperature is not enough because ambient temperature varies (e.g., 40°C summer vs. 0°C winter). The temperature rise determines how fast heat is dissipated.
Standard limits (at 40°C ambient):
Winding temperature rise – 65°K (65°C above ambient)
Top oil temperature rise – 55°K
If the temperature rise stays within these values, the transformer can safely carry its rated load for a design life of 20 years of continuous operation.
The 6‑degree rule: For every 6°C increase above the rated winding temperature, the insulation aging rate doubles. Conversely, operating 6°C cooler doubles the life.
For normal long‑term operation, the transformer load should be maintained between 75% and 90% of its rated capacity.
Below 75% → inefficient (higher no‑load losses relative to load)
Above 90% for long periods → accelerated thermal aging
75–90% range → best balance of efficiency and life
Practical recommendation: Monitor daily load curves and consider load sharing if multiple transformers are in parallel.
The maximum unbalanced current (difference between phases) shall not exceed 25% of the rated current. Higher unbalance causes negative sequence currents, additional heating, and possible neutral overloading.
Permissible range: ±5% of rated voltage.
If voltage is outside this range, adjust the tap changer.
Important: For off‑load (de‑energized) tap changers, the transformer must be disconnected and isolated before adjustment.
Tap changers work by changing the number of turns on the high‑voltage winding, thus changing the turns ratio.
Effects of abnormal voltage:
Low voltage – no damage to the transformer, but reduces capacity and may cause motors to draw higher current.
High voltage – increases magnetic flux, saturates the core, raises iron losses, and causes overheating. More dangerous than low voltage.
Overloads are inevitable sometimes. They are divided into two categories:
Raises temperature and accelerates aging.
Generally not permitted.
If unavoidable, short‑term limits:
Winter: max 30% overload
Summer: max 15% overload
Always check actual top oil temperature.
When a nearby feeder or transformer fails, the remaining transformer may have to carry extra load. Short emergency overloads are allowed because they occur rarely, and the transformer typically runs below rated load most of the time. However, the following time limits must be strictly followed.
Natural cooling (ONAN) oil‑immersed transformers – emergency overload duration (minutes)
Overload multiple | Outdoor transformer (min) | Indoor transformer (min) |
|---|---|---|
1.30 | 120 | 60 |
1.45 | 80 | 40 |
1.60 | 45 | 23 |
1.75 | 20 | 10 |
2.00 | 10 | 5 |
Dry‑type transformers (indoor, high fire safety) – emergency overload
Overload multiple | Duration (minutes) |
|---|---|
1.2 | 60 |
1.3 | 45 |
1.4 | 32 |
1.5 | 18 |
1.6 | 5 |

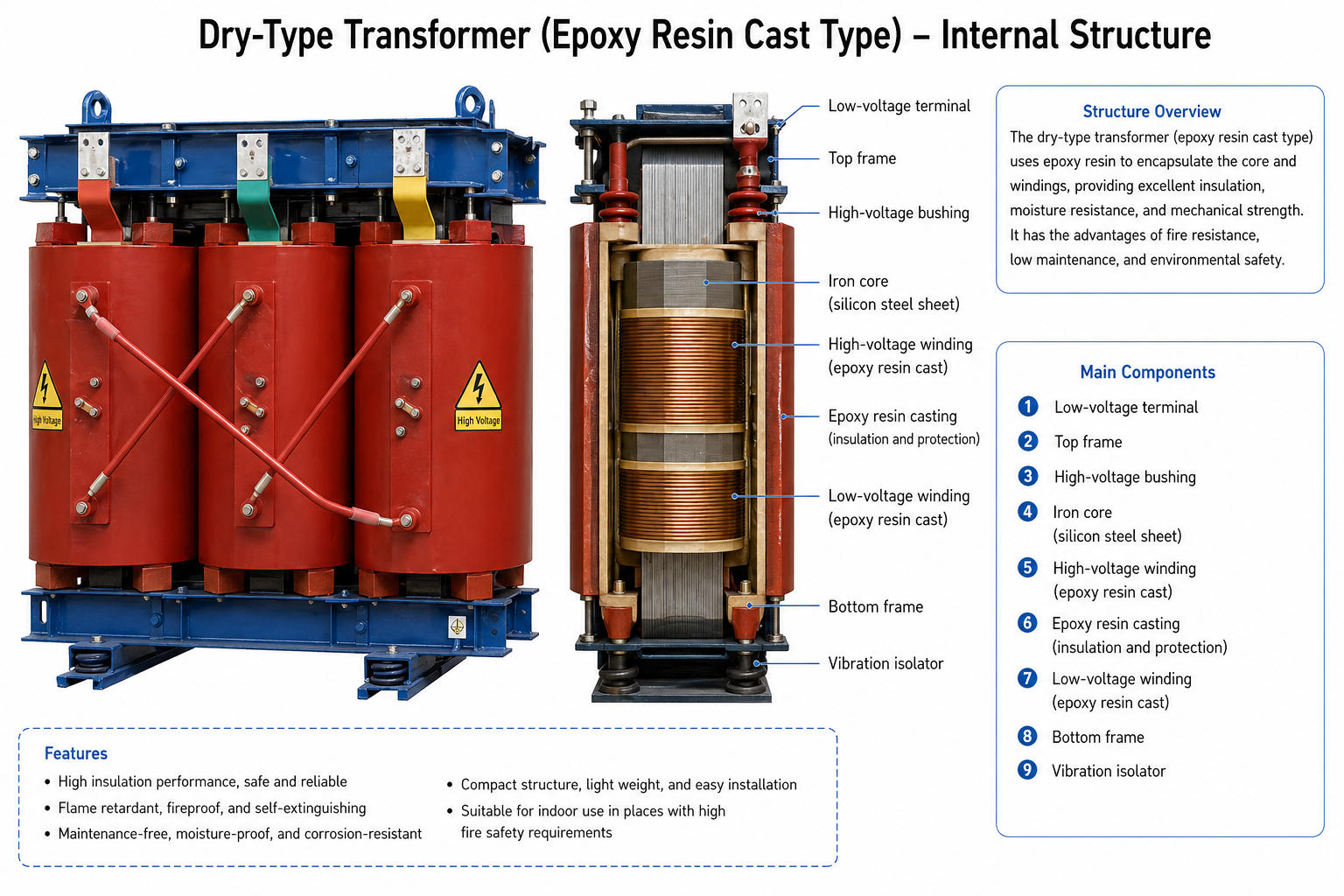

Dry‑type transformers are classified as open, sealed, or cast‑resin. Open type (common in clean, dry environments like paint shops or vehicle substations) allows the core and windings to be exposed to the atmosphere.
If a transformer runs hotter than normal, investigate immediately.
Prolonged overload beyond design limits
Poor ventilation or cooling system failure (blocked radiators, failed fans or pumps)
High ambient temperature exceeding design maximum (e.g., 45°C instead of 40°C)
Heat from nearby equipment
Cause | Mechanism | Detection method |
|---|---|---|
Core lamination insulation breakdown | Increased eddy currents → core overheating | Increased no‑load current, local hot spots (thermography) |
Winding turn‑to‑turn short circuit | Arcing and localized heating | DGA (dissolved gas analysis), winding resistance test |
Tap changer poor contact | High contact resistance → local heating | Thermography at tap changer, oil sample for carbon particles |
Loose/corroded external connections | Resistive heating at bushings or terminals | Infrared scan, visible inspection |
Regular checks:
Daily: top oil temperature reading

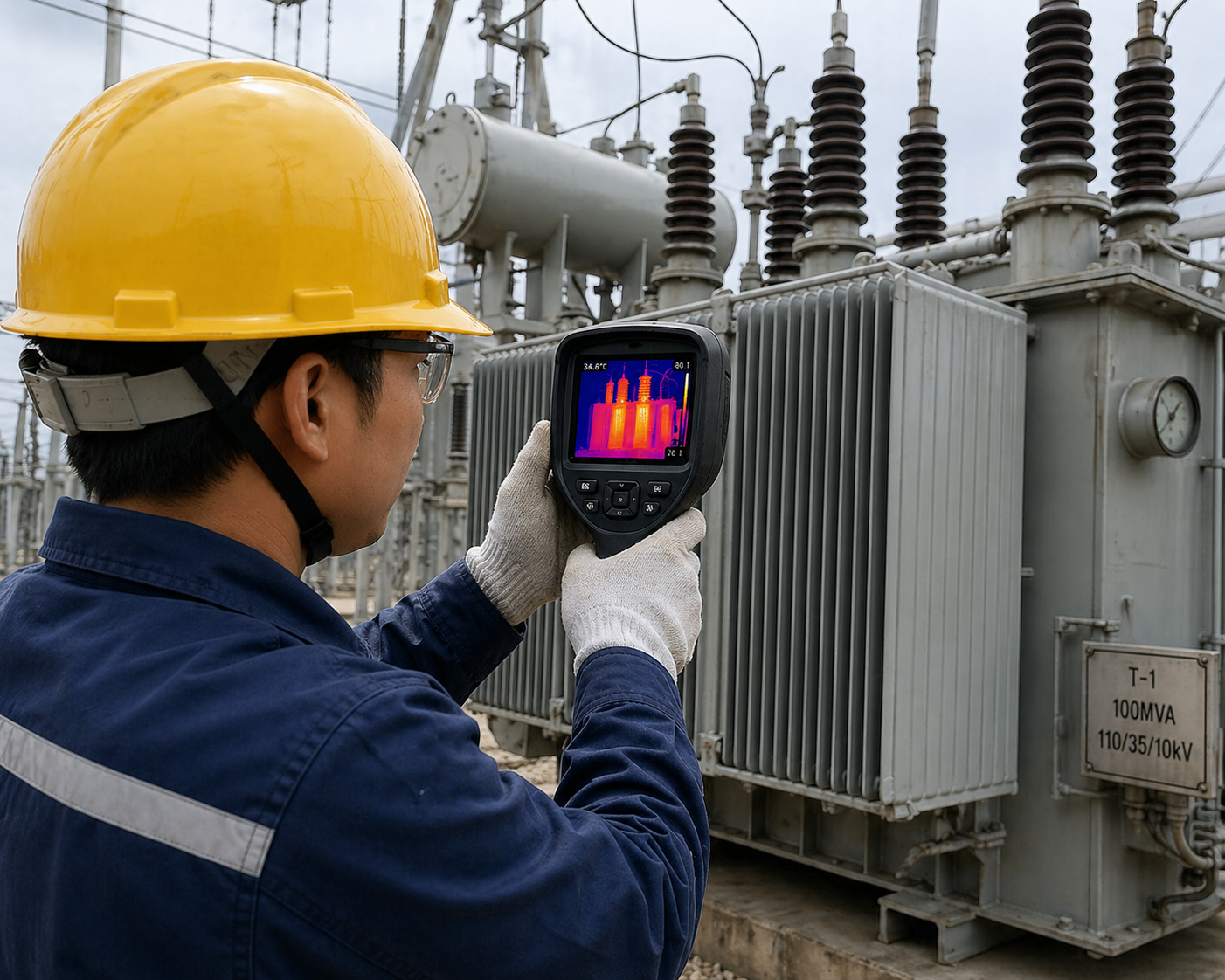

Monthly: infrared thermography of bushings, tap changer, and connections
Annually: insulation resistance (megger), winding resistance, DGA (for oil‑filled units)
To maximize transformer life, implement the following:
Perform dielectric strength test every 1–2 years.
Check oil level daily; top up with same type of oil.
Replace silica gel in breather when colour changes (pink → white/blue).
Take oil samples for DGA yearly – key gases (acetylene, ethylene) indicate arcing or overheating.
Ensure radiators are free of dirt and debris.
Test cooling fans and oil pumps monthly (if fitted).
For forced air‑cooled units, clean fan grilles.
Insulation resistance (megger) between windings and ground.
Winding resistance measurement – detect loose connections or turn faults.
Transformation ratio test.
Magnetic balance test for three‑phase units.
Look for oil leaks (gaskets, welds, bushings).
Check for rust, cracked bushings, or damaged cable boxes.
Ensure pressure relief device is not damaged and nameplate is legible.
Q1: What is the safest daily monitoring parameter?
A: Record the top oil temperature at the same time each day (peak load). A sudden increase of 10°C over normal suggests a problem.
Q2: Can I run a transformer at 100% load continuously?
A: Yes, if ambient temperature is below 40°C and top oil temperature stays under 85°C. However, the 75–90% range is optimal for extra safety margin.
Q3: How often should I adjust the tap changer?
A: Only when supply voltage is consistently outside ±5% for more than a few days. After adjustment, measure the secondary voltage to confirm.
Q4: What first step if top oil temperature reaches 95°C?
A: Reduce load immediately (if possible). Check cooling system and ambient temperature. If temperature does not drop, de‑energize the transformer and investigate.
Q5: Are dry‑type transformers maintenance‑free?
A: No. Clean the core and windings with dry compressed air annually. Check for dust buildup, loose connections, and unusual noise (vibration or partial discharge).
A well‑maintained transformer operating within the recommended temperature, load, and voltage limits will reliably deliver 20+ years of service. Combine the operational rules in this guide with a regular maintenance schedule – oil analysis, thermography, electrical testing – to prevent unexpected failures and costly downtime.
Always follow the manufacturer’s specific instructions and local safety regulations. For critical installations, consider online monitoring of top oil temperature, winding temperature, and dissolved gases.
