Do You Really Need a Circuit Breaker for a 1250kVA Transformer (or Smaller)?

Imagine this: you are specifying protection for a 1000kVA transformer in a small factory or commercial building. Your first thought is probably: “I need a circuit breaker.”

But is that always the best answer?

There is another option — the switch-fuse combination (load break switch + fuse). It has been used successfully in Europe and elsewhere for years, especially for transformers rated 1250kVA and below.

This article is not about saying circuit breakers are bad. They are not. But for smaller transformers, a switch-fuse combination may be a smarter fit — more economical, faster, and simpler.

Let us take a closer look.

1️⃣ Circuit Breakers: The All-Round Performer

First, let us be clear: circuit breakers are essential in many applications.

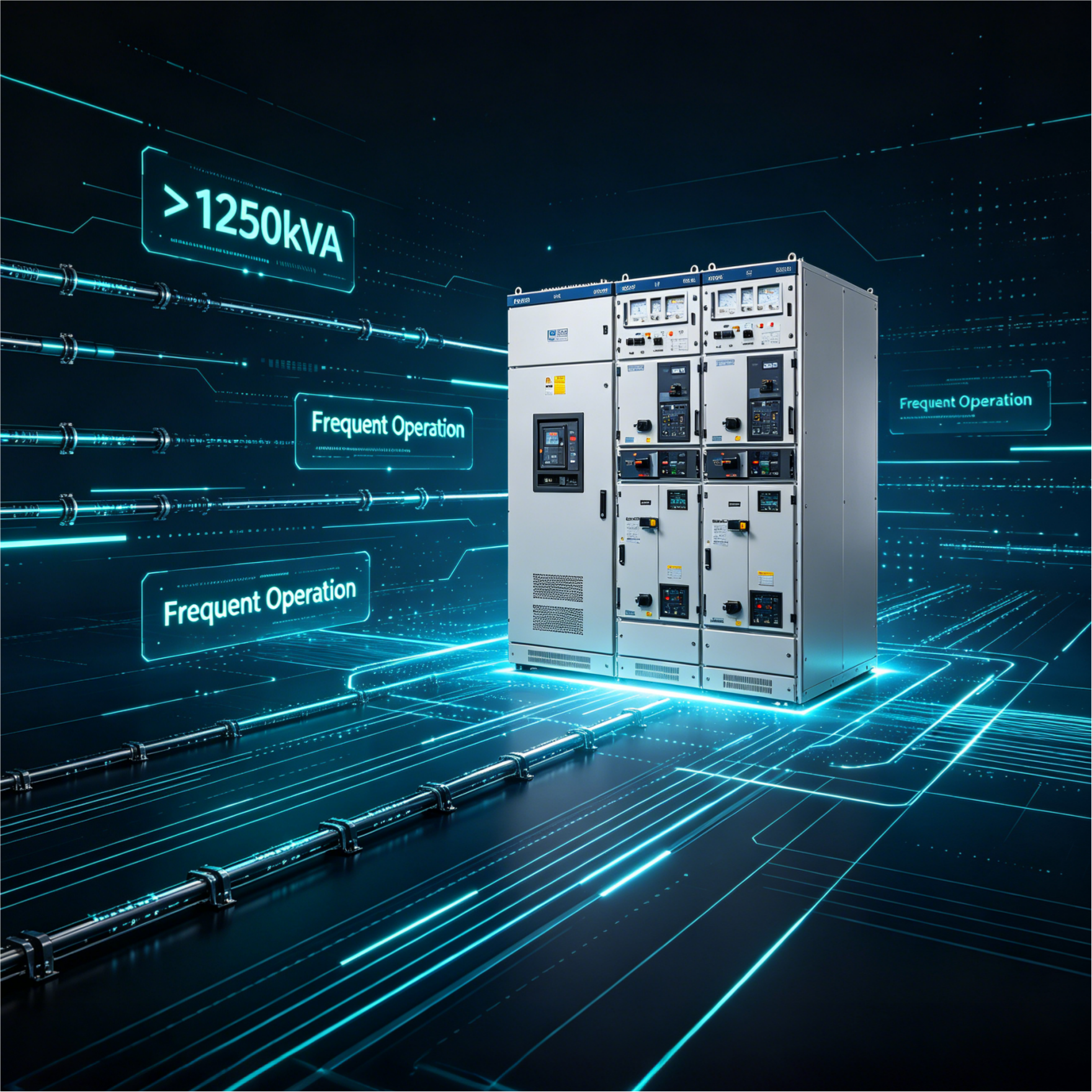

They are the right choice when:

• Transformer capacity is above 1250kVA

• Frequent switching operations are required

• The grid has complex selectivity requirements

• Project specifications explicitly require breakers

Circuit breakers are reliable, versatile, and reusable. For large transformers and demanding applications, they are irreplaceable.

2️⃣ Switch-Fuse Combination: A Better Fit for Smaller Transformers

For transformers rated 1250kVA and below, the switch-fuse combination offers a different approach.

Consider the typical currents of smaller transformers:

These are 36A to 72A — not large.

Now look at a typical circuit breaker’s rated current: it often starts at 630A, 1250A, or even higher. Using a large breaker to protect a small transformer works, but it is not the most economical or technically elegant match.

A switch-fuse combination, on the other hand, uses fuses that can be precisely matched to the transformer — 50A, 63A, 80A — one-to-one protection, simple and accurate.

3️⃣ Side-by-Side Comparison: Which Fits Your Project?

The takeaway: Each has its place. For large transformers or frequent switching → circuit breaker. For smaller transformers where cost and speed matter → consider the switch-fuse combination.

4️⃣ A Real-World Example: 1000kVA Factory Supply

Imagine a small factory with a 1000kVA transformer. Switching is infrequent. The main goal is reliable, cost-effective protection.

Option A – Circuit breaker solution

• Incoming breaker panel + metering + VT cabinet + outgoing breaker panel

• Higher cost, larger footprint, needs auxiliary power

Option B – Switch-fuse combination solution

• Incoming load break switch + metering + switch-fuse panel

• Lower cost (roughly 1/5 of Option A), smaller footprint, no VT cabinet needed

Both options protect the transformer safely. Option A is more versatile. Option B is more economical.

The customer decides based on budget and project needs.

5️⃣ We Offer Both. You Choose.

At Leading Electric, we do not push one solution over the other. We offer both:

• ✅ Circuit breaker panels – for all transformer sizes, frequent switching, and demanding specifications

• ✅ Switch-fuse combination panels – designed specifically for transformers up to 1250kVA where economy and speed are priorities

There is no “good” or “bad” — only “what fits your project better.”

Conclusion: Back to the Title Question

Do you really need a circuit breaker for a 1250kVA transformer (or smaller)?

Not necessarily.

• If your project requires frequent switching, larger capacity, or strict specifications → a circuit breaker is the right choice.

• If you want a more economical, faster-clearing, and simpler solution for a smaller transformer → a switch-fuse combination is worth considering.

We supply both. You choose what works best for your application.
