How Does a Transformer Work? A Simple Guide for Everyday Use

Transformers are used everywhere — from large power substations to the small chargers we use every day.

Introduction

In power systems, transformers step voltage up or down to enable long-distance transmission and distribution. In electronic devices, they convert 220V mains power into the low voltage that equipment needs.

But have you ever wondered how a transformer actually works?

Let us walk you through it — in plain English, without complicated formulas.

The Basic Principle: Electromagnetic Induction

A transformer works based on electromagnetic induction.

In simple terms, a transformer has two or more windings — most commonly a primary winding and a secondary winding. Think of it as a bridge. It uses a changing magnetic field to transfer electrical energy from one circuit to another.

For example, in a power transmission system, electricity generated at a power plant must pass through transformers before it can be sent to faraway users.

Step 1: AC Current Creates a Changing Magnetic Field

When the primary winding is connected to an AC power source, alternating current flows through the winding.

Because the current is alternating (constantly changing direction), it creates a changing magnetic field. The size and direction of this magnetic field keep changing as the current changes.

Imagine a spinning magnetic "top" — always rotating and shifting.

For example, when you plug a common household transformer into a 220V AC outlet, the primary winding immediately creates this kind of changing magnetic field.

Step 2: The Magnetic Field Travels Through the Core

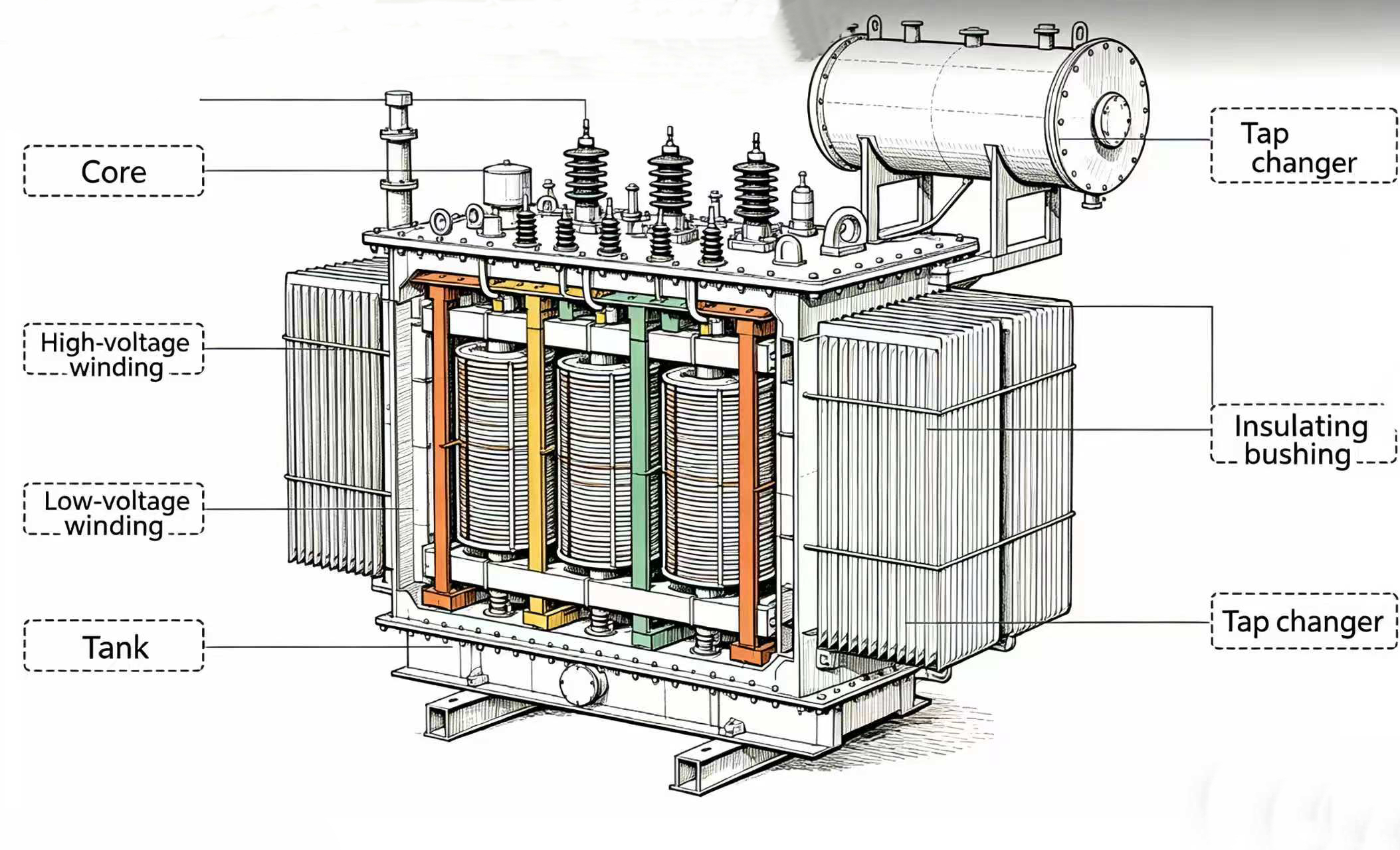

This changing magnetic field passes through the core of the transformer.

The core is made of a material with good magnetic conductivity — usually silicon steel. It concentrates the magnetic field and guides it toward the secondary winding.

Think of the core as a magnetic "highway" . It lets the magnetic field pass through smoothly, reducing leakage and loss.

In a small electronic transformer, for example, the core efficiently guides the magnetic field, making the transformer work more efficiently.

Step 3: The Secondary Winding Generates Voltage

When the changing magnetic field passes through the secondary winding, something important happens.

According to the law of electromagnetic induction, an induced electromotive force (voltage) is created in the secondary winding.

The amount of induced voltage depends on how fast the magnetic flux changes. The faster the change, the higher the induced voltage.

For example, in a step-up transformer, the secondary winding has more turns than the primary winding. The rate of magnetic flux change is relatively higher, so a higher voltage is induced.

Step 4: Current Flows When the Circuit Is Closed

If the secondary winding is part of a closed loop (a complete circuit), then current will flow through the secondary winding under the influence of the induced voltage.

This is how electrical energy is transferred from the primary winding, through the magnetic field, to the secondary winding.

A good example is a phone charger. The transformer inside the charger outputs the right voltage and current to charge your phone.

Key Parameters You Should Know

Turns Ratio (Voltage Ratio)

The turns ratio is an important parameter. It equals the number of turns in the primary winding divided by the number of turns in the secondary winding.

This ratio determines whether the transformer steps voltage up or down.

• If the primary winding has more turns than the secondary → Step-down transformer (voltage decreases)

• If the primary winding has fewer turns than the secondary → Step-up transformer (voltage increases)

Example: A transformer with 1000 turns on the primary and 500 turns on the secondary has a turns ratio of 2. It is a step-down transformer. The output voltage will be half of the input voltage.

Power: Input vs Output

In an ideal transformer, input power equals output power. But in real life, there are always some losses.

• Core losses (magnetic losses inside the core)

• Winding losses (resistance losses in the copper or aluminum windings)

As a result, output power is slightly less than input power.

Frequency Stays the Same

The frequency of the AC power does not change when passing through a transformer. Whatever frequency goes in (for example, 50Hz or 60Hz) comes out the same.

This ensures that the frequency characteristics of the power supply remain stable when voltage is stepped up or down.

Multiple Secondary Windings

In some special transformers, there may be multiple secondary windings. Each secondary winding can output a different voltage depending on its number of turns.

For example, the power transformer inside an electronic device might have several secondary windings — one for 5V, one for 12V, and so on — supplying different voltages to different parts of the device.

Materials Matter

Core Material

The core material has a big impact on transformer performance.

Silicon steel is a common choice. It has low hysteresis loss and low eddy current loss, which improves efficiency.

In large power transformers, high-quality silicon steel cores help reduce energy loss and improve transmission efficiency.

Winding Material

Copper and aluminum are the most common winding materials.

• Copper: Better conductivity, lower resistance, less energy loss. Preferred for high-performance transformers.

• Aluminum: Lower cost. Used in cost-sensitive applications.

For small transformers where budget is a concern, aluminum windings may be used. For high-performance transformers, copper is the first choice.

Where Are Transformers Used?

Transformers are used in many different fields.

Power Systems

• Step voltage up for long-distance transmission

• Step voltage down for local distribution and end users

Example: In a power substation, large transformers step up the low voltage from a power plant to a high voltage for transmission over long-distance power lines.

Electronic Devices

• Convert 220V mains power into the low voltage that devices need

Example: In TVs, computers, and phone chargers, small transformers convert 220V AC into the low voltage required by the internal circuits.

Conclusion

A transformer may look like a simple metal box, but inside it is doing something quite clever.

It takes electrical energy, turns it into a magnetic field, and then turns it back into electrical energy — at a different voltage.

No moving parts. No complex electronics. Just the reliable physics of electromagnetic induction.

We hope this guide has helped you understand how transformers work in their everyday job.
