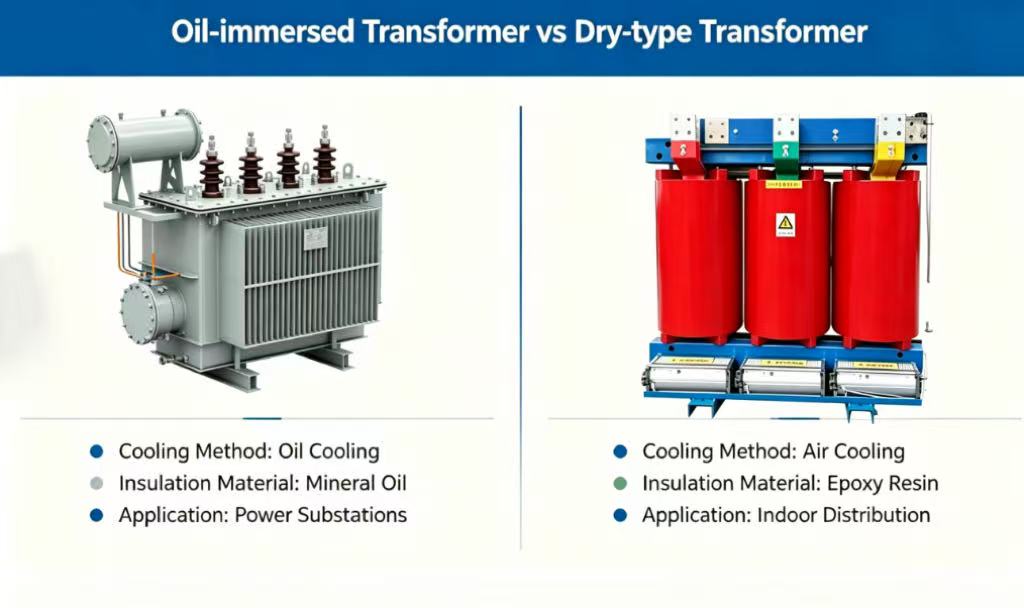

Oil Immersed Transformer vs Dry Type Transformer

A Practical Guide for Buyers (Not Engineers Only)

Introduction: Two Choices, One Right Answer

If you are buying a transformer for a factory, a building, or a solar project, you will quickly run into one question:

Oil immersed or dry type?

This is not a small decision. Pick the wrong one, and you could face safety fines, high maintenance costs, or even a replacement in a few years.

But do not worry. This guide will walk you through the real differences in plain English — no confusing formulas, no unnecessary details.

Let us start with the basics.

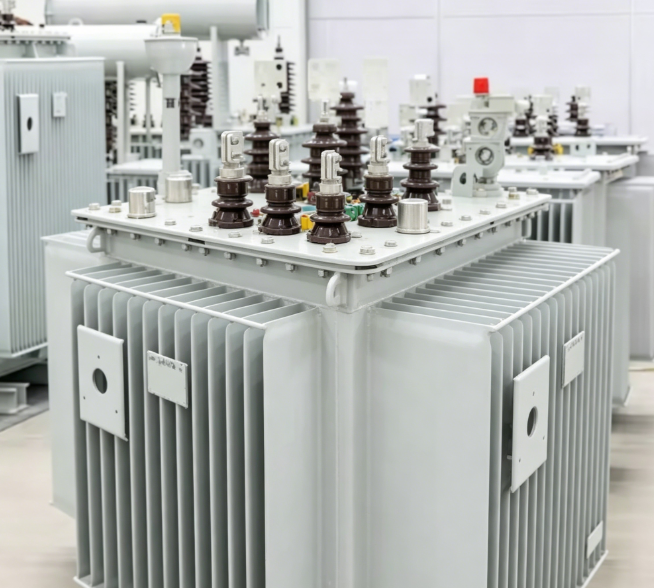

What Is an Oil Immersed Transformer?

An oil immersed transformer uses oil — either mineral oil or vegetable oil — to cool and insulate its internal parts. The core and coils sit inside a sealed steel tank, fully covered by oil.

When the transformer runs, the oil absorbs heat from the coils. That heat moves to the tank walls and then dissipates into the outside air. For larger units, fans or oil pumps can be added to remove heat faster.

This design has been around for over a century. It is proven, reliable, and very efficient.

Where you usually see it:
Outdoor substations, factory power distribution, utility grids, wind farms, and solar plants.

What Is a Dry Type Transformer?

A dry type transformer does not use any liquid. Instead, it uses air for cooling. The coils are either encapsulated in epoxy resin (called cast resin) or vacuum impregnated with special varnish (called VPI).

Heat from the windings moves directly into the surrounding air. Natural airflow does most of the cooling. If needed, fans can be added for forced air cooling.

Because there is no oil, there is no leak risk and no fire risk from oil.

Where you usually see it:
Inside buildings — hotels, hospitals, shopping malls, high-rise apartments, data centers, and subway stations.

The Most Important Difference: Where Can You Put It?

This is the single biggest factor in your decision.

Oil immersed transformers are designed for outdoor use. Traditional mineral oil is flammable, so codes usually do not allow them inside buildings unless you take expensive fire protection measures. Even with vegetable oil (which is much safer), many indoor installations still prefer dry type for simplicity.

Dry type transformers are designed for indoor use. They are safe to put in basements, mechanical rooms, rooftops, and even next to people. No special fire walls, no oil containment pits, no environmental risk.

Simple rule:
Outdoor → oil immersed is common and cost effective.
Indoor → dry type is the standard, safe choice.

There are exceptions — vegetable oil transformers can go indoors — but this rule works for 80% of projects.

Safety and Fire Risk: A Quick Reality Check

Let us be honest about safety, because this is what keeps electrical engineers awake at night.

Oil immersed (mineral oil):
It works great outdoors. But if a fault happens, the oil can leak and catch fire. That is why most local codes ban mineral oil transformers from buildings.

Oil immersed (vegetable oil / natural ester):
This is much safer. The flash point is above 300°C (mineral oil is around 160°C). It is also biodegradable. Some codes now allow vegetable oil transformers indoors, but you should always check with your local inspector first.

Dry type:
No oil means no fire from oil, no leaks, and no environmental fines. The epoxy resin used in cast resin transformers is self-extinguishing. This is why dry type is the default choice for hospitals, schools, and data centers.

In short:
If safety regulations are strict, dry type gives you peace of mind.
If you are outdoors and want lower upfront cost, oil immersed (mineral oil) is fine.

Cost: What You Pay Today vs What You Pay Over Time

Many buyers focus only on the purchase price. That is a mistake.

Let us split this into two parts.

Initial cost (what you pay to buy it):
Oil immersed transformers are 20–30% cheaper than dry type transformers for the same rating. Why? Because oil cooled designs are simpler to manufacture, and the materials (steel, oil, paper) are less expensive than epoxy resin and high-temperature insulation.

Long-term cost (maintenance and operation):
Oil immersed transformers need regular oil testing — usually every 3 to 5 years. The oil may need filtering or replacement. Seals and gaskets can leak over time. All of this costs money and staff time.

Dry type transformers are almost maintenance free. You clean the dust off the coils once a year or two. You check the connections. That is it. No oil to test, no leaks to fix.

The bottom line:
If your budget is tight today, oil immersed helps you get the project started.
If you want low hassle and low operating cost for the next 20 years, dry type wins.

Overload Capacity and Tough Conditions

Not all transformers face the same working environment.

Oil immersed transformers handle overloads very well. Oil has a high heat capacity — it can absorb a lot of extra heat for a short time without damaging the coils. That is why factories with welding machines, large motors, or cranes often prefer oil immersed.

Dry type transformers have more limited overload capacity. Air simply cannot absorb as much heat as oil. If you overload a dry type, the temperature rises quickly, and insulation life shortens.

However, for normal, steady loads — like lighting, HVAC, or general building power — dry type works perfectly well.

In simple terms:
If your load jumps up and down frequently → oil immersed is safer.
If your load is stable → both work fine, but dry type is simpler.

Maintenance: Who Will Take Care of It?

Be realistic about your team.

Verdict:
If you have an experienced electrical team on site, oil immersed is manageable.
If you have limited staff or no in-house maintenance, dry type is much easier.

Noise: A Small but Real Difference

Oil immersed transformers are quieter. The oil dampens the vibration of the core, so the humming sound is lower and less noticeable.

Dry type transformers are slightly louder, and the sound can be a bit sharper because there is no liquid to absorb the vibration.

For outdoor installations, noise usually does not matter. For indoor installations near offices or sleeping areas, dry type is still acceptable, but you should check the manufacturer’s noise data.

Quick Comparison Table (Key Points Only)

When Should You Choose Oil Immersed?

You are a good fit for an oil immersed transformer if:

• Your transformer will be outdoors

• You need power above 2.5 MVA

• You have a tight initial budget

• You have staff who can do oil testing and basic maintenance

• You are working on a utility, factory, or renewable energy project

Example: A solar farm needs a 5 MVA transformer outdoors. Budget is important. The site has electricians. Oil immersed (mineral oil) is a smart choice.

When Should You Choose Dry Type?

You are a good fit for a dry type transformer if:

• Your transformer will be indoors (basement, mechanical room, rooftop)

• Fire safety is a top concern — hospital, school, mall, data center

• You want low maintenance for the next 20 years

• You have limited or no in-house electrical staff

• Local electrical codes require dry type

Example: A new data center inside an office building. Fire risk must be near zero. No oil leaks allowed. Dry type is the obvious answer.
