Power distribution systems are expected to operate safely under normal conditions, but unexpected faults such as short circuits can occur at any time. Without proper protection, these faults may destroy transformers, damage cables, interrupt production, and even threaten personnel safety.
This is where KYN28 metal-clad switchgear demonstrates its true value.
Designed for medium-voltage power distribution systems, KYN28 switchgear combines vacuum circuit breaker technology, intelligent protection relays, mechanical interlocks, and compartmentalized construction to respond rapidly to electrical faults.
Let's explore exactly what happens inside the cabinet when a short circuit occurs.

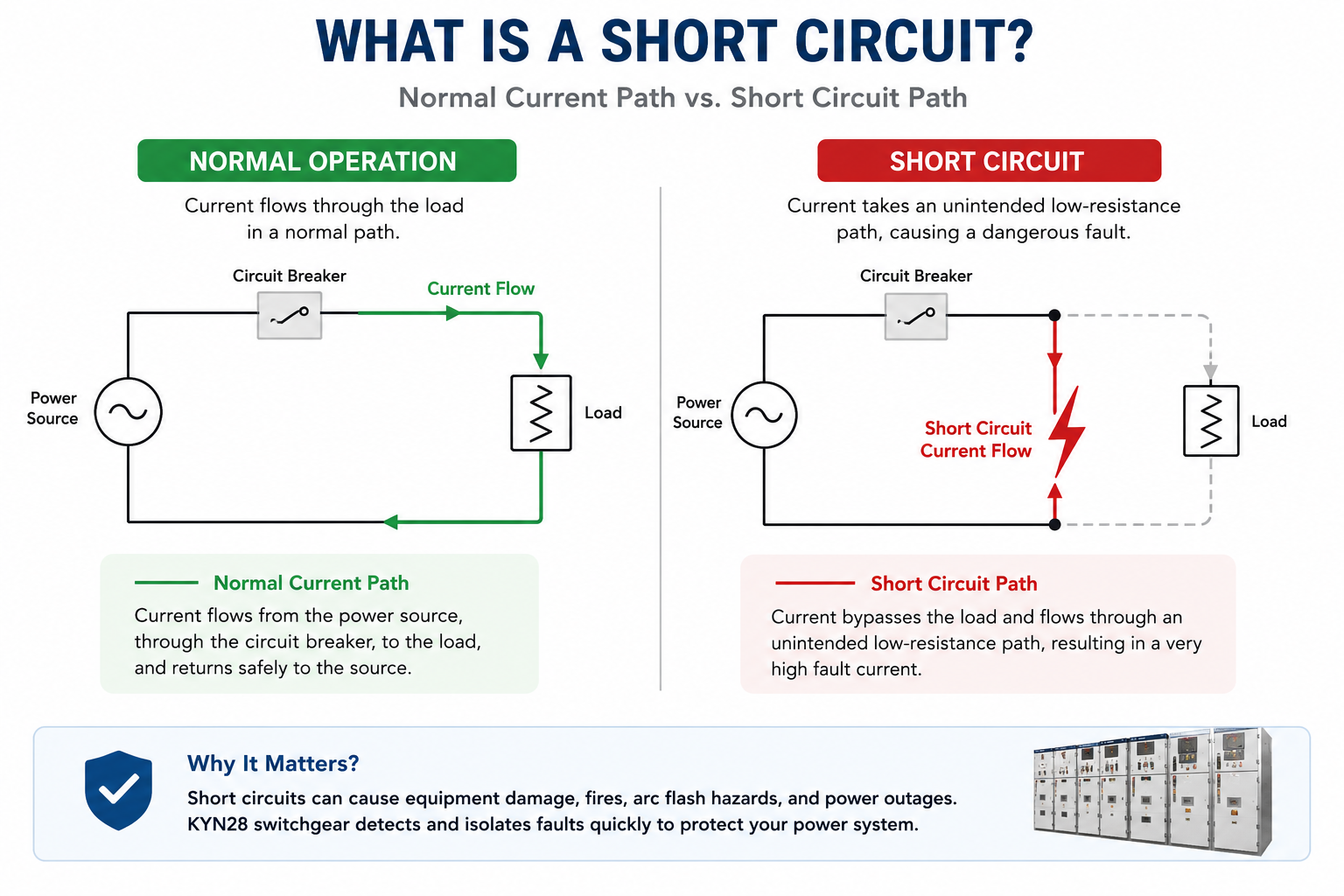

A short circuit occurs when electrical current flows through an unintended low-resistance path instead of the normal load.
Common causes include:
Damaged cable insulation
Equipment aging
Moisture or contamination
Incorrect operation
Mechanical damage
Animal intrusion
Lightning strikes
The result is an extremely high fault current that can reach tens of thousands of amperes within milliseconds.
Without proper protection, the consequences can include:
Equipment failure
Fire hazards
Arc flash accidents
Transformer damage
Production downtime
Modern power systems contain expensive equipment such as transformers, motors, generators, and distribution panels.
If a fault is not cleared immediately, excessive current generates tremendous heat and mechanical stress that can permanently damage equipment.
KYN28 switchgear is designed to detect and isolate faults before this damage occurs.

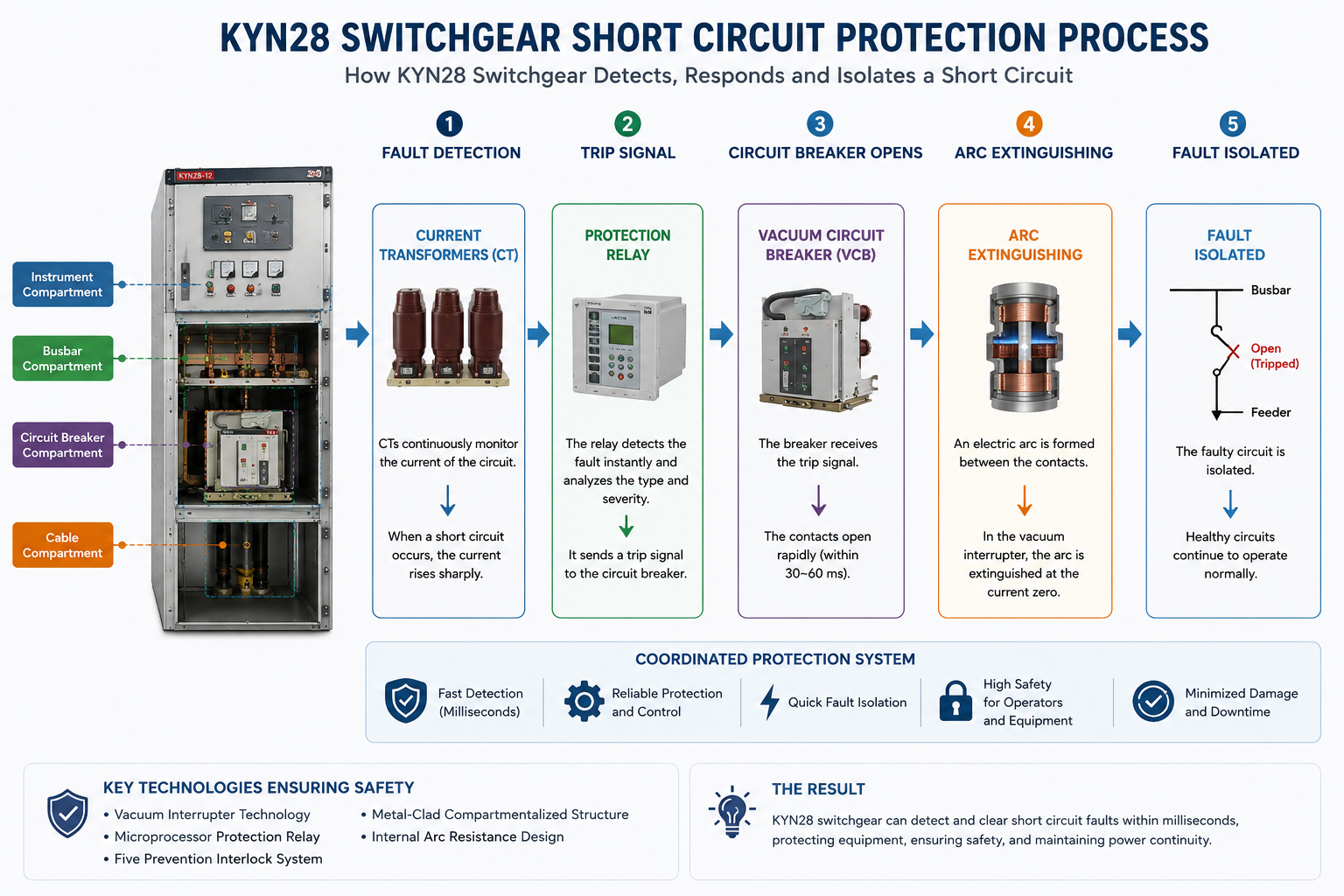

The first "brain" of the system is the protection relay.
Current Transformers (CTs) continuously measure the current flowing through each feeder.
When the current suddenly exceeds the preset protection value, the relay immediately identifies the abnormal condition.
Depending on the relay settings, it may detect:
Instantaneous overcurrent
Time overcurrent
Earth fault
Phase-to-phase fault
Busbar fault
Undervoltage
Overvoltage
Modern digital relays analyze these signals in just a few milliseconds.
Once the relay confirms a fault, it sends a trip command to the vacuum circuit breaker (VCB).
The operating mechanism releases its stored spring energy, causing the breaker contacts to separate almost instantly.
Typical opening times range from 30 to 60 milliseconds, depending on the breaker model.
This rapid response helps prevent excessive thermal and mechanical stress on the electrical system.
When the contacts separate, an electric arc naturally forms between them.
Inside the vacuum interrupter, however, there is almost no gas to sustain the arc.
As the AC current passes through its natural zero crossing, the arc extinguishes almost immediately.
Compared with oil or air circuit breakers, vacuum technology offers:
Faster interruption
Longer service life
Minimal maintenance
No oil contamination
Environmentally friendly operation
This is one of the key reasons why vacuum circuit breakers are widely used in KYN28 switchgear.
After the breaker opens, the faulty feeder is disconnected from the busbar.
Meanwhile:
Healthy feeders continue operating.
The fault remains confined to the affected circuit.
Power outages are minimized.
Equipment damage is reduced.
This selective protection is essential for factories, hospitals, data centers, and utility substations where uninterrupted power is critical.

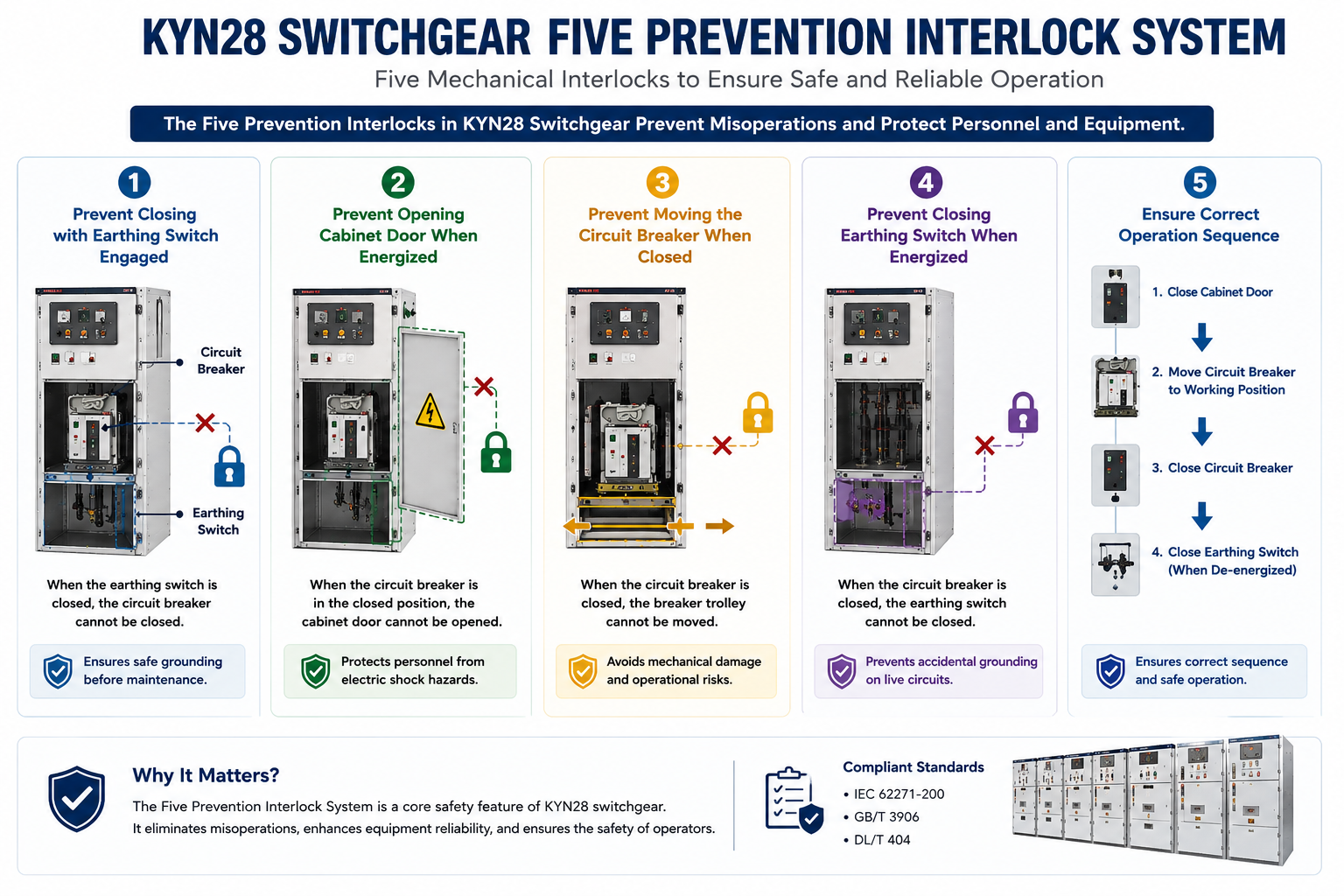

KYN28 switchgear incorporates the famous Five Prevention Interlock System, designed to eliminate dangerous operating mistakes.
These interlocks help prevent:
Closing the breaker while the earthing switch is engaged.
Opening compartment doors when the breaker is energized.
Moving the breaker truck while it is closed.
Closing the earthing switch on a live circuit.
Incorrect operating sequences.
By mechanically restricting unsafe actions, the system greatly enhances operator safety.
Although rare, severe faults may produce internal arc faults.
KYN28 switchgear is engineered to minimize the impact of these events through:
Metal-clad compartment separation
Pressure-resistant cabinet structure
Arc-resistant insulation
Pressure relief channels
Dedicated venting paths
These design features help direct hot gases away from operators and reduce the risk of catastrophic cabinet failure.
Unlike conventional switchgear, KYN28 features separate compartments for:
Busbars
Vacuum circuit breaker
Cable connections
Instrumentation
If a fault occurs in one compartment, the others remain protected, reducing the likelihood of fault propagation and simplifying maintenance.
Today's KYN28 switchgear can be equipped with advanced monitoring systems, including:
Online temperature monitoring
Partial discharge detection
Breaker operation counters
Humidity monitoring
Busbar temperature sensors
Remote diagnostics
SCADA integration
IEC 61850 communication
These technologies enable predictive maintenance and help detect potential issues before they become failures.
KYN28 switchgear is widely used in applications that require high reliability, such as:
Utility substations
Solar photovoltaic power plants
Wind farms
Industrial manufacturing facilities
Mining operations
Petrochemical plants
Airports
Rail transit systems
Hospitals
Data centers
In these environments, even a brief power interruption can lead to significant operational and financial losses.
To ensure optimal protection throughout the service life of the equipment:
Test protection relays periodically.
Inspect vacuum circuit breaker mechanisms.
Verify CT and VT accuracy.
Tighten electrical connections.
Monitor insulation resistance.
Clean dust from cable compartments.
Check interlock functionality.
Perform thermal imaging inspections.
Preventive maintenance not only improves reliability but also extends the operational life of the switchgear.
Engineers around the world continue to choose KYN28 because it delivers:
High operational safety
Excellent fault isolation
Reliable vacuum interruption technology
Flexible configuration options
Long service life
Easy maintenance
Compatibility with intelligent substations
Compliance with international standards
These advantages make it one of the most trusted medium-voltage switchgear solutions in modern electrical distribution systems.
A short circuit is one of the most dangerous events that can occur in a medium-voltage electrical system. The ability to detect, interrupt, and isolate the fault within milliseconds is essential for protecting equipment, ensuring personnel safety, and maintaining power continuity.
KYN28 switchgear achieves this through the coordinated operation of protection relays, current transformers, vacuum circuit breakers, mechanical interlocks, and arc-resistant metal-clad construction.
Whether installed in industrial plants, renewable energy projects, or utility substations, KYN28 provides the reliability and safety required for today's demanding power distribution networks.
Most systems detect and interrupt a fault within milliseconds, depending on the relay settings and circuit breaker specifications.
Vacuum circuit breakers offer faster arc extinction, lower maintenance requirements, longer service life, and environmentally friendly operation compared to traditional oil or air circuit breakers.
No switchgear can prevent every fault from occurring, but KYN28 is designed to detect and isolate faults quickly, minimizing damage and improving system safety.
Yes. Modern KYN28 switchgear supports SCADA systems, IEC 61850 communication, and various intelligent monitoring technologies, making it well suited for digital substations.
