Selecting the right transformer is one of the most important decisions in any power distribution project. While both oil-immersed transformers and dry-type transformers are widely used across the electrical industry, their performance can vary significantly depending on the installation environment.
In controlled indoor locations, dry-type transformers can offer several advantages. However, when projects involve extreme temperatures, dust, humidity, salt spray, heavy loads, or outdoor exposure, oil-immersed transformers often become the preferred choice for engineers, utilities, and EPC contractors.
So what makes oil-filled transformers more reliable under harsh operating conditions?
Let's take a closer look.
Before comparing reliability, it is important to understand how these two transformer types differ.
Oil-immersed transformers use insulating oil to surround the transformer core and windings. The oil serves two critical purposes:
Electrical insulation
Heat dissipation
The oil continuously absorbs heat generated during operation and transfers it to the cooling system, helping maintain stable temperatures.
Dry-type transformers use air as the primary cooling medium. Their windings are typically insulated using epoxy resin or other solid insulating materials.
These transformers are commonly installed indoors in locations such as:
Commercial buildings
Hospitals
Shopping centers
Data centers
Because they do not contain oil, they are often selected where fire safety is a primary concern.
Harsh environments present unique challenges that can shorten equipment lifespan and increase maintenance costs.
Common environmental challenges include:
Temperatures above 40°C can significantly affect transformer cooling performance.
Mining sites, cement plants, and desert regions often expose equipment to excessive dust contamination.
Tropical regions frequently experience humidity levels above 90%.
Salt-laden air accelerates corrosion and insulation degradation.
Industrial facilities often operate equipment near maximum capacity for extended periods.
In these situations, transformer reliability directly impacts operational continuity and profitability.

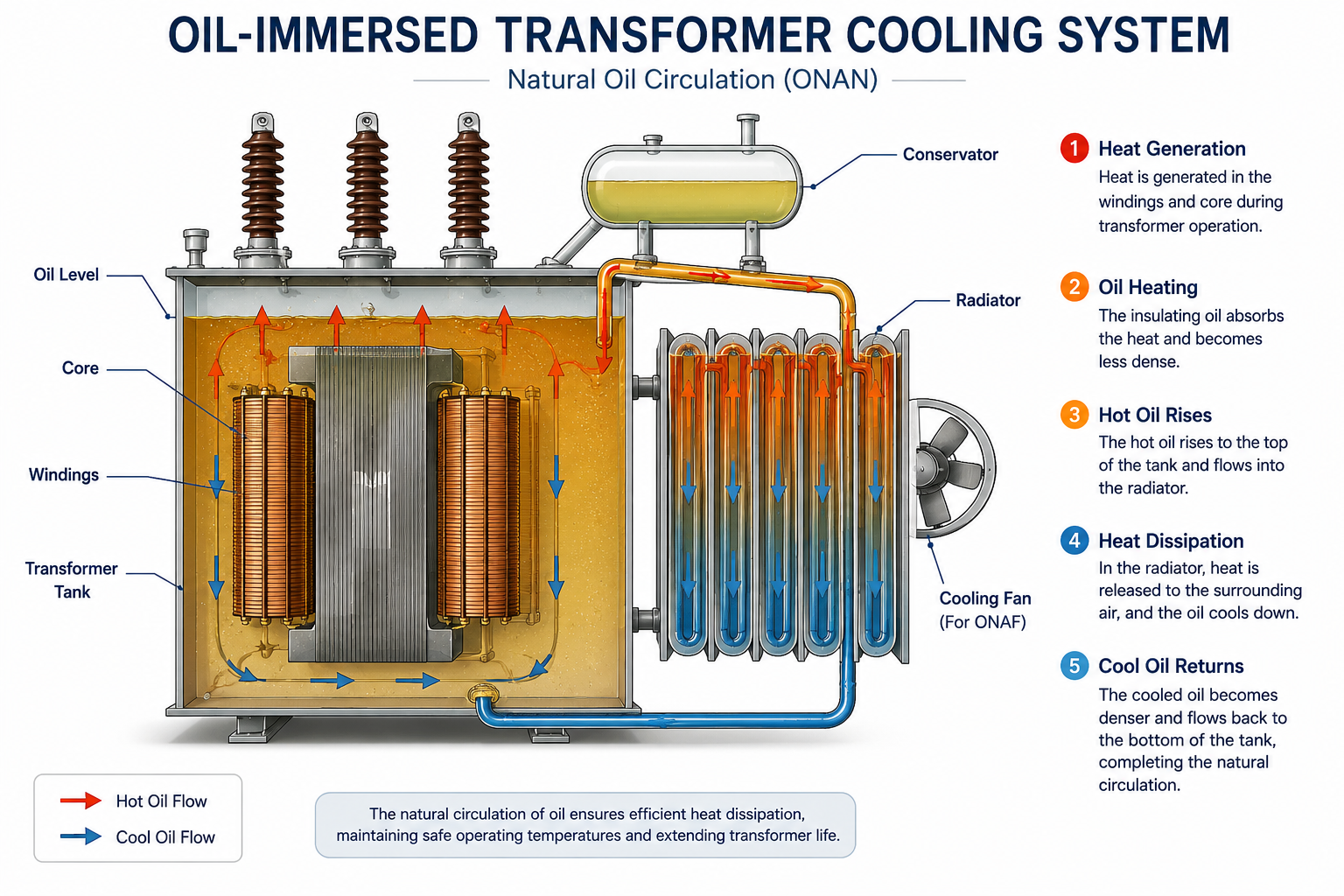

One of the primary reasons oil-immersed transformers perform better in harsh environments is their superior cooling capability.
Transformer oil has significantly higher thermal conductivity than air.
As heat is generated inside the transformer:
Oil absorbs the heat.
Heated oil rises naturally.
Cooler oil flows downward.
Heat is transferred through radiators.
This continuous circulation provides highly effective cooling.
Because heat is removed more efficiently, oil-filled transformers generally operate at lower internal temperatures.
Benefits include:
Reduced insulation aging
Improved efficiency
Longer equipment life
Higher reliability
Temperature is one of the biggest factors affecting transformer lifespan, making effective cooling extremely important.
Industrial facilities rarely operate under ideal conditions.
Power demand may fluctuate due to:
Motor starting
Production cycles
Seasonal demand peaks
Renewable energy variations
Oil-immersed transformers handle overload conditions more effectively because the insulating oil acts as a thermal buffer.
Compared with dry-type transformers, oil-filled units can tolerate temporary overloads while maintaining acceptable operating temperatures.
This makes them especially suitable for:
Steel plants
Mining operations
Manufacturing facilities
Renewable energy projects
Dust accumulation can create significant challenges for electrical equipment.
Dry-type transformers rely on airflow for cooling.
When dust accumulates on windings:
Cooling efficiency decreases
Operating temperature increases
Maintenance frequency rises
Because the core and windings are enclosed within a sealed oil-filled tank, critical components remain protected from external contamination.
This design significantly reduces the impact of:
Dust
Sand
Industrial particles
Airborne contaminants
As a result, oil-immersed transformers often perform better in mining and industrial environments.
Moisture is one of the greatest enemies of electrical insulation.
Excessive moisture can lead to:
Insulation degradation
Partial discharge
Reduced dielectric strength
Premature failure
In oil-immersed transformers, the windings are immersed in insulating oil and protected by a sealed tank.
This minimizes moisture ingress and helps maintain insulation integrity.
For tropical regions and coastal projects, this added protection can significantly improve long-term reliability.
Coastal installations face unique challenges due to salt spray exposure.
Salt contamination can accelerate:
Corrosion
Surface tracking
Insulation deterioration
Examples include:
Port facilities
Offshore support stations
Coastal substations
Island power systems
Oil-immersed transformers equipped with:
Corrosion-resistant coatings
Stainless steel accessories
Sealed tank designs
can operate reliably for decades in these environments.
Reliability is closely linked to service life.
Many utility companies continue operating oil-filled transformers for more than 30 years.
Several factors contribute:
Superior cooling
Better insulation protection
Reduced exposure to contaminants
Strong overload capability
With proper maintenance, service life often exceeds 30 years and may reach 40 years or more.

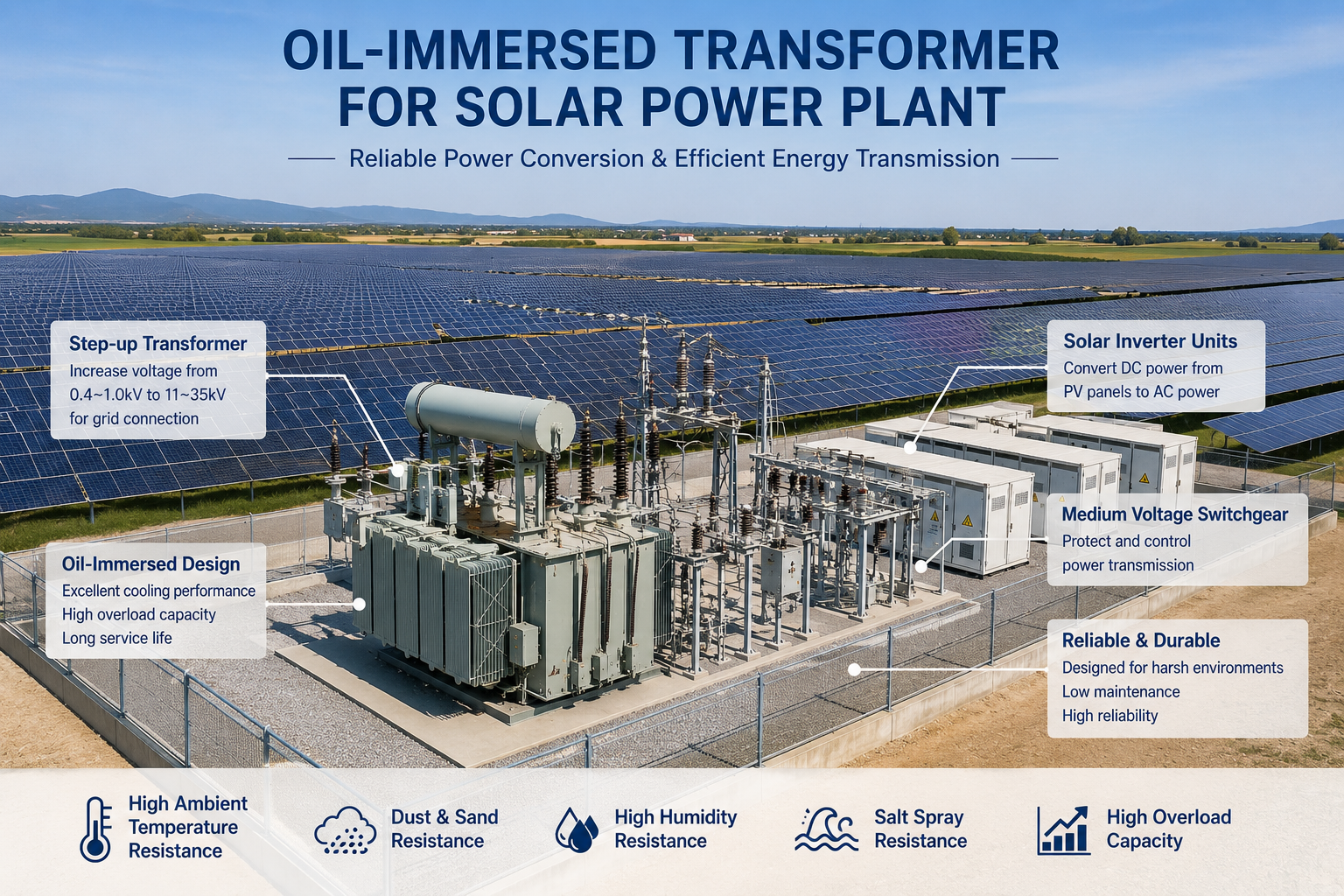

Renewable energy installations often operate in challenging locations.
Solar farms are commonly built in:
Deserts
High-temperature regions
Remote areas
Wind farms frequently experience:
High humidity
Salt spray
Strong winds
Temperature fluctuations
Oil-immersed transformers have demonstrated excellent reliability under these conditions, making them a preferred choice for utility-scale renewable projects.
Although initial purchase price is important, lifecycle cost is often more critical.
Longer service life
Lower replacement frequency
Reduced downtime
Better energy efficiency
Improved overload tolerance
These advantages contribute to a lower total cost of ownership over the equipment's lifespan.
For utilities and industrial operators, long-term savings can be substantial.
While oil-immersed transformers offer significant advantages in harsh environments, dry-type transformers remain the preferred solution in certain applications.
Typical examples include:
High-rise buildings
Hospitals
Airports
Underground facilities
Commercial complexes
In these locations, fire safety and indoor installation requirements may outweigh the cooling and durability advantages of oil-filled transformers.
The choice ultimately depends on project conditions and operational priorities.
When selecting a transformer for demanding conditions, consider the following factors:
Evaluate:
Ambient temperature
Humidity
Dust levels
Salt spray exposure
Altitude
Understand:
Average load
Peak load
Overload requirements
Determine whether the transformer will be installed:
Indoors
Outdoors
In a containerized substation
In a renewable energy facility
Assess available maintenance resources and operational requirements.
Ensure compliance with international standards such as:
IEC 60076
IEEE C57
ANSI standards
When operating in harsh environments, reliability is often the most important factor in transformer selection.
Thanks to their superior cooling performance, stronger overload capability, better protection against dust and moisture, longer service life, and proven performance in industrial and utility applications, oil-immersed transformers continue to outperform dry-type transformers in many demanding environments.
Whether the project involves a mining operation, coastal substation, solar power plant, wind farm, or heavy industrial facility, oil-immersed transformers remain one of the most reliable and cost-effective solutions available today.
For engineers, utilities, and EPC contractors seeking long-term performance and operational security, oil-filled transformers continue to be the benchmark for dependable power distribution.
