How Does Electricity Travel from Power Plants to Your Home?

How Does Electricity Get to Our Homes?

Electricity powers modern life. From the moment we turn on a light, charge our phones, or cook a meal, we rely on a seamless flow of energy that travels hundreds or even thousands of kilometers to reach us. But how does electricity actually get from where it is generated to the sockets in our homes? And what role do transformers and substations play in making this journey possible, efficient, and safe?

At the heart of this process lies the substation—a critical facility that transforms voltage levels, controls power flow, and protects the electrical grid. Without substations and the transformers they house, the electricity generated at power plants would be impossible to transport over long distances or use safely in our daily lives.

In this article, we will take a journey from the source of electricity—hydroelectric dams, coal plants, nuclear facilities, and wind farms—through the transmission and distribution network, and finally to the devices we use every day. Along the way, we will explore how transformers and substations step voltage up and down, ensuring that electricity arrives reliably, efficiently, and safely at every destination.

Where Does Electricity Come From?

Electricity is not created at the moment we flip a switch. It is generated at power plants using various energy sources. The most common sources include:

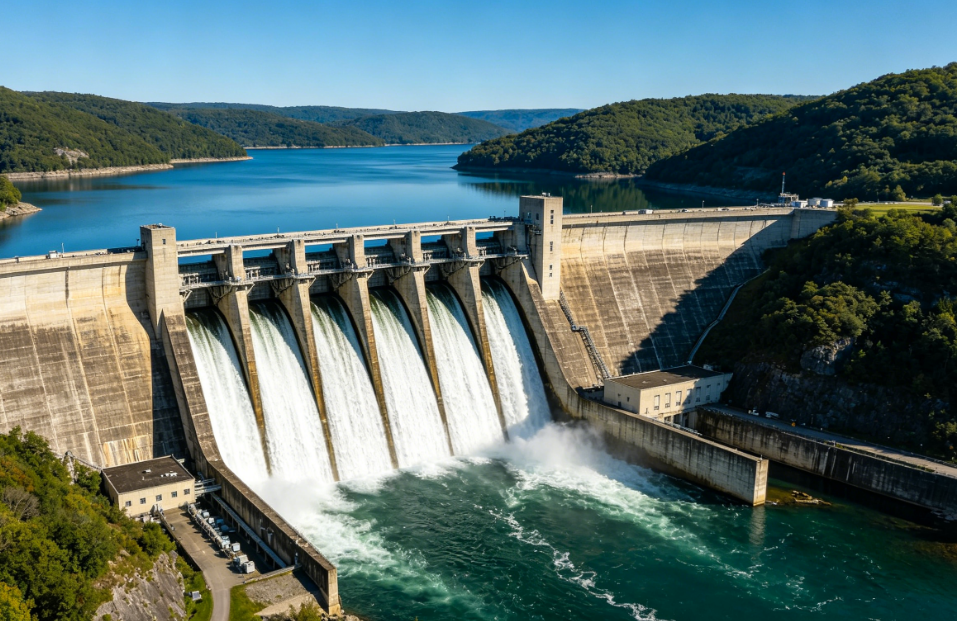

• Hydroelectric power: Flowing water spins turbines connected to generators, producing electricity. Dams like the Three Gorges Dam or Hoover Dam are iconic examples.

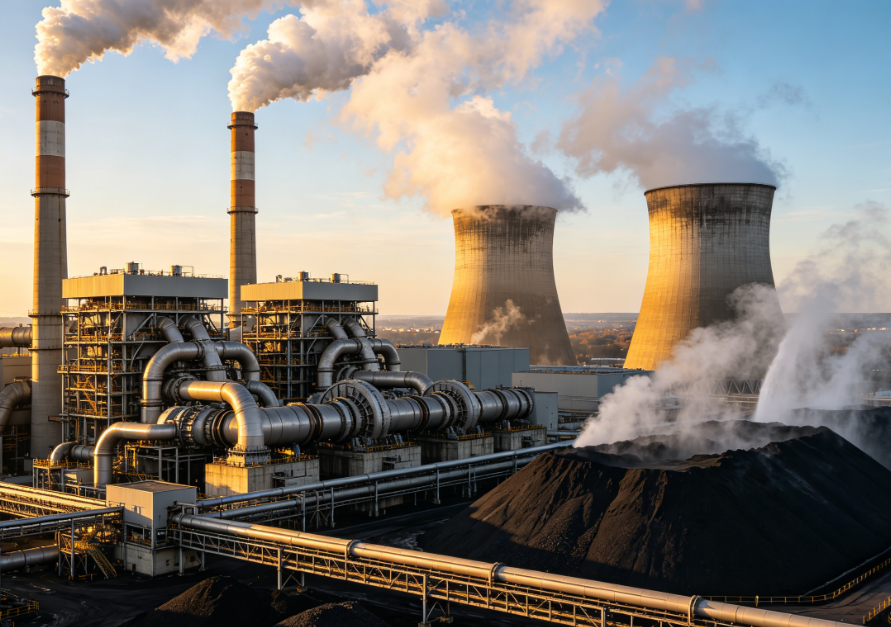

• Thermal power: Coal, natural gas, or oil is burned to heat water into steam, which spins turbines.

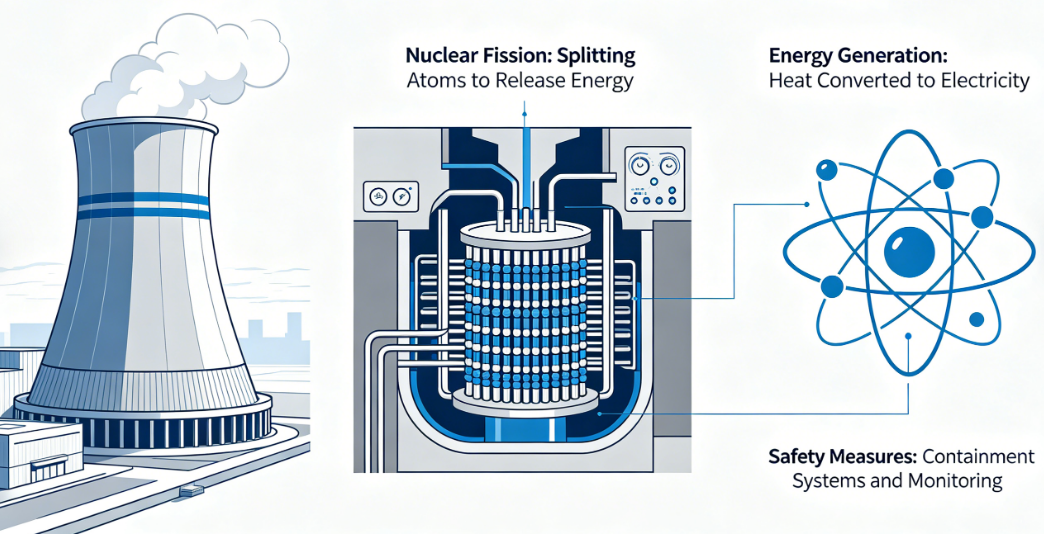

• Nuclear power: Nuclear fission releases heat, turning water into steam to drive turbines.

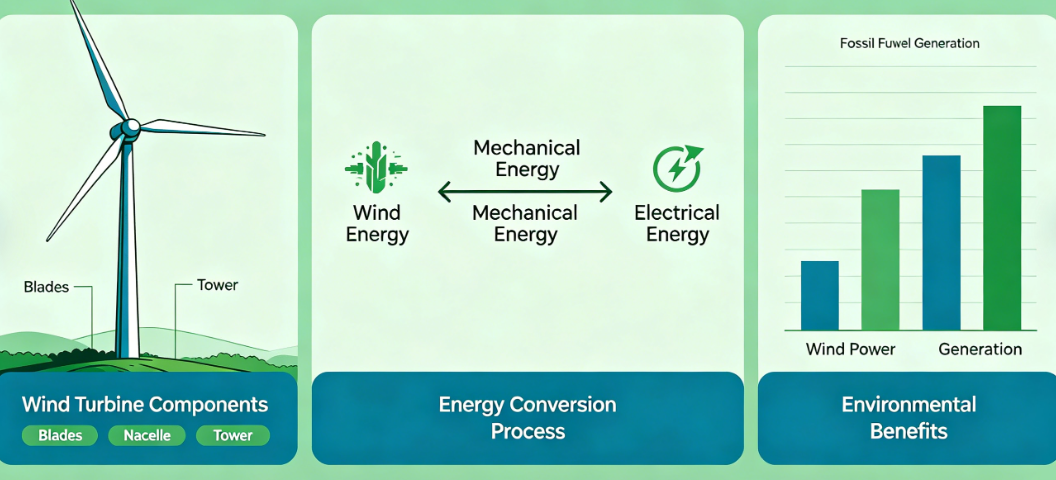

• Renewable sources: Wind turbines capture kinetic energy from wind, while solar panels convert sunlight directly into electricity using photovoltaic cells.

Regardless of the source, power plants typically generate electricity at relatively low voltages—usually between 11 kV and 25 kV. This voltage is efficient for generation but not suitable for long-distance travel. If electricity were sent at this voltage across hundreds of kilometers, much of it would be lost as heat due to resistance in the transmission lines.

Why Does Voltage Need to Be Changed?

The key to efficient long-distance power transmission lies in high voltage. When voltage is increased, current decreases for the same amount of power. Lower current means less energy lost as heat, according to the formula: Power loss = I²R (where I is current and R is resistance). This is why transmission lines carry electricity at extremely high voltages, often ranging from 110 kV to 765 kV or even higher.

However, high voltage is dangerous and unsuitable for direct use in homes, offices, or factories. This is why transformers become essential.

The Journey of Electricity:

Step 1: Generation

Electricity is produced at a power plant at a typical voltage of 11 kV to 25 kV. This power is then directed to the first substation, known as a generation substation or transmission substation.

Step 2: Step-Up Transmission

At the transmission substation, step-up transformers increase the voltage from generator level to transmission level (e.g., 110 kV, 220 kV, 400 kV, or higher). High-voltage transmission lines then carry the electricity over long distances, often crossing mountains, rivers, and rural areas.

Step 3: Transmission

The electricity travels along overhead transmission lines supported by tall steel towers. Some modern systems also use underground or underwater cables. During this stage, voltage remains high to minimize energy loss.

Step 4: Step-Down at Transmission Substations

When the transmission lines approach populated areas or industrial zones, they enter another substation. Here, step-down transformers reduce the voltage from transmission levels to sub-transmission levels, typically between 33 kV and 132 kV.

Step 5: Distribution Substations

Electricity then moves to distribution substations, where transformers further reduce the voltage to levels suitable for local distribution. Common distribution voltages include 11 kV, 6.6 kV, or 3.3 kV. From these substations, power flows along distribution lines that run along streets and neighborhoods.

Step 6: Final Step-Down for End Users

Before electricity enters a home or small business, a pole-mounted transformer (often seen on utility poles) or a pad-mounted transformer (on the ground in residential areas) reduces the voltage to the standard levels used by appliances and lighting:

• 120V or 230V for residential use (depending on country)

• 400V three-phase for commercial and light industrial use

Step 7: Consumption

Finally, the electricity flows through the building's wiring, through circuit breakers and fuses for safety, and into the devices we use every day—lights, refrigerators, computers, air conditioners, and countless other appliances.

What Is a Substation and Why Is It So Important?

As described in the journey above, substations are the critical hubs that make this entire process possible. A substation is a facility within an electrical power system where voltage levels are transformed, circuits are controlled, and protection systems safeguard the network.

Substations serve several essential functions:

• Voltage transformation: Using transformers to step voltage up or down as needed

• Power distribution: Directing electricity to multiple outgoing circuits serving different areas

• System protection: Using circuit breakers, fuses, and relays to detect and isolate faults, preventing damage to equipment and the grid

• Monitoring and control: Allowing operators to manage loads, switch circuits, and maintain grid reliability

Without substations, the high-voltage electricity traveling through transmission lines could never be safely reduced to the levels we use in our homes. Similarly, without step-up substations at power plants, long-distance transmission would be highly inefficient and costly.

The Role of Transformers in Everyday Life

Transformers are the most visible and critical components within most substations. They come in various types depending on their application:

• Oil-immersed transformers: Commonly used in distribution and transmission substations, these transformers use oil for cooling and insulation. They are known for reliability, high efficiency, and strong short-circuit withstand capability.

• Dry-type transformers: Often used indoors or in fire-sensitive areas, these transformers do not use oil and are cooled by air.

• Pad-mounted transformers: Ground-mounted, enclosed transformers commonly seen in residential neighborhoods.

• Pole-mounted transformers: Small transformers attached to utility poles, serving individual homes or small groups of homes.

Every time you plug in a device, you are benefiting from the work of transformers—often several of them—that have adjusted voltage levels along the entire journey from the power plant to your wall outlet.

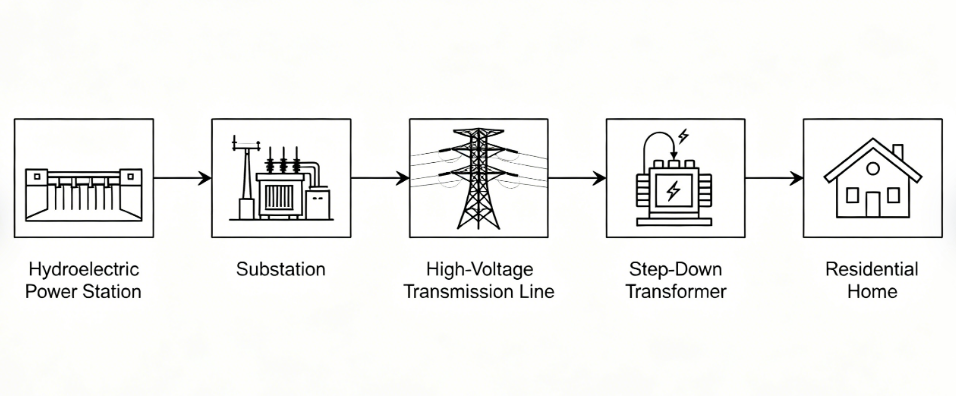

Real-World Example: A Hydroelectric Dam

To make this journey concrete, consider electricity generated at a hydroelectric dam:

1. Water flows through turbines, spinning a generator that produces electricity at 13.8 kV.

2. A step-up transformer at the dam's switchyard increases the voltage to 230 kV or 500 kV.

3. High-voltage transmission lines carry the electricity hundreds of kilometers to a city.

4. A transmission substation reduces the voltage to 115 kV.

5. A distribution substation further reduces the voltage to 13.8 kV.

6. Pole-mounted or pad-mounted transformers along city streets reduce the voltage to 120V/240V.

7. The electricity enters your home and powers your lights, television, and refrigerator.

This entire process happens in milliseconds, and you experience it every time you flip a switch.

Safety and Reliability: How Substations Protect Us

Substations are not just about voltage transformation—they are also critical for safety. Circuit breakers within substations can interrupt electrical flow in milliseconds when a fault occurs, such as a lightning strike, tree falling on a line, or equipment failure. Protective relays continuously monitor voltage, current, and frequency. When abnormalities are detected, relays trigger circuit breakers to isolate the affected section, preventing damage and maintaining power to other areas.

Modern substations are increasingly equipped with digital monitoring and control systems, such as SCADA (Supervisory Control and Data Acquisition), which allow operators to monitor conditions and execute switching operations remotely. This reduces response times and improves overall grid reliability.

Innovations in Substation and Transformer Technology

Key innovations include:

• Digital substations: Using data-driven communication protocols to replace conventional analog systems, reducing cabling and enhancing monitoring capabilities

• Smart transformers: Equipped with sensors and communication interfaces for real-time monitoring and adaptive control

• Gas-insulated substations (GIS): Using insulating gases like SF6 to create compact, enclosed designs suitable for urban environments with limited space

• Integration of renewable energy: Substations now stabilize variable power output from solar farms and wind plants, managing energy flow from multiple sources into the main grid

• Energy storage integration: Substations increasingly incorporate battery storage to buffer intermittent renewable generation and improve grid stability

Conclusion

From the moment electricity is generated at a power plant—whether by flowing water, burning fuel, splitting atoms, or capturing wind—until it arrives safely at your home, substations and transformers play an indispensable role. They step voltage up for efficient long-distance travel and step it back down for safe consumption. They protect the grid from faults, distribute power where it is needed, and enable the modern conveniences we often take for granted.

The next time you turn on a light or charge your phone, remember the invisible journey that electricity has taken. Behind that simple act lies a vast, complex network of power plants, transmission lines, substations, and transformers—all working together seamlessly. And at the heart of that network stands the substation, a quiet but critical hub that truly powers our world.

For businesses and utilities seeking high-quality substation equipment, including distribution transformers, oil-immersed transformers, and vacuum circuit breakers, partnering with an experienced supplier ensures reliability, efficiency, and long-term performance. Zhejiang Shengxian Electric Power Technology Co., Ltd. provides expert guidance, high-quality transformers, switchgear, relays, and control systems, supporting modern grid requirements effectively.

FAQ

Q: Why is electricity transmitted at high voltage?
A: High voltage reduces current for the same amount of power, which minimizes energy loss as heat along transmission lines. This makes long-distance transmission efficient and economical.

Q: What does a substation do?
A: A substation transforms voltage levels, directs power flow, provides system protection, and enables monitoring and control of the electrical grid.

Q: What is the difference between a step-up and step-down transformer?
A: A step-up transformer increases voltage (used at power plants for transmission), while a step-down transformer decreases voltage (used at distribution substations for local use).

Q: Can I see a substation in my neighborhood?
A: Yes. Distribution substations are often located in populated areas, though they are typically fenced off for safety. Smaller pole-mounted or pad-mounted transformers are even more visible along streets.

Q: How does a substation protect the grid during a fault?
A: Protective relays detect abnormal conditions (such as overcurrent or overvoltage) and trigger circuit breakers to isolate the faulty section, preventing damage and maintaining power elsewhere.
