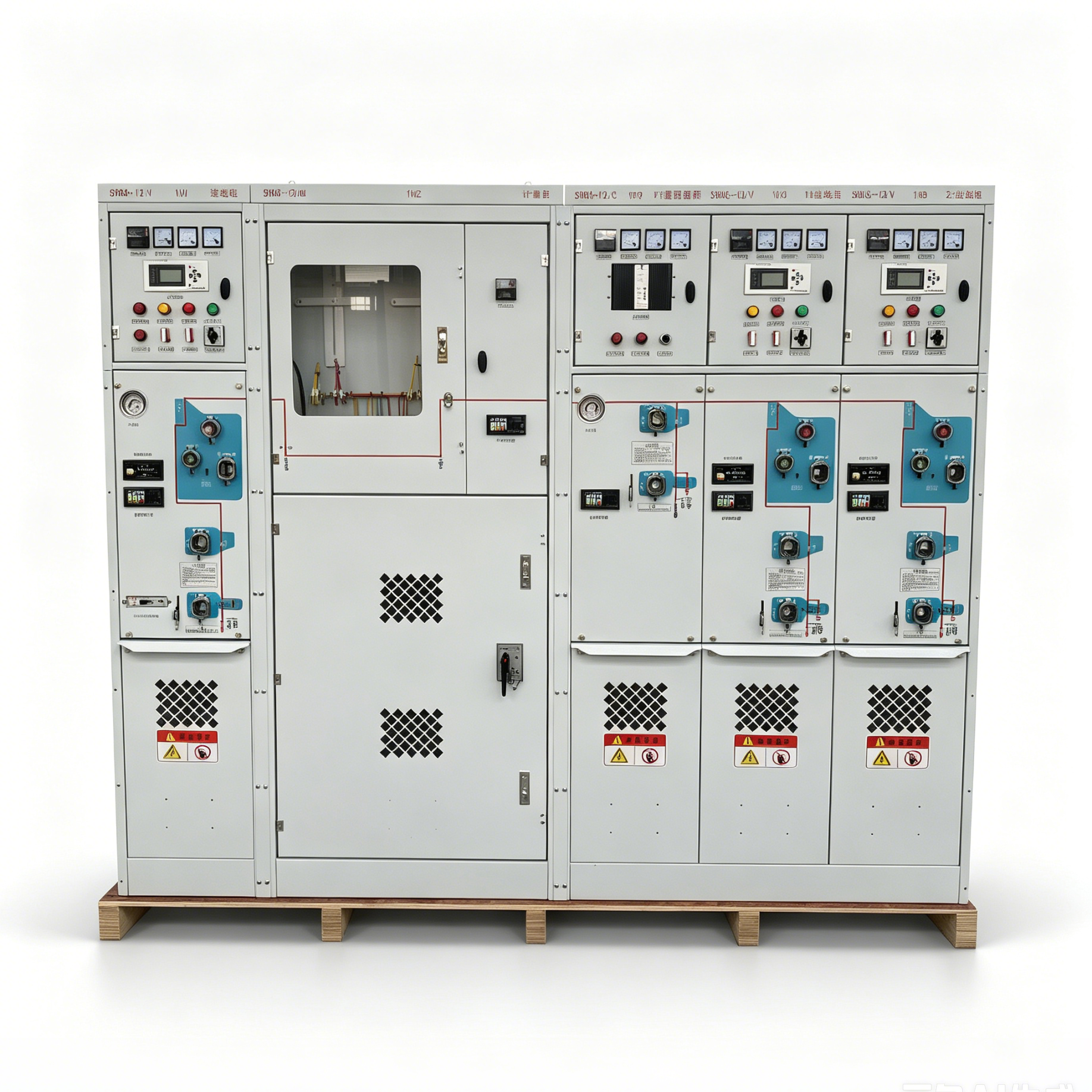

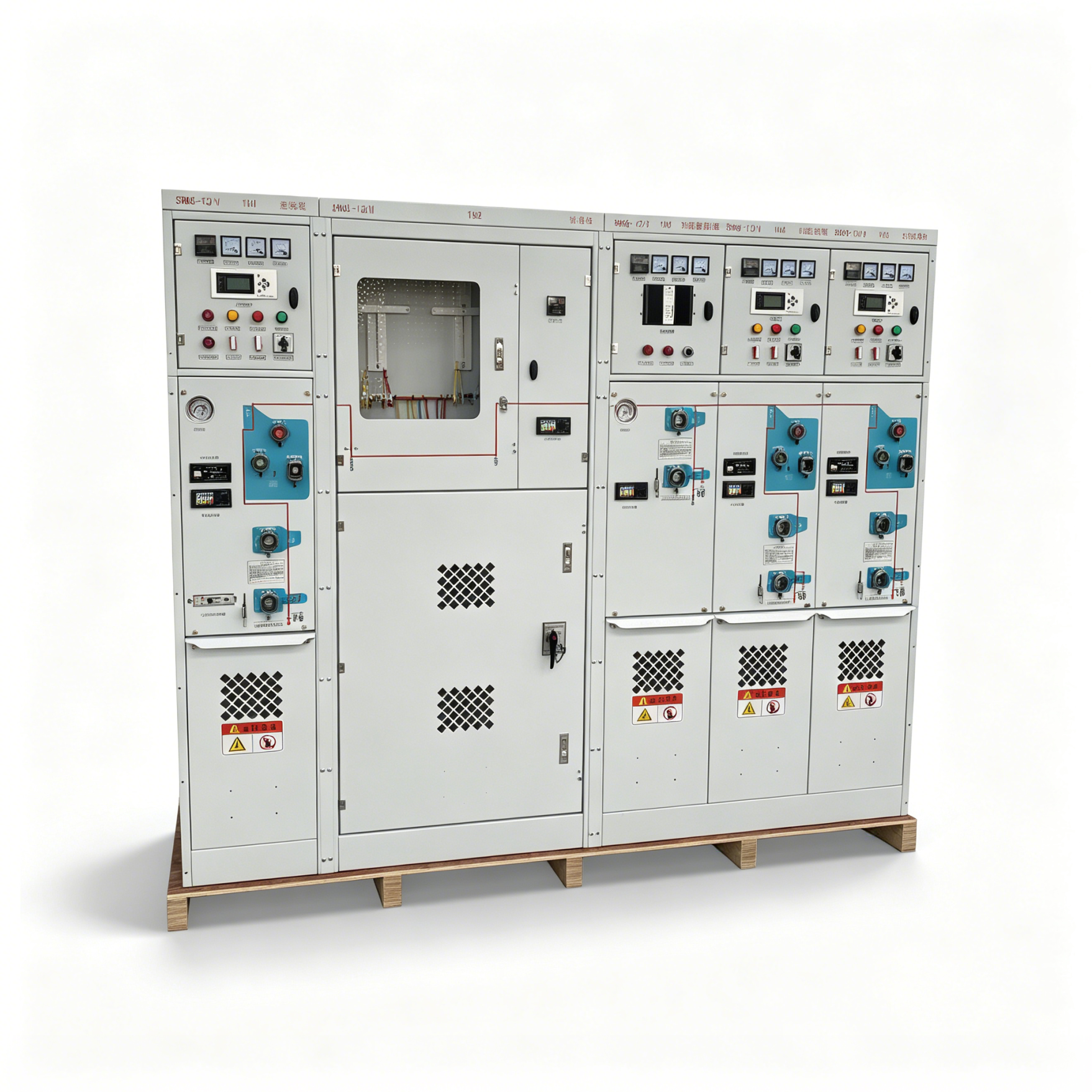

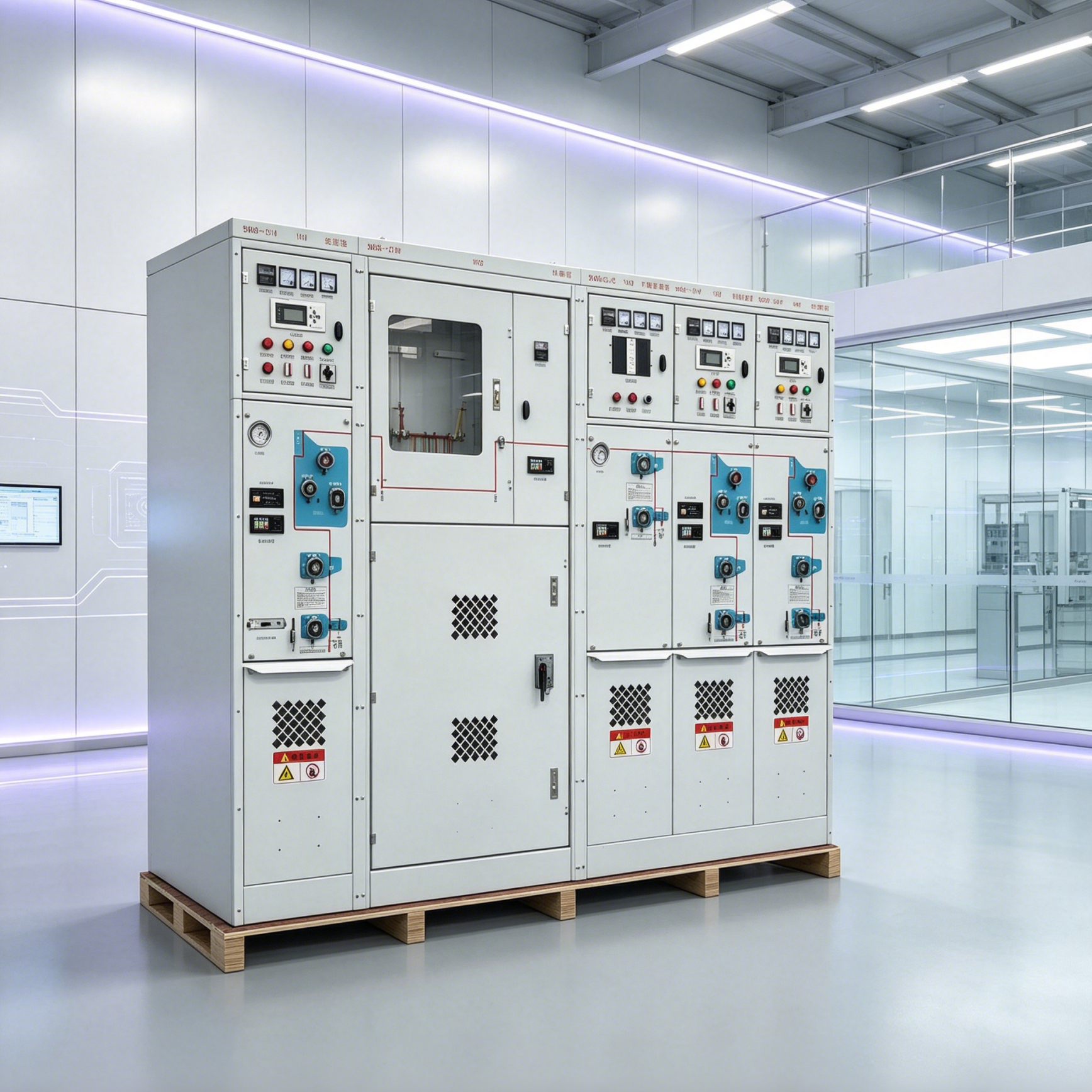

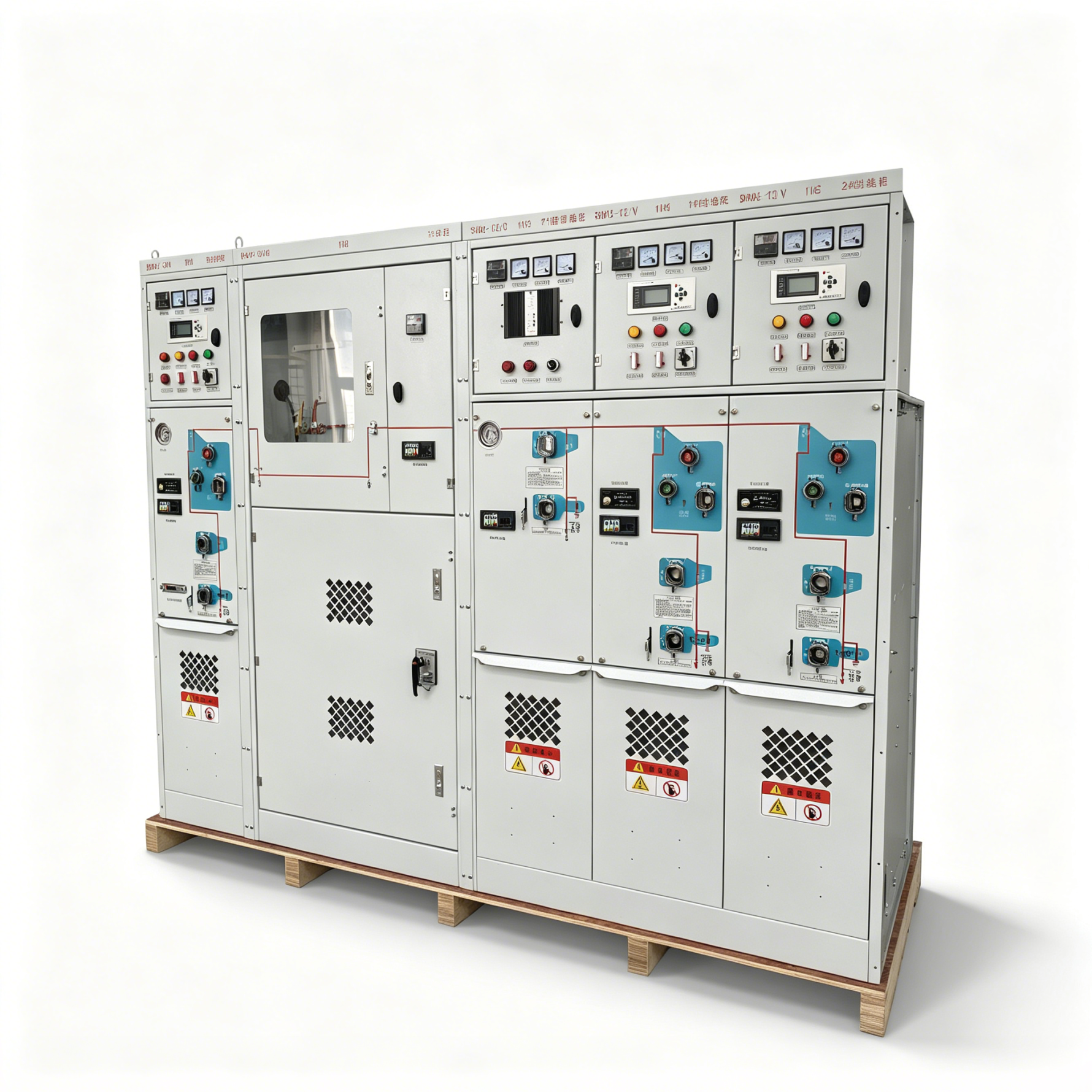

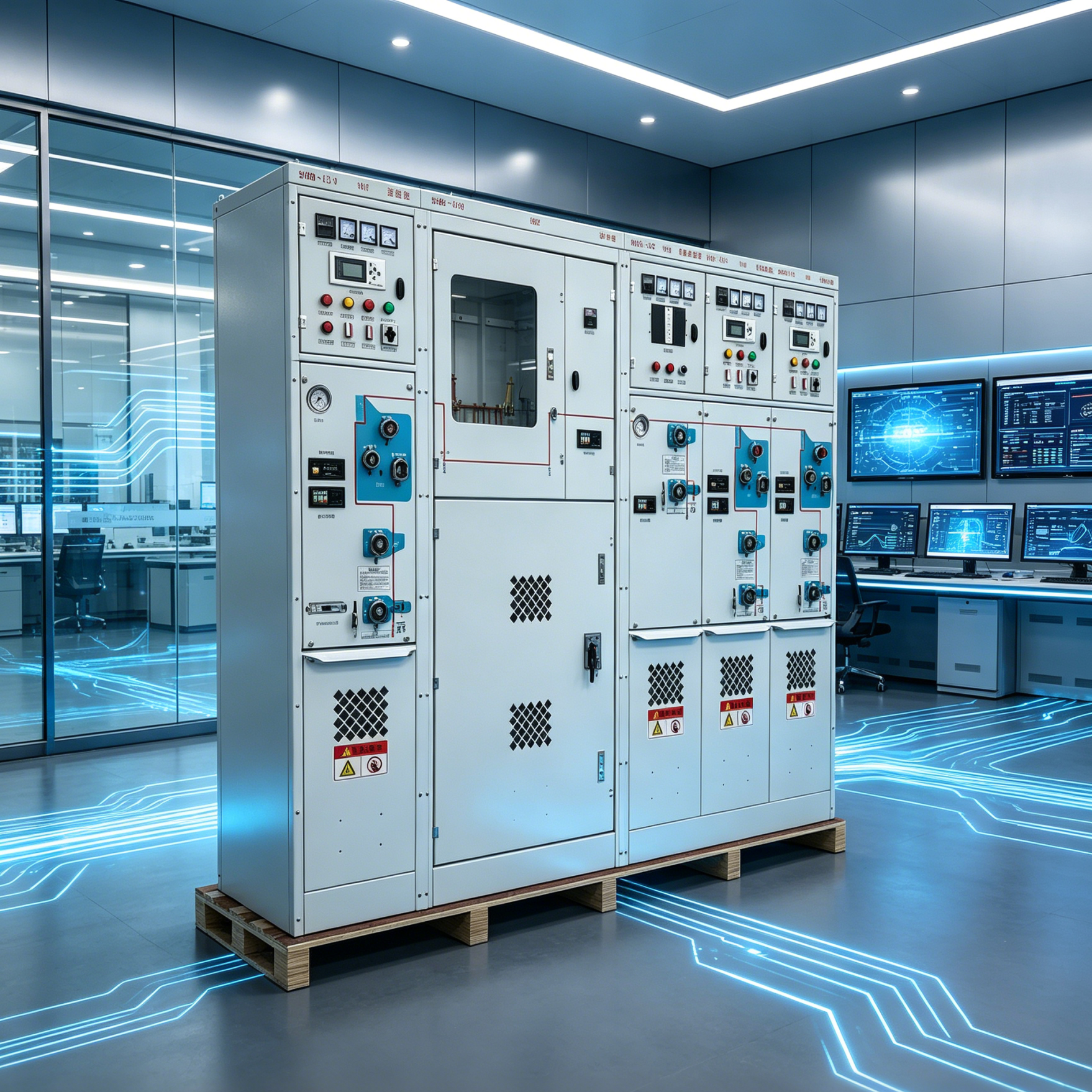

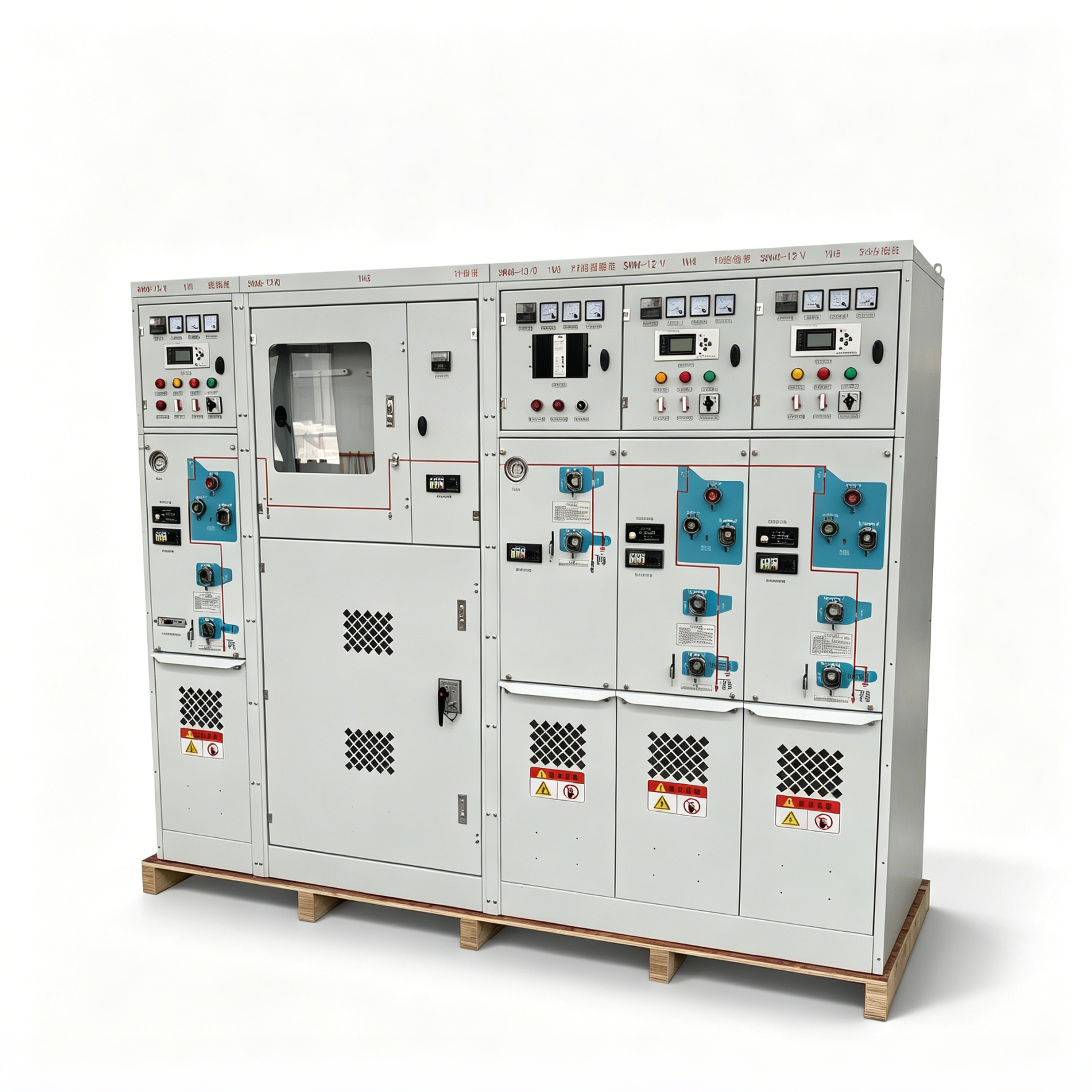

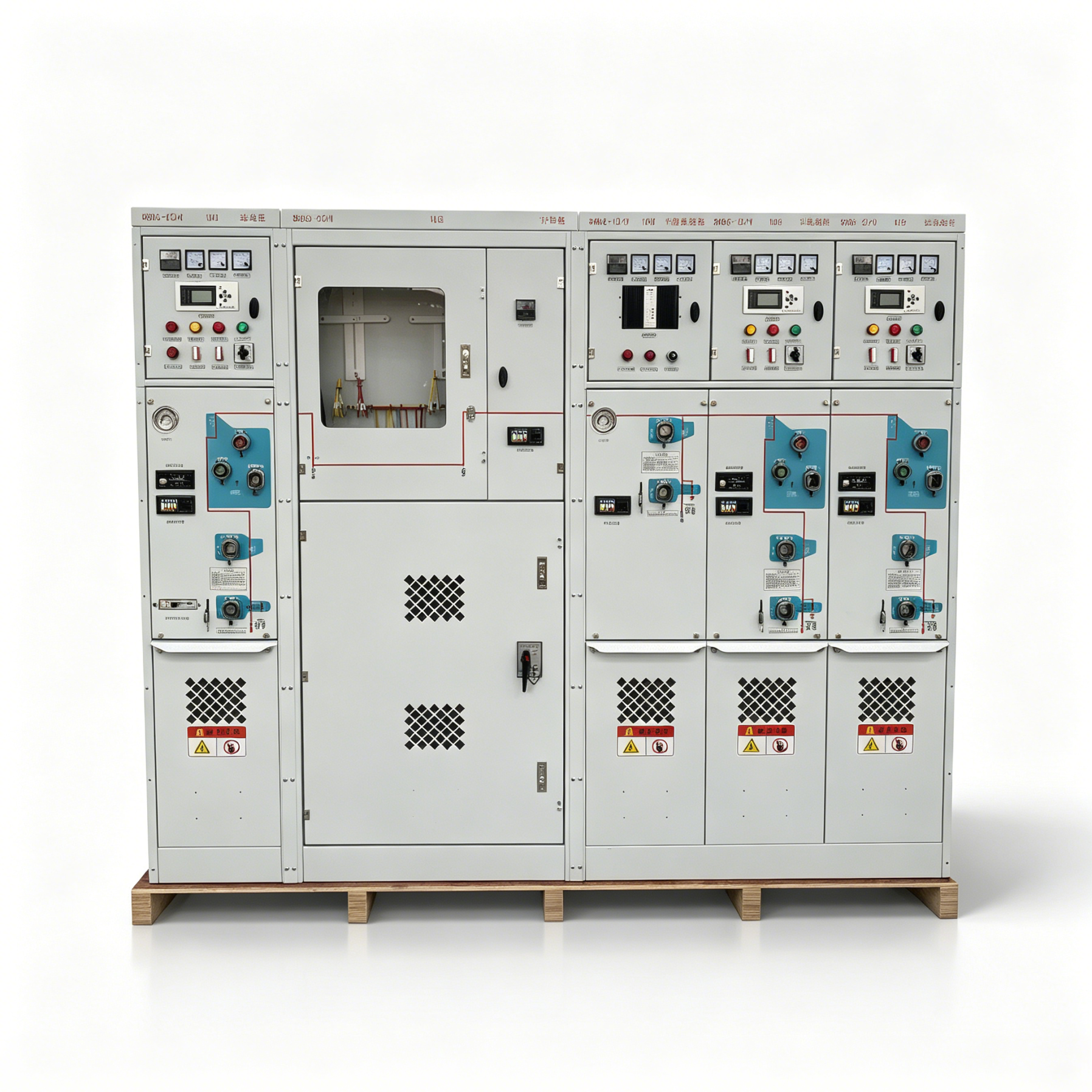

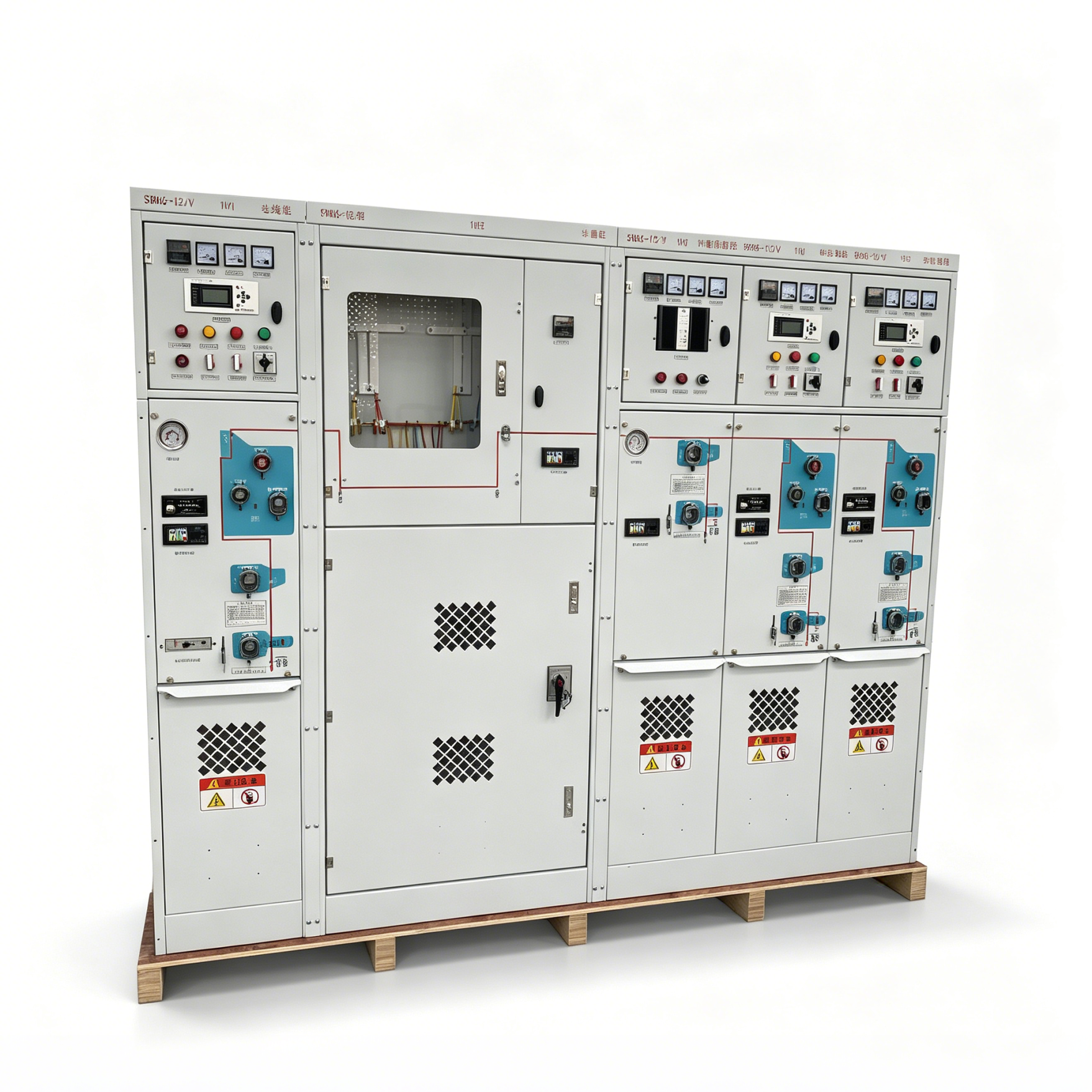

When space is tight but reliability cannot be compromised, the SRM6-12 delivers. This 12kV switchgear platform packs switching, protection, and fault interruption into a single compact enclosure. Choose from load break switch, fuse-switch, or vacuum breaker configurations to match your network needs. The rugged housing stands up to moisture, dust, and temperature extremes—ideal for underground vaults, substations, and industrial sites. Type-tested to IEC 62271-200 and GB3906. It simply works.
Choosing the right SRM6-12 Ring Main Unit (RMU) involves more than confirming the 12 kV voltage rating. Buyers should also consider the required feeder arrangement, electrical ratings, transformer protection, installation conditions, and project specifications.
This guide explains the key factors to check before selecting an SRM6-12 RMU for your medium-voltage power distribution project.
The SRM6-12 is designed for 12 kV-class medium-voltage distribution applications. Before ordering, confirm the nominal system voltage, highest voltage for equipment, frequency, and required insulation levels specified for your project.
The equipment rating must be suitable for the actual network conditions and applicable standards.
The required configuration depends on how the RMU will operate within your distribution network.
Cable Incoming and Outgoing Units: Used to connect and switch medium-voltage distribution cables in ring or radial network arrangements.
Transformer Protection Unit: Selected according to the required protection method, such as a switch-fuse combination or a circuit-breaker unit, where available.
Additional Functional Units: Metering, voltage transformer, or other units may be required depending on the project design and manufacturer’s available configurations.
For example, a distribution substation supplying one transformer may require two cable switching units and one transformer feeder unit. The final arrangement should be confirmed against the project single-line diagram (SLD).
Rated current and short-circuit capability are essential selection criteria.
Before placing an order, confirm:
Required rated current for the busbar and relevant functional units.
Prospective short-circuit current at the installation point.
Required short-time withstand current and duration.
Required short-circuit making and breaking capabilities for the relevant switching devices.
These ratings serve different purposes and should not be treated as interchangeable. The selected RMU must meet the electrical requirements of the complete distribution system.
Transformer feeder protection should be selected according to transformer characteristics, network fault levels, protection coordination, and project requirements.
A switch-fuse combination may be suitable for certain transformer applications, while a circuit-breaker unit with an appropriate protection relay may be preferred when the project requires specific protection settings or control functions.
Confirm the transformer rating, protection requirements, and applicable coordination criteria before selecting the feeder unit.
Installation conditions can affect the required equipment design and configuration.
Please confirm whether the RMU will be installed in an indoor electrical room, a prefabricated substation, or another approved environment. Relevant considerations include ambient temperature, altitude, humidity, pollution conditions, cable access, available space, and operating access.
If your project requires a specific enclosure protection rating, internal arc classification, or special environmental performance, state these requirements clearly in the technical specification.
Cable entry direction, cable type, cable size, termination interfaces, and available installation space should be checked before ordering.
If future feeder additions are planned, confirm whether the selected SRM6-12 configuration supports extension and what additional connection components or installation space may be required. Extension capability should not be assumed for every design.
To help us review your requirements and recommend a suitable SRM6-12 configuration, please provide the following information where available:
Required quantity and project location.
System voltage and frequency.
Single-line diagram (SLD).
Required incoming, outgoing, and transformer feeder functions.
Rated current and short-circuit requirements.
Transformer rating and protection requirements.
Cable connection details and installation conditions.
Applicable standards and required technical documents.
If your project specifications are not yet complete, you can start by sending your single-line diagram or basic electrical requirements.
Need help selecting an SRM6-12 Ring Main Unit? Contact our team with your project details to discuss the required configuration and technical specifications.
Flexible Configuration Options – One platform supports three variants: load break switch for line switching, fuse-switch combination for transformer protection, or vacuum circuit breaker for fault interruption. Select the right fit without redesigning your network.
Built for Harsh Environments – The rugged enclosure withstands high humidity, heavy dust, and extreme temperature swings. Install it in underground vaults, coastal areas, or industrial zones without added protection.
Space-Saving Compact Design – A small footprint fits easily into confined spaces like modular substations, prefabricated switchrooms, and urban cable pits. No costly civil works required.
Low Lifecycle Costs – No routine maintenance needed over its entire service life, significantly reducing operational expenses. Your team stays focused on system optimization, not equipment upkeep.
Proven Across Diverse Applications – Extensively deployed in urban grids, commercial complexes, manufacturing plants, and renewable energy sites. Real-world performance validated across industries and climates.
Globally Certified Quality – Fully type-tested to IEC 62271-200 and GB3906 standards. Meets international and Chinese grid requirements for smooth procurement worldwide.
Urban Power Distribution – Deployed in underground ring networks, compact substations, and cable distribution rooms across cities. Handles high-density loads with reliable switching and protection.
Commercial & Residential Complexes – Installed in basements or dedicated utility rooms of shopping malls, high-rise buildings, and residential communities. Compact size fits limited building service areas.
Industrial & Mining Facilities – Operates reliably in manufacturing plants, refineries, and mining sites where dust, moisture, and temperature variations are common. Rugged build minimizes production disruptions.
Renewable Energy Projects – Integrates into solar farms and wind power plants for collector line protection and grid interconnection. Adapts to remote outdoor sites with minimal infrastructure.
Indoor & Sheltered Outdoor Locations – Designed for installation in substations, switchrooms, cable vaults, and similar protected environments. Not intended for direct outdoor exposure without additional shelter.
Compact Space Adaptability – Small footprint allows placement in confined areas such as underground pits, modular substations, and prefabricated switchgear rooms. No special foundation or structural reinforcement needed.
Temperature Range – Operates reliably across ambient temperatures from -25°C to +55°C. Performs consistently in both cold climates and high-heat industrial settings.
Humidity & Dust Resistance – Withstands high humidity and dusty environments without performance loss. No additional filtration or climate control systems typically required.
Network Topology Compatibility – Works with both ring and radial distribution networks. Existing system configurations generally need no major modifications for integration.
Customized Solution
For detailed drawings, type-test reports, or specific model quotations, please click "Send Inquiry" or contact us directly via the information on the right. Our engineering team will provide one-on-one selection support tailored to your project requirements.
