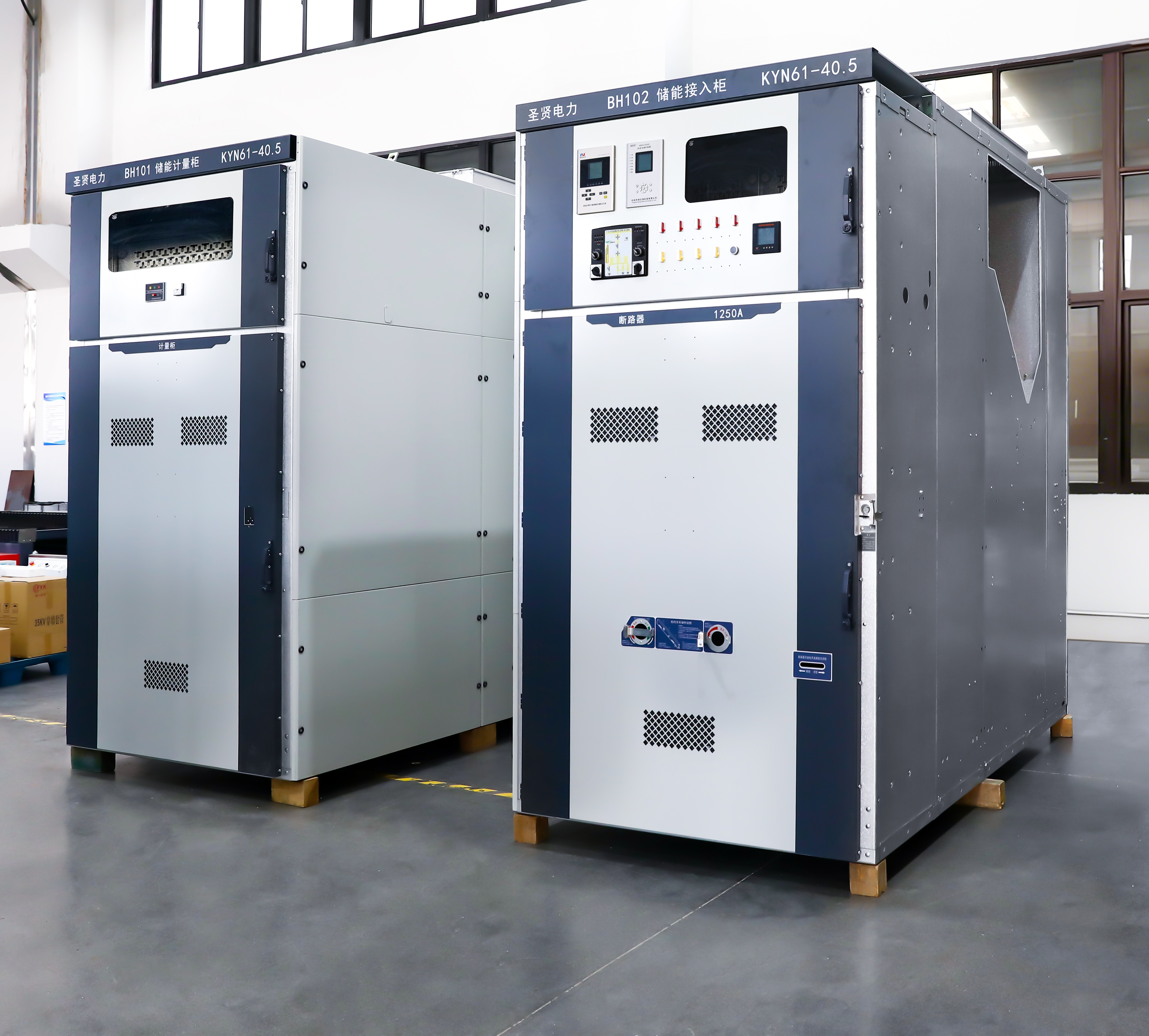

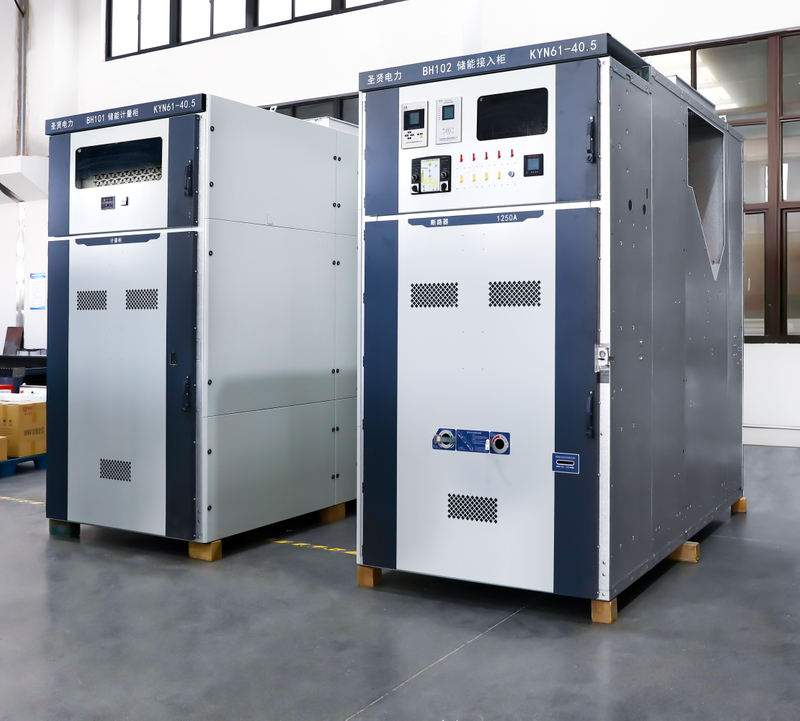

KYN61-40.5 Indoor Armored Withdrawable AC Metal-Enclosed Switchgear is designed for three-phase AC 50Hz power systems. It is an ideal solution for power plants, substations, and large industrial power distribution networks, performing core functions such as power reception, distribution, control, protection, and monitoring to ensure safe and stable system operation.
The product complies with national standards including GB3906 and GB/T 11022, and is designed with reference to international standards such as IEC 62271-200. It offers high reliability, strong safety, and excellent compatibility.
KYN61
Sage Electric
KYN61
| Availability: | |
|---|---|
| Quantity: | |
KYN61-40.5kV Withdrawable Switchgear: Engineered for Uninterrupted Power in the World's Most Demanding Grids
The Heart of a Resilient Power System
In regions where grid stability is non-negotiable and environmental conditions push equipment to its limits, our KYN61-40.5kV withdrawable switchgear stands as a cornerstone of reliable power distribution. Designed for utilities, independent power producers, and heavy industries operating across diverse and challenging climates, this switchgear delivers not just compliance, but predictable performance and enhanced safety throughout its operational life.
Core Advantages That Address Critical Operational Challenges
Engineered for Human Error Prevention
Safety transcends standard interlocking. Our system implements a positive, procedural mechanical interlock that physically guides operators through a correct, safe sequence. Combined with solid earthed barriers isolating the busbar, circuit breaker, cable, and relay compartments—each with verified internal arc containment—it creates a fundamentally safer working environment for your teams.
Maximized Uptime Through Intelligent Design
Operational continuity is paramount. Our fully standardized truck system ensures that any functional module (breaker, metering, PT) can be inserted into any compartment. The refined racking mechanism allows for safe, smooth engagement and disengagement under full insulation. This enables true "live bus" maintenance, permitting work on one feeder without disrupting the entire lineup, thereby drastically increasing system availability.
Built to Withstand Nature's Extremes
From tropical humidity to desert dust and coastal salt spray, our design prioritizes endurance. The enclosure achieves a robust IP4X rating, with sealed barriers maintaining IP2X between critical sections. We utilize anti-corrosion treatments and hydrophobic insulation materials at key points to prevent tracking and ensure dielectric integrity, even in sustained high-humidity or polluted atmospheric conditions.
Scalable Architecture for Evolving Needs
Your power infrastructure will grow and change. The spacious, accessible cable compartment simplifies installation and future modifications. The modular, bolt-together construction allows for easy extension of the switchgear lineup. Pre-defined interfaces facilitate the integration of digital monitoring devices and smart grid communication protocols, protecting your investment as technology advances.
Your Partner for Seamless Global Deployment
Technical Adaptation & Documentation: We configure equipment to meet specific regional standards (IEC, IEEE, SANS, etc.) and provide comprehensive certification packs, including design type test reports.
Streamlined Project Execution: We manage complexity with clear timelines (typical lead time: 10-12 weeks), expert export packaging, and complete shipping documentation to ensure smooth delivery to your site.
Beyond the Warranty: Supported by a 24-month standard warranty, we offer lifecycle services including startup supervision, dedicated training programs, and a reliable, long-term spare parts supply chain.
Proven in the Field: Our solutions are trusted in international energy and infrastructure projects, backed by a dedicated engineering team ready to support your project from initial specification to commissioning.
Invest in Predictable Performance
In critical power distribution, the lowest lifetime cost is defined by reliability and minimized downtime. This switchgear is designed to deliver exactly that—reducing operational risk, simplifying maintenance, and providing a future-ready platform.
Contact our technical sales team to discuss your project specifications and receive a detailed proposal.
