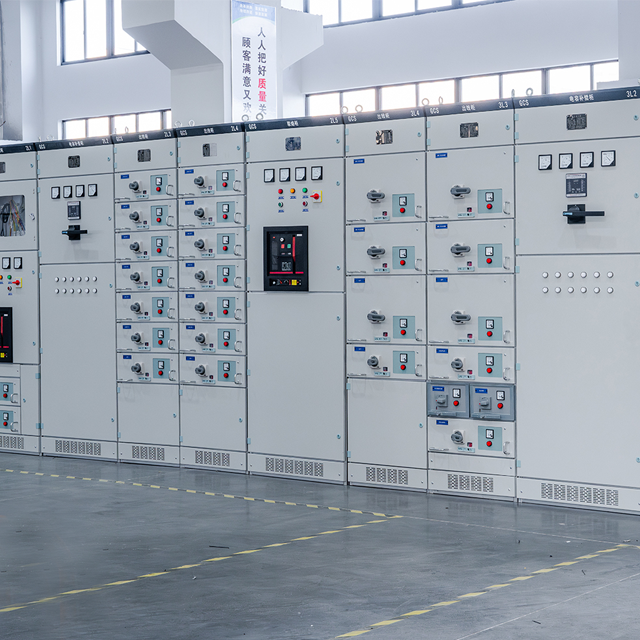

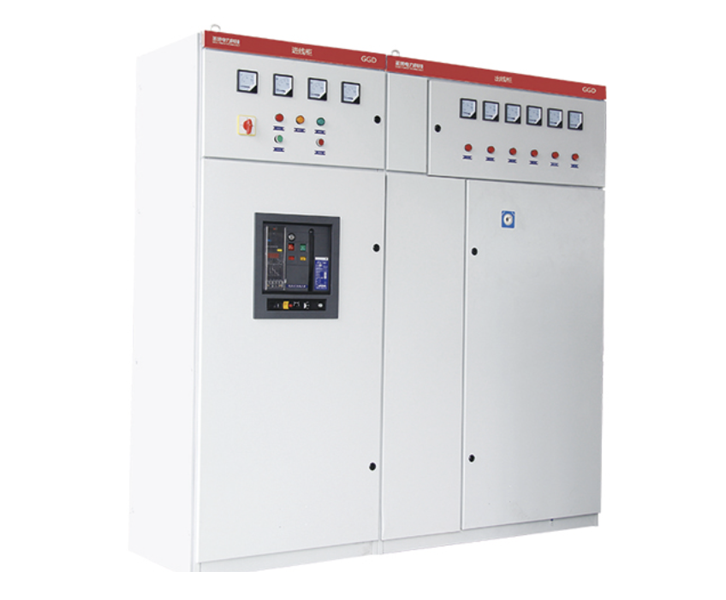

GGD low-voltage distribution cabinets are suitable for power plants, substations, factories, mines, and other electrical users with AC 50Hz, rated working voltage of 380V, and rated working current up to 3150A power distribution systems. They are used for the energy conversion, distribution, and control of power, lighting, and distribution equipment. GGD low-voltage distribution cabinets are designed based on the requirements of the energy department, power users, and design departments. They adhere to the principles of safety, economy, rationality, and reliability. The product features high breaking capacity, good dynamic and thermal stability, flexible electrical solutions, convenient combination, strong series and practicality, novel structure, and high protection level. They can be used as a replacement product for low-voltage complete switchgear. GGD AC low-voltage distribution cabinets meet the standards of IEC439 'Low-voltage switchgear and controlgear assemblies' and GB7251 'Low-voltage switchgear assemblies'.
The frame is made of 8MF cold-bent steel, with modular components and 20 mounting holes for pre-production, short cycle and high efficiency; 2. There are heat dissipation slots on the top and bottom, forming a natural ventilation duct; 3. The shape is designed according to the golden ratio, the cabinet door has rubber strips, the instrument door is connected with soft copper wire, and the grounding is complete; 4. Polyester orange-shaped baking paint, the top cover is detachable, equipped with lifting rings, protection level IP30, and can be selected between IP20-IP40.
The frame is made of 8MF cold-bent steel, with modular components and 20 mounting holes for pre-production, short cycle and high efficiency; 2. There are heat dissipation slots on the top and bottom, forming a natural ventilation duct; 3. The shape is designed according to the golden ratio, the cabinet door has rubber strips, the instrument door is connected with soft copper wire, and the grounding is complete; 4. Polyester orange-shaped baking paint, the top cover is detachable, equipped with lifting rings, protection level IP30, and can be selected between IP20-IP40.
Model
Rated Voltage (V)
Rated Current (A)
Rated Current (A)
Rated Short-Circuit Breaking Current (kA)
Rated Short-Time Withstand Current (1s) (kA)
Rated Peak Withstand Current (kA)
GGD1
380
A：1000
A：1000
15
15
30
B：600(630)
B：600(630)
C：400
C：400
GGD2
380
A：500(1600)
A：500(1600)
30
30
65
B：1000
B：1000
C：600
C：600
GGD3
380
A：3150
A：3150
50
50
105
B：2500
B：2500
C：2000
C：2000
Model
Rated Voltage (V)
Rated Current (A)
Rated Current (A)
Rated Short-Circuit Breaking Current (kA)
Rated Short-Time Withstand Current (1s) (kA)
Rated Peak Withstand Current (kA)
GGD1
380
A：1000
A：1000
15
15
30
B：600(630)
B：600(630)
C：400
C：400
GGD2
380
A：500(1600)
A：500(1600)
30
30
65
B：1000
B：1000
C：600
C：600
GGD3
380
A：3150
A：3150
50
50
105
B：2500
B：2500
C：2000
C：2000
Upon the product's arrival at the destination, the packaging should first be checked for any damage or integrity issues. Any problems should be promptly reported to the relevant departments for tracing the cause. For products not to be installed immediately, they should be placed in an appropriate location according to the regulations of normal use conditions.
1. Product Installation The installation of the product should be carried out as per the installation diagram (see attached figure 2). The base channel steel and bolts must be provided by the user. When installing the main busbar, ensure that the joint surfaces are smoothed and cleaned, treated with neutral vaseline or other measures, and then fastened with bolts. 2. Before the product is put into operation after installation, the following items need to be checked and tested:
(1). Check if the paint on the cabinet body has peeled off, and if the inside is dry and clean.
(2). Whether the operating mechanism of the electrical components is flexible, there should be no sticking or excessive operating force.
(3). Whether the on and off of the main and auxiliary contacts of the main electrical equipment are reliable and accurate.
(4). Whether the instrument indication and the ratio and polarity of the current transformer are correct.
(5). Whether the busbar connection is good, and whether the insulating support parts, mounting parts, and accessories are installed firmly and reliably.
(6). Whether the auxiliary contacts meet the requirements, whether the fuse core specifications are correct, whether the relay setting values meet the design requirements, and whether the action is reliable and accurate.
(7). Whether the contacts of the circuit meet the requirements of the electrical schematic diagram.
(8). Whether the protection circuit system meets the requirements.
(9). Measure the insulation resistance value with a 500-volt megohmmeter, which should not be less than 1 megohm.
Upon the product's arrival at the destination, the packaging should first be checked for any damage or integrity issues. Any problems should be promptly reported to the relevant departments for tracing the cause. For products not to be installed immediately, they should be placed in an appropriate location according to the regulations of normal use conditions.
1. Product Installation The installation of the product should be carried out as per the installation diagram (see attached figure 2). The base channel steel and bolts must be provided by the user. When installing the main busbar, ensure that the joint surfaces are smoothed and cleaned, treated with neutral vaseline or other measures, and then fastened with bolts. 2. Before the product is put into operation after installation, the following items need to be checked and tested:
(1). Check if the paint on the cabinet body has peeled off, and if the inside is dry and clean.
(2). Whether the operating mechanism of the electrical components is flexible, there should be no sticking or excessive operating force.
(3). Whether the on and off of the main and auxiliary contacts of the main electrical equipment are reliable and accurate.
(4). Whether the instrument indication and the ratio and polarity of the current transformer are correct.
(5). Whether the busbar connection is good, and whether the insulating support parts, mounting parts, and accessories are installed firmly and reliably.
(6). Whether the auxiliary contacts meet the requirements, whether the fuse core specifications are correct, whether the relay setting values meet the design requirements, and whether the action is reliable and accurate.
(7). Whether the contacts of the circuit meet the requirements of the electrical schematic diagram.
(8). Whether the protection circuit system meets the requirements.
(9). Measure the insulation resistance value with a 500-volt megohmmeter, which should not be less than 1 megohm.
The GGD low-voltage fixed-type switchgear is applicable to low-voltage power distribution systems with an AC voltage of 380V and below. It is usable for power and lighting distribution, and widely employed in scenarios including industrial workshops, shopping malls, hospitals, high-rise buildings, and urban-rural power grids. It serves for power distribution, control and protection of relevant equipment, so as to ensure stable power supply.
The GGD low-voltage fixed-type switchgear is applicable to low-voltage power distribution systems with an AC voltage of 380V and below. It is usable for power and lighting distribution, and widely employed in scenarios including industrial workshops, shopping malls, hospitals, high-rise buildings, and urban-rural power grids. It serves for power distribution, control and protection of relevant equipment, so as to ensure stable power supply.
