The high - voltage power capacitor used in this device is produced with advanced production technology, and has the characteristics of high reliability, stable performance, low loss, low operating temperature rise, long service life, low failure rate and high cost - effectiveness.
High - voltage expulsion fuses are used as short - circuit and over - current protection for single capacitors to ensure the safe operation of the device.

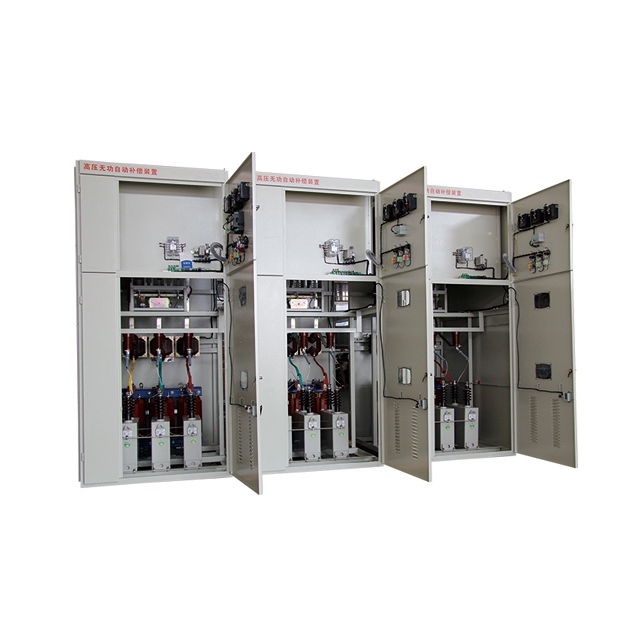

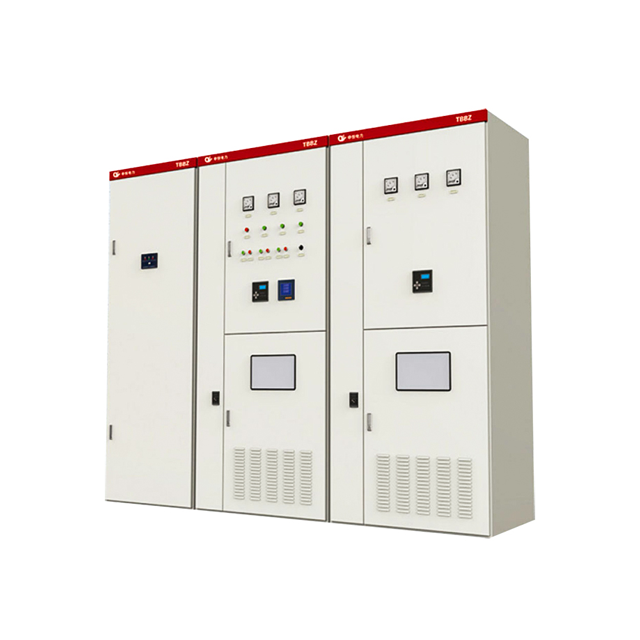

The whole set of device adopts a cabinet - type structure, with reasonable design and convenient use and maintenance. It has good dynamic and thermal stability performance, and is equipped with a safety device for forced interlocking of high - voltage live parts to ensure personal safety.
The high - voltage power capacitor used in this device is produced with advanced production technology, and has the characteristics of high reliability, stable performance, low loss, low operating temperature rise, long service life, low failure rate and high cost - effectiveness.
High - voltage expulsion fuses are used as short - circuit and over - current protection for single capacitors to ensure the safe operation of the device.
The whole set of device adopts a cabinet - type structure, with reasonable design and convenient use and maintenance. It has good dynamic and thermal stability performance, and is equipped with a safety device for forced interlocking of high - voltage live parts to ensure personal safety.
Parameter | Specification | |
Rated Voltage | 3kV, 6kV, 10kV, 24kV, 35kV | |
Power Frequency | 50Hz, 60Hz | |
Power Factor | Can reach above 0.95 | |
| Residual Voltage | Can drop to below 50V 5 minutes after power disconnection | |
Parameter | Specification | |
Rated Voltage | 3kV, 6kV, 10kV, 24kV, 35kV | |
Power Frequency | 50Hz, 60Hz | |
Power Factor | Can reach above 0.95 | |
| Residual Voltage | Can drop to below 50V 5 minutes after power disconnection | |
Ambient Temperature: -25℃ ~ +40℃, with the 24-hour average temperature not exceeding +35℃;
Relative Humidity: ≤ 90% (at 25℃), no condensation;
Altitude: ≤ 1000m (special design is required for altitudes exceeding this value);
Location: Indoor/outdoor places free of explosive and flammable media, strong corrosive gases, dust, violent vibration and impact;
Power Supply: Grid voltage fluctuation ≤ ±10%, frequency fluctuation ≤ ±2%.
Ambient Temperature: -25℃ ~ +40℃, with the 24-hour average temperature not exceeding +35℃;
Relative Humidity: ≤ 90% (at 25℃), no condensation;
Altitude: ≤ 1000m (special design is required for altitudes exceeding this value);
Location: Indoor/outdoor places free of explosive and flammable media, strong corrosive gases, dust, violent vibration and impact;
Power Supply: Grid voltage fluctuation ≤ ±10%, frequency fluctuation ≤ ±2%.
Let the average active power of the equipment to be compensated be \(P_{\text{av}}\), the power factor before compensation be \(\cos\phi_1\), and the power factor after compensation be \(\cos\phi_2\). Then the reactive power compensation capacity is:\(Q = P_{\text{av}}(\tan\phi_1 - \tan\phi_2) = P_{\text{av}}\left( \sqrt{\frac{1}{\cos^2\phi_1} - 1} - \sqrt{\frac{1}{\cos^2\phi_2} - 1} \right)\)Q: Reactive power compensation capacity (kvar);\(P_{\text{av}}\): Average active power of the motor to be compensated (kW);\(\tan\phi_1\): Tangent value of the power factor angle before improvement;\(\tan\phi_2\): Tangent value of the power factor angle after improvement;\(\cos\phi_1\): Power factor before improvement;\(\cos\phi_2\): Power factor after improvement.
Let the average active power of the equipment to be compensated be \(P_{\text{av}}\), the power factor before compensation be \(\cos\phi_1\), and the power factor after compensation be \(\cos\phi_2\). Then the reactive power compensation capacity is:\(Q = P_{\text{av}}(\tan\phi_1 - \tan\phi_2) = P_{\text{av}}\left( \sqrt{\frac{1}{\cos^2\phi_1} - 1} - \sqrt{\frac{1}{\cos^2\phi_2} - 1} \right)\)Q: Reactive power compensation capacity (kvar);\(P_{\text{av}}\): Average active power of the motor to be compensated (kW);\(\tan\phi_1\): Tangent value of the power factor angle before improvement;\(\tan\phi_2\): Tangent value of the power factor angle after improvement;\(\cos\phi_1\): Power factor before improvement;\(\cos\phi_2\): Power factor after improvement.
1. Are you a trading company or manufacturer ?
We are a professional factory with 10 years experience in the field of High and low Voltage switchgears, Substation, transformers, cable distribution box and various electrical equipment, such as vacuum circuit breaker, load break switch etc.
Our factory is the excellent supplier of State Grid Corporation od China.
2. Do you accept customized serveice?
We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .
3. What is your MOQ?
Our MOQ is 1 piece.
4. How long is your delivery lead time?
It depends on your product requirement and quantity. Generally , 5~10 working days is avaliable.
5. How do you solve quality problems?
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse. we will make a satisfied soluton within 2 days.
6. What is your payment terms?
30%T/T in adcance, 70% before shipment. West union, L/C are also acceptable.
1. Are you a trading company or manufacturer ?
We are a professional factory with 10 years experience in the field of High and low Voltage switchgears, Substation, transformers, cable distribution box and various electrical equipment, such as vacuum circuit breaker, load break switch etc.
Our factory is the excellent supplier of State Grid Corporation od China.
2. Do you accept customized serveice?
We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .
3. What is your MOQ?
Our MOQ is 1 piece.
4. How long is your delivery lead time?
It depends on your product requirement and quantity. Generally , 5~10 working days is avaliable.
5. How do you solve quality problems?
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse. we will make a satisfied soluton within 2 days.
6. What is your payment terms?
30%T/T in adcance, 70% before shipment. West union, L/C are also acceptable.
