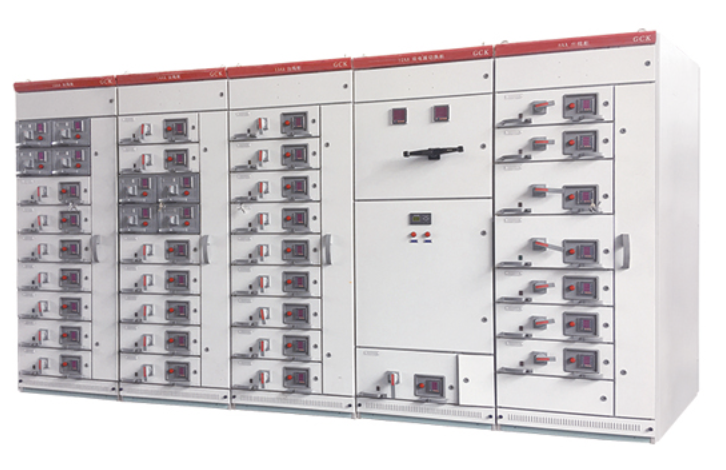

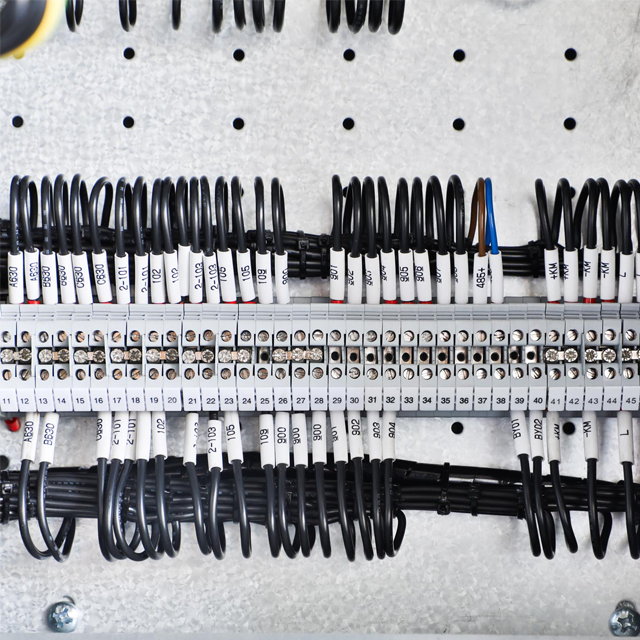

The GCK low-voltage withdrawable switchgear consists of two parts: the power distribution center (PC) cabinet and the motor control center (MCC). It is suitable for power users such as power plants, substations, industrial and mining enterprises, etc., for AC 50Hz power distribution systems with a maximum operating voltage of up to 660V and a maximum operating current of up to 3150A, as power distribution, motor control, and lighting distribution equipment for energy conversion, distribution, and control.
This series of products features high breaking capacity, good dynamic and thermal stability, advanced and rational structure, practical electrical schemes, strong series and versatility, arbitrary combination of various scheme units A single cabinet can accommodate a relatively large number of circuits. saving floor space, aesthetic appearance, high protection level, safety and reliability, and easy maintenance. The product complies with IEC439, NEMA/ICS2-322 standards, as well as GB7251.1-2013 'Low-voltage switchgear and controlgear assemblies' national standard and ZBK36001-89 'Low-voltage withdrawable switchgear assemblies' professional standard.
This series of products features high breaking capacity, good dynamic and thermal stability, advanced and rational structure, practical electrical schemes, strong series and versatility, arbitrary combination of various scheme units A single cabinet can accommodate a relatively large number of circuits. saving floor space, aesthetic appearance, high protection level, safety and reliability, and easy maintenance. The product complies with IEC439, NEMA/ICS2-322 standards, as well as GB7251.1-2013 'Low-voltage switchgear and controlgear assemblies' national standard and ZBK36001-89 'Low-voltage withdrawable switchgear assemblies' professional standard.
No.
Item
Sub-item
Parameter
1
Rated Operating Frequency (Hz)
-
50
2
Rated Operating Voltage (V)
-
380, 660
3
Rated Insulation Voltage (V)
-
660
4
Rated Operating Current (A)
Horizontal Busbar
630 - 3150
5
Rated Operating Current (A)
Vertical Busbar
600
6
Rated Short-Time Withstand Current
Horizontal Busbar
80kA (RMS) / 1s
7
Rated Short-Time Withstand Current
Vertical Busbar
50kA (RMS) / 1s
8
Rated Peak Withstand Current
Horizontal Busbar
176kA / 0.1s
9
Rated Peak Withstand Current
Vertical Busbar
110kA / 0.1s
10
Main Circuit Connector (A)
-
200, 400
11
Auxiliary Circuit Connector (A)
-
10
12
Power Frequency Withstand Voltage for 1 Minute (V)
-
2500
13
Degree of Protection (IP Code)
-
IP40
14
Operation Mode
-
Local, Remote, Automatic
No.
Item
Sub-item
Parameter
1
Rated Operating Frequency (Hz)
-
50
2
Rated Operating Voltage (V)
-
380, 660
3
Rated Insulation Voltage (V)
-
660
4
Rated Operating Current (A)
Horizontal Busbar
630 - 3150
5
Rated Operating Current (A)
Vertical Busbar
600
6
Rated Short-Time Withstand Current
Horizontal Busbar
80kA (RMS) / 1s
7
Rated Short-Time Withstand Current
Vertical Busbar
50kA (RMS) / 1s
8
Rated Peak Withstand Current
Horizontal Busbar
176kA / 0.1s
9
Rated Peak Withstand Current
Vertical Busbar
110kA / 0.1s
10
Main Circuit Connector (A)
-
200, 400
11
Auxiliary Circuit Connector (A)
-
10
12
Power Frequency Withstand Voltage for 1 Minute (V)
-
2500
13
Degree of Protection (IP Code)
-
IP40
14
Operation Mode
-
Local, Remote, Automatic
When installing this product, the horizontal lines between cabinets should be connected firmly and reliably. 2. The door of this product has an interlock function with the main switch, which means that the door can only be opened when the power is cut off. Other sides of this product are screw-sealed panels, which do not have an interlock function with the main switch. Therefore, users must disconnect the power when removing the side panels of this product for maintenance. 3. Do not open the cabinet for maintenance and repair by non-professionals.
When installing this product, the horizontal lines between cabinets should be connected firmly and reliably. 2. The door of this product has an interlock function with the main switch, which means that the door can only be opened when the power is cut off. Other sides of this product are screw-sealed panels, which do not have an interlock function with the main switch. Therefore, users must disconnect the power when removing the side panels of this product for maintenance. 3. Do not open the cabinet for maintenance and repair by non-professionals.
The GCK low-voltage withdrawable switchgear is suitable for low-voltage power distribution systems with AC 380V and below. Its drawer units can be flexibly replaced and maintained conveniently, so it is widely used in scenarios requiring high power supply continuity and maintenance efficiency, such as industrial production lines, large shopping malls, hospitals and data centers, for power distribution, equipment control and protection.
The GCK low-voltage withdrawable switchgear is suitable for low-voltage power distribution systems with AC 380V and below. Its drawer units can be flexibly replaced and maintained conveniently, so it is widely used in scenarios requiring high power supply continuity and maintenance efficiency, such as industrial production lines, large shopping malls, hospitals and data centers, for power distribution, equipment control and protection.
