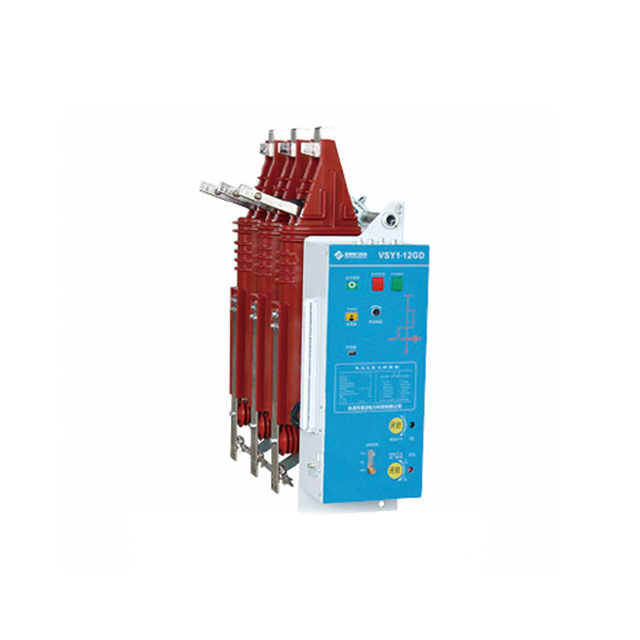

The VIG(C) - 12GD series indoor high - voltage three - position vacuum circuit breaker has excellent electrical and mechanical properties, with a reliable and stable mechanism and a long service life. The main circuit adopts solid - sealed pole technology, which improves the environmental adaptability and insulation reliability of the circuit breaker. Reliable mechanical and electronic properties, as well as extended mechanical and electronic service lives, make maintenance - free operation of the circuit breaker possible. It can be used in 3.6 - 12kV power systems as a protection and control unit for power grid equipment and power design in industrial and mining enterprises. It is suitable for various loads with different properties, frequent operations, and occasions with multiple short - circuit current interruptions. The product is equipped with perfect mechanical and electrical interlocking devices, and has extremely high operational stability and reliability, ensuring the safety of operators and equipment, as well as the safety of electricity use.
Adopts solid - sealed pole technology.
The product adopts a modular design: With a frame structure, it is a high - performance and miniaturized high - voltage electrical product that integrates isolating switches, solid - sealed vacuum circuit breakers, grounding switches, sensors, interlocking mechanisms, and operating mechanisms.
The size of the adapted cabinet is (450 x 1000 x 1800) mm.
Rotary isolating switch with visible break points after opening.
There are forced mechanical interlocks between the isolating switch, circuit breaker, and grounding switch to prevent misoperation.
The circuit breaker adopts a modular operating mechanism, which can be replaced or overhauled independently and has good interchangeability. It can be operated manually, or AC/DC energy storage operation can be selected to realize remote control.
The cabinet door and the grounding switch are designed with a reliable interlocking structure to ensure the safety of operators.
The VIG(C) - 12GD series indoor high - voltage three - position vacuum circuit breaker has excellent electrical and mechanical properties, with a reliable and stable mechanism and a long service life. The main circuit adopts solid - sealed pole technology, which improves the environmental adaptability and insulation reliability of the circuit breaker. Reliable mechanical and electronic properties, as well as extended mechanical and electronic service lives, make maintenance - free operation of the circuit breaker possible. It can be used in 3.6 - 12kV power systems as a protection and control unit for power grid equipment and power design in industrial and mining enterprises. It is suitable for various loads with different properties, frequent operations, and occasions with multiple short - circuit current interruptions. The product is equipped with perfect mechanical and electrical interlocking devices, and has extremely high operational stability and reliability, ensuring the safety of operators and equipment, as well as the safety of electricity use.
Adopts solid - sealed pole technology.
The product adopts a modular design: With a frame structure, it is a high - performance and miniaturized high - voltage electrical product that integrates isolating switches, solid - sealed vacuum circuit breakers, grounding switches, sensors, interlocking mechanisms, and operating mechanisms.
The size of the adapted cabinet is (450 x 1000 x 1800) mm.
Rotary isolating switch with visible break points after opening.
There are forced mechanical interlocks between the isolating switch, circuit breaker, and grounding switch to prevent misoperation.
The circuit breaker adopts a modular operating mechanism, which can be replaced or overhauled independently and has good interchangeability. It can be operated manually, or AC/DC energy storage operation can be selected to realize remote control.
The cabinet door and the grounding switch are designed with a reliable interlocking structure to ensure the safety of operators.
Ambient temperature: -25°C to +40°C.
Relative humidity: Daily average <95%, monthly average <90%.
Altitude: Not higher than 1000m.
Seismic intensity: Not exceeding 8 degrees.
Usage site: No explosion hazard, chemical hazards, severe vibration, or filth.
Conditions for use at altitudes above 1000m
When the altitude exceeds 1000m, the air density will relatively decrease, which will affect the protection coefficient of electrical appliances.
Users must make relevant calculations when selecting switches.
Ambient temperature: -25°C to +40°C.
Relative humidity: Daily average <95%, monthly average <90%.
Altitude: Not higher than 1000m.
Seismic intensity: Not exceeding 8 degrees.
Usage site: No explosion hazard, chemical hazards, severe vibration, or filth.
Conditions for use at altitudes above 1000m
When the altitude exceeds 1000m, the air density will relatively decrease, which will affect the protection coefficient of electrical appliances.
Users must make relevant calculations when selecting switches.
Three - position function: Integrates isolating switch, arc - extinguishing contact, and grounding switch, realizing three main functions through one device.
Isolating switch: Used to provide a visible isolation break point when the circuit breaker is in the open state, ensuring the safety of equipment and lines.
Vacuum arc - extinguishing contact: With vacuum as the arc - extinguishing medium, it has excellent arc - extinguishing performance and service life.
Grounding switch: Provides equipment grounding when needed to ensure the safety of operators.
Solid - sealed pole: The main circuit usually adopts solid - sealed pole technology, which improves the environmental adaptability, insulation performance, and reliability of the circuit breaker.
Visual design: Some products integrate visual isolating switches, making the operating state of the circuit breaker more intuitive and convenient for users to judge.
High reliability: The design is reliable and stable, with a long service life and excellent mechanical performance.
Environmental adaptability: Solid - sealing technology can improve the circuit breaker's adaptability to the environment and ensure stable operation under various conditions.
Three - position function: Integrates isolating switch, arc - extinguishing contact, and grounding switch, realizing three main functions through one device.
Isolating switch: Used to provide a visible isolation break point when the circuit breaker is in the open state, ensuring the safety of equipment and lines.
Vacuum arc - extinguishing contact: With vacuum as the arc - extinguishing medium, it has excellent arc - extinguishing performance and service life.
Grounding switch: Provides equipment grounding when needed to ensure the safety of operators.
Solid - sealed pole: The main circuit usually adopts solid - sealed pole technology, which improves the environmental adaptability, insulation performance, and reliability of the circuit breaker.
Visual design: Some products integrate visual isolating switches, making the operating state of the circuit breaker more intuitive and convenient for users to judge.
High reliability: The design is reliable and stable, with a long service life and excellent mechanical performance.
Environmental adaptability: Solid - sealing technology can improve the circuit breaker's adaptability to the environment and ensure stable operation under various conditions.
1. switchgears, Substation ,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker , load break switch etc.
Our factory is the excellent supplier of State Grid Corporation od China.
2. Do you accept customized serveice?
We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .
3. What is your MOQ?
Our MOQ is 1 piece.
4. How long is your delivery lead time?
It depends on your product requirement and quantity. Generally , 5~10 working days is avaliable.
5. How do you solve quality problems?
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse. we will make a satisfied soluton within 2 days.
6. What is your payment terms?
30%T/T in adcance, 70% before shipment. West union, L/C are also acceptable.
1. switchgears, Substation ,transformers,cable distribution box and various electrical equipment, such as vacuum circuit breaker , load break switch etc.
Our factory is the excellent supplier of State Grid Corporation od China.
2. Do you accept customized serveice?
We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provice a satisfied project according to your drawing and parameters .
3. What is your MOQ?
Our MOQ is 1 piece.
4. How long is your delivery lead time?
It depends on your product requirement and quantity. Generally , 5~10 working days is avaliable.
5. How do you solve quality problems?
Please porvide detailed photoes of quality problems. our technical and quality testing department will analyse. we will make a satisfied soluton within 2 days.
6. What is your payment terms?
30%T/T in adcance, 70% before shipment. West union, L/C are also acceptable.
